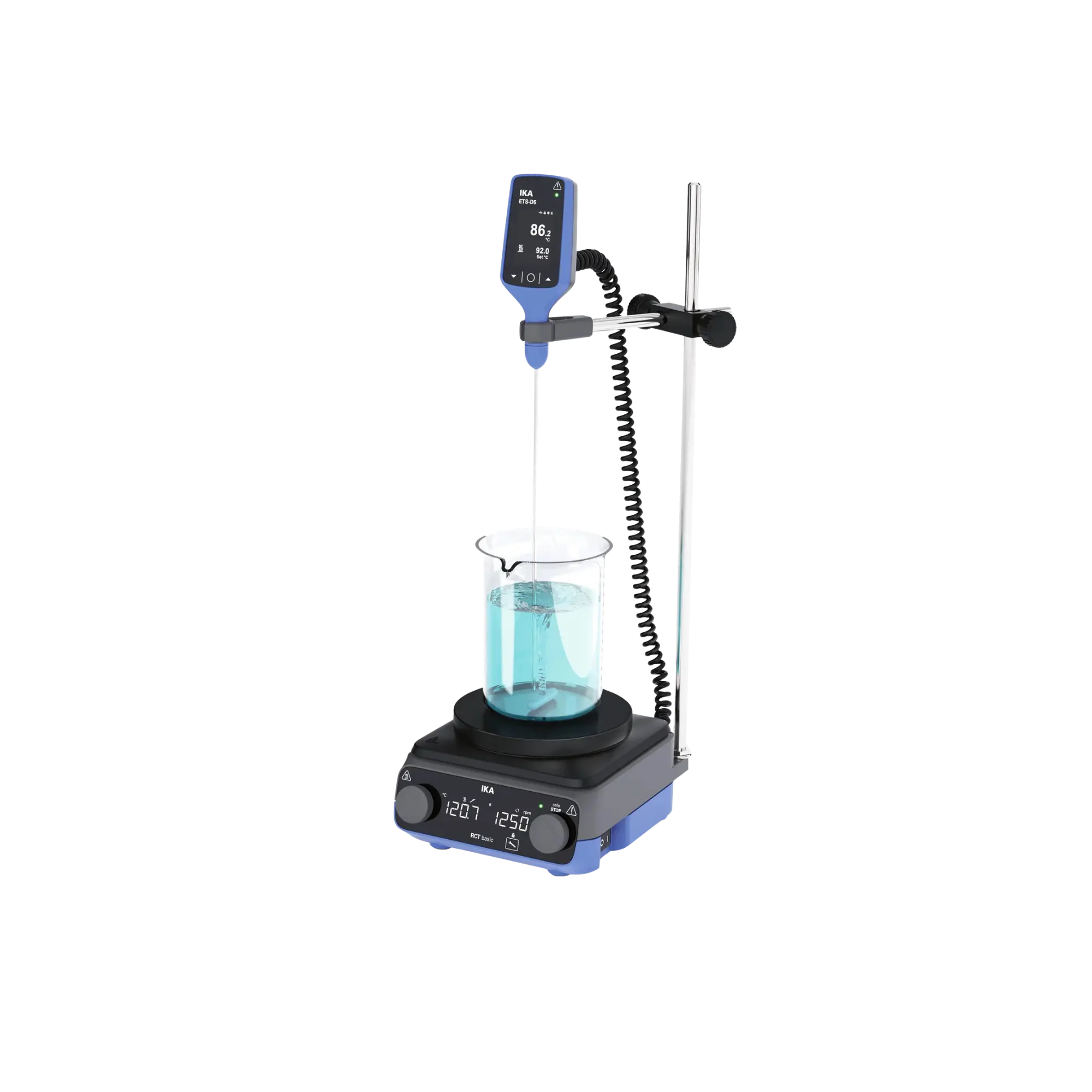

IKA RCT basic anodised ETS-D5 Solution magnetic stirrer complete package, anodised aluminium base, 0010016503

The IKA RCT basic anodised ETS-D5 Solution Complete Package (MPN 0010016503) represents a technologically advanced, networked and process-reliable system solution for demanding B2B laboratory environments. This turnkey, all-in-one set combines the high-performance, latest-generation RCT basic anodised heating magnetic stirrer with the precise ETS-D5 electronic contact thermometer, as well as the appropriate mounting and protective accessories. The direct interaction between these two high-end components takes temperature control within the medium to a new level. As the contact thermometer interfaces directly with the stirrer’s software-independent safety circuit, the maximum permissible temperature in the medium can be limited entirely independently of the setpoint temperature. This pre-configured package offers maximum reliability for daily routine processes in chemical synthesis, in industrial testing laboratories or during quality control.

Maximum heating rates thanks to an energy-optimised anodised aluminium heating plate

The materials science foundation of the stirrer drive is a circular base with a diameter of 135 mm, made from a highly conductive aluminium alloy and sealed with an extremely durable anodised coating. This anodised protective layer reliably protects the system against mechanical scratches and a wide range of aggressive laboratory chemicals. Thanks to its energy-optimised insulation, the integrated heater delivers an outstanding output of 800 watts, resulting in extremely short heating cycles with peak rates of up to 9 K/min. The compact housing, sealed to protection class IP 54, reliably protects the sensitive control electronics from liquids and vapours, whilst at the same time saving valuable space in the fume cupboard or on laboratory lifting platforms.

Maximum validation reliability and intelligent protection functions

From a process engineering perspective, the ETS-D5 Solution ensures uncompromisingly precise temperature control directly within the liquid core of the sample. The contact thermometer utilises a sophisticated PID control system to ensure stable temperature consistency without thermal overshoot. Integrated safety features such as an adjustable sensor timeout, temperature drop detection and a predefined setpoint limit guarantee maximum safety even during unattended long-term experiments or in autonomous 24/7 operation. For seamless digital data acquisition, centralised process control and audit-compliant documentation, the main unit is equipped as standard with USB-C and RS232 interfaces for direct connection to higher-level laboratory management systems.

Technical details

Drive & Stirring Specifications

• Number of stirring points: 1
• Maximum stirring volume (based on water): 20 litres
• Speed range: 50 to 1500 revolutions per minute (rpm)
• Speed control: Continuously variable via electronic control with digital LED plain-text display
• Magnetic coupling: High-performance permanent magnets for stable agitator guidance during transient viscosity changes

Thermodynamics & heating power

• Heating power: 800 watts (for ultra-fast heating rates)
• Heating plate temperature: Room temperature to 310 degrees Celsius
• Maximum heating rate: Up to 9 K/min
• Heating plate control accuracy: +/- 0.5 K
• Control accuracy in the medium with ETS-D5: +/- 0.5 K
• Support surface diameter: 135 mm
• Heating plate material: Aluminium, chemically resistant anodised
• Adjustable safety range (min./max.): 50 to 360 degrees Celsius (mechanically coded)

Connectivity, protection classes & geometry

• Digital interfaces (main unit): RS 232 and USB-C for comprehensive documentation
• Wireless extension: WPAN optional (via separately available USB WD dongle)
• Display technology (thermometer): User-friendly, flat TFT touchscreen
• Protection class according to DIN EN 60529: IP 54 (complete protection against dust and splashing water)
• Dimensions (W x D x H): 160 x 200 x 100 mm (ultra-compact unit)
• Power consumption (rated power): 820 watts (standby: 0.45 W)
• Net weight: 2.3 kg (main unit)
• Mains connection: 220–230 V / 50/60 Hz

Contents

• 1 x IKA RCT basic anodised magnetic stirrer with heating
• 1 x IKA ETS-D5 electronic contact thermometer with touchscreen
• 1 x IKA PT 1000.60 stainless steel temperature probe
• 1 x IKA support rod H 16 V
• 1 x IKA cross-joint H 44
• 1 x IKA support rod H 38
• 1 x Custom-fit protective cover H 80 (to protect against splashes of corrosive media)
• 2 x PTFE-coated magnetic stirrers (IKAFLON 30 and IKAFLON 40)
• 1 x screwdriver for mechanical safety circuit adjustment
• 1 x mains lead
• 1 x Detailed operating instructions / safety guide

Customised requirements & accessories

To ensure you get the most out of the IKA RCT basic anodised ETS-D5 Solution complete package, we offer a comprehensive range of compatible system accessories in our B2B portfolio:

• Digital connectivity: IKA USB WD wireless dongle (MPN 0020123620) for retrofitting wireless WPAN communication functions with the Pt.Wireless or ETS-D7 wireless sensor systems.
• Synthesis heads: Heat-efficient IKA Dry heads and flask holders made from anodised aluminium for the clean, completely oil-free heating of round-bottom flasks directly on the anodised base.
• Special sensors: Optional interchangeable sensors for the ETS-D5, made from robust special glass (H66.51) or with a highly chemically resistant protective coating (H66.53) for safe operation in strongly acidic or alkaline media. Make use of our technical procurement service for the reliable digitalisation planning of your workstations.
