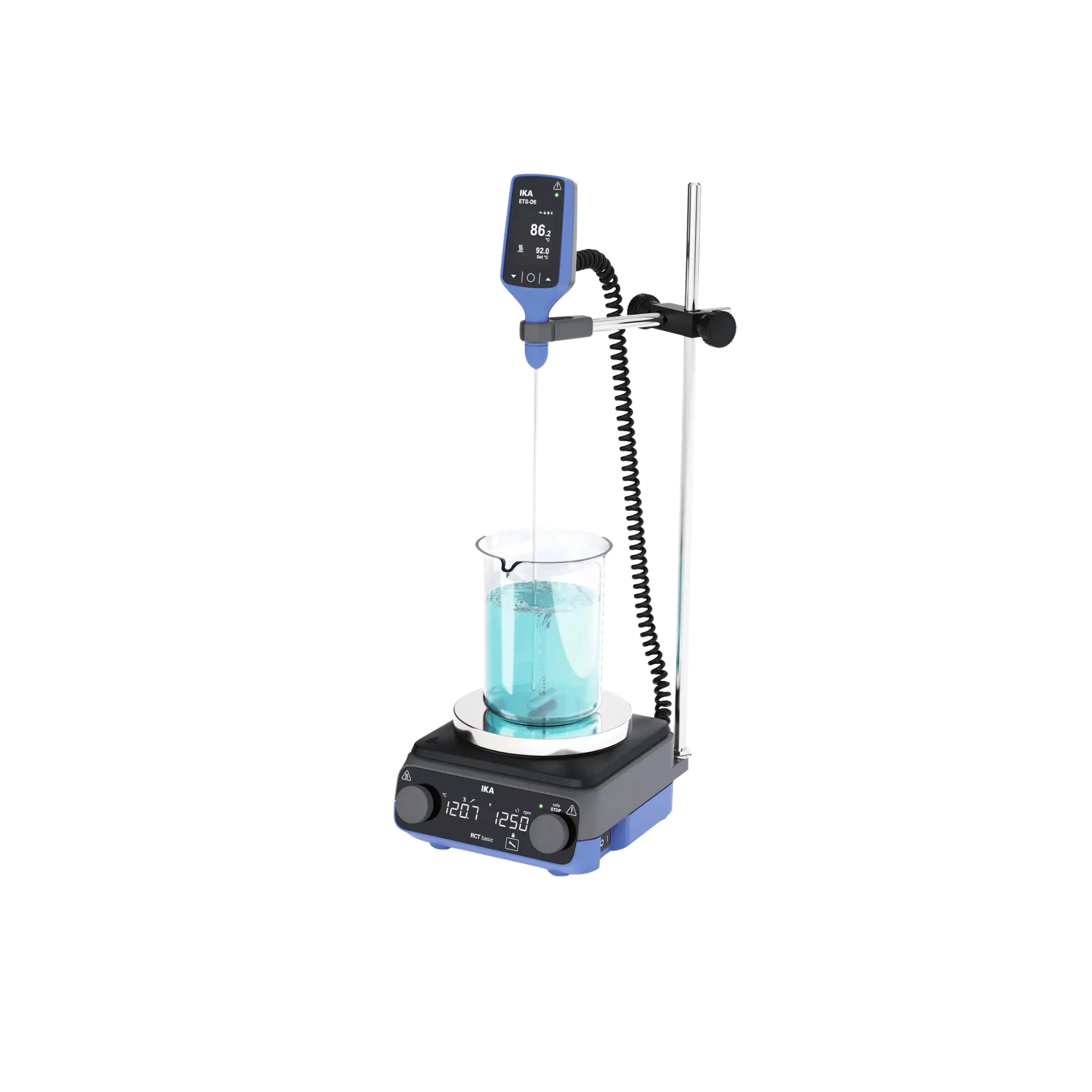

IKA RCT basic ETS-D5 Solution Magnetic Stirrer Complete Pack, Kera-Disk Base, 0010016495

The IKA RCT basic ETS-D5 Solution Complete Package (MPN 0010016495) represents a highly sophisticated, process-reliable and thermodynamically precise system solution for the simultaneous stirring and temperature control of liquid media to within one degree in the laboratory. This turnkey system package combines the globally proven RCT basic heating magnetic stirrer with the highly advanced ETS-D5 electronic contact thermometer and the appropriate mounting accessories. Whether for daily routine processes in chemical synthesis, sample preparation in B2B testing laboratories or reproducible mixing operations in industrial quality control, this complete set ensures gentle handling of materials and reliable operation during continuous use.

Kera-Disk technology for optimum thermal conductivity and chemical resistance

The innovative Kera-Disk base, with a diameter of 135 mm, forms the structural foundation of the stirring drive. The support plate is made of a highly conductive aluminium alloy, which ensures minimal heating times and absolutely homogeneous temperature distribution across the entire working surface. To protect against mechanical damage as well as highly corrosive acids, alkalis and solvents, the metal surface is sealed with a non-porous, extremely scratch-resistant ceramic coating. This robust hybrid construction combines the excellent thermal conductivity of metal with the chemical inertness of ceramic, facilitating quick, residue-free cleaning in everyday laboratory use.

Intelligent temperature control and safety features via the ETS-D5

The process engineering highlight of this solution package is the direct thermodynamic control within the medium via the ETS-D5 electronic contact thermometer, which is included in the scope of delivery. The accompanying Pt1000 probe, which meets tolerance class A, is positioned directly within the liquid core of the sample using the sturdy stand components. Using optimised PID control, the ETS-D5 continuously adjusts the heating power to the transient actual values, thereby effectively preventing thermal overshoot of the target temperature. Integrated safety features such as an adjustable sensor timeout, temperature drop detection and setpoint monitoring (Delta T) guarantee maximum process reliability and safely shut down the temperature control system in the event of a fault.

Technical details

Drive & stirring specifications

• Number of stirring points: 1
• Max. stirring volume (based on water): 20 litres
• Motor power output: 9 watts
• Speed range: 50 to 1500 revolutions per minute (rpm)
• Speed control: Continuously variable via analogue rotary control with digital LED display
• Magnetic coupling: High holding force for stable stirrer guidance during sudden changes in viscosity

Thermodynamics & control characteristics

• Heating power: 600 watts
• Heating plate temperature: Room temperature to 310 degrees Celsius
• Temperature measurement range (with probe): –20 °C to +400 °C
• Measurement and setpoint resolution: 0.1 K
• Temperature measurement accuracy: ±0.2 K + tolerance of the PT1000 sensor (Class A)
• Control accuracy in the medium with ETS-D5: ±0.5 K
• Temperature control modes: Fast, Precise (Highest Accuracy), Synthesis Block-optimised
• Control disc diameter / material: 135 mm / Kera-Disk (ceramic-coated aluminium)
• Adjustable safety range (min./max.): 50 to 360 degrees Celsius (on the RCT basic)

Construction, electronics & protection classes

• Thermometer user interface: User-friendly TFT touchscreen for intuitive configuration
• Digital interface (thermometer): USB-C for fast data transfer to a PC
• Protection class in accordance with DIN EN 60529 (RCT basic): IP 42
• Protection class according to DIN EN 60529 (ETS-D5): IP 54
• Dimensions of RCT basic (W x D x H): 160 x 270 x 85 mm
• Dimensions of ETS-D5 (W x D x H): 52 x 36 x 385 mm
• Mains connection: 220–230 V / 50/60 Hz

Contents

• 1 x IKA RCT basic magnetic stirrer with heating (Kera-Disk)
• 1 x IKA ETS-D5 electronic contact thermometer
• 1 x PT1000 temperature probe H62.51
• 1 x H 16 V support rod
• 1 x H 44 cross-joint
• 1 x mains cable
• 1 x Detailed operating instructions / safety guide

Customised requirements & accessories

To ensure optimal utilisation and expansion of the IKA RCT basic ETS-D5 Solution complete package, we offer a wide range of complementary system peripherals:

• Housing protection: Precisely fitting silicone protective covers to reliably prevent aggressive liquid splashes from reaching the surface of the magnetic stirrer.
• Synthesis stands: Highly chemically resistant IKA Dry stands made from anodised aluminium for the clean, oil-free heating of round-bottom flasks directly on the Kera-Disk base.
• Consumables: A wide range of PTFE-coated magnetic stirring bars in cylindrical, oval or triangular shapes to perfectly suit your vessel shapes. Make use of our technical procurement service to configure your laboratory workstations for specific applications.
