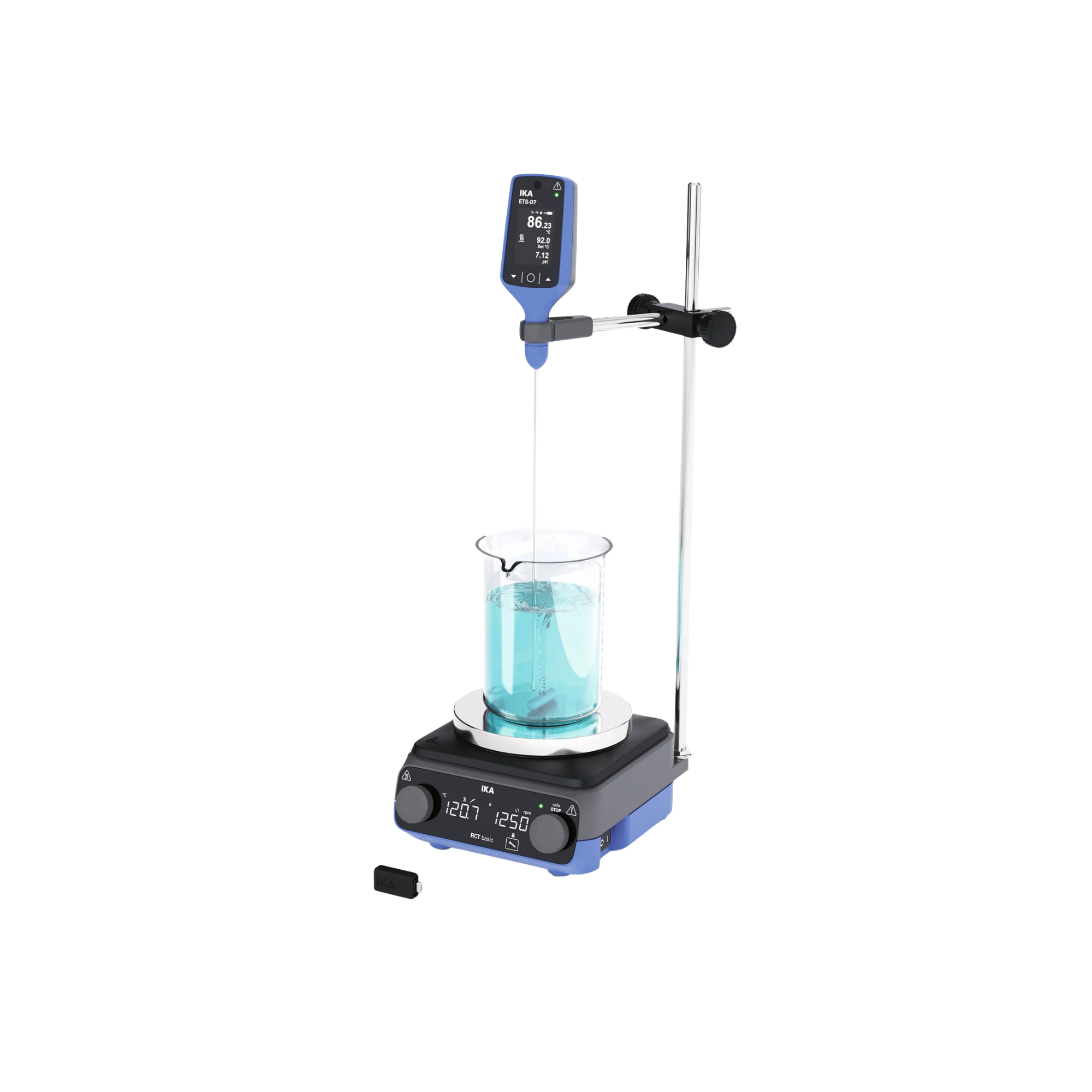

IKA RCT basic ETS-D7 Solution Magnetic Stirrer Complete Pack, Aluminium Base, 0010016508

The IKA RCT basic ETS-D7 Solution Complete Package (MPN 0010016508) is a high-performance mechatronic system solution, perfectly matched thermodynamically, for the simultaneous stirring, mixing and high-precision temperature control of liquid media in the laboratory. This turnkey combination set combines the RCT basic premium heating magnetic stirrer – tried and tested millions of times over – with the intelligent, electronic contact thermometer ETS-D7. Whether for demanding chemical syntheses, temperature-critical reactions in pharmaceutical research or routine applications in industrial quality control, precise thermal control directly within the sample medium is the primary criterion for working in a way that is gentle on the material, reproducible and process-reliable.

Excellent thermal conductivity thanks to the Kera-Disk base

The materials science foundation of the magnetic stirrer is based on the innovative IKA Kera-Disk base plate with a diameter of 135 mm. The base plate consists of a highly conductive aluminium alloy, which ensures minimal heating times and absolutely homogeneous temperature distribution across the entire base plate. To ensure uncompromising chemical resistance to highly corrosive media, acids and alkalis, the metal surface is sealed with a non-porous, scratch-resistant ceramic coating. This robust hybrid construction facilitates residue-free cleaning and protects the mechanical integrity of the heating surface during demanding continuous use.

Fault-free media temperature control via the ETS-D7 contact thermometer

A key process engineering feature of this system solution is the direct thermodynamic coupling via the ETS-D7 electronic contact thermometer included in the package. The connected temperature sensor monitors the transient actual temperature directly within the liquid core of the sample and controls the heating power via a highly efficient PID microprocessor. The system thus reliably prevents the dreaded overshoot of the target temperature. Via the ETS-D7’s intuitive graphical display, laboratory staff can keep a constant eye on all relevant parameters as well as the temperature curve. Integrated safety functions also allow a maximum cut-off temperature to be set for unattended operation.

Hermetically sealed housing and comprehensive laboratory safety

The long-term durability of the unit is ensured by a hermetically sealed die-cast aluminium housing. This structural barrier complies with protection class IP 42 and reliably protects the internal electronic control elements and the powerful magnetic drive against the ingress of spilled liquids, corrosive vapours or dust. A comprehensive safety concept protects users and the laboratory infrastructure: an independently adjustable safety circuit immediately switches off the heating function in the event of an unexpected overheating, whilst a visual residual heat indicator (Hot Top Indicator) reliably warns staff of the risk of burns even after the unit has been switched off.

Technical details

Drive & stirring specifications (RCT basic)

• Number of stirring points: 1
• Maximum stirring volume (based on water): 20 litres
• Motor power output: 9 watts
• Speed range: 50 to 1500 revolutions per minute (rpm)
• Speed control: Stepless analogue rotary control with digital LED display
• Magnetic coupling: High holding force, prevents the stirring blade from being torn off in the event of sudden changes in viscosity

Thermodynamics & heating power

• Heating power: 600 watts (for ultra-fast heating cycles)
• Heating plate temperature: Room temperature to 310 °C
• Heating plate temperature accuracy: +/- 1 K
• Heating plate diameter: 135 mm
• Heating disc material: Kera-Disk (aluminium alloy with ceramic coating)
• Adjustable safety range (min./max.): 50 to 360 °C

Specifications for ETS-D7 contact thermometer

• Measurement and control range: -50 to +450 °C
• Control accuracy with integrated Pt1000 sensor: +/- 0.1 K
• Display: High-resolution graphic display for intuitive menu navigation
• Safety functions: Adjustable safety cut-off temperature, sensor break detection

Construction, geometry & protection classes

• Housing material: Robust die-cast aluminium housing, powder-coated for chemical resistance
• Protection class according to DIN EN 60529: IP 42 (hermetically sealed against ingress of media)
• Dimensions (W x D x H): 160 x 270 x 85 mm
• Mains connection: 220–230 V / 50/60 Hz

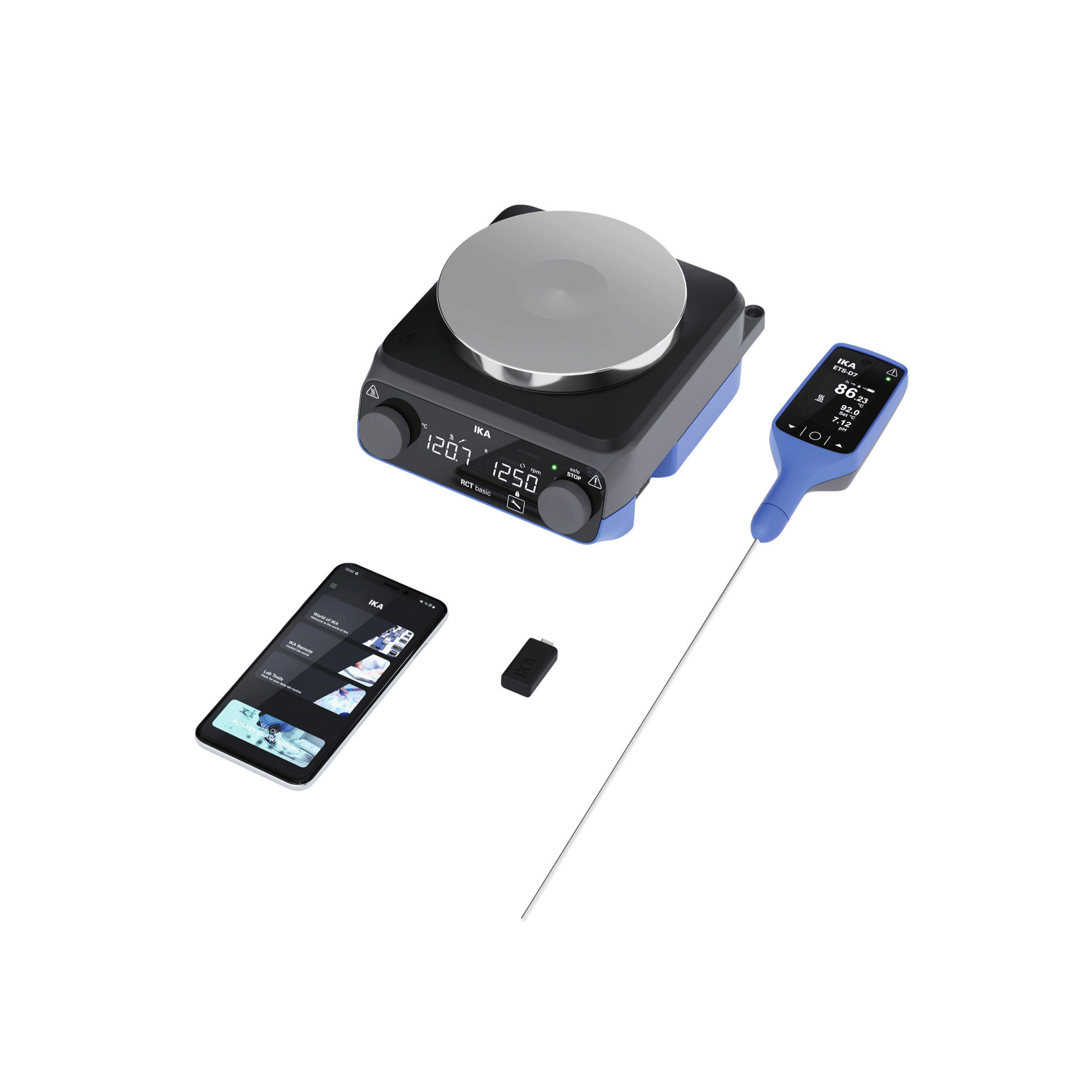

Contents

• 1 x IKA RCT basic magnetic stirrer with heating
• 1 x IKA ETS-D7 electronic contact thermometer
• 1 x Pt1000 temperature probe (stainless steel version)
• 1 x H 16 V support rod
• 1 x H 44 cross-joint
• 1 x mains cable
• 1 x Detailed operating instructions / Quality certificate

Customised requirements & accessories

To ensure you get the most out of the IKA RCT basic ETS-D7 Solution complete package, we stock a comprehensive range of compatible system accessories. For safe, oil-free operation with round-bottom flasks, we offer heat-efficient IKA Dry attachments (DryZone) made from anodised aluminium, which completely eliminate the need for traditional, unhygienic oil baths. To protect the stirrer housing from stubborn contamination, we stock precisely fitting silicone protective covers (H 104). For complex mixing requirements, we also offer a wide range of PTFE-coated magnetic stirring bars in various geometries (e.g. cylindrical, triangular or oval). For transient data recording and process control, the system can also be linked to the labworldsoft laboratory software via the integrated interface. Please make use of our technical procurement service to design your measuring station to suit your specific requirements.
