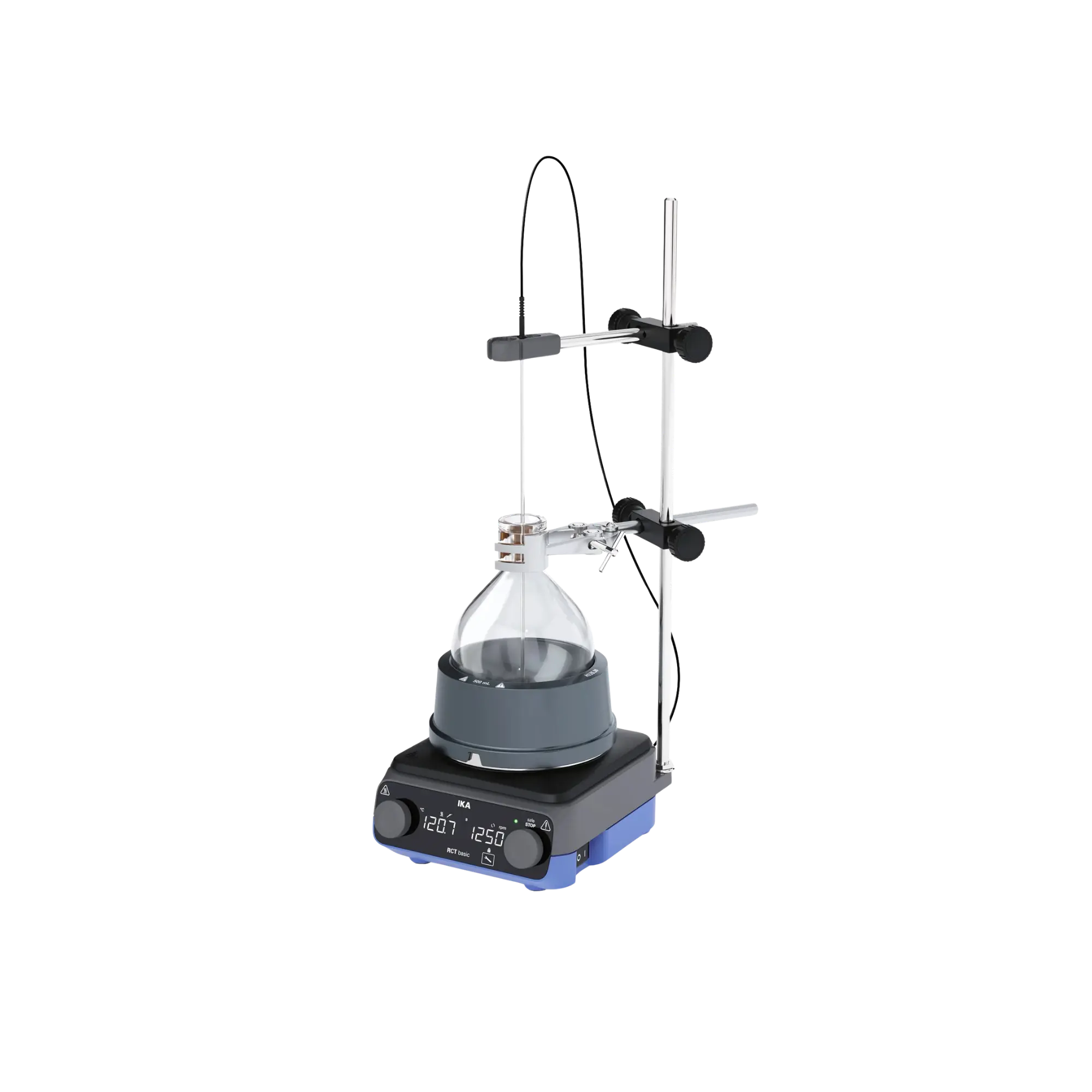

IKA RCT basic Synthesis Solution 500 Magnetic Stirrer Complete Pack, Kera-Disk Base, 0010016483

The IKA RCT basic Synthesis Solution 500 Complete Package (MPN 0010016483) is a turnkey, highly optimised mechatronic system solution for the precise execution of chemical syntheses and thermal reactions in round-bottom flasks with a volume of up to 500 ml. This perfectly coordinated all-in-one package combines the globally recognised RCT basic laboratory heating magnetic stirrer with a specialised synthesis attachment, as well as the necessary measurement and stand accessories. For demanding B2B laboratories in organic chemistry, university research or industrial drug discovery, this eliminates the need for time-consuming individual configuration, whilst simultaneously meeting the highest standards of process reliability and reproducibility in daily continuous use.

Form-fitting temperature control without hazardous oil baths

The process engineering foundation of this system is the aluminium synthesis block for 500 ml round-bottom flasks included in the set, which is positioned directly on the 135 mm Kera-Disk mounting surface. The precise geometric adaptation to the shape of the flask ensures perfect, form-fitting heat transfer. This principle completely replaces traditional, fire-hazardous and high-maintenance silicone oil baths in the laboratory. The heating plate’s substrate, made from a highly conductive aluminium alloy, guarantees minimal heating times, whilst the non-porous, scratch-resistant ceramic coating (Kera-Disk) reliably protects the work surface from mechanical damage and highly aggressive chemical synthesis reagents.

Direct temperature control within the medium and mechanical stability

From a process engineering perspective, the Synthesis Solution 500 package ensures uncompromisingly precise temperature control directly within the liquid reaction mixture. The supplied PT1000 stainless steel temperature sensor measures the transient actual values at the centre of the flask and transmits these to the highly efficient PID microprocessor of the RCT basic. This effectively prevents the temperature from overshooting the target value. The robust stand system, consisting of a support rod and a cross-sleeve, ensures vibration-free and vertically precise positioning of the sensor, which reliably prevents measurement errors caused by accidental contact with the walls or base of the round-bottom flask.

Hermetic housing seal and enhanced safety concept

The long-term durability of the agitator drive is ensured by a sealed die-cast aluminium housing with IP 42 protection, which reliably protects the internal electronic components from spilled media. A multi-stage safety concept ensures safe unattended operation: an independently adjustable safety circuit immediately switches off the 600-watt heater in the event of an unexpected overheating. In addition, a visual residual heat indicator (Hot Top Indicator) warns laboratory staff of the risk of burns on the work surface until it has cooled down completely.

Technical details

Drive & stirring specifications

• Number of stirring points: 1
• Max. stirring capacity (based on water): 20 litres
• Motor power output: 9 watts
• Speed range: 50 to 1500 revolutions per minute (rpm)
• Speed control: Continuously variable via analogue rotary control with digital LED display
• Kinetic stability: Automatic readjustment in the event of transient viscosity changes in the synthesis batch

Thermodynamics & heating capacity

• Heating power: 600 watts (for rapid heating cycles)
• Heating plate temperature: Room temperature to 310 degrees Celsius
• Compatible synthesis volume: Optimised for round-bottom flasks up to a maximum of 500 ml
• Integrated sensor interface: PT1000 (direct connection)
• Control accuracy in the medium with PT1000: +/- 1 K
• Heating plate diameter: 135 mm
• Heating plate material: Kera-Disk (aluminium alloy with a chemically resistant ceramic coating)
• Adjustable safety range (min./max.): 50 to 360 degrees Celsius (mechanically coded)

Design, geometry & protection classes

• Housing material: Robust die-cast aluminium housing, powder-coated for chemical resistance
• Protection class according to DIN EN 60529: IP 42 (hermetically sealed against ingress of media)
• Dimensions (W x D x H): 160 x 270 x 85 mm (main unit)
• Mains connection: 220–230 V / 50/60 Hz

Scope of delivery

• 1 x IKA RCT basic magnetic stirrer with heating
• 1 x IKA synthesis attachment / flask holder for 500 ml round-bottom flasks
• 1 x PT1000 temperature probe made of stainless steel
• 1 x support rod (suitable for housing mount)
• 1 x cross-shaped sleeve for securing the probe
• 1 x mains lead
• 1 x Detailed operating instructions / safety guide

Customised requirements & accessories

To optimally expand and customise the IKA RCT basic Synthesis Solution 500, we stock a complementary range of original system peripherals:

• Alternative synthesis heads: A wide range of IKA Dry heads and flask holders for different volumes (e.g. 100 ml, 250 ml or 1000 ml) for flexible configuration of the same base unit.
• Housing protection: Precisely fitting silicone protective covers to reliably protect the control panel from splashes of corrosive acids or solvents.
• Consumables: A wide range of PTFE-coated magnetic stirring bars in cylindrical, oval or special elliptical shapes for optimum magnetic flux in round-bottom flasks. Please use our technical procurement service to configure your synthesis workstations to suit your specific applications.
