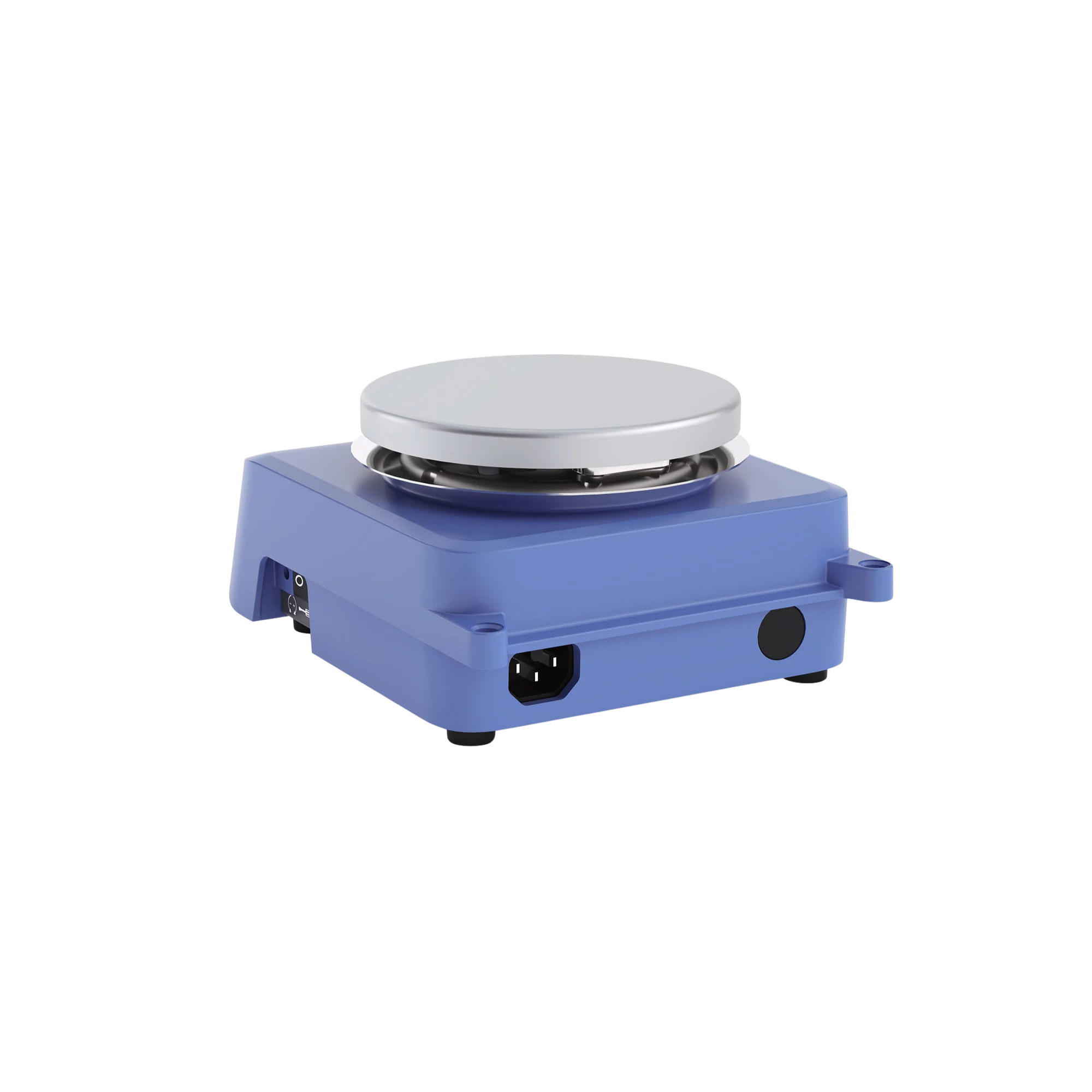

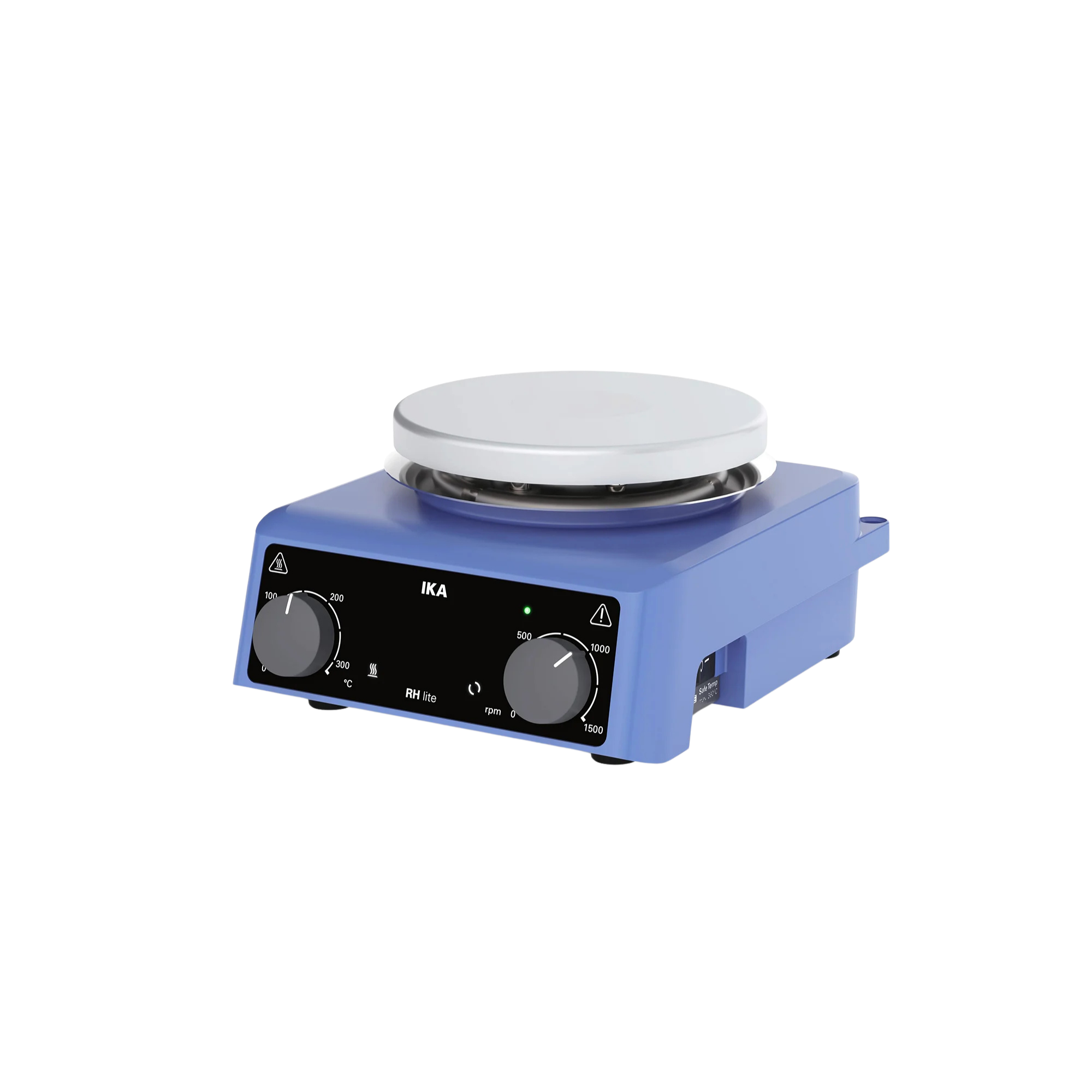

IKA RH lite magnetic stirrer with heating, stainless steel base plate, 0020007108

The IKA RH lite magnetic stirrer with integrated heating represents a cost-effective and highly efficient thermomechanical system solution for the precise mixing, temperature control and homogenisation of liquids in biological, chemical and university laboratory environments. As a robust entry-level and routine instrument from the renowned IKA laboratory technology range, this compact unit is validated for continuous stirring tasks up to a volume of 15 litres (based on water). For everyday standard applications, reagent preparation or simple heating processes, this system offers constant speed stability and reliable heat transfer to guarantee reproducible results whilst minimising damage to the material.

Efficient mixing and gentle heating

The process engineering behind the stirring function is based on a powerful motor with a wide speed range of 100 to 2,000 revolutions per minute. With a heating power of 400 watts, the system enables rapid and direct heating of sample media up to a hotplate temperature of 320 degrees Celsius. The sophisticated magnetic coupling ensures that the magnetic stir bar is kept reliably in position, even when the viscosity of the medium begins to change. A gentle start-up stirring mode also prevents the stir bar from becoming disengaged during the critical start-up phase.

Robust choice of materials and optimised stainless steel base plate

The mechanical heart of the IKA RH lite is its precision-manufactured, round base plate (diameter 125 mm) made from high-quality, stainless steel. Compared to coated surfaces, this stainless steel heating plate is characterised by excellent mechanical robustness, fast thermal response times and outstanding resistance to a wide range of laboratory chemicals. The housing is made from a durable composite material that gently protects the internal electronic components from spills and allows for easy, residue-free cleaning of the unit’s surfaces.

Safety-oriented system architecture for everyday laboratory use

The RH lite’s safety features are designed in accordance with stringent laboratory guidelines and include a permanently integrated safety thermostat. This system provides reliable overheating protection by automatically switching off the heating function as soon as a critical system limit is reached. The ergonomically designed analogue rotary controls on the front panel allow for intuitive and error-free operation of the unit, even when wearing laboratory gloves. Thanks to its extremely compact footprint, the magnetic stirrer can be integrated into any laboratory workstation or fume cupboard to save space.

Technical details

Stirring & Metrological Specifications

• Number of stirring points: 1
• Max. stirring volume per stirring point (H₂O): 15 litres
• Speed range: 100 to 2000 rpm
• Speed adjustment: Continuously variable via analogue rotary control
• Max. stirrer rod length: 20 to 80 mm

Thermodynamics & heating function

• Heating power: 400 W
• Heating temperature range: Room temperature (plus self-heating) to 320 degrees Celsius
• Adjustment range Safety temperature range: Permanently integrated overheating protection
• Heating rate (1 l H₂O): approx. 6 K/min

Design, Materials & Geometry

• Base plate material: High-quality, rust-proof stainless steel
• Dimensions of mounting plate: Ø 125 mm (round)
• Housing material: Robust, chemical-resistant plastic composite
• Overall dimensions (W x H x D): approx. 168 x 105 x 220 mm
• Net weight: approx. 2.2 kg
• Protection class according to DIN EN 60529: IP 21

Electronics & Safety

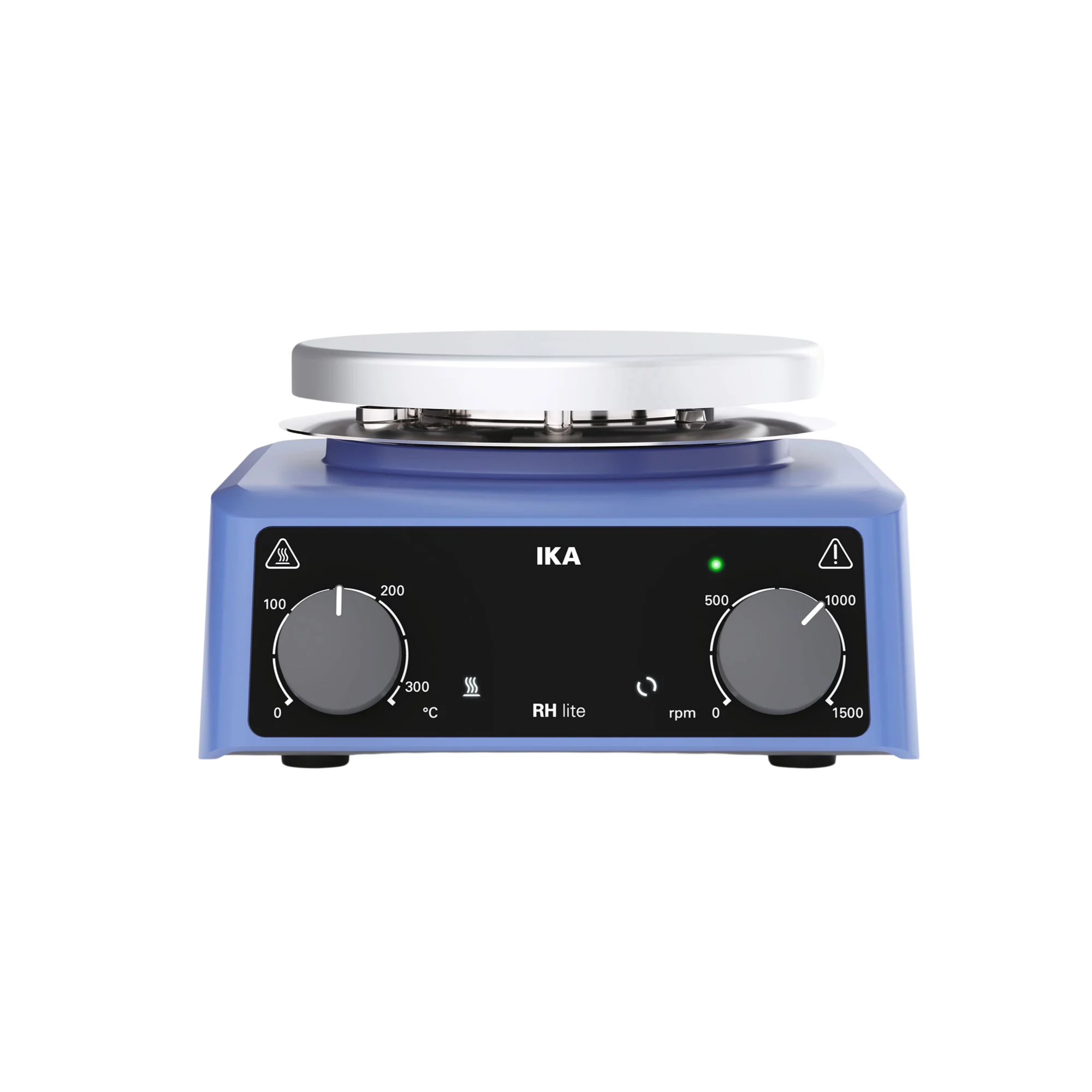

• Display / operation: Graduated analogue rotary knobs
• Safety systems: Fixed safety thermostat to prevent overheating
• Power supply: 230 V / 50/60 Hz

Contents of delivery

• 1 x IKA RH lite magnetic stirrer base unit (MPN: 0020007108)
• 1 x mains lead
• 1 x User manual

Important note: Magnetic stirring bars, support rods and laboratory glassware are not included as standard and must be ordered separately according to your specific application.

Customised Requirements & Accessories

To ensure the IKA RH lite is optimally adapted to your specific laboratory processes, we stock a wide range of original accessories. For efficient mixing, we offer high-quality, PTFE-coated IKA magnetic stirring bars in various lengths (from 20 to 80 mm) and shapes (e.g. cylindrical or with a central ring). To ensure the safe assembly of apparatus directly above the hotplate, we stock suitable support rods and cross-sockets in our chromatography and laboratory range. Please make use of our technical procurement service to configure your laboratory equipment to suit your requirements.
