IKA rotary evaporator, RV 10 digital with dry ice condenser, coated, 0010006364

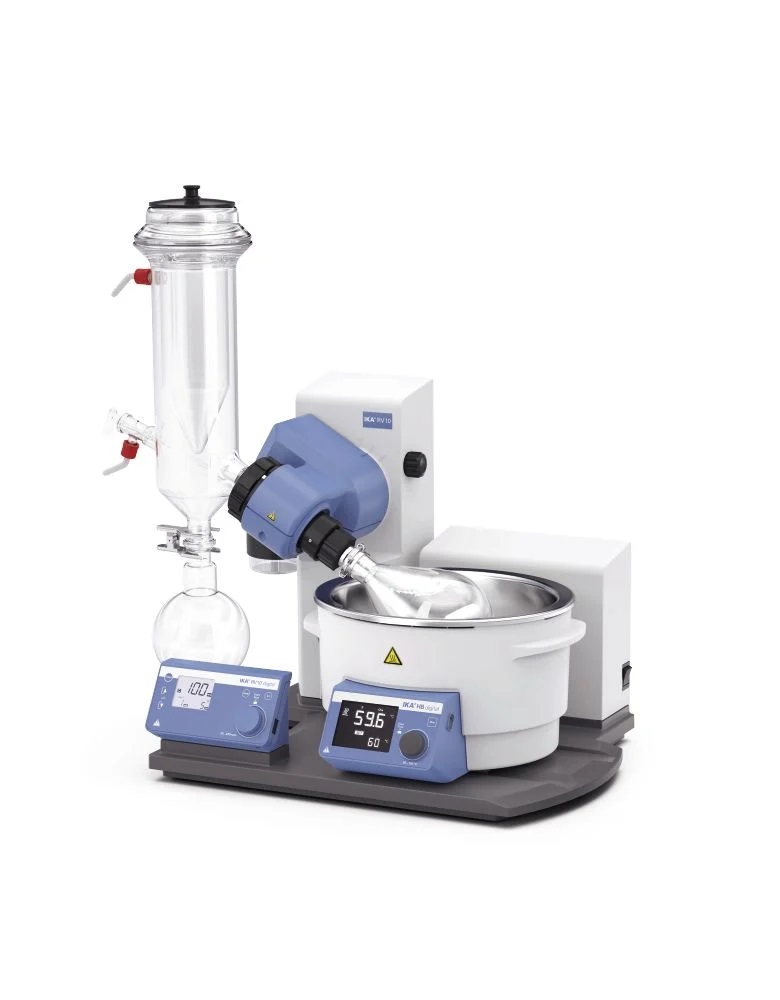

IKA RV 10 digital rotary evaporator with coated dry-ice condenser

The RV 10 digital is the logical evolution of IKA’s tried-and-tested RV 10 series and sets new standards in ease of use, safety and efficiency. Featuring a motorised lift, digital control and a modern universal heating bath, the system is suitable for a wide range of distillation tasks – from research and development to quality control.

The included dry-ice condenser set with coated glassware is specially designed for the distillation of low-boiling-point solvents. The glass coating provides additional break resistance and enhanced user safety in everyday laboratory work.

Key features:

• Digital control for precise regulation of speed and heating temperature

• Motorised lift with 140 mm stroke and safety features

• Universal heating bath (room temperature – 180 °C) with 1300 W heating power

• Digital display and timer function for reproducible processes

• Reversible rotation for flexible applications

• Coated dry ice condenser, cooling surface area 620 cm²

• RS-232 interface for data connection and documentation

• Max. filling volume: 3 l

• Compatible with IKA glassware from the RV 10 series

Technical data (extract):

• Speed range: 5 – 280 rpm

• Setpoint temperature accuracy: ±1 K

• Stroke: 140 mm (motor-driven)

• Dimensions (W × H × D): 500 × 430 × 440 mm

• Weight: 20 kg

• Voltage: 115 V (other voltage options available)

• Protection class: IP 20

Contents:

• RV 10 digital FLEX rotary evaporator

• Heating bath (universal)

• RV 10.84 evaporating flask, NS 29/32, 1,000 ml

• RV 10.203 collection flask, coated, KS 35/20, 1,000 ml

• RV 10.40 dry ice condenser, coated

The IKA RV 10 digital with a coated dry-ice condenser combines safety, digital precision and robust construction – the ideal solution for demanding distillation tasks.
