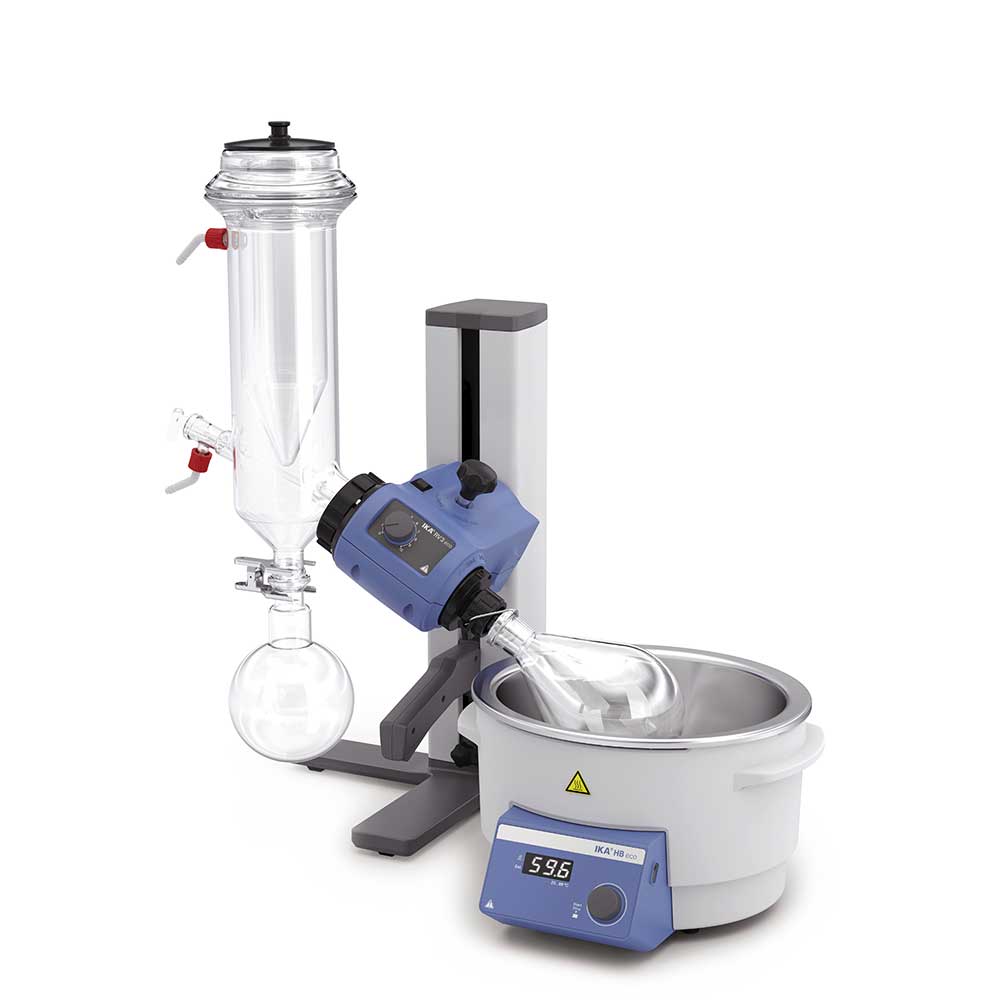

IKA rotary evaporator, RV 3 with dry ice condenser, coated, 0010006362

IKA RV 3 rotary evaporator with coated dry-ice condenser & HB eco heating bath

The RV 3 is the manual entry-level model in the IKA rotary evaporator series and impresses with its high reliability, safety and ease of use. Thanks to digital displays for speed and heating bath temperature, distillation processes can be precisely monitored and controlled.

The new 4-litre heating bath with ergonomic handles offers greater flexibility, whilst the integrated safety shut-off function provides additional protection in the event of a power cut. The manual lift allows for precise positioning of the glassware, and the adjustable immersion angle expands the range of applications.

Particularly practical: the clamping mechanism with push-off function allows for the quick replacement of evaporating flasks. The coated glassware set ensures increased break resistance – ideal for demanding laboratory environments.

Key features:

• Digital display for speed (20–300 rpm) and heating bath temperature

• 4-litre HB eco heating bath with temperature lock button

• Safety shut-off function in the event of a power cut

• New clamping mechanism with push-off function for changing flasks

• Manual lift with 150 mm stroke and adjustable immersion angle

• Ergonomic operation for left- and right-handers

• Coated dry ice condenser for increased breakage resistance

• Operating voltage 24 V for maximum safety

• Compatible with IKA RV 10 glassware

Technical data (extract):

• Speed range: 20 – 300 rpm

• Heating temperature range: room temperature – 99 °C

• Stroke: 150 mm (manual)

• Cooling surface area: 620 cm²

• Dimensions (W × H × D): 440 × 530 × 330 mm

• Weight: 28.3 kg

• Voltage: 100 – 240 V, 50/60 Hz

• Protection class: IP 20

Contents of delivery:

• RV 3 FLEX rotary evaporator

• HB eco heating bath

• RV 10.40 dry ice condenser (coated)

The IKA RV 3 is the perfect choice for laboratories looking for a safe, functional and durable entry-level model – fitted with coated glassware for added protection.
