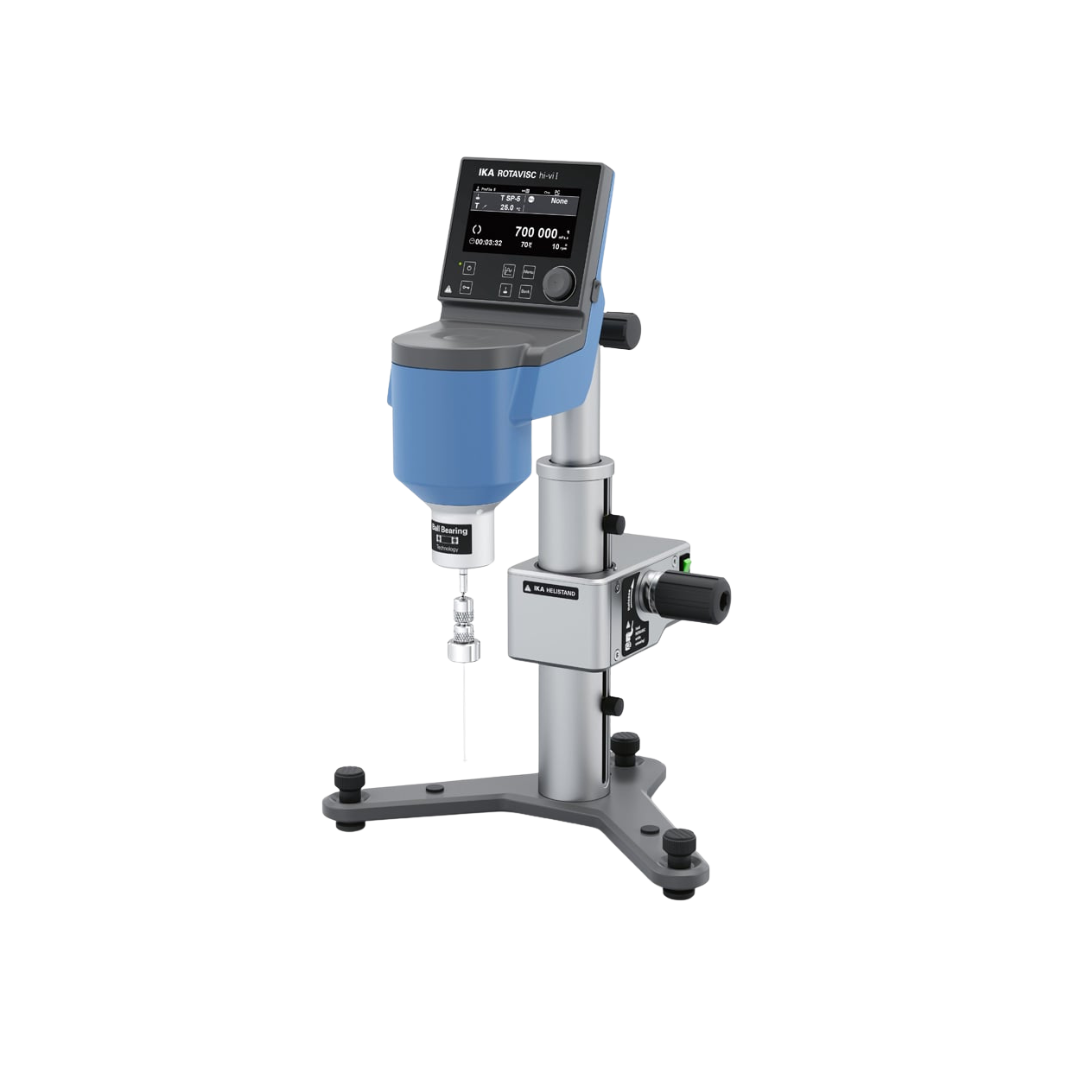

IKA ROTAVISC SBS hi-vi I HELI Complete Viscometer Set, 0010013658

Precise viscosity measurement for highly viscous samples

The IKA ROTAVISC SBS hi-vi I HELI Complete is a high-performance rotational viscometer specially developed for demanding measurements in highly viscous media. With an extremely wide measuring range of 200 to 80,000,000 mPas, it is perfectly suited to pastes, ointments, gels and polymer melts. The “Complete” package offers a ready-to-use solution including the innovative HELISTAND™ motorised stand, which enables the measurement of non-flowing samples through a slow up-and-down movement, thereby preventing channeling in the medium.

Ball bearing technology for continuous load

The abbreviation “SBS” (Steel Ball Bearing, Suspended) refers to this instrument’s special bearing technology. Equipped with a robust ball bearing system instead of a conventional jewel bearing system, the ROTAVISC SBS is extremely durable. This makes it ideal for demanding continuous use in quality control, as well as for applications where frequent spindle changes or rough handling are the order of the day – without compromising on precision.

Maximum functionality and documentation

The instrument features a generous 4.3" TFT display with intuitive menu navigation. Functions such as the ramp function, Newtonian/non-Newtonian analysis, and the direct display of viscosity, torque, shear rate and shear stress simplify day-to-day work. The viscometer can be connected directly to a PC via the USB or RS 232 interface to control measurement series using the optional labworldsoft ® 6 software and to document them in accordance with ISO standards.

Technical details

• Viscosity measurement range: 200 – 80,000,000 mPas
• Viscosity accuracy: 1 %
• Viscosity repeatability: 0.2%
• Bearing type: Ball bearing (SBS)
• Rotational speed range: 0.01 – 200 rpm
• Display: 4.3" TFT
• Interfaces: USB, RS 232, analogue output, connection for temperature sensor (PT 100)
• Operating temperature (measurement): –100 to +300 °C (depending on accessories)
• Motor stand stroke: 142 mm (HELISTAND)
• Protection class according to DIN EN 60529: IP 40
• Dimensions (W x H x D): 351 x 629 x 372 mm (complete assembly)
• Weight: 7.1 kg

Scope of supply

• ROTAVISC SBS hi-vi I (viscometer head)
• ROTASTAND (stand)
• HELISTAND (motorised stand for non-flowing samples)
• SP set-2 (spindle set)
• T-SP set (T-spindles for HELISTAND)
• PT 100.8 (temperature probe)
• Power supply & USB cable

Customised requirements & procurement service

Do you require special spindles for low viscosities, adaptors for small sample volumes or a software licence for labworldsoft ®? We’ll configure your rheology setup to suit your exact requirements. Contact our procurement service for expert advice.
