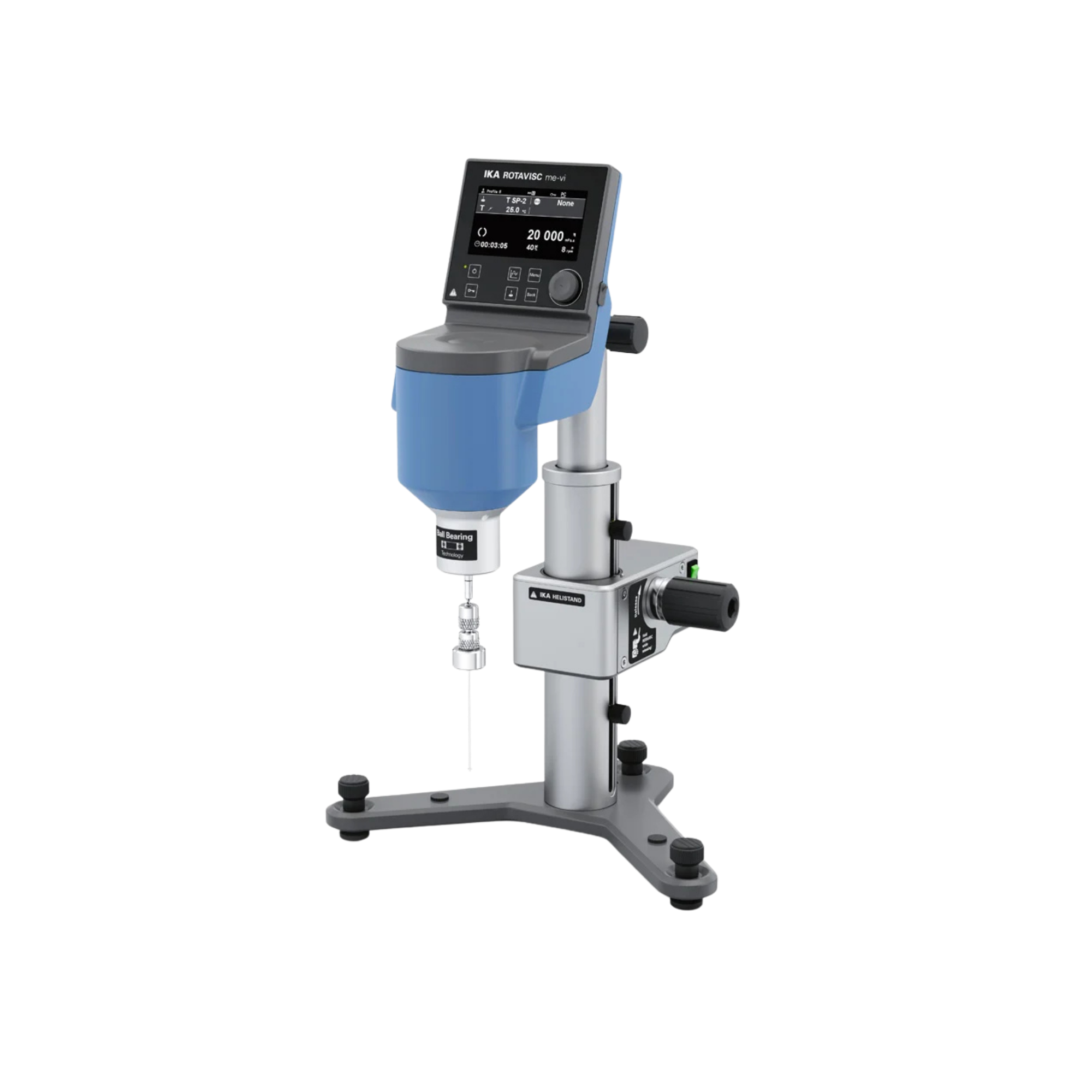

IKA ROTAVISC SBS me-vi HELI Complete rotary viscometer, robust ball bearing system, 0010013683

The IKA ROTAVISC SBS me-vi HELI Complete rotational viscometer is a highly optimised mechatronic system solution, offering exceptional mechanical robustness, designed for the precise rheological characterisation and viscosity determination of medium-viscosity, pasty and viscous media. This turnkey complete system has been specifically developed for intensive, continuous use in the chemical industry, in cosmetics and pharmaceutical production, and in the field of paint, varnish and polymer research. When handling demanding substance classes such as creams, gels, adhesives, resins or emulsions, the precise measurement of temperature-dependent flow behaviour is the primary criterion for optimising formulations whilst minimising damage to the material and for controlling manufacturing processes reliably.

Maximum mechanical resilience thanks to the SBS steel ball bearing

The key material and design feature of the “SBS” model series (Steel Ball Bearing System) is the elimination of the traditional, delicate tip bearing. Instead, this viscometer features a high-precision, extremely robust steel ball bearing system. In the demanding day-to-day laboratory environment and when handling high sample volumes in multi-user operations, this mechanical system architecture effectively protects the instrument from damage caused by transverse forces, such as those that can arise when heavy spindles are rapidly rotated in and out. This minimises the risk of transient axial errors, which significantly extends the service life of the measuring head and ensures long-term calibration stability.

Prevention of channeling via the motorised HELIPATH drive

The process-engineering foundation for the investigation of non-flowing or viscoelastic phases is provided by the motorised HELIPATH stand system included in the package. With structurally viscous or thixotropic samples, standard rotating spindles tend, during steady-state operation, to cut a gap in the medium (known as channeling). This leads to a transient loss of contact with the medium and distorts the measurement data. The HELIPATH drive reliably eliminates this phenomenon by moving the viscometer head continuously and slowly up and down vertically during the measurement cycle. The rotating T-spindle thereby traces a three-dimensional helix (screw line) and constantly cuts into fresh, undisturbed sample material.

Intelligent measurement data analysis and full GLP compliance

The ROTAVISC me-vi’s electronic control system covers the medium viscosity range continuously and guarantees a measurement accuracy of plus/minus 1 per cent of the full measurement range, with a reproducibility of plus/minus 0.2 per cent. A high-contrast, large 4.3-inch TFT colour display visualises all transient rheological data as well as the torque trend in real time. As the viscosity of fluid-mechanical systems is strongly influenced by temperature, the integrated PT1000 sensor ensures seamless thermodynamic monitoring directly within the medium. Via the integrated USB and RS232 interfaces, the entire system can be fully digitised, enabling legally compliant, GLP-compliant documentation of all quality processes.

Technical details

Metrology & Rheological Parameters

• Measuring principle: Rotational viscometer based on the SEARLE principle
• Bearing type: SBS (Steel Ball Bearing System / robust steel ball bearing)
• Maximum viscosity measurement range: 40,000,000 mPas (medium viscosity range)
• Minimum viscosity measurement range: 100 mPas
• Measurement accuracy (torque): plus/minus 1 per cent of the full-scale value
• Reproducibility: plus/minus 0.2 per cent of the full-scale value
• Speed range: 0.01 to 200 min⁻¹ (continuously adjustable)
• Rotational speed setting resolution: 0.01 min⁻¹

Motorised system & stand peripherals (HELIPATH)

• Stand type: Motorised lifting stand (HELI) to prevent channeling
• Vertical stroke: approx. 120 mm
• Stroke motion: Continuously vertically oscillating, with electronically controlled inflection points
• Spindle compatibility: Optimised for T-spindle sets

Geometry, materials & interfaces

• Display: High-resolution 4.3-inch TFT colour display
• Materials in contact with the medium: High-quality, chemically inert stainless steel (spindle sets)
• Temperature measurement: Direct connection for PT1000 temperature sensors (measuring range -100 to +300 degrees Celsius)
• Digital connectivity: USB and RS232 interfaces for PC connection
• Enclosure protection class according to DIN EN 60529: IP 40
• Power supply: 100–240 V / 50/60 Hz

Contents of delivery

• 1 x IKA ROTAVISC SBS me-vi viscometer measuring head (MPN: 0010013683)
• 1 x Motorised HELIPATH stand system including a stable base plate
• 1 x standard spindle set (including functional protective guard)
• 1 x T-spindle set (specially calibrated for HELIPATH applications)
• 1 x PT1000.81 precision temperature sensor
• 1 x USB cable for reliable PC connectivity
• 1 x power cable set
• 1 x Certificate of Manufacture / Detailed operating instructions

Customised requirements & accessories

To ensure optimal integration and expansion of the IKA ROTAVISC SBS me-vi HELI Complete System, we offer a comprehensive range of complementary laboratory peripherals. To ensure precise compliance with thermodynamic test standards, we recommend connecting a temperature-stable IKA recirculating chiller or bath thermostat (e.g. IKA RC 2 basic) in combination with double-walled temperature-controlled vessels. For automated process control, transient data acquisition and graphical flow curve analysis, we supply the manufacturer-certified laboratory software labworldsoft. For regular metrological verification of the viscometer in accordance with ISO 9001 quality management guidelines, we also offer certified standard silicone oils with defined viscosity values. Please use our technical procurement service to configure your complete rheometry workstation.
