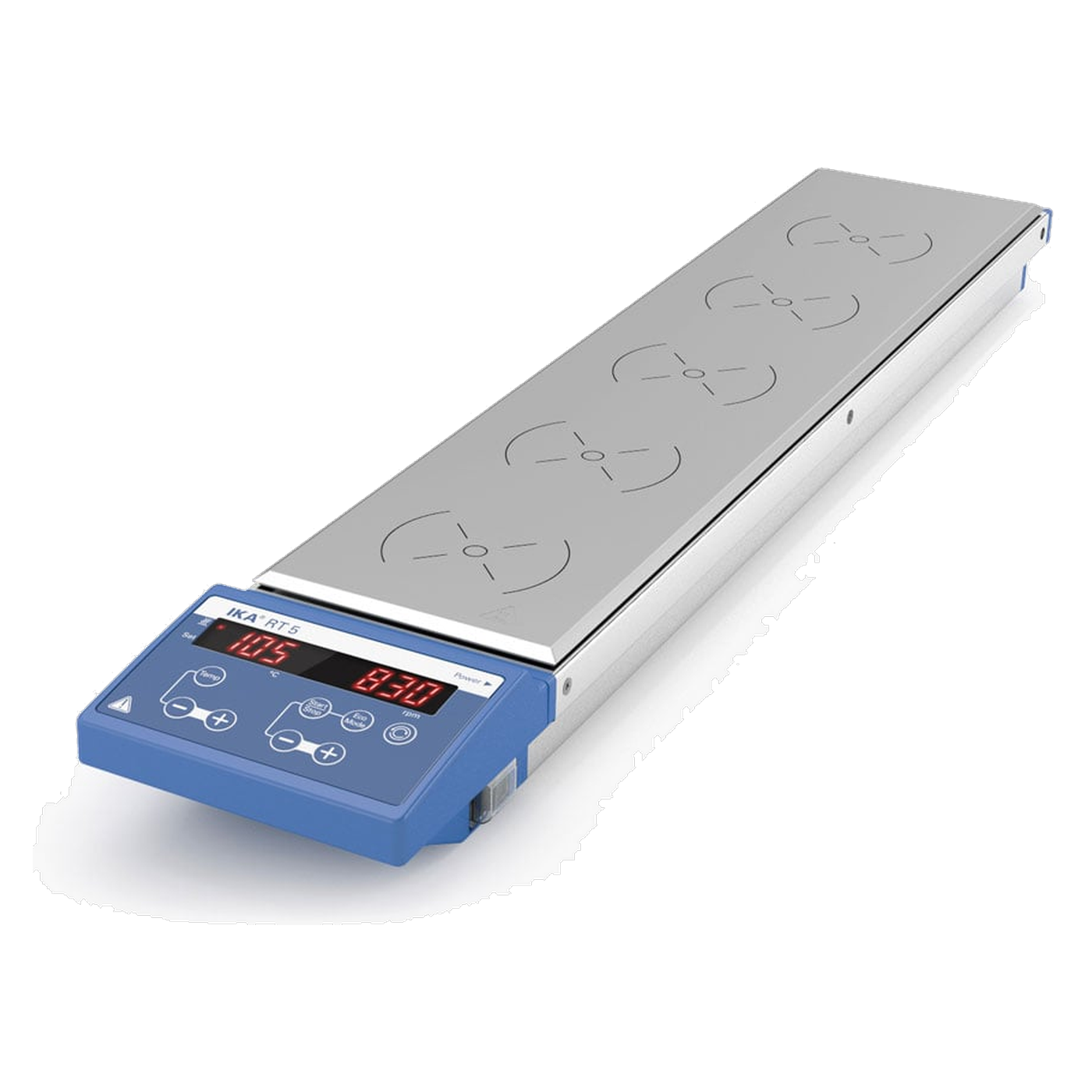

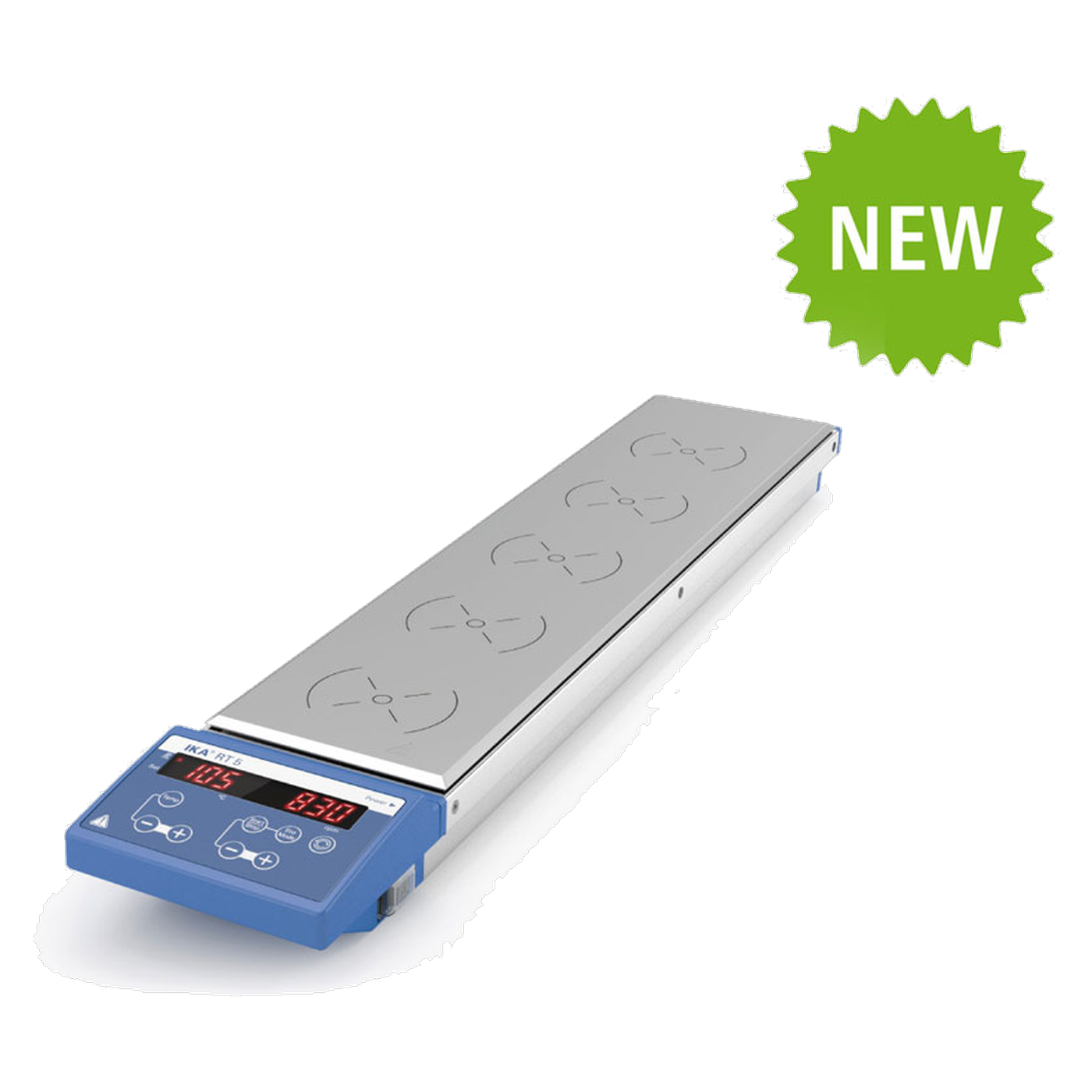

IKA RT 5 Multi-position Magnetic Stirrer with Heating, 5 Positions, up to 120 °C, 0003690600
€2,184.75
% Manufacturer's RRP: €2,913.00 25% below manufacturer's RRP
- Multi-position magnetic stirrer with 5 synchronously operating stirring positions and heating
- Speed 0 to 1,000 rpm, deviation between stations 0 %
- Film heater 175 W, surface temperature up to 120 °C, heating rate 3 K/min
- Adjustable safety limit 50 to 150 °C, Eco mode, direction of rotation reversal
- Up to 0.4 l of water per station, footprint 110 x 495 mm
- 3-year manufacturer’s warranty upon registration within 90 days
Product information "IKA RT 5 Multi-position Magnetic Stirrer with Heating, 5 Positions, up to 120 °C, 0003690600"
Five positions, five stirring points, one speed: the IKA RT 5 (0003690600) is a multi-position magnetic stirrer with a heating function for batch testing under reproducible conditions. A silent coil drive system maintains an identical speed at all five positions, with a deviation of 0 per cent between them. The aluminium alloy heating plate reaches temperatures of up to 120 °C.
Five positions, one drive
The stirring positions are spaced 90 mm apart and are arranged over an area of 110 x 495 mm. Up to 0.4 l of water can be stirred per position; stirring rods 25 to 30 mm in length are intended for use. The maximum load is 5 kg. The coil drive is wear-free; the speed is maintained at a constant level during load changes. It can be adjusted in 10-rpm increments between 0 and 1,000 rpm, and the direction of rotation can be reversed. The unit is suitable for continuous operation.
Heating with a foil heater
The foil heating element distributes heat very evenly across the plate; the heating power is 175 W and the heating rate is 3 K per minute (1 l of water, H1500). The surface temperature can be adjusted continuously up to 120 °C; according to IKA, this results in a medium temperature of up to 70 °C, depending on the vessel. The safety limit can be set between 50 and 150 °C. Eco mode keeps surface heating to a minimum; an error code appears on the display. The unit is operated via a membrane keypad, and the heating temperature is set using an LED display.
Typical applications
IKA specifies the RT 5 for batch testing with five synchronously operating stirring points:
- Screening tests under reproducible conditions
- Parallel batches, each containing up to 0.4 l of water
- Stirring and heating up to a surface temperature of 120 °C
- Runs with alternating directions of rotation
- Continuous operation over extended periods
With and without heating: a comparison of multi-position stirrers
If you only need to stir, the RO 5 will suffice; it has the same five positions and runs at up to 1,200 rpm. The RO 15 is available for 15 parallel batches. Both have a stainless steel surface and no heating.
| Model | Positions | Stirring capacity per station | Speed | Heating | Area |
|---|---|---|---|---|---|
| RT 5 (this unit) | 5 | 0.4 l | 0 to 1,000 rpm | 175 W, up to 120 °C | Aluminium alloy, 110 x 495 mm |
| RO 5 | 5 | 0.4 l | 0 to 1,200 rpm | None | Stainless steel, 120 x 470 mm |
| RO 15 | 15 | 0.4 l | 0 to 1,200 rpm | None | Stainless steel, 280 x 470 mm |
Technical details
| Number of stirring points | 5 |
| Distance between stirring points | 90 mm |
| Speed variation between positions | 0 % |
| Max. mixing volume per point (H2O) | 0.4 l |
| Maximum load | 5 kg |
| Speed range | 0 to 1,000 rpm, in 10-rpm increments |
| Stirrer rod length | 25 to 30 mm |
| heating power | 175 W |
| Heating temperature range | Room temperature to 120 °C |
| Safety circuit | adjustable from 50 to 150 °C |
| Heating rate (1 l H2O, H1500) | 3 K/min |
| Footprint | Aluminium alloy, 110 x 495 mm |
| Voltage / Frequency | 230 V, 50/60 Hz (other variants: 115 V and 100 V) |
| Power consumption | 185 W |
| Permissible ambient temperature range | 5 to 40 °C |
| Permissible relative humidity | 80 % |
| Protection class | IP 40 (DIN EN 60529) |
| Dimensions (W x H x D) | 120 x 60 x 610 mm |
| Weight | 4 kg |
Scope of delivery
- 1 x IKA RT 5 multi-position magnetic stirrer with heating
- 1 x silicone mat for protection and optimised temperature distribution
The scope of delivery does not include magnetic stirring bars. IKA offers, amongst other things, IKAFLON bars in round, ellipse, cross and power shapes, as well as a glass bar.
Warranty and disposal
IKA manufacturer’s warranty: 2 years; extended to 3 years upon registration at ika.com/register within 90 days of purchase. At the end of its service life, the RT 5, as an electrical appliance, must be disposed of via the separate collection scheme for waste electrical and electronic equipment.
Frequently Asked Questions
Do all five stirring points operate at the same speed? Yes, IKA states that the variation between the stirring points is 0 per cent.
How long is the warranty valid for? IKA manufacturer’s warranty: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.
What temperature does the medium reach? The surface temperature can be continuously adjusted up to 120 °C; according to IKA, this results in a medium temperature of up to 70 °C, depending on the vessel.
Are stirring rods included? No, they are not included. A silicone mat is included in the Scope of delivery.
Individual requirements and procurement service
LT Laborhandel can source suitable stirring rods, beaker lids and stirring rod removers on request, as well as factory calibration certificates and qualification documents. Through the procurement service, the accessories can be tailored to your vessels.
