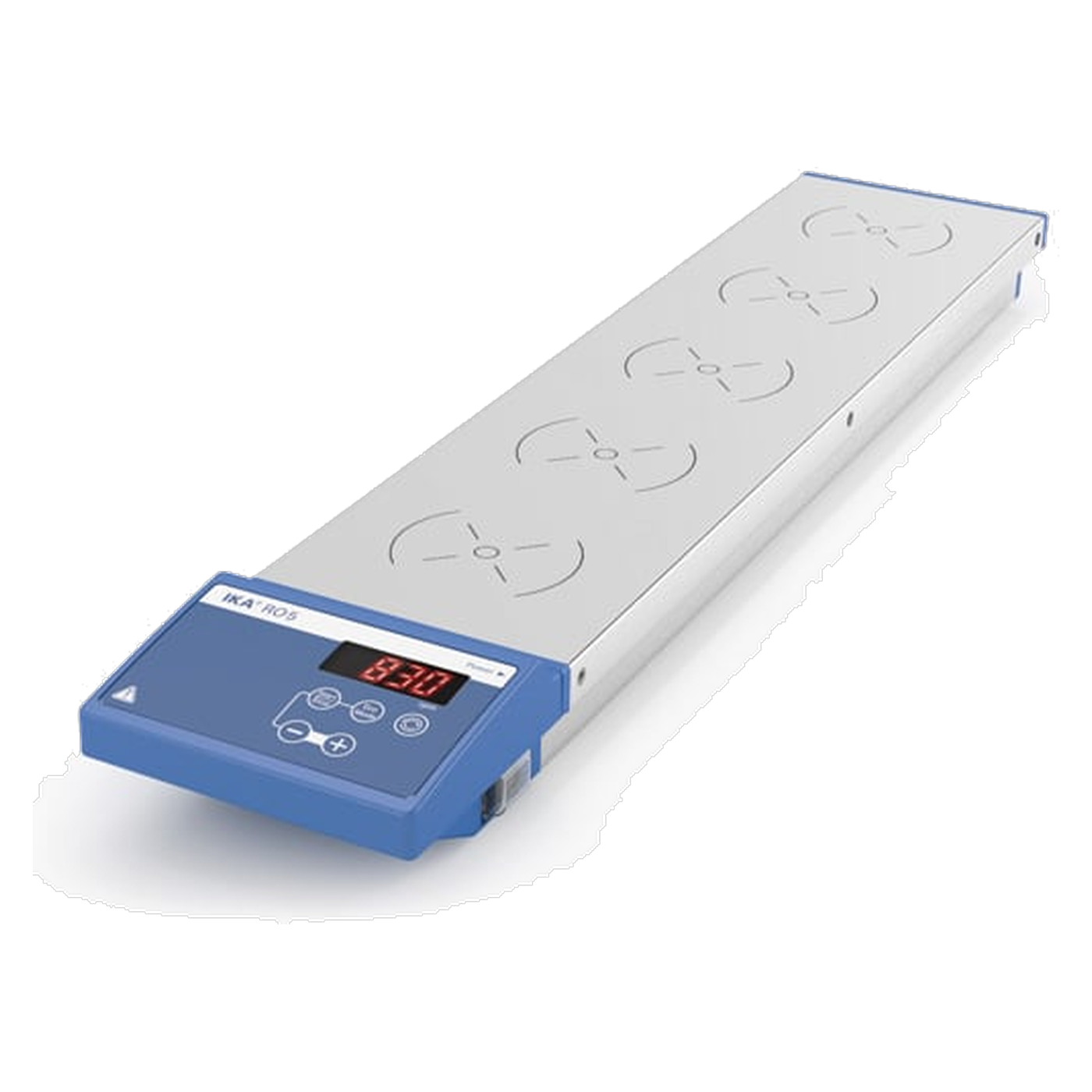

IKA RO 5 Multi-position Magnetic Stirrer without Heating, 5 Stirring Positions, 0 to 1200 rpm, 0003690500
€1,290.00
% Manufacturer's RRP: €1,720.00 25% below manufacturer's RRP
- Five synchronously operating stirring points, speed deviation between the points 0 %
- Speed 0 to 1200 rpm in 10-rpm increments
- Wear-free coil drive, suitable for continuous operation
- Stainless steel plate 1.4301, enclosed design, protection class IP 40
- Reversible rotation direction, Eco mode for minimal surface heating
- Mains connection 100 to 240 V, 12 W power consumption
- 3-year manufacturer’s warranty upon registration within 90 days
Product information "IKA RO 5 Multi-position Magnetic Stirrer without Heating, 5 Stirring Positions, 0 to 1200 rpm, 0003690500"
Five samples, one experimental design and the question of whether all vessels really stir at the same speed. With the IKA RO 5, the answer is clear: the five stirring points operate synchronously, with a speed deviation of 0 per cent between them. The digital multi-position magnetic stirrer without heating stirs up to 0.4 l of water per position at 0 to 1200 rpm. This allows screening experiments to be carried out under comparable conditions.
Coil drive instead of a motor
The RO 5 operates with a coil drive. This is wear-free and runs silently, and according to IKA, the speeds remain constant even under load changes. The speed is set in 10 rpm increments via a membrane keypad; the direction of rotation can be reversed, and an error code display reports faults. The unit is designed for continuous operation.
Enclosed design and Eco Mode
The housing is enclosed and compact, with a surface made of 1.4301 stainless steel. This facilitates cleaning and, according to IKA, protects the interior from liquid ingress. The protection class is IP 40 in accordance with DIN EN 60529. Eco Mode keeps surface heating to a minimum. According to IKA, a removable, transparent anti-slip film is included in the Scope of delivery. The stirring points are 90 mm apart, the plate measures 120 x 470 mm, and it can support loads of up to 5 kg. Suitable magnetic stir bars are 25 to 30 mm long, such as IKAFLON 25 or 30 in round, elliptical or cross shapes.
Typical applications
- Screening tests with several simultaneous batches at the same speed
- Dissolving and suspending with sample volumes of up to 0.4 l per station
- Parallel runs in continuous operation
- Comparison of formulations or concentrations at the same stirring intensity
RO 5, RO 15 or a model with heating
Five stations are sufficient for manageable series. Those who regularly prepare multiple samples simultaneously will find that the IKA RO 15 offers 15 stations on a 280 x 470 mm platform. If the batches need to be heated, the IKA RT 5 - with five stations, 175 W heating power and a temperature range from room temperature to 120 °C, is the alternative. For a single stirring station at 1500 rpm, the C-MAG MS 4 is a suitable choice.
| Model | Stirring positions | Plate | Heating | Max. load |
| RO 5 (this appliance) | 5 | 120 x 470 mm | No | 5 kg |
| RO 15 | 15 | 280 x 470 mm | no | 15 kg |
| RT 5 | 5 | 110 x 495 mm | 175 W, up to 120 °C | 5 kg |
Technical details
| Number of stirring points | 5 |
| Distance between mixing points | 90 mm |
| Speed variation between stirring points | 0 % |
| Max. mixing volume per mixing point (H2O) | 0.4 l |
| Maximum load | 5 kg |
| Speed adjustment | 10 rpm increments |
| Speed range | 0 to 1200 rpm |
| Stirrer rod length | 25 to 30 mm |
| Base material | Stainless steel 1.4301 |
| Base dimensions | 120 x 470 mm |
| Dimensions (W x H x D) | 120 x 60 x 570 mm |
| Weight | 3.66 kg |
| Permissible ambient temperature range | 5 to 40 °C |
| Permissible relative humidity | 80 % |
| Protection class | IP 40 (DIN EN 60529) |
| Mains connection | 100 to 240 V, 50/60 Hz, power consumption 12 W |
| DC voltage / current consumption | 24 V DC / 500 mA |
Scope of delivery
- 1 x IKA RO 5 magnetic stirrer
- 1 x removable transparent anti-slip film
Magnetic stir bars are not included and must be ordered to suit the vessel.
Warranty and disposal
IKA manufacturer’s warranty: 2 years; extended to 3 years upon registration at ika.com/register within 90 days of purchase. As an electrical appliance, the RO 5 must be disposed of via the separate collection scheme for waste electrical equipment at the end of its useful life.
Individual requirements and procurement service
For the RO 5, IKA supplies magnetic stir bars in packs of five, the RSE stir bar retriever, the BC 1000 beaker lid and glass magnetic stir bars. These are accompanied by factory calibration certificates and IQ/OQ documents. If you wish to match stir bars and vessels, our procurement service is here to help.
Frequently Asked Questions
Do all five stirring points run at the same speed? Yes, according to IKA, the speed deviation between the stirring points is 0 per cent.
How much liquid does each station hold? Up to 0.4 l of water per stirring station with a stir bar length of 25 to 30 mm.
Can the RO 5 heat? No. For heated multi-station set-ups, IKA offers the RT 5.
How long is the warranty valid for? IKA’s manufacturer’s warranty: 2 years, extended to 3 years if registered at ika.com/register within 90 days of purchase.
