IKA RO 15 Multi-position Magnetic Stirrer without Heating, 15 Stirring Positions, 0 to 1200 rpm, 0003692500
€2,081.25
% Manufacturer's RRP: €2,775.00 25% below manufacturer's RRP
- 15 synchronously operating stirring points, speed deviation between points 0 %
- Up to 0.4 l of water per station, speed 0 to 1200 rpm in 10-rpm increments
- Wear-free coil drive, suitable for continuous operation
- Stainless steel plate 1.4301, 280 x 470 mm, load capacity up to 15 kg
- Reversible rotation, Eco mode, error code display
- Enclosed design, protection class IP 40, 100 to 240 V, 36 W
- 3-year manufacturer’s warranty upon registration within 90 days
Product information "IKA RO 15 Multi-position Magnetic Stirrer without Heating, 15 Stirring Positions, 0 to 1200 rpm, 0003692500"
Fifteen vessels on a single plate, all rotating at the same speed: That is the task of the IKA RO 15. The multi-position magnetic stirrer without heating accommodates 15 stirring positions on a stainless steel surface measuring 280 x 470 mm, with a spacing of 90 mm between the positions. Each station can hold up to 0.4 l of water, with speeds ranging from 0 to 1200 rpm. According to IKA, the variation between stirring stations is 0 per cent, and batch analyses are carried out under reproducible conditions.
One speed for all positions
The coil drive operates wear-free and silently. According to IKA, the rotational speeds at all stirring points remain constant even under load changes. Settings are adjusted via a membrane keypad in increments of 10 rpm. The direction of rotation can be reversed, an error code display reports faults, and the unit is suitable for continuous operation. Stirring rods 25 to 30 mm in length are used, for example IKAFLON 25 or 30 in round, elliptical and cross shapes.
Weight, load capacity and cleaning
Weighing 8.627 kg, the RO 15 is significantly heavier than the RO 5, which weighs 3.66 kg; however, the platform can support up to 15 kg instead of 5 kg. The design is enclosed and compact; the surface is easy to clean, and according to IKA, the design protects against the ingress of liquids. The protection class is IP 40 in accordance with DIN EN 60529. In Eco Mode, the surface remains cooler. The unit’s power consumption is 36 W, and the mains connection is rated for 100 to 240 V.
Typical applications
- Batch testing with up to 15 parallel runs under reproducible conditions
- Dissolution and suspension series with the same stirring intensity in all vessels
- Continuous operation over extended periods, for which the drive is designed
- Comparison of several concentrations or formulations in a single run
RO 15 in comparison
The RO 15 is suitable for laboratories that regularly run series with more than five samples. For smaller series, the RO 5 is sufficient. If the samples need to be heated simultaneously, the IKA RT 5, with 175 W heating power and a maximum temperature of 120 °C, is the right choice, although it has five positions instead of 15.
| Model | Stirring positions | Plate | Heating | Max. load | Weight |
| RO 15 (this unit) | 15 | 280 x 470 mm | No | 15 kg | 8.627 kg |
| RO 5 | 5 | 120 x 470 mm | no | 5 kg | 3.66 kg |
| RT 5 | 5 | 110 x 495 mm | 175 W, up to 120 °C | 5 kg | 4 kg |
Technical details
| Number of mixing points | 15 |
| Spacer spacing | 90 mm |
| Speed variation between stirring points | 0 % |
| Max. mixing volume per mixing point (H2O) | 0.4 l |
| Maximum load | 15 kg |
| Speed adjustment | 10 rpm increments |
| Speed range | 0 to 1200 rpm |
| Stirrer rod length | 25 to 30 mm |
| Base material | Stainless steel 1.4301 |
| Base dimensions | 280 x 470 mm |
| Dimensions (W x H x D) | 280 x 60 x 570 mm |
| Weight | 8.627 kg |
| Permissible ambient temperature range | 5 to 40 °C |
| Permissible relative humidity | 80 % |
| Protection class | IP 40 (DIN EN 60529) |
| Mains connection | 100 to 240 V, 50/60 Hz, power consumption 36 W |
| DC voltage / current consumption | 24 V DC / 1500 mA |
Scope of delivery
- 1 x IKA RO 15 magnetic stirrer
- 1 x removable transparent anti-slip film
Magnetic stir bars are not included. They are available from IKA in packs of five.
Warranty and disposal
IKA manufacturer’s warranty: 2 years; extended to 3 years upon registration at ika.com/register within 90 days of purchase. End-of-life electrical equipment must not be disposed of with household waste; at the end of its useful life, the RO 15 must be sent for separate collection.
Individual requirements and procurement service
Magnetic stir bars in shapes such as round, ellipse, cross, TRIKA and glass are available for the RO 15, as well as the RSE stir bar retriever, the BC 1000 beaker lid, factory calibration certificates and IQ/OQ documents. Our procurement service is available to assist with larger orders involving multiple units or with enquiries regarding suitable accessories.
Frequently Asked Questions
How many samples can the RO 15 stir at the same time? There are 15 stirring points, each capable of holding up to 0.4 l of water.
Does each stirring point operate at the same speed? Yes, according to IKA, the speed variation between the stirring points is 0 per cent.
What stirrer length is recommended? 25 to 30 mm.
How long is the warranty valid for? IKA’s manufacturer’s warranty: 2 years; extended to 3 years if registered at ika.com/register within 90 days of purchase.
Matching accessories

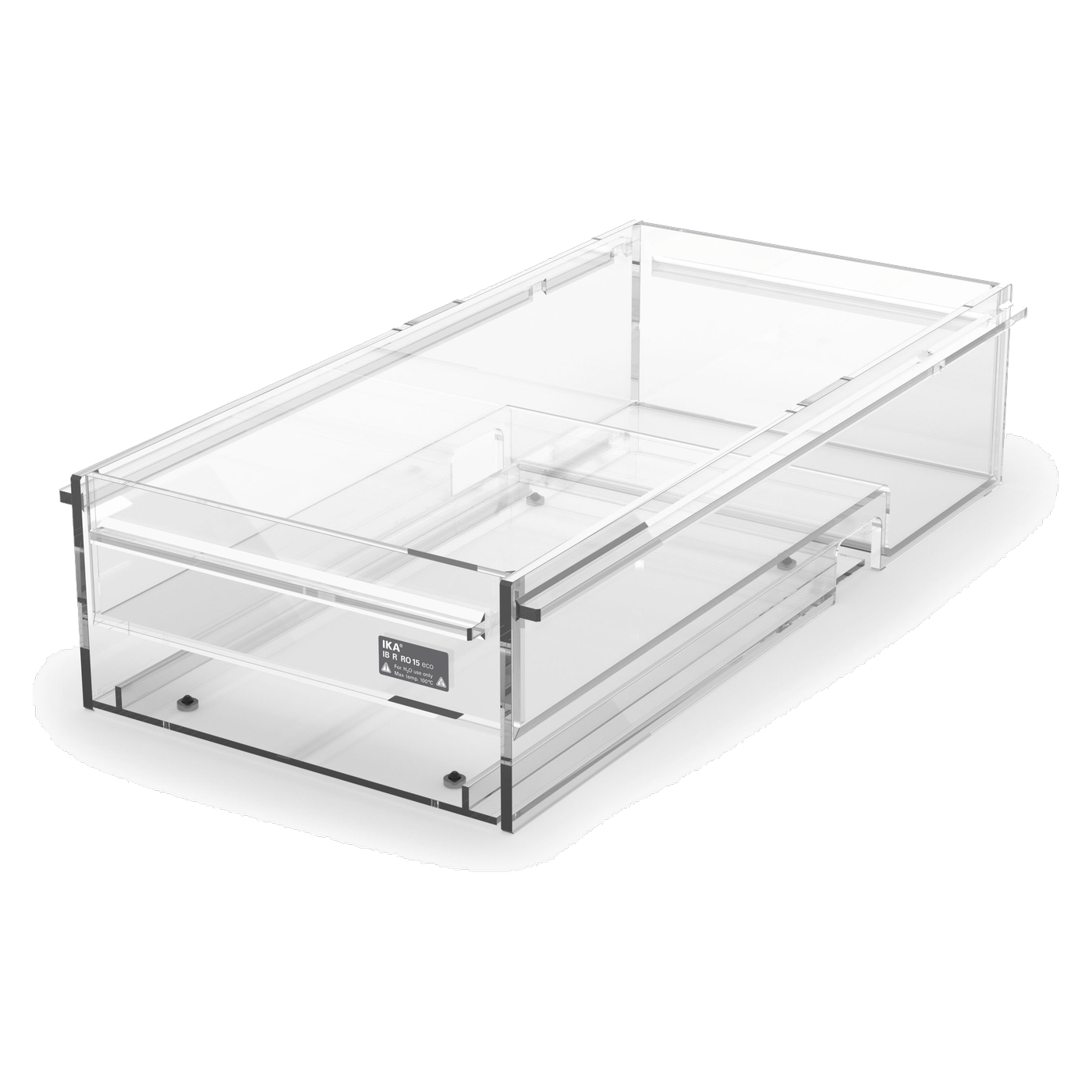

Anyone who wants to run the IKA multi-position magnetic stirrer RO 15 with temperature control but does not need a stainless steel version will find a lighter and less expensive alternative in the IKA plastic bath IB R RO 15 eco (MPN 20006341). Like the stainless steel version, the plastic bath with a capacity of 25 litres is designed for the RO 15 stirrer with up to 15 stirring positions for vessels up to 250 millilitres, but works exclusively with water as the bath liquid and is limited to temperatures up to 80 degrees Celsius. For all applications in the aqueous temperature range, this is a practical and material-saving solution, which is particularly worthwhile for laboratories that never work above 80 degrees Celsius anyway. Lightweight plastic bath instead of stainless steel With a weight of around 6.675 kilograms, the IB R RO 15 eco is considerably lighter than a comparable stainless steel version and can therefore be moved more easily or taken off the workstation for cleaning. The internal dimensions of 674 x 317 x 98 millimetres offer enough area for the RO 15 stirrer with its 15 positions, and the external dimensions are 722 x 365 x 165 millimetres. The IKA eco series deliberately relies on robust but low-cost plastic for all applications where water is sufficient as the bath medium, and is therefore aimed at laboratories that value an economical overall system. Particularly when equipping several workstations with the same RO 15 set-up, the price difference compared with the stainless steel version becomes clearly noticeable across several baths. Up to 80 degrees Celsius, with water only The plastic of the IB R RO 15 eco is approved for temperatures up to a maximum of 80 degrees Celsius and, according to the manufacturer, may only be operated with water as the bath liquid, not with oils or other bath media. For most aqueous applications in the laboratory, such as enzyme reactions, extractions or solubility tests at temperatures well below the boiling point of water, this temperature range is entirely sufficient and noticeably saves on purchase costs compared with the stainless steel version, without any functional disadvantage within this temperature window. It is important to stick consistently to the water requirement, as other bath liquids such as oils attack the plastic and can considerably shorten the service life of the bath. Compatible with the multi-position stirrer RO 15 Like the stainless steel version, the IB R RO 15 eco is designed for use with the IKA multi-position magnetic stirrer RO 15, which stirs up to 15 vessels, each with a volume of up to 250 millilitres, at the same time. In combination with an IKA immersion circulator, this creates a complete system for temperature-controlled parallel stirring, in which individual components such as bath, stirrer and circulator can be exchanged or supplemented independently of each other as required and according to budget. The stirrer itself drives all 15 magnetic stir bars under the shallow bath synchronously, while the circulator is responsible exclusively for temperature control of the bath water, so that both functions remain cleanly separated from each other. Placement in the IKA IB series Within the eco series, the IB R RO 15 eco is the only bath compatible with the multi-position stirrer RO 15, while the other plastic baths such as the IB 18 eco, IB HF 24 eco and IB R 52 eco are designed as classic water baths for individual or a few vessels. Anyone who needs the identical RO 15 set-up with higher temperature resistance up to 130 degrees Celsius will find the matching counterpart in the stainless steel version IB R RO 15 pro, with identical dimensions of the bath opening for the stirrer, so that switching to the higher-grade version is possible without changes to the stirrer or circulator. Typical applications As a water-compatible, economical parallel bath for the RO 15 stirrer, the IB R RO 15 eco is suitable, among other things, for: Parallel enzyme reactions and incubations at constant temperature in the aqueous range Solubility and extraction experiments with several parallel batches Practical courses and teaching with several experiments running at the same time Cost-conscious extension of an existing RO 15 set-up with a second, independent bath Technical details Bath typeOpen plastic bath for multi-position stirrer RO 15 SizeL Volume25 l MaterialPlastic (eco) Max. working temperature80 °C, water only Compatible stirrerIKA multi-position magnetic stirrer RO 15 (up to 15 positions, vessels up to 250 ml) Internal dimensions674 x 317 x 98 mm External dimensions722 x 365 x 165 mm Weightapprox. 6.675 kg Scope of delivery 1 x IKA plastic bath IB R RO 15 eco (MPN 20006341) Individual requirements & procurement service For operation, an IKA immersion circulator and the multi-position magnetic stirrer RO 15 are also required. Both components and further suitable accessories are available through our procurement service.

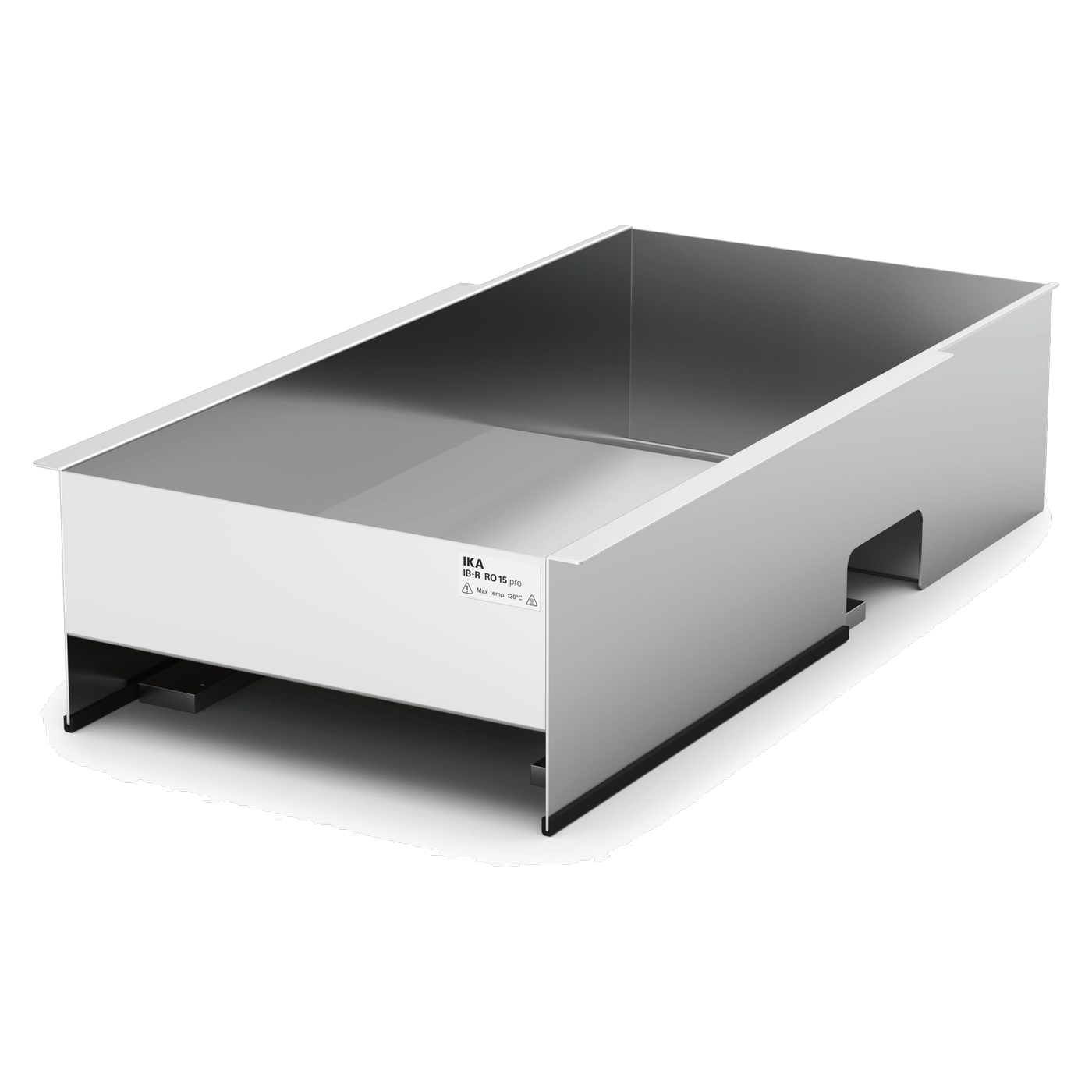

For parallel syntheses with several reaction vessels at the same time, a bath is needed that not only controls the temperature but also offers room for a multi-position magnetic stirrer. The IKA stainless steel bath IB R RO 15 pro (MPN 25007761) is designed for exactly this: a stainless steel bath with a capacity of 25 litres and a very shallow, wide design, specially matched to the IKA multi-position magnetic stirrer RO 15. The designation 15 in the name refers to the up to 15 stirring positions for vessels up to 250 millilitres, not to the bath volume, which is actually 25 litres. Also included in the scope of delivery is a distributor set (PDS.IB.R.RO), which ensures uniform temperature distribution over the entire length of the bath. Shallow design for combination with the multi-position stirrer With a usable bath opening of 489 x 313 x 98 millimetres, the IB R RO 15 pro is considerably shallower than classic round baths such as the IB 20 pro or IB 12 pro from the same series. This shallow, wide geometry is necessary so that the RO 15 magnetic stirrer positioned underneath or beside it can drive the stir bars in all 15 vessels at the same time, while the bath itself ensures uniform temperature control of all positions. The external dimensions of 678 x 361 x 355 millimetres also take into account the space required for the circulator technology hung on the bath and for the drive unit of the stirrer underneath. Stainless steel for temperatures up to 130 degrees Celsius As a stainless steel version, the IB R RO 15 pro is approved for working temperatures up to 130 degrees Celsius and is therefore suitable for a wider range of bath liquids than the identical-design plastic version IB R RO 15 eco, which is limited to 80 degrees Celsius and pure water. The choice of material makes the bath more robust against longer periods of use at elevated temperature and against a wider range of bath media, for example silicone oils for the upper temperature range. For syntheses that go beyond the aqueous temperature range, the pro version is therefore the more reliable choice. Even with frequent contact with different solvents during cleaning between two test series, stainless steel shows higher resistance and a longer service life than plastic. Distributor set for uniform temperature across 15 positions So that all 15 stirring positions actually reach the same temperature and not only the positions closest to the circulator, a distributor set (PDS.IB.R.RO) is supplied with the IB R RO 15 pro. It distributes the volume flow circulated by the immersion circulator in a targeted way over the entire length of the bath, so that temperature differences between the individual vessels are minimised, an important factor when several parallel batches are ultimately to be compared directly with each other. Without such targeted distribution, vessels at the opposite end of such an elongated bath would reach the target temperature noticeably more slowly than the positions close to the circulator, which would impair the validity of the results in parallel comparative experiments. Placement in the IKA IB series Within the IB series, the IB R RO 15 pro is the only bath designed specifically for a multi-position stirrer rather than for individual vessels or a pure water bath. For applications without parallel stirring positions, the classic round baths IB 9 pro, IB 12 pro and IB 20 pro with their larger capacity in the same stainless steel version are the more suitable choice. Anyone who wants to realise the same set-up more cost-effectively and in the aqueous temperature range will find the matching plastic version in the IB R RO 15 eco, with identical compatibility with the RO 15 stirrer. Both versions share the same basic geometry, so that an existing RO 15 set-up can be switched from the eco to the pro version if required without changes to the stirrer. Typical applications The bath is designed for parallel processes with the RO 15 multi-position stirrer and is suitable, among other things, for: Parallel syntheses with up to 15 reaction vessels at the same target temperature Screening batches in which several reaction conditions are compared at the same time at constant temperature Solubility and crystallisation experiments with several parallel samples Training and practical courses in which several working groups work at the same bath at the same time Technical details Bath typeOpen stainless steel bath for multi-position stirrer RO 15 SizeL Volume25 l MaterialStainless steel Max. working temperature130 °C Compatible stirrerIKA multi-position magnetic stirrer RO 15 (up to 15 positions, vessels up to 250 ml) Bath opening (usable sample space)489 x 313 x 98 mm External dimensions678 x 361 x 355 mm Scope of delivery 1 x IKA stainless steel bath IB R RO 15 pro (MPN 25007761) 1 x distributor set PDS.IB.R.RO Individual requirements & procurement service For operation, an IKA immersion circulator and the multi-position magnetic stirrer RO 15 are also required. Both components and further suitable accessories are available through our procurement service.
Fits
With the ICC basic IB R RO 15 pro (MPN 0010006740), a stainless steel bath with 25 l volume becomes a stirring station: an RO 15 magnetic stirrer serves 15 positions for glass vessels up to 250 ml, and the ICC basic circulator takes care of heating, control and circulation. The circulator is equipped in the basic version with an LED display and 0.1 K display resolution. The temperature in the package is limited to 130 °C.Temperature range in the packageAs a standalone unit, the ICC basic reaches temperatures up to 150 °C. In the package, a maximum temperature of 130 °C applies to the stainless steel bath for the RO 15 magnetic stirrer, and this value is the upper limit for your set values. The safety circuit is adjustable from 0 to 160 °C, and a PT1000 monitors the safety temperature. If water above 80 °C is used as the medium, IKA recommends floating balls made of PP, which insulate and reduce water loss. These balls are not included.LED display and controlThe ICC basic controls by PID with a PT 100 working probe. The temperature stability according to DIN 12876 is ±0.02 K, the display resolves to 0.1 K, and the set temperature can be set to an accuracy of 0.1 K. Visual and audible warnings, an over-temperature warning and low and high level protection are part of the equipment. The circulator is marked class III with FL according to DIN 12876. You will find the standalone unit with ident number 0004134400 as the ICC basic Immersion Circulator.Bath, stirrer and bath bridgeThe bath for the RO 15 has a usable sample space of 489 x 313 x 98 mm. The samples stand 35 to 75 mm deep in the medium. The 15 laser markings show where the vessels belong. The circulator is attached with a clamp, and the BL.ICC bath bridge is included. In total the package needs 678 x 361 x 355 mm (D x W x H) of space.Circulation with flow distributorThe PDS.IB.R.RO pump connection set is part of the package. The flow distributor is intended to bring the bath to an even temperature over its entire length. The pump of the ICC basic works as a pressure/suction pump with variable output, a maximum of 18 l/min at 0 bar back pressure, 0.3 bar pump pressure and 0.2 bar on the suction side.Basic or controlIf you need a finer display, compare it with the ICC control IB R RO 15 pro. There the TFT display, ±0.01 K stability and 0.01 K display resolution are part of the circulator. Bath, RO 15 stirrer and pump connection set are the same components in both packages, and heating power and pump data are identical.Typical applicationsStirring and temperature control of 15 glass vessels up to 250 ml in a shared bathPositioning the vessels with the help of the laser markingsTemperature tasks up to 130 °C in the stainless steel bathBath circulation via pump connection set and flow distributorData connection via RS 232 or Micro-USBTechnical detailsClassification according to DIN 12876III with FL markingWarning functionsvisual, audible, over-temperatureSafety circuit, adjustable0 to 160 °CLow/high level protectionyesCalibrationyesHeating power of circulator2000 WWorking range of circulator aloneRoom temp. +10 K at 1000 rpm to 150 °COperating temperature min. of circulator (with external cooling)-20 °CControlPIDProbe for working/safety temperaturePT 100 (working), PT1000 (safety)DisplayLEDStability (DIN 12876)±0.02 KDisplay resolution0.1 KSetting accuracy of set temperature0.1 KPumpPressure/suction pump, output variableMax. pump pressure (flow rate 0 l)0.3 barMax. suction pressure (flow rate 0 l)0.2 barMax. flow rate at 0 bar back pressure18 l/minMin. bath depth150 mmPackage, bathIB R RO 15 pro stainless steel bath for RO 15, size L, volume 25 lMaximum temperature of package130 °CStirring positions15, for glass vessels up to 250 mlLaser markings15Usable sample space489 x 313 x 98 mmImmersion depth of samples35 to 75 mmExternal dimensions (D x W x H)678 x 361 x 355 mmVoltage and frequency230 V, 50/60 HzPower consumption2100 WInterfacesRS 232 and Micro-USBProtection class according to DIN EN 60529IP 21Permissible ambient temperature5 to 40 °CPermissible relative humidity80 %Duty cycle100 %Mounting of the circulatorClampCirculator (W x H x D)145 x 340 x 200 mmScope of delivery1 x ICC basic Compact Immersion Circulator1 x BL.ICC bath bridge1 x IB R RO 15 pro stainless steel bath for RO 15 magnetic stirrer, size L, 25 l1 x RO 15 magnetic stirrer1 x PDS.IB.R.RO pump connection set with flow distributorWarranty and procurement serviceThe IKA manufacturer's warranty of 2 years applies to the ICC basic IB R RO 15 pro, extended to 3 years on registration at ika.com/register within 90 days of purchase. On request we procure floating balls, replacement baths and further accessories.

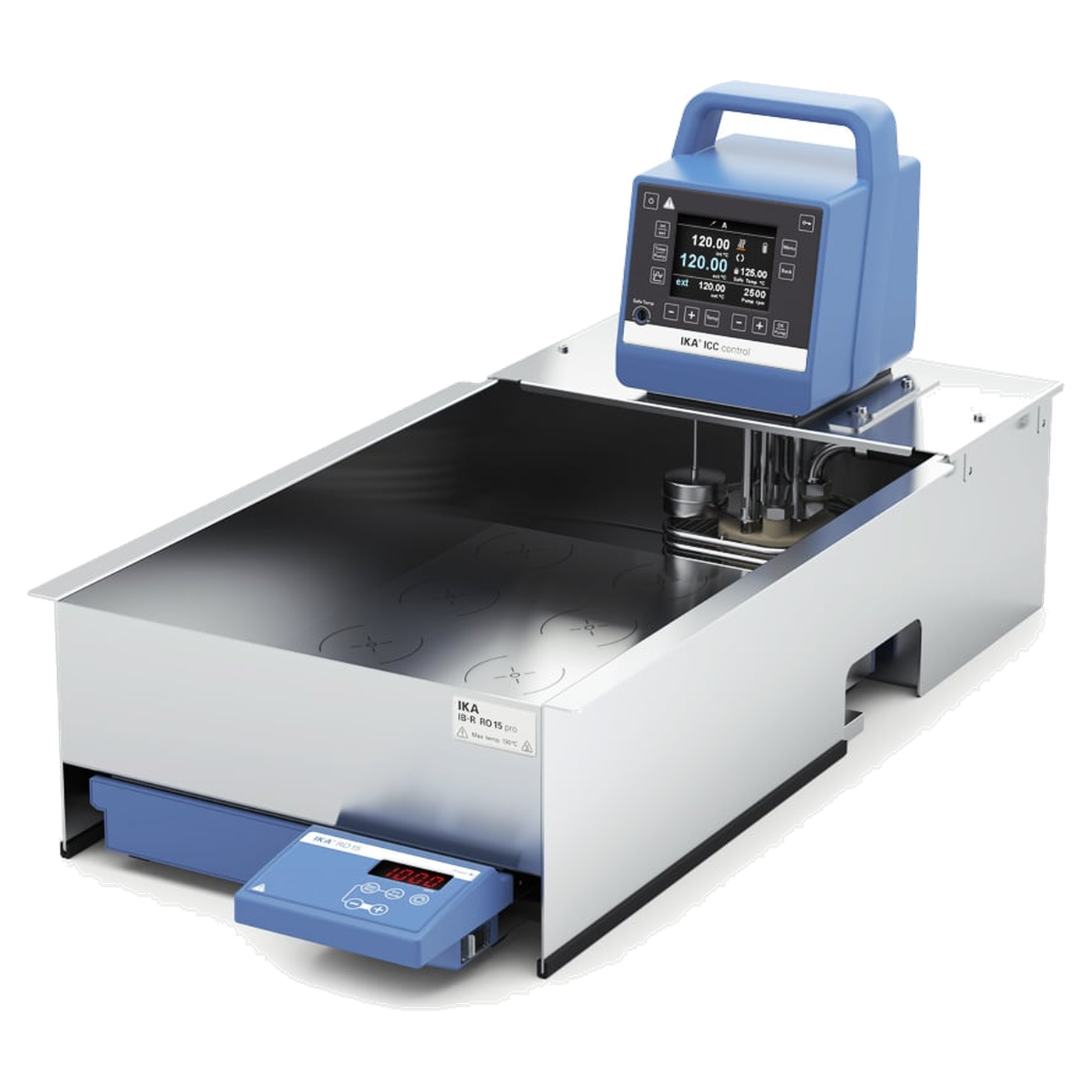

The ICC control IB R RO 15 pro (MPN 0010006736) is a temperature control and mixing system in one package. In the stainless steel bath with 25 l volume works an RO 15 magnetic stirrer with 15 stirring positions for glass vessels up to 250 ml, and the ICC control circulator heats the bath with 2000 W and holds the set temperature. The package is designed for up to 130 °C. Up to 15 sample vessels can thus be temperature-controlled and stirred in the same bath.Package up to 130 °C, circulator alone up to 150 °COn its own, the ICC control circulator has a working range from room temperature plus 10 K (at 1000 rpm) to 150 °C. In this combination the bath limits the range, and the maximum temperature of the package is 130 °C. The pro packages with the standard stainless steel bath of the series, by contrast, are designed for up to 150 °C. Choose the set value and temperature control medium according to the package limit of 130 °C, and the adjustable safety circuit (0 to 160 °C) accordingly.With water above 80 °C as the temperature control medium, IKA recommends floating balls made of PP for insulation and against water loss. They are not part of the scope of delivery and can be requested via our procurement service.RO 15 magnetic stirrer and sample spaceThe sample space in the bath measures 489 x 313 x 98 mm, and the samples are immersed 35 to 75 mm deep. 15 laser markings make it easier to place the vessels on the 15 stirring positions. The package measures 678 x 361 x 355 mm (D x W x H) on the outside, and you should plan the floor space accordingly.Pump connection set with flow distributorThe PDS.IB.R.RO pump connection set is part of the scope of delivery. Its flow distributor is intended to bring the stainless steel bath to an even temperature over the entire bath length. The pressure/suction pump of the circulator has variable output. It delivers a maximum of 18 l/min at 0 bar back pressure, the maximum pump pressure is 0.3 bar, and on the suction side 0.2 bar.Control, display and safety of the ICC controlWorking and safety temperature appear on a TFT display. The temperature stability according to DIN 12876 is ±0.01 K, the display resolution 0.01 K, and the setting accuracy of the set temperature 0.1 K. A PT 100 measures the working temperature and a PT1000 the safety temperature. A PT 100 fits the connection for external temperature probes, and the display indicates operation with an external probe.The system is classified according to DIN 12876 as class III with the marking FL. Warning functions (visual, audible, over-temperature) as well as low and high level protection are present. The circulator is attached with a clamp. As a standalone unit we list the ICC control (ident number 0004136600).ICC control or ICC basic in the same bathThe ICC basic IB R RO 15 pro consists of the same components: bath, RO 15 stirrer, bath bridge and PDS.IB.R.RO pump connection set. The difference lies in the circulator. The ICC basic has an LED display, a stability of ±0.02 K and a display resolution of 0.1 K. The ICC control brings the TFT display, ±0.01 K and 0.01 K resolution. Heating power (2000 W) and pump data are the same in both.Typical applicationsThe package is an integrated temperature control and mixing system. The technology gives rise to these tasks:Temperature control and stirring of up to 15 glass vessels of up to 250 ml each in one bathAligning the vessels to the 15 laser markingsTemperature control up to 130 °C, medium suited to the set valueEven temperature control over the bath length with pump connection set and flow distributorTemperature control with external PT 100 probe (probe not included in the scope of delivery)Connection to a PC via RS 232 or Micro-USBTechnical detailsBathIB R RO 15 pro, stainless steel, size L, 25 lStirrerRO 15 magnetic stirrer, 15 stirring positions for glass vessels up to 250 mlMax. temperature (package)130 °CSample space in bath489 x 313 x 98 mmImmersion depth of samples35 to 75 mmOverall external dimensions (D x W x H)678 x 361 x 355 mmHeating power2000 WWorking temperature of circulatorRoom temp. +10 K at 1000 rpm to 150 °COperating temperature min. of circulator (with external cooling)-20 °CTemperature controlPIDWorking and safety probePT 100 (working), PT1000 (safety)DisplayTFTTemperature stability according to DIN 12876±0.01 KDisplay resolution0.01 KSetting accuracy of set temperature0.1 KConnection of external temperature probePT 100DIN 12876Class III, marking FLSafety circuitadjustable from 0 to 160 °CWarning functionvisual, audible, over-temperatureLevel protectionLow level and high levelCalibration optionyesPump typePressure/suction pump, output variableMax. flow rate (0 bar back pressure)18 l/minMax. pump pressure (no flow)0.3 barMax. pump pressure suction side (no flow)0.2 barMin. bath depth150 mmDevice mountingClampPermissible duty cycle100 %Dimensions of circulator (W x H x D)145 x 340 x 200 mmAmbient temperature5 to 40 °CRelative humiditymax. 80 %Protection class (DIN EN 60529)IP 21InterfacesRS 232, Micro-USBPower supply230 V, 50/60 HzPower consumption2100 WScope of delivery1 x ICC control Compact Immersion Circulator1 x BL.ICC bath bridge1 x IB R RO 15 pro stainless steel bath for RO 15 magnetic stirrer, size L, 25 l1 x RO 15 magnetic stirrer1 x PDS.IB.R.RO pump connection set with flow distributorWarranty and procurement serviceThe IKA manufacturer's warranty of 2 years applies to the ICC control IB R RO 15 pro, extended to 3 years on registration at ika.com/register within 90 days of purchase. On request we put together accessories such as floating balls or a replacement bath.

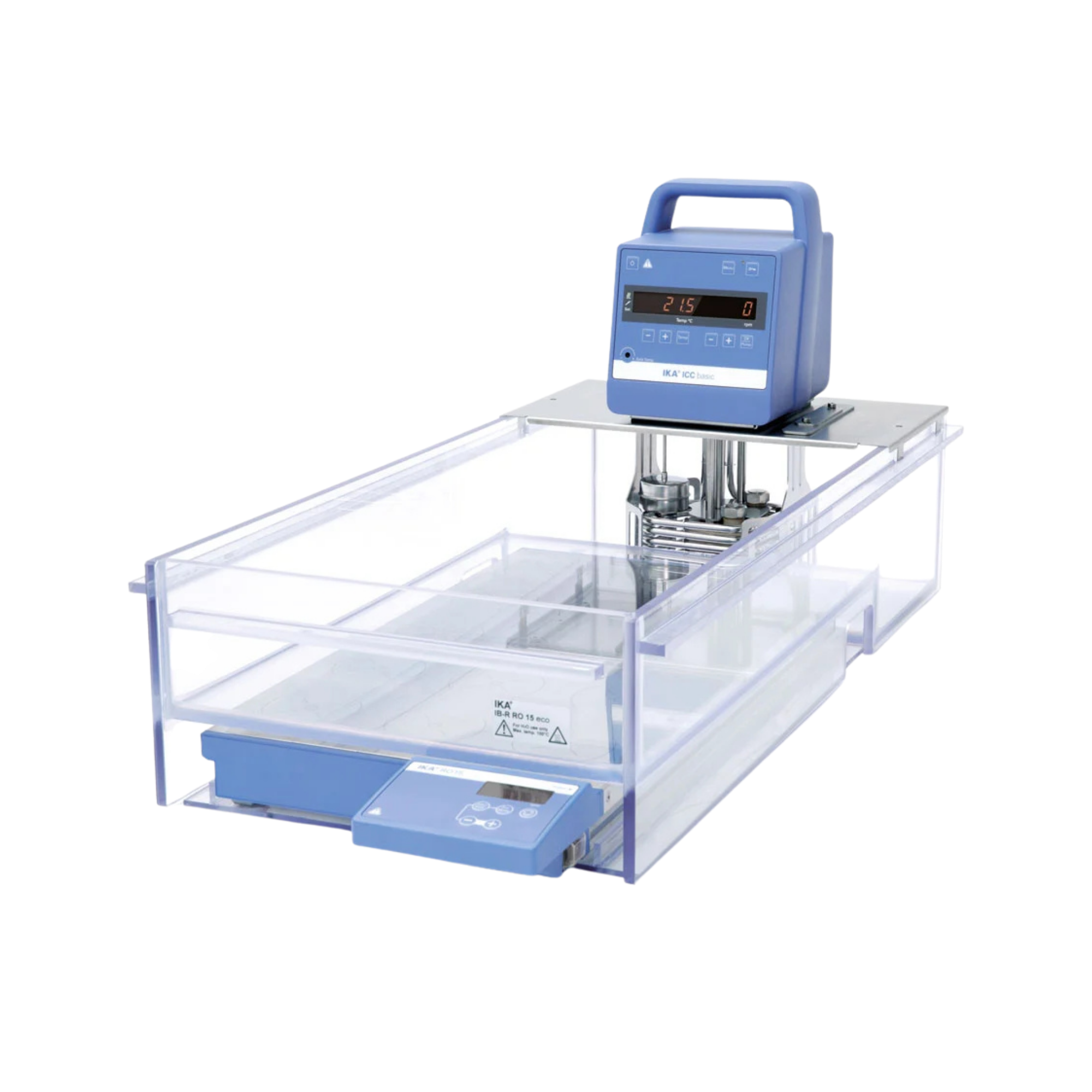

The IKA ICC basic IB R RO 15 eco compact thermostat package offers a reliable, thermodynamically optimised system solution for the precise temperature control and simultaneous mixing of sample media in clinical, biological and chemical laboratory environments. This ready-to-connect complete set combines the robust immersion thermostat from the ICC basic range with a specialised, transparent plastic bath. For standardised analytical test series, enzymatic reactions or routine sample preparation in multi-user operations, high temperature stability and seamless visual monitoring are the primary criteria for achieving reproducible results in a way that is gentle on the material and ensures process reliability in day-to-day laboratory work. Reliable temperature control and high-performance kinetics The process engineering centrepiece of this package is the ICC basic immersion thermostat. Equipped with a precise microprocessor control system, the unit achieves outstanding temperature stability of ±0.02 K. A clear, brightly lit LED display shows the setpoint and actual temperatures, as well as all key operating statuses, at a glance, ensuring error-free operation. The integrated, powerful pressure and suction pump, with a flow rate of up to 18 litres per minute, ensures excellent fluid-mechanical mixing and a completely homogeneous temperature distribution throughout the entire bath volume, thereby preventing thermal hotspots whilst minimising damage to the material. Geometric optimisation for synchronous magnetic stirring processes The material-scientific and design-related distinctive feature of the supplied IB R RO 15 eco plastic bath lies in its specialised geometry. Manufactured from high-purity, impact-resistant polycarbonate (PC), this transparent bath is structurally dimensioned and modified at the base so that it fits perfectly onto a multi-position magnetic stirrer (such as the IKA RO 15 series). This integrated design enables laboratory staff to heat sample vessels precisely in the water bath whilst simultaneously stirring them synchronously via magnetic coupling through the base of the bath. The bath’s crystal-clear design ensures an unobstructed view of the samples at all times, without disrupting the thermodynamic equilibrium. Digital connectivity and uncompromising health and safety The electronic system architecture of the ICC basic is tailored to the requirements of modern laboratory workstations. The thermostat unit can be easily connected to a PC via the integrated USB interface, supporting external control, transient data acquisition and the validation of test reports. A comprehensive range of safety features ensures maximum health and safety in day-to-day operation: an adjustable safety circuit protects against thermal overload, a mechanical float switch provides reliable dry-run protection, and visual and audible alarm signals immediately indicate any process deviations. Technical details Thermoregulation & Pump Specifications Thermostat type: Compact hanging thermostat (ICC basic) Operating temperature range: Room temperature +10 °C to 100 °C (temperature limited by the polycarbonate bath) Temperature stability in accordance with DIN 12876: ± 0.02 K Pump type: Adjustable pressure and suction pump Max. flow rate (free flow): 18 l/min Max. delivery pressure: 0.3 bar Max. suction pressure: 0.2 bar Tank geometry & materials Tank designation: IB R RO 15 eco Bath material: High-quality polycarbonate (PC), transparent and dimensionally stable Functional geometry: Optimised for use with multi-position magnetic stirrers (specifically the IKA RO 15) Max. bath volume: approx. 15 litres Cleaning: Resistant to mild laboratory cleaning agents; can be wiped clean without damaging the material Electronics, interfaces & safety Display: Clear LED display showing actual and setpoint values Interfaces: USB-B for reliable PC connectivity Safety systems: Adjustable safety circuit (overheating protection), visual/audible fault alarm, liquid level float switch (dry-run protection) Mains supply: 230 V / 50/60 Hz Contents of delivery 1 x IKA ICC basic immersion thermostat base unit 1 x IKA plastic bath IB R RO 15 eco (System MPN: 0010002471) 1 x mounting bracket / bath bridge for secure installation 1 x mains cable 1 x Operating instructions / Quality certificate Important note: The optional multi-position magnetic stirrer (e.g. IKA RO 15) for synchronous stirring tasks, the bath lid and test tube holders are not included in the standard scope of delivery and must be ordered separately according to your specific application. Individual requirements & accessories To make full use of the functionality of the IKA ICC basic IB R RO 15 eco package, we recommend combining it with the original IKA RO 15 multi-position magnetic stirrer. To minimise evaporation losses and reduce energy consumption at operating temperatures above 60 °C, we stock suitable polycarbonate bath lids and floating insulating balls. To ensure the organised placement of your sample vessels, we also offer corrosion-resistant test tube holders and stainless steel inserts. For automated control and documentation of your temperature profiles, the system can be connected via USB to the labworldsoft laboratory software (®). Please use our technical procurement service to configure your complete workstation.
