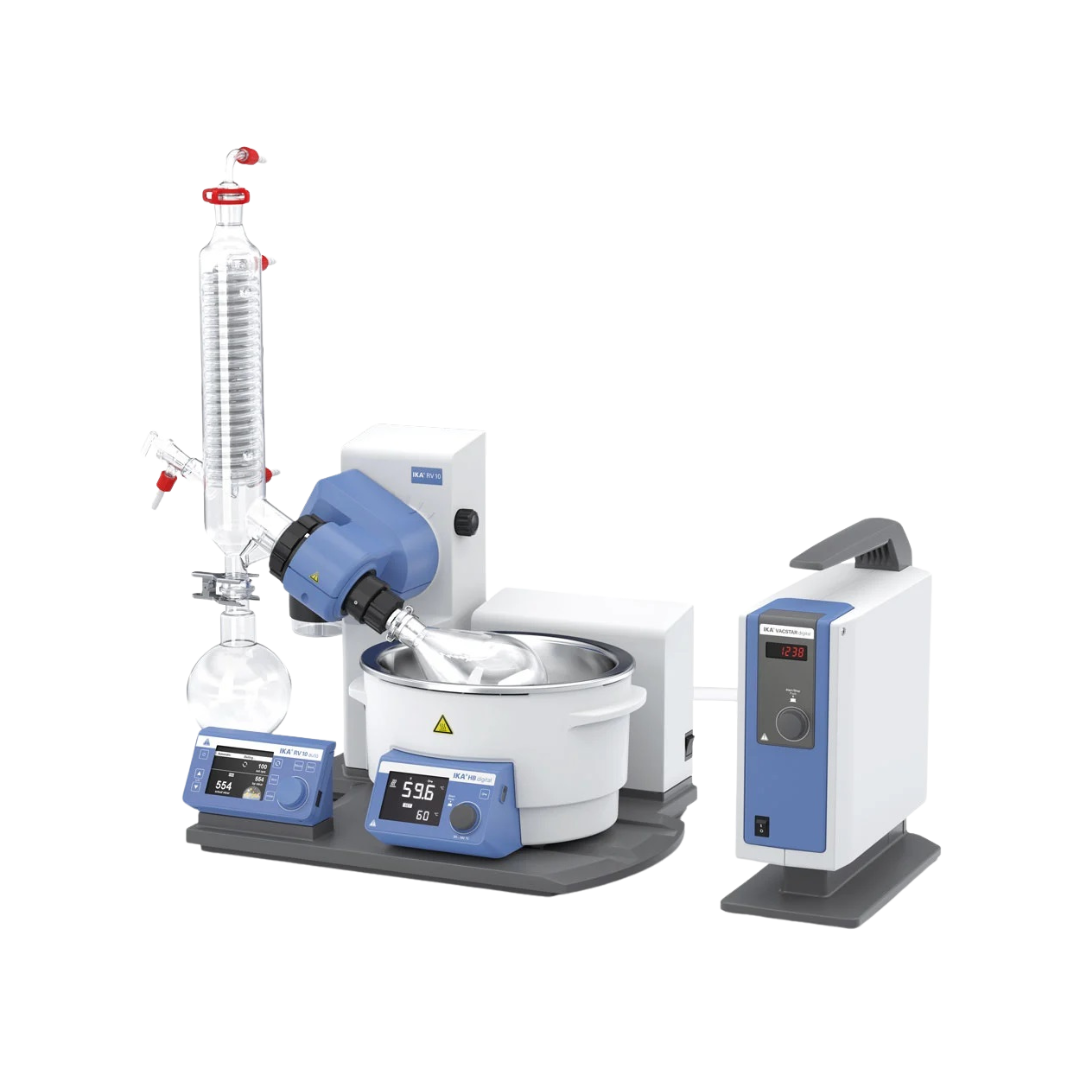

IKA RV 10 auto pro V-C Rotary Evaporator (Package), 0010004812

The IKA RV 10 auto pro V-C is the premium all-in-one solution for fully automatic and unattended distillation in the laboratory. This package (MPN 0010004812) is the flagship of the RV 10 series and is aimed at procurement specialists and laboratories that demand the highest standards of efficiency, process reliability and documentation.

Fully automatic distillation (auto pro)

At the heart of this package is the ‘auto pro’ controller. (Feature) It enables fully automatic boiling point detection at the touch of a button. The instrument automatically determines the required vacuum pressure and dynamically adjusts it throughout the entire process. (Benefit) This saves users valuable time, prevents delays in boiling or samples from boiling over, and ensures highly efficient and rapid distillation.

Intelligent control and solvent library

The high-resolution TFT graphic display enables intuitive operation. A major advantage for laboratories with varying applications is the integrated solvent library. (Feature) Users can save and retrieve standard processes for common solvents, which significantly improves reproducibility (compliance with SOPs) (Benefit). The entire process can be seamlessly documented via labworldsoft ® using USB and RS-232 interfaces.

Maximum safety and efficiency (V-C glassware)

The abbreviation “V-C” stands for “Vertical” and “Coated”. The vertical cooler (V) is the space-saving standard solution with a highly efficient cooling surface area of 1500 cm². The “C” coating on the glass (feature) is a crucial safety feature. It protects the glass from mechanical damage and, in the event of glass breakage, provides implosion protection for the user (benefit).

Integrated vacuum controller and motorised lift

This package already includes the vacuum control unit, which communicates directly with the heating bath (HB eco). In the event of a power cut or at the end of the process, the motorised lift automatically raises the evaporator piston out of the heating bath to protect the sample.

Important ordering information

This package (0010004812) includes the stirrer, the heating bath, the V-C glassware and the vacuum controller. A vacuum pump (e.g. IKA V-3000) and a recirculating chiller (e.g. IKA RC 2) are essential for operation but are not included in this package.

Technical details

• Condenser type: Vertical (V) with 1500 cm² cooling surface
• Glassware: Plastic-coated (C) for splinter protection
• Control system: RV 10 auto pro (automatic boiling point detection)
• Display: TFT display, graphical, programmable
• Heating bath: HB eco (RT – 180 °C, 3 L capacity)
• Drive: Motorised lift with ‘Safety-Stop’ function
• Speed range: 10–150 rpm
• Motor: Brushless DC motor
• Vacuum control: Yes, included in the scope of delivery
• Interfaces: RS 232, USB (for labworldsoft ®)

Scope of delivery

• RV 10 auto pro drive (motor lift)
• HB eco heating bath
• RV 10.1 glassware, vertical, coated (V-C)
• RV 10.4002 vacuum control unit
• Hose set (for water/vacuum)
• USB cable
• Mains cable
• User manual
• Note: The vacuum pump and recirculating cooler are not included in the scope of delivery.
