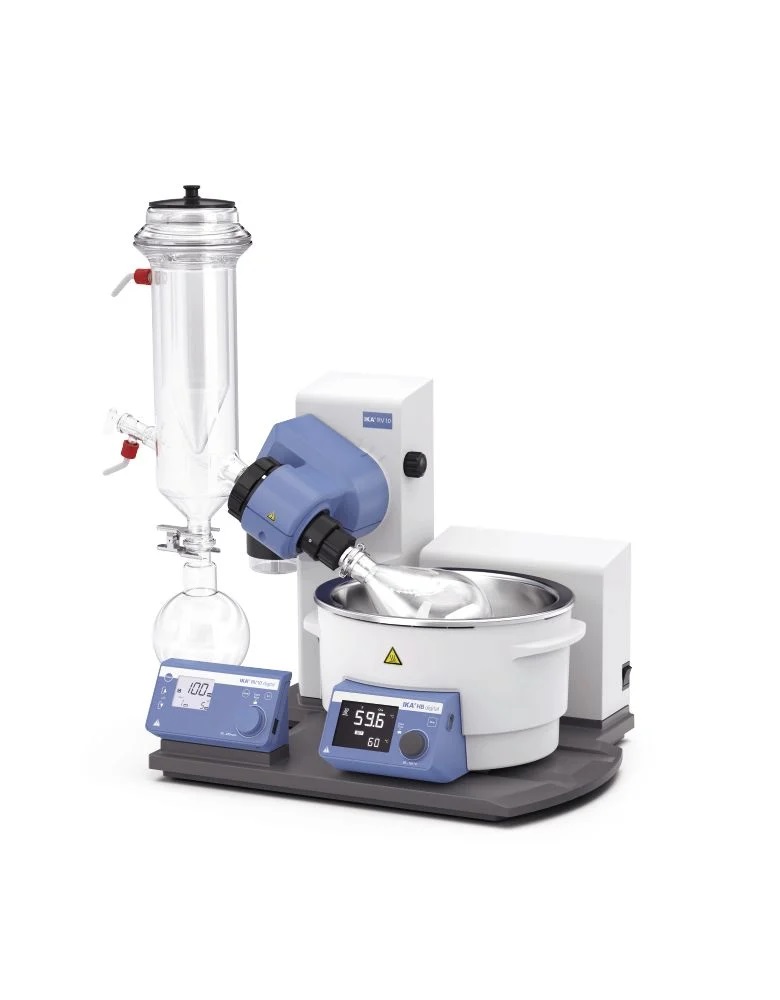

IKA RV 10 Digital Rotary Evaporator with Dry Ice Condenser, 0010006365

RV 10 digital with dry ice condenser

The RV 10 digital model represents the logical evolution of the RV 10 rotary evaporator product range. It features a new universal heating bath, modern safety features and digital interfaces. The RV 10 digital is a robust and reliable companion for all distillation tasks.

The package with a dry ice condenser is particularly suitable for the distillation of low-boiling solvents.

Scope of supply

RV 10 digital FLEX

RV 10.102 receiving flask (KS 35/20, 500 ml)

RV 10.4 dry ice cooler

RV 10.84 evaporating flask (NS 29/32, 1,000 ml)

Technical Specifications

Cooler type Dry ice cooler

Cooling surface area 620 cm²

Motor type Direct current

Speed range 5–280 rpm

Reversible rotation Yes

Lift Motor

Stroke 140 mm

Heating temperature range Room temperature – 180 °C

Heating power 1300 W

Setpoint temperature accuracy ±1 K

Max. capacity 3 l

Timer Yes

Dimensions (W x H x D) 500 x 430 x 440 mm

Weight 20 kg

Permissible ambient temperature range 5 – 40 °C

Permissible relative humidity 80 %

Protection class according to DIN EN 60529 IP 20

RS 232 interface yes

Voltage 115 V

Frequency 50/60 Hz

Power consumption 1400 W

Other voltage options available (220–240 V / 115 V / 100–240 V / 100–120 V / 100–115 V)

Accessories and spare parts available on request
