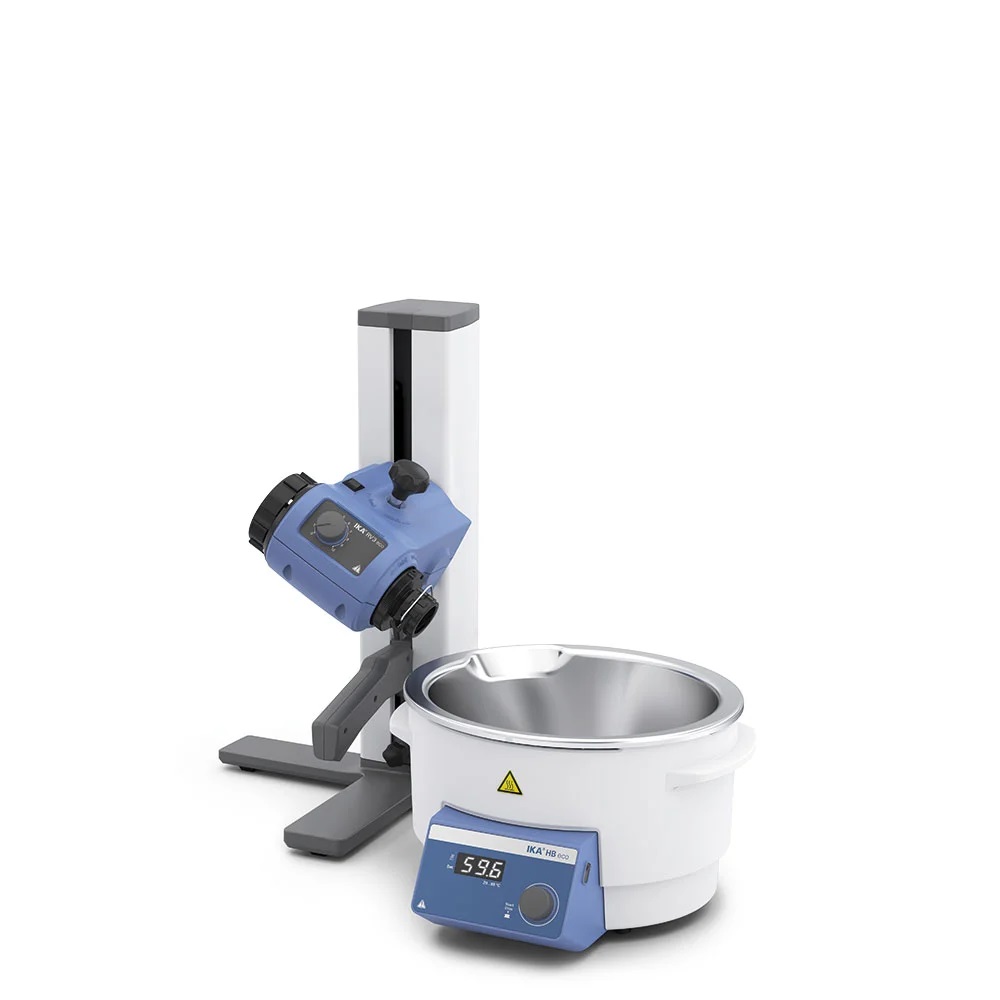

IKA RV 3 FLEX Rotary Evaporator, 0010003331

RV 3 FLEX

The RV 3 rotary evaporator is the ideal entry-level model in the IKA range of rotary evaporators. It is versatile and can be used in the chemical, pharmaceutical and biotechnology industries, in the fields of research and development, production and quality assurance, in laboratories and in plant engineering.

4 l heating bath up to 99°C

Water heating bath with digital temperature display and carrying handles

Mechanical end-stop for the lift

Locking mechanism: red indicator showing the unlocked position of the vapour transfer tube

Manual lift for precise positioning of glassware

Adjustable immersion angle

One-handed operation of the manual lift, suitable for both right- and left-handed users

Continuously variable speed adjustment via rotary knob and scale

Speed range: 20–300 rpm

User safety ensured by the unit’s 24 V low-voltage system

Flask clamping with integrated release mechanism for easy replacement of the evaporating flask

Compatible with the entire IKA RV 10 range of glassware

Contents of delivery

RV 3 ECO

HB eco S099

RV 05.10 Ball-joint clamp

RV 10.88 Clamp NS 29

RV 10.70 Steam feed-through pipe (NS 29/32)

RV 10.8001 Seal

Technical data

Cooler type without cooler

Motor principle Direct current

Speed range 20–300 rpm

Speed tolerance (set speed <100 rpm) ±1 rpm Speed tolerance (set speed >100 rpm) ±1 %

Lift manual

Stroke 150 mm

Heating temperature range Room temp. – 99 °C

Dimensions (W x H x D) 440 x 530 x 330 mm

Weight 12 kg

Permissible ambient temperature range 5 – 40 °C

Permissible relative humidity 80 %

Protection class according to DIN EN 60529 IP 20

Voltage 100–240 V

Frequency 50/60 Hz

Power consumption 1400 W

Accessories and spare parts available on request
