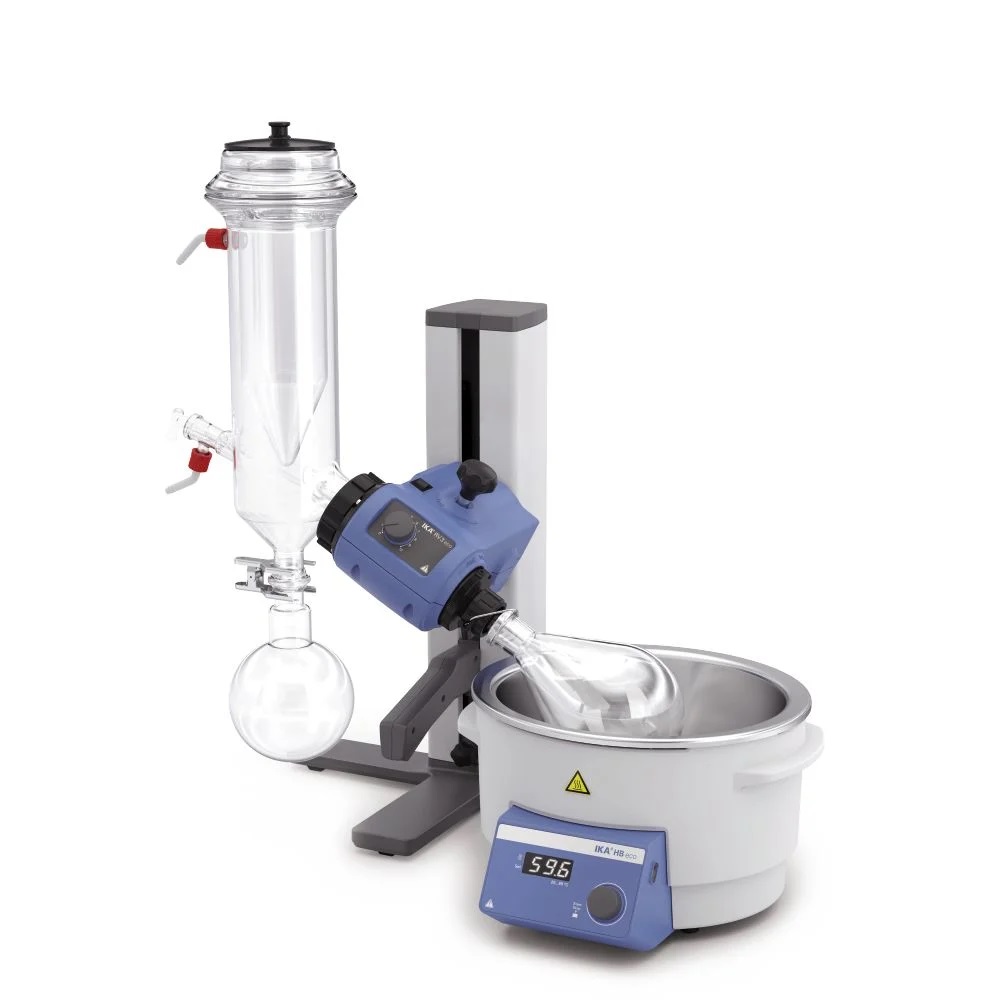

IKA RV 3 Rotary Evaporator with Dry Ice Condenser, 0010006363

RV 3 with dry ice condenser

The RV 3 rotary evaporator is the basic manual model in the IKA range of rotary evaporators. It has a wide range of applications in the chemical, pharmaceutical and biotechnology industries, in research and development, in production and quality assurance, in laboratories and in plant engineering. Digital displays for speed and heating bath temperature enable optimum control of all distillation processes.

4-litre heating bath

Integrated safety shut-off function in the event of a power cut

Water/oil heating bath with carrying handles

Lock button to fix the heating bath temperature

Locking mechanism: red indicator shows the unlocked position of the vapour tube

Flask clamping with integrated push-off function for easy replacement of evaporating flasks

Manual lift for precise positioning of glassware

Adjustable immersion angle

One-handed manual operation of the lift, suitable for both left- and right-handers.

Speed range: 5–300 rpm

Low operating voltage (24 V) ensures user safety

Compatible with the entire range of IKA RV 10 glassware.

Scope of delivery

RV 3 FLEX

RV 10.4 dry ice cooler

Technical data

Cooler type: Dry ice cooler

Cooling surface area 620 cm²

Motor type: DC

Speed range: 20–300 rpm

Speed tolerance (set speed <100 rpm) ±1 rpm Speed tolerance (set speed >100 rpm) ±1 %

Manual lift

Stroke 150 mm

Heating temperature range: room temperature – 99 °C

Dimensions (W x H x D) 440 x 530 x 330 mm

Weight 28.3 kg

Permissible ambient temperature range 5 – 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 20

Voltage 100–240 V

Frequency 50/60 Hz

Power consumption 1400 W

Accessories and spare parts available on request
