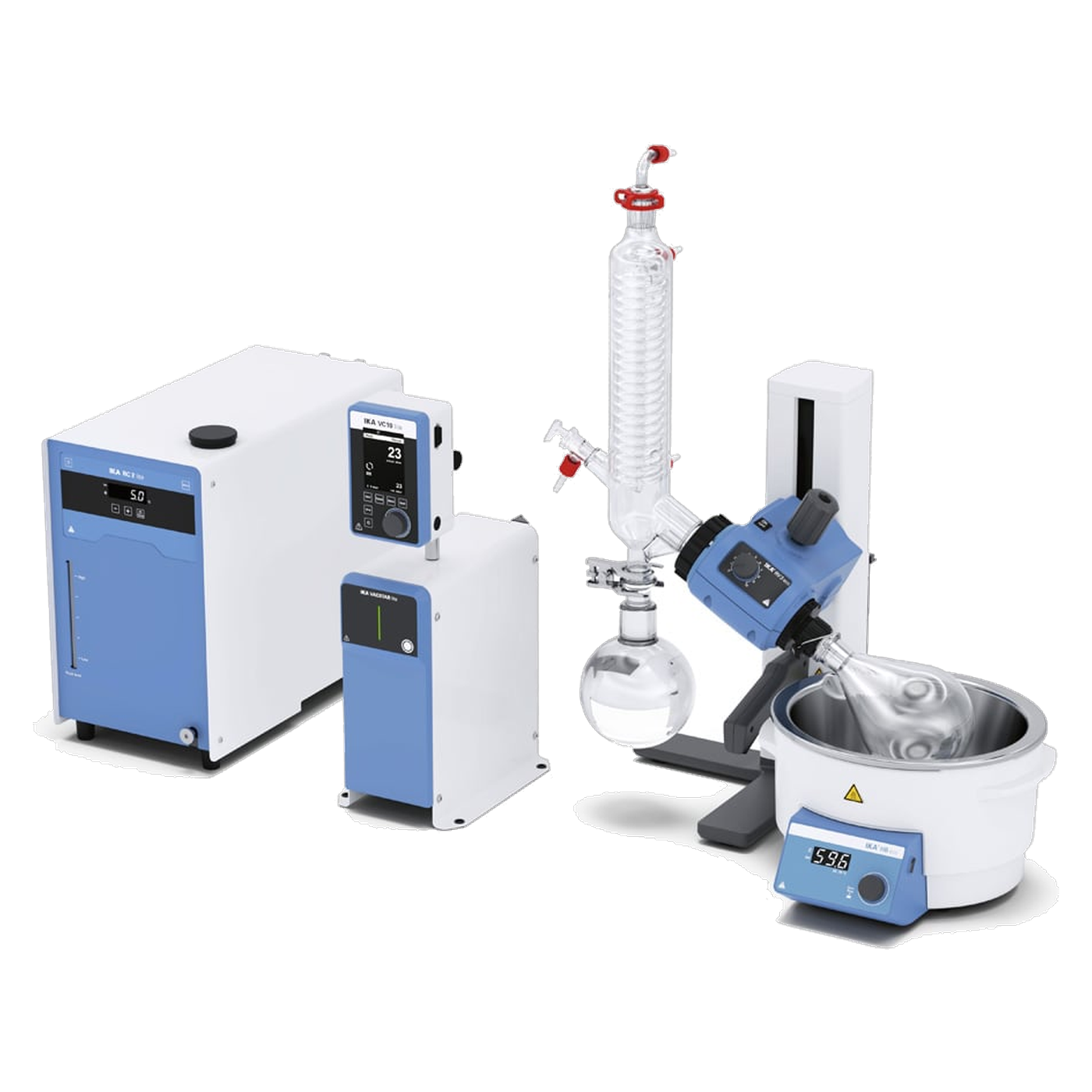

IKA RV 3 V Starter Solution Rotary Evaporator, Complete Set with Heating Bath, Vacuum Pump and Recirculating Cooler, up to 300 rpm, 0010013945
€5,724.00
% Manufacturer's RRP: €7,632.00 25% below manufacturer's RRP
- Complete set: drive unit, heating bath, vertical glass set, VACSTAR lite vacuum pump and RC 2 lite recirculating cooler
- Speed range 20 to 300 rpm, manual lift with 150 mm stroke
- Vertical glass set with 1500 cm² cooling surface via a specially developed glass guide
- Circulating chiller with natural refrigerant R290, down to -10 °C
- Vacuum pump with a final pressure of 9 mbar, controlled via the VC 10 lite vacuum controller
- 5-year IKA warranty on the drive and heating bath, 3 years on the pump and cooler, in each case subject to registration within 90 days of purchase
Product information "IKA RV 3 V Starter Solution Rotary Evaporator, Complete Set with Heating Bath, Vacuum Pump and Recirculating Cooler, up to 300 rpm, 0010013945"
The RV 3 V Starter Solution is the complete package for the RV 3 series: the drive, heating bath, vertical glass set, vacuum pump and recirculating cooler are all included in a single order item, meaning that no additional peripheral equipment needs to be purchased separately for operation. Anyone purchasing a rotary evaporator for the first time or setting up a second station without existing infrastructure is thus spared the task of selecting and matching a pump and cooler to the drive. Unlike the other RV-3 variants, this set also includes the RV 10.1 vertical glass assembly, together with a hose set and cabling for the direct connection of the pump and cooler to the drive.
Vacuum pump and recirculating cooler already matched to each other
The supplied VACSTAR lite vacuum pump achieves a flow rate of 1.0 cubic metres per hour or 16.7 l per minute and an ultimate pressure of 9 millibars, controlled via the VC 10 lite vacuum controller, which is also included in the set and features manual setpoint input. The RC 2 lite recirculating cooler, with a cooling capacity of 400 watts, cools down to minus 10 degrees Celsius, operates with a pressure and suction pump at 0.35 bar, filters via a stainless steel mesh filter and runs on the natural refrigerant R290. The vertical cooler makes efficient use of the 1,500 square centimetre cooling surface via a specially developed glass guide.
Manual operation, compact overall design
As with the other RV-3 models, the speed can be adjusted between 20 and 300 revolutions per minute using a rotary knob, with a tolerance of ±1 rpm below and ±1 per cent above 100 rpm. The manual lift has a stroke of 150 millimetres; this entry-level model does not feature an RS-232 or USB interface for remote control. The vacuum pump itself is compact enough to fit next to the drive without noticeably reducing the working area at the fume cupboard.
Typical applications
- Initial equipment for newly fitted-out laboratories without existing pump or cooling infrastructure
- Second workstation at an additional workstation, complete and ready for immediate use
- An entry-level solution for rotary evaporation without the need for separate procurement of a pump and cooler
- Training laboratories, where a closed system from a single supplier simplifies induction
Selection guide: Set or individual purchase
Of the four RV-3 variants available from LT Laborhandel, the Starter Solution is the only one that comes as a set including the vertical glass assembly, pump and recirculating cooler. Those who prefer to combine individual components freely will find the right building blocks in the FLEX drive unit and the two dry-ice cooler variants.
| Model | Specifications | Speed range | Pump/Cooler |
| RV 3 FLEX | without glass set, without cooler | 20 to 300 rpm | without pump |
| RV 3 with dry ice cooler | Dry ice cooler, 620 cm² | 20 to 300 rpm | without pump |
| RV 3 with dry ice cooler, coated | Coated dry ice cooler, 620 cm² | 20 to 300 rpm | without pump |
| RV 3 V Starter Solution (this product) | Vertical glass set, 1500 cm² cooling area | 20 to 300 rpm | Includes VACSTAR lite and RC 2 lite |
For those seeking automated vacuum control with a colour display, the larger RV 10 auto V Starter Solution offers the same kit concept in a more powerful series.
The entire package is so well coordinated that it can be set up and put into operation on the day of delivery without the need to source any additional materials. For laboratories purchasing a rotary evaporator for the first time, this eliminates the usual need to enquire which pump and which condenser are compatible with the chosen drive.
Technical details
| Cooler design | vertical (vertical glass assembly) |
| Cooling surface area | 1500 cm² |
| Motor principle | Direct current |
| Speed range | 20 to 300 rpm |
| Speed tolerance | ±1 rpm below 100 rpm, ±1 % from 100 rpm |
| Lift | manual, stroke 150 mm |
| Heating temperature range | Room temperature to 99 °C |
| VACSTAR lite vacuum pump | 1.0 m³/h (16.7 l/min), ultimate pressure 9 mbar |
| Circulating chiller RC 2 lite | 400 W cooling capacity, down to -10 °C, refrigerant R290 |
| Permissible ambient temperature / humidity | 5 to 40 °C / 80 % |
| Protection class | IP 20 in accordance with DIN EN 60529 (drive unit) |
| Dimensions (W x H x D, drive unit) | 440 x 530 x 330 mm |
| Weight (drive unit) | 28.3 kg |
| Connected load | 100 to 240 V, 50/60 Hz, 1400 W (drive unit) |
Scope of delivery
- RV 3 FLEX drive unit with vertical glass set, ID no. 0010013945
- HB eco heating bath, 4-litre capacity, room temperature up to 99 °C
- RV 10.1 vertical glass set, ID No. 0003655300
- VC 10 lite vacuum controller, ID No. 0020111998
- VACSTAR lite vacuum pump, ID No. 0020124926
- Stand rod VC 10.600
- Circulating cooler RC 2 lite, ID No. 0025006624
- Hose set RV 10.5005, ID No. 0020000552
- PC 1.3 cable
Warranty and procurement service
The IKA manufacturer’s warranty applies to the drive unit and the heating bath: 2 years, extended to 5 years upon registration at ika.com/register within 90 days of purchase. The IKA warranty at level 2+1 applies to the VACSTAR lite and RC 2 lite peripheral devices included in the set; upon registration, this is 3 years instead of 5. For replacement glassware, a more powerful pump or an additional cooler, LT Laborhandel’s procurement service will put together the appropriate package.
