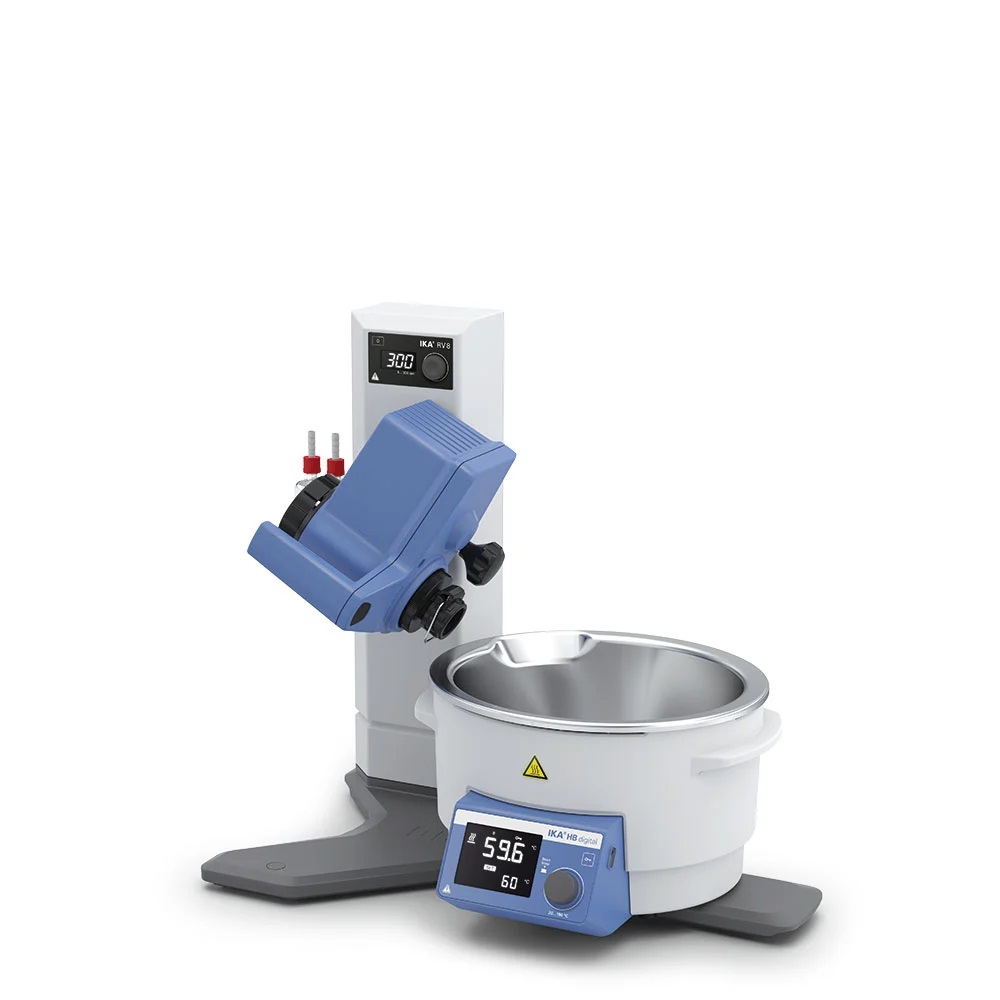

IKA RV 8 FLEX Rotary Evaporator, 0010003488

RV 8 FLEX

The RV 8 rotary evaporator is the basic manual model in the IKA range of rotary evaporators. It is highly versatile and can be used in the chemical, pharmaceutical and biotechnology industries, in the fields of research and development, production and quality assurance, in laboratories and in plant engineering. Digital displays for rotation speed and heating bath temperature allow for optimum control of all distillation processes.

4-litre heating bath

Integrated safety lift mechanism in the event of a power cut

Woulf flasks included

Water-oil heating bath with carrying handles

Key switch to lock the heating bath temperature

Easy-to-read black-and-white glass display

Locking mechanism: red indicator showing the unlocked position of the steam passage tube

Manual lift for precise positioning of glassware

Adjustable immersion angle

One-handed operation of the manual lift, suitable for both right- and left-handed users

Speed range: 5–300 min⁻¹

User safety ensured by 24 V low-voltage power supply within the unit

Flask clamping with integrated release mechanism for easy replacement of the evaporating flask

Compatible with the entire IKA RV 10 range of glassware

Contents of delivery

RV 8 S099

HB digital S099

RV 05.10 ball-joint clamp

RV 10.88 Clamp NS 29

RV 10.70 Steam feed-through pipe (NS 29/32)

RV 10.8001 Seal

RV 3.4 Woulff flask

Technical data

Cooler type without cooler

Motor principle Direct current

Speed range 5–300 rpm

Speed tolerance (set speed <100 rpm) ±1 rpm Speed tolerance (set speed >100 rpm) ±1 %

Lift manual

Stroke 120 mm

Heating temperature range Room temperature – 180 °C

Heating power 1400 W

Setpoint temperature control accuracy ±1 K

Max. capacity 4 l

Dimensions (W x H x D) 510 x 490 x 345 mm

Weight 22.366 kg

Permissible ambient temperature range 5 – 40 °C

Permissible relative humidity 80 %

Protection class according to DIN EN 60529 IP 20

Voltage 100–240 V

Frequency 50/60 Hz

Power consumption 1500 W

DC voltage 24 V=

Accessories and spare parts available on request
