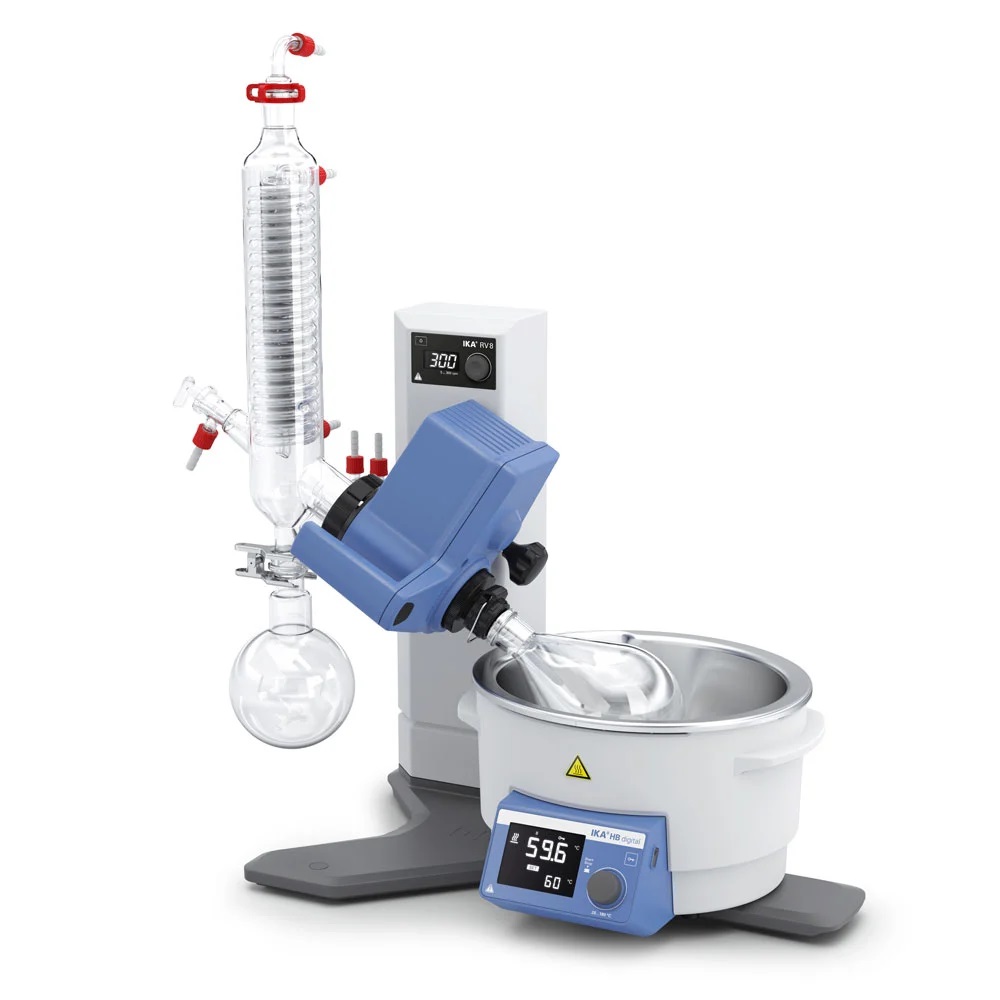

IKA RV 8 V-C Rotary Evaporator, 0010003485

RV 8 V-C

The RV 8 rotary evaporator is the basic manual model in the IKA range of rotary evaporators. It is versatile and can be used in the chemical, pharmaceutical and biotechnology industries, in the fields of research and development, production and quality assurance, in laboratories and in plant engineering. Thanks to specially developed glass guides, the transparently coated vertical cooler utilises the cooling surface area of 1600 cm² extremely efficiently. Digital displays for rotational speed and heating bath temperature allow for optimal control of all distillation processes.

4-litre heating bath

Integrated safety lift mechanism in the event of a power cut

Woulf flasks included

Water-oil heating bath with carrying handles

Lock button to secure the heating bath temperature

Easy-to-read black-and-white glass display

Locking mechanism: red indicator showing the unlocked position of the steam passage tube

Manual lift for precise positioning of glassware

Adjustable immersion angle

One-handed operation of the manual lift, suitable for both right- and left-handers

Speed range: 5–300 min⁻¹

User safety ensured by 24 V low-voltage power supply within the unit

Flask mounting with integrated ejection mechanism for easy replacement of the evaporating flask

Highly efficient condenser with 1600 cm² – compact design

Compatible with the entire IKA RV 10 range of glassware

Scope of delivery

RV 8 drive

HB digital S099

RV 10.10 glass set, vertically coated

RV 10.88 Clamp NS 29

RV 10.70 Steam feed-through pipe (NS 29/32)

RV 10.8001 Seal

RV 3.4 Woulff flask

Technical data

Cooler design: vertical

Cooling surface area 1600 cm²

Motor type: DC

Speed range 5–300 rpm

Speed tolerance (set speed <100 rpm): ±1 rpm Speed tolerance (set speed >100 rpm): ±1 %

Manual lift

Stroke: 120 mm

Heating temperature range: room temperature – 180 °C

Heating power 1400 W

Setpoint temperature accuracy ±1 K

Max. capacity: 4 l

Dimensions (W x H x D) 510 x 490 x 345 mm

Weight: 26.07 kg

Permissible ambient temperature range 5–40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 20

Voltage 100–240 V

Frequency 50/60 Hz

Power consumption 1500 W

DC voltage 24 V=

Accessories and spare parts available on request
