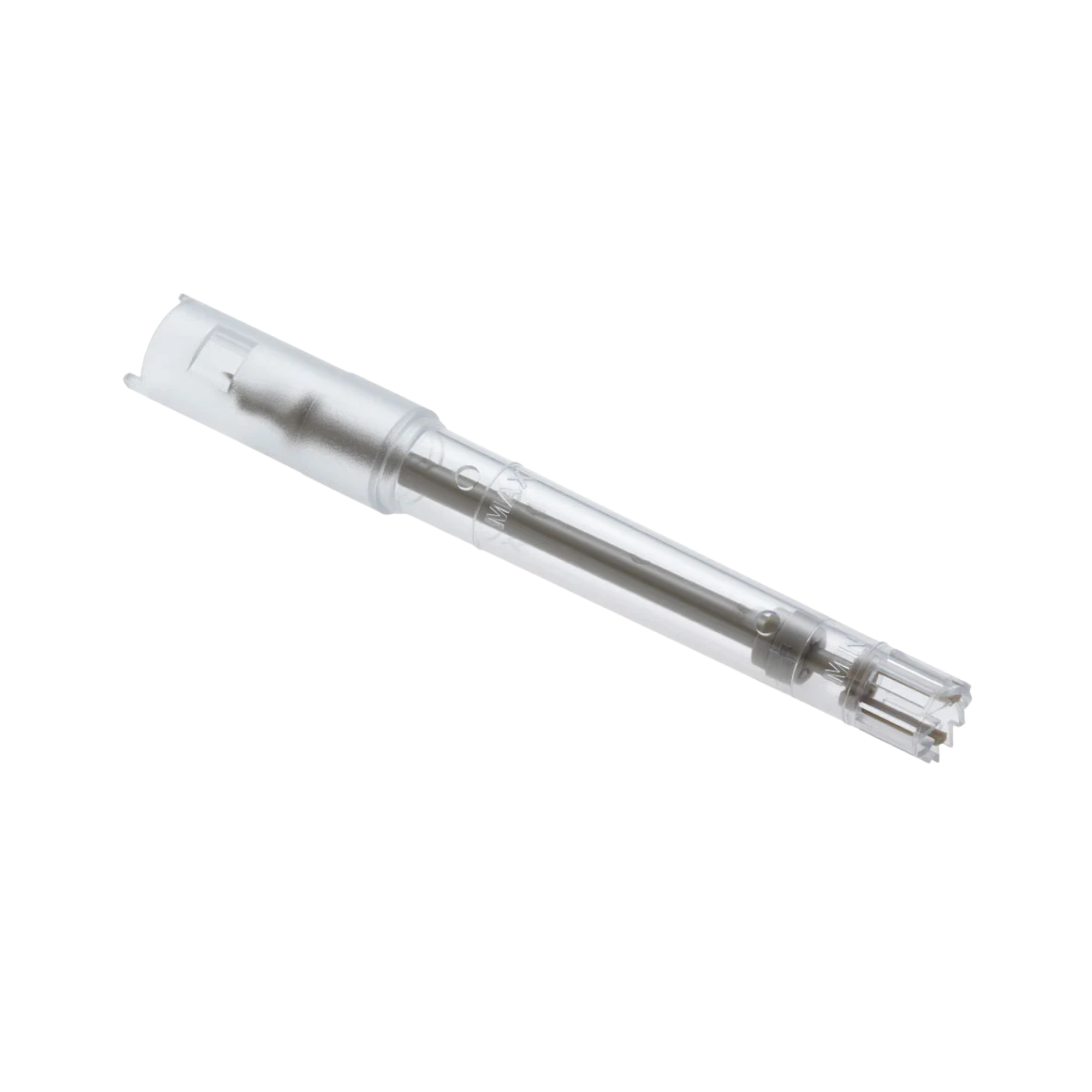

Product information "IKA S 18 D - 14 G - KS disposable dispersing tool (12 pieces), plastic, Ø 14 mm, 0003452300"

For larger volumes: the IKA S 18 D - 14 G - KS disposable dispersing tool

In modern analytics, clinical diagnostics and life sciences research, the quality of sample preparation is becoming an increasingly important focus. The IKA S 18 D - 14 G - KS disposable dispersing tool (MPN 0003452300) is intended for laboratories where purity is important. As an accessory for the IKA T 18 dispersing drives (such as the T 18 digital, T 18 brushless digital or T 18 mini digital), this tool, made from plastic, offers size reduction without the risks associated with traditional reusable systems. Supplied in a practical pack of 12, it is suitable for daily high-throughput processing of medium to large sample volumes.

Avoiding cross-contamination in everyday laboratory work

The greatest enemy of reliable analytical results is sample carry-over, known as cross-contamination. When using conventional stainless steel dispersing tools, even after the most thorough manual cleaning, microscopic residues of tissue, proteins or nucleic acids (DNA/RNA) often remain trapped in the fine gaps between the rotor and stator or within the PTFE bearing. In highly sensitive procedures such as PCR analysis (polymerase chain reaction), forensic evidence collection or sequencing, these minimal residues can lead to false-positive results. The IKA S 18 D - 14 G - KS reduces this risk. As this is a purely single-use product, you use a fresh, unused instrument for each individual sample. After homogenisation, the entire plastic component, together with the potentially infectious or contaminated sample, is disposed of in accordance with best practice. If the tool is disposed of after use, there is no need for cleaning, rinsing or autoclaving between samples.

The 14-millimetre advantage: powerful for medium volumes

In direct comparison with the smaller 10-mm tools, the S 18 D - 14 G - KS model stands out due to its significantly larger stator diameter of 14 millimetres. This design expands the working range: you can homogenise volumes from 10 ml up to 500 ml (based on the viscosity of water) in a short time. The letter “G” in the product designation stands for a coarse slot geometry on the stator. This open geometry is of crucial importance when dealing with coarse-grained, tough or fibrous feed materials. Plant roots, pieces of meat, tablets or compact food samples are efficiently drawn into the shear gap by the suction forces of the 14 mm rotor, where they are cut up at speeds of up to 24,000 revolutions per minute. The result is a fine, homogeneous suspension or emulsion that is prepared for subsequent extraction or analysis.

Cost-effectiveness reimagined: Total Cost of Ownership (TCO)

A common objection to single-use laboratory items is the seemingly higher cost of materials. However, when a realistic full-cost analysis (Total Cost of Ownership) is carried out, the IKA S 18 D system can reduce the effort involved in tool maintenance. Consider the hidden costs of a stainless steel tool: laboratory staff spend time dismantling, scrubbing and reassembling the tools. Added to this are the running costs for distilled water, aggressive cleaning chemicals, energy consumption and the maintenance of autoclaves, as well as the inevitable wear and tear on ball bearings and seals. The single-use plastic tool S 18 D - 14 G - KS eliminates the need for all these steps. You save working time per sample, reduce downtime and can increase throughput in your laboratory. Staff can focus on value-adding analytical tasks rather than carrying out washing duties.

Typical areas of use

The areas of application for the 14-mm plastic tool are as diverse as they are demanding. In food testing, it is used to detect pesticide residues or pathogenic organisms in large meat or vegetable samples. In clinical pathology, it enables the safe processing of infected patient tissue. In pharmaceutical research, it is used for the size reduction of pharmaceutical formulations for active ingredient release testing.

Combination with disposable tubes

For work involving particularly critical media, the tool offers a further advantage: it can be combined with IKA disposable tubes (e.g. the ET50 tube). Simply attaching the tube to the tool shaft creates a largely closed system. When dispersing, the tube can reduce the escape of aerosols, vapours or splashes into the laboratory environment or the fume hood. This not only protects your valuable analytical equipment from contamination, but above all safeguards the health of your staff.

Technical data

  • Model: S 18 D - 14 G - KS
  • Product type: Disposable dispersing tool (rotor-stator principle)
  • Packaging unit (PU): 12 pieces per pack
  • Material: Plastic (KS)
  • Stator diameter: 14 mm
  • Rotor diameter: 10.3 mm (approx.)
  • Working range (H₂O volume): 10 to 500 ml
  • Slot geometry: Coarse (G) for high material throughput
  • Maximum permissible speed: 24,000 rpm
  • Max. permissible operating temperature: 100 °C
  • Compatible drives: IKA T 18 digital, T 18 brushless digital, T 18 mini digital
  • Sterilisability: autoclavable according to the data sheet, designed for single use

Scope of delivery

  • 1 x pack of 12 IKA S 18 D - 14 G - KS plastic dispersing tools

(Important note: The required T 18 drive motor and sample vessels are available separately and are not included in this scope of delivery.)

Individual requirements & accessories

Also available are the matching IKA ET50 disposable tubes, which fit onto the shaft of this tool and serve as a splash guard. Is 500 ml too large for your application? Then simply switch to the 10 mm version (S 18 D - 10 G - KS) for smaller volumes of up to 100 ml. Our procurement service will be happy to assist you in selecting the suitable tool sizes for your Standard Operating Procedures (SOPs).
