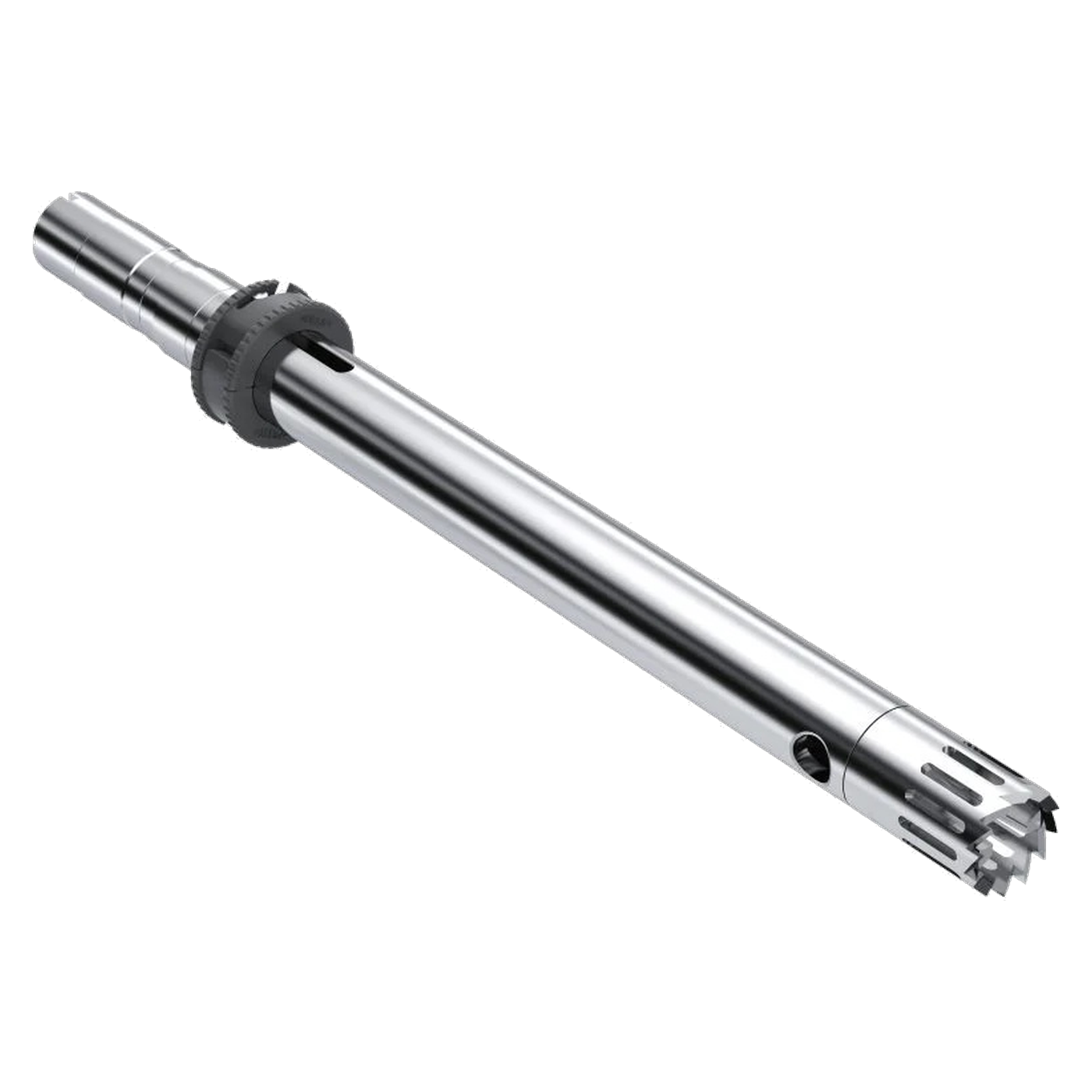

IKA S 25 EC - C - 18 G - ST Dispersing Tool, Ø 18 mm, easy clean, 0025007399
€1,288.50
% Manufacturer's RRP: €1,718.00 25% below manufacturer's RRP
- Easy-clean design with a removable shaft and rotor
- Stator diameter 18 mm, rotor diameter 13.4 mm, gap 0.25 mm
- Operating range 10 ml to 1.5 l, immersion depth 35 to 150 mm
- Ceramic plain bearings; parts in contact with the product: AISI 316L and ceramic
- Suitable for solvents, up to 180 °C, sterilisable using all methods
- For T 25 easy clean digital and control
Product information "IKA S 25 EC - C - 18 G - ST Dispersing Tool, Ø 18 mm, easy clean, 0025007399"
The IKA S 25 EC - C - 18 G - ST (0025007399) is an easy-clean dispersing tool of size S 25 with a stator diameter of 18 mm. It is designed for batches ranging from 10 ml to 1.5 l, has an immersion depth of 35 to 150 mm and an installation length of 191 mm.
Cleaning between batches
With the easy-clean design, the shaft and rotor fall out as soon as the clamp is turned and lowered. The shaft tube can then also be rinsed from the inside.
Rotor, stator and bearing
The stator measures 18 mm, the rotor 13.4 mm. There is a gap of 0.25 mm between the two. The shaft runs in a ceramic plain bearing. The parts in contact with the product are made of AISI 316L and ceramic. The tool is suitable for solvents; the maximum operating temperature is 180 °C. It may be sterilised using any method.
Compatible drives
IKA specifies the T 25 easy clean digital and T 25 easy clean control drives for this tool.
Related models
The S 25 EC - C - 18 G is available with a 12.7 mm rotor diameter and a 0.3 mm gap. If you want to measure the temperature in the batch, the S 25 EC - T - C - 18 G ST has the same rotor and gap dimensions with an integrated sensor.
Typical applications
- Dispersing in batches from 10 ml to 1.5 l
- Working with solvents
- Batches at operating temperatures up to 180 °C
- Sample series with cleaning and sterilisation between runs
Technical details
| Working range (recommended) | 10 to 1,500 ml |
| Stator diameter | 18 mm |
| Rotor diameter | 13.4 mm |
| Stator/rotor gap width | 0.25 mm |
| Immersion depth (recommended) | 35 to 150 mm |
| Installation length | 191 mm |
| Bearing | Ceramic plain bearings |
| Materials in contact with the product | AISI 316L, ceramic |
| Suitable for solvents | Yes |
| Max. operating temperature | 180 °C |
| Sterilisability | All methods |
Scope of delivery
- 1 x IKA S 25 EC - C - 18 G - ST dispersing tool (single tool)
- The drive is not included in the Scope of delivery.
Individual requirements and procurement service
Whether you need a drive unit, a second tool for changing, or assistance in selecting the geometry: we will put together the right combination for your application via our procurement service.
