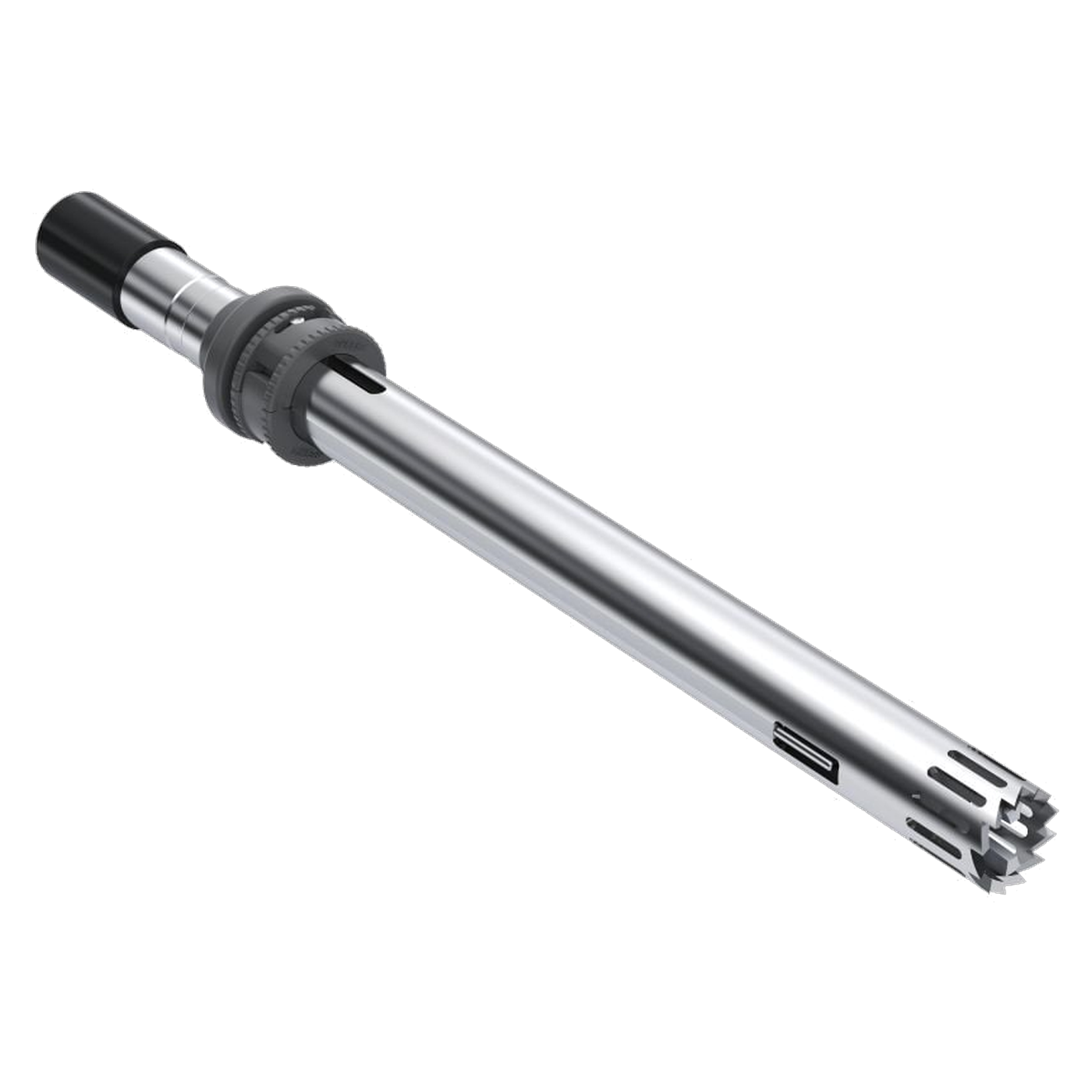

IKA S 25 EC - T - C - 18 G ST Dispersing Tool, Ø 18 mm, Sawtooth, Temperature Sensor, 0025007398
€1,501.50
% Manufacturer's RRP: €2,002.00 25% below manufacturer's RRP
- Serrated blades for cutting fibrous materials in solutions
- Integrated temperature sensor, 0 to 125 °C, ±1 K
- Rotor diameter 13.4 mm, gap 0.25 mm, stator 18 mm
- Working volume: 10 ml to 1.5 l
- Autoclavable, easy-clean design
- AISI 316L and ceramic in contact with the product
- Sensor function only available with T 25 easy clean control
Product information "IKA S 25 EC - T - C - 18 G ST Dispersing Tool, Ø 18 mm, Sawtooth, Temperature Sensor, 0025007398"
The serrated teeth distinguish the IKA S 25 EC - T - C - 18 G ST from its counterpart without the suffix. They cut fibrous materials in solutions, thereby homogenising them more quickly. The rotor has a diameter of 13.4 millimetres; the gap to the 18-millimetre stator is 0.25 millimetres narrower than on the standard version.
Sensor and operating time
The unit features a temperature sensor for 0 to 125 degrees Celsius with a measurement accuracy of plus/minus 1 Kelvin. It can only be activated on the T 25 easy clean control. The drive also records the operating time and indicates on the display when maintenance is due.
Autoclavable and easy to clean
IKA recommends this autoclavable tool for dispersion applications in biochemistry and pharmaceuticals, for example for emulsifying heat-sensitive intermediates of active ingredients. In accordance with the ‘easy-clean’ principle, the shaft and rotor can be removed from the housing after turning and lowering the clamp; the shaft tube is flushed from the inside.
Detailed specifications
Working volume 10 millilitres to 1.5 l, immersion depth 45 to 150 millimetres, installation length 191 millimetres. At 25,000 rpm, the rotor reaches 17.5 metres per second. The final particle size is 10 to 50 micrometres for suspensions and 1 to 10 micrometres for emulsions. The maximum operating temperature is 120 degrees Celsius; sterilisation is permitted using all methods except hot air. The weight is 0.634 kilograms.
Typical applications
- Cutting fibrous materials into solutions
- Emulsifying heat-sensitive intermediates of active pharmaceutical ingredients
- Dispersion in biochemistry and pharmacy
- Mixing with high shear force and comminution of particles in solution
Technical details
| Stator diameter | 18 mm |
| Rotor diameter | 13.4 mm |
| Stator/rotor air gap width | 0.25 mm |
| Processable volume (H2O) | 0.01 to 1.5 l |
| Maximum permissible speed | 25,000 rpm |
| Maximum peripheral speed | 17.5 m/s |
| Immersion depth | 45 to 150 mm |
| Installation length | 191 mm |
| Material in contact with the product | AISI 316L, ceramic |
| Temperature measurement range | 0 to 125 °C |
| Temperature measurement accuracy | ±1 K |
| pH range | 2 to 13 |
| Suitable for solvents | Yes |
| Suitable for abrasive substances | Yes |
| Max. operating temperature | 120 °C |
| Sterilisability | all methods except hot air |
| Final particle size of suspensions | 10 to 50 µm |
| Final particle size of emulsions | 1 to 10 µm |
| Weight | 0.634 kg |

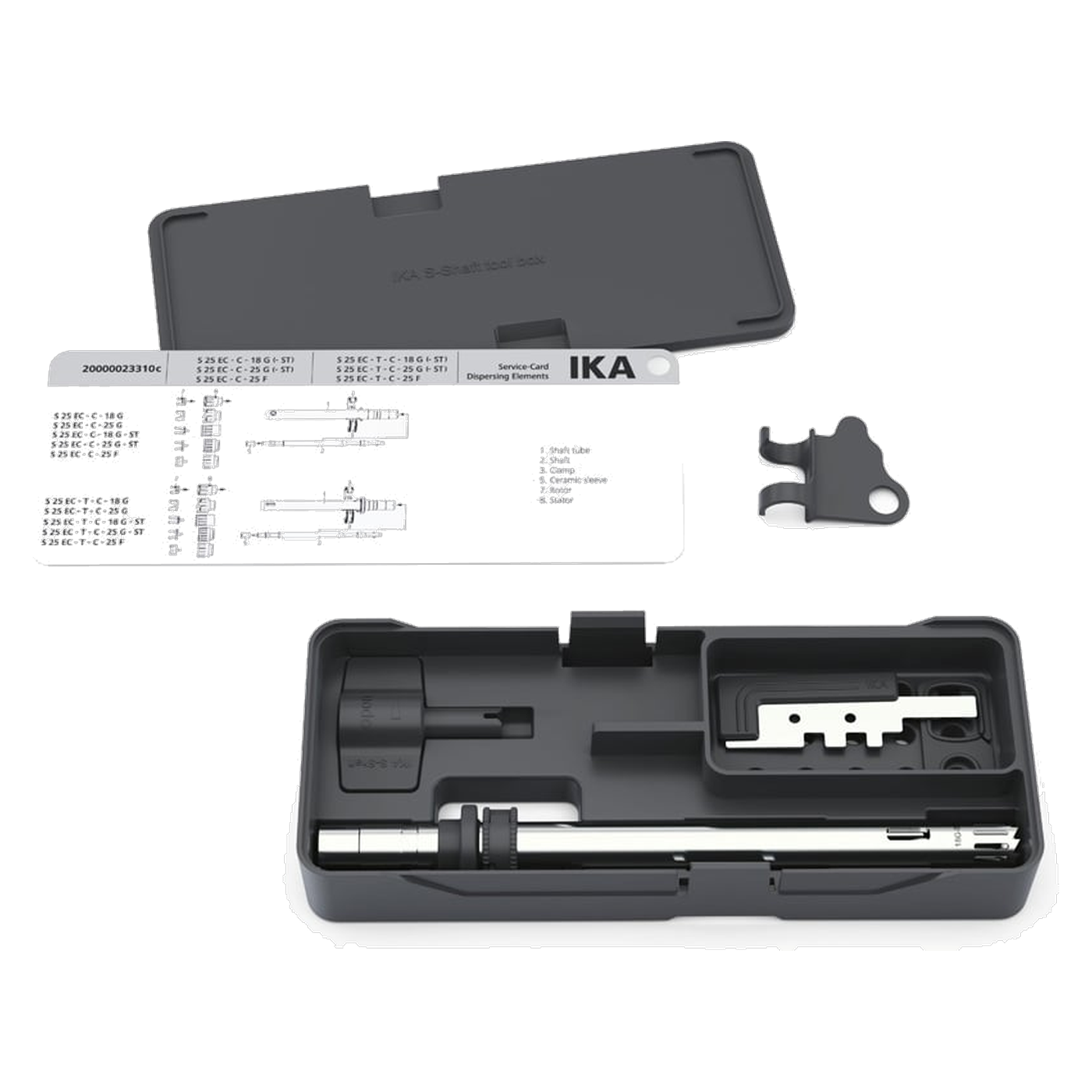

Scope of delivery
- 1 x IKA S 25 EC - T - C - 18 G ST dispersing tool (single tool)
- The drive is not included in the scope of delivery.
Comparison with similar models
The tool is also available as the S 25 EC - T - C - 18 G without serrated teeth. The S 25 KD - 18 G ST features the same rotor and gap dimensions, but without a sensor or the easy-clean design.
Selection guide: comparison
| Tool | Stator / Rotor | Operating range (H2O) |
| S 25 EC - T - C - 18 G ST (this product) | 18 / 13.4 mm | 0.01 to 1.5 l |
| S 25 EC - T - C - 18 G | 18 / 12.7 mm | 0.01 to 1.5 l |
| S 25 KD - 18 G ST | 18 / 13.4 mm | 0.01 to 1.5 l |
Individual requirements and procurement service
LT Laborhandel can supply the T 25 easy clean control and other tools on request. The procurement service can assist with selection.
