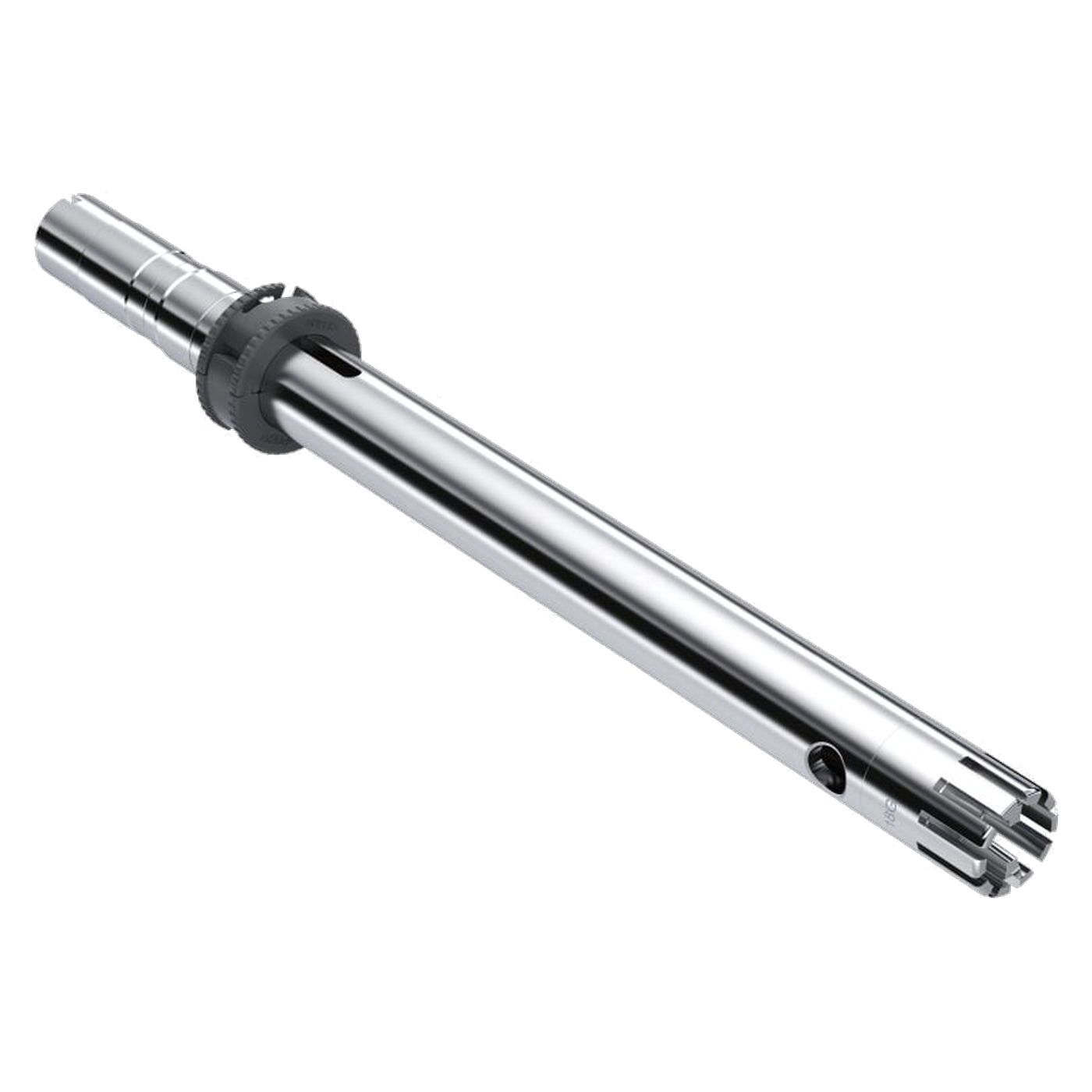

IKA S 25 EC - C - 18 G Dispersing Tool, Ø 18 mm, easy clean, 0020108996
€1,211.25
% Manufacturer's RRP: €1,615.00 25% below manufacturer's RRP
- Easy-clean design with a pull-out shaft
- Stator diameter 18 mm, rotor diameter 12.7 mm, air gap 0.3 mm
- Operating range: 10 ml to 1.5 l
- Immersion depth 35 to 150 mm with an installation length of 191 mm
- AISI 316L and ceramic in contact with the product
- For solvents and abrasive substances, up to 180 °C
- For T 25 easy clean digital and control
Product information "IKA S 25 EC - C - 18 G Dispersing Tool, Ø 18 mm, easy clean, 0020108996"
The IKA S 25 EC - C - 18 G is the 18-millimetre version of the easy-clean range. It operates in volumes ranging from 10 millilitres to 1.5 l and has a stroke of 35 to 150 millimetres; the installation length is 191 millimetres. The rotor has a diameter of 12.7 millimetres, and the gap to the stator is 0.3 millimetres wide.
Cleaning without changing tools
The clamp is rotated and lowered, after which the shaft and rotor can be pulled out of the housing. This allows the shaft tube to be flushed through completely from the inside as well.
Performance data and durability
Speeds of up to 25,000 rpm are permitted, resulting in a rotational speed of 16.6 metres per second at the rotor circumference. IKA specifies a final fineness of 10 to 50 micrometres for suspensions and 1 to 10 micrometres for emulsions. Materials in contact with the product are AISI 316L and ceramic. The tool is suitable for solvents and abrasive substances; the pH range is 2 to 13, and the maximum operating temperature is 180 degrees Celsius. It may be sterilised using any method. It weighs 0.4 kilograms.
Drives
IKA approves this tool exclusively for use with the T 25 easy clean digital and T 25 easy clean control dispersers; it is also compatible with the T 25 easy clean digital Solution set.
Typical applications
- High-speed mixing with high shear force
- Grinding in liquid and emulsification
- Disintegration of particles in solution
- Dissolving miscible and immiscible solids and liquids in a liquid medium
Technical details
| Stator diameter | 18 mm |
| Rotor diameter | 12.7 mm |
| Stator/rotor air gap width | 0.3 mm |
| Processable volume (H2O) | 0.01 to 1.5 l |
| Maximum permissible speed | 25,000 rpm |
| Maximum peripheral speed | 16.6 m/s |
| Immersion depth | 35 to 150 mm |
| Installation length | 191 mm |
| Material in contact with the product | AISI 316L, ceramic |
| pH range | 2 to 13 |
| Suitable for solvents | Yes |
| Suitable for abrasive substances | Yes |
| Max. operating temperature | 180 °C |
| Sterilisability | all methods |
| Final particle size of suspensions | 10 to 50 µm |
| Final particle size (emulsions) | 1 to 10 µm |
| Weight | 0.4 kg |
Scope of delivery
- 1 x IKA S 25 EC - C - 18 G dispersing tool (single tool)
- The drive is not included in the scope of delivery.
Other sizes and versions
The S 25 EC - C - 25 G is available with a 25-millimetre stator diameter. LT Laborhandel stocks the S 25 EC - T - C - 18 G. For the T 25 digital, the S 25 N - 18 G is the classic 18-millimetre version.
Selection guide comparison
| Tool | Stator / Rotor | Operating range (H2O) |
| S 25 EC - C - 18 G (this product) | 18 / 12.7 mm | 0.01 to 1.5 l |
| S 25 EC - C - 25 G | 25 / 17 mm | 0.05 to 2 l |
| S 25 EC - T - C - 18 G | 18 / 12.7 mm | 0.01 to 1.5 l |
| S 25 N - 18 G | 18 / 12.7 mm | 0.010 to 1.5 l |
Individual requirements and procurement service
LT Laborhandel can source drives, other tools and accessories on request. The procurement service will assist with the selection.
