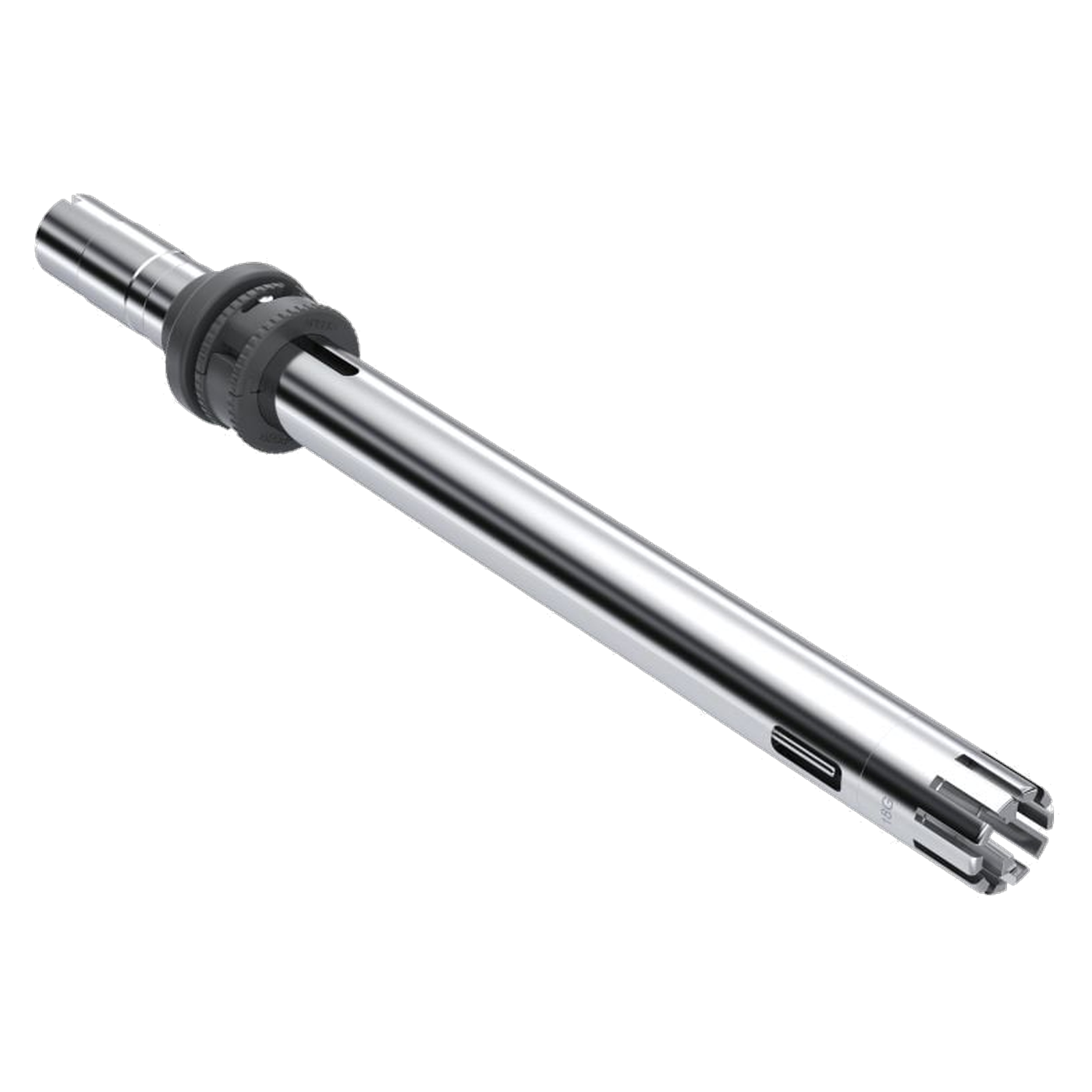

IKA S 25 EC - T - C - 18 G Dispersing Tool, Ø 18 mm, with Temperature Sensor, 0020108998

The temperature sensor is located within the vessel itself: the IKA S 25 EC - T - C - 18 G measures the temperature in the vessel during dispersion, within a range of 0 to 125 degrees Celsius, with an accuracy of plus or minus 1 Kelvin. The display is controlled via the drive; the sensor function can only be activated on the T 25 easy clean control.

Operating time and maintenance

The associated T 25 easy clean digital or control disperser records the operating time of the tool. When maintenance is required, a message appears on the display.

Biochemistry and pharmaceuticals

IKA particularly recommends this autoclavable tool for dispersing applications in biochemistry and pharmaceuticals, such as the emulsification of heat-sensitive active ingredient intermediates. Cleaning follows the ‘easy-clean’ principle: turn the clamp and lower it, pull out the shaft and rotor, and rinse the shaft tube from the inside.

Dimensions and specifications

Stator 18 millimetres, rotor 12.7 millimetres, gap 0.3 millimetres, working volume 10 millilitres to 1.5 l. Immersion depth 45 to 150 millimetres, installation length 191 millimetres. The final particle size is 10 to 50 micrometres for suspensions and 1 to 10 micrometres for emulsions. Materials in contact with the product are AISI 316L and ceramic; the maximum operating temperature is 120 degrees Celsius; sterilisation is permitted using all methods except hot air. The tool weighs 0.634 kilograms.

Typical applications

• Dispersing and emulsifying with in-batch temperature measurement
• Emulsification of heat-sensitive active ingredient intermediates
• Dispersion applications in biochemistry and pharmaceuticals
• Grinding of particles in solution
• Batches containing solvents or abrasive components

Technical details

Scope of delivery

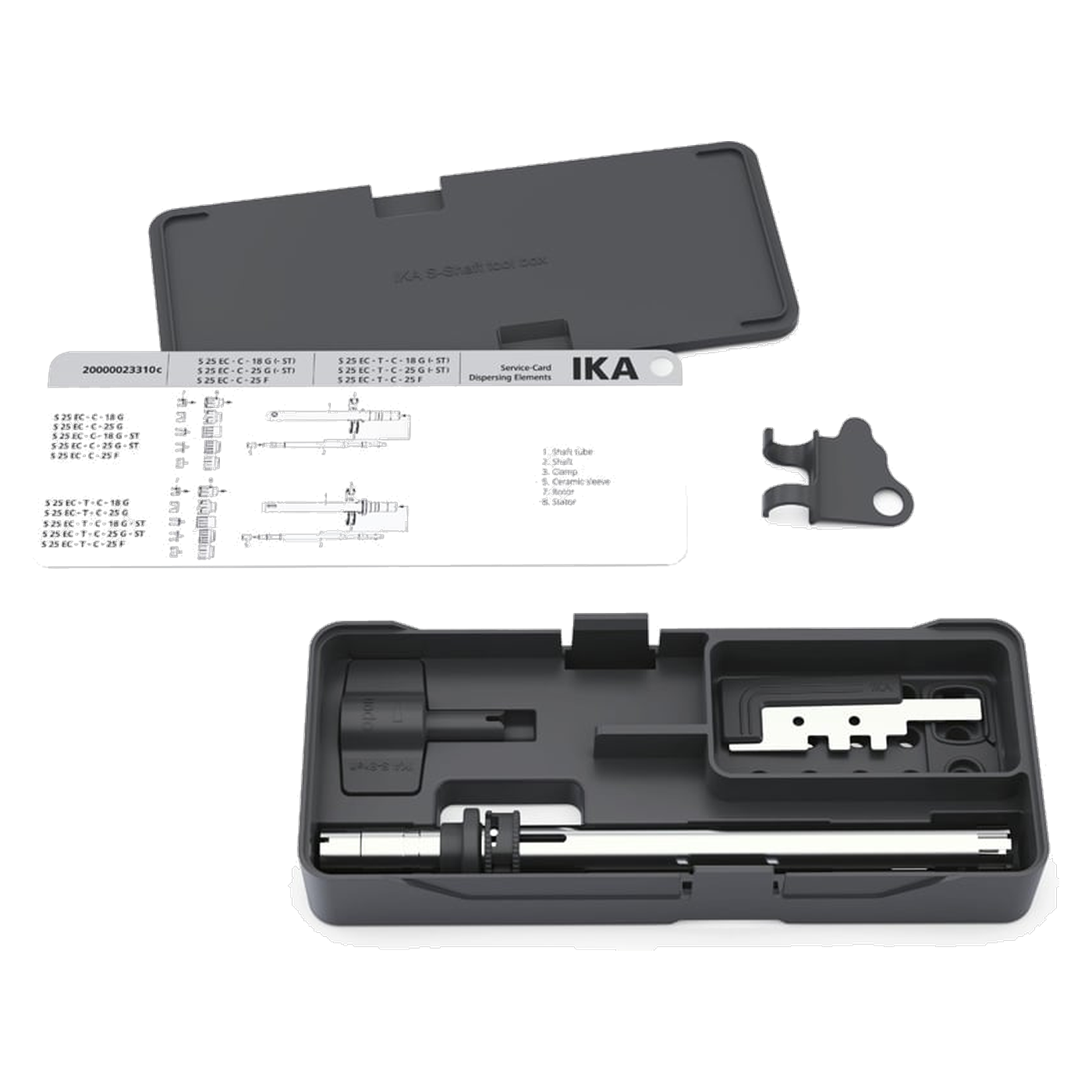

• 1 x IKA S 25 EC - T - C - 18 G dispersing tool (single tool)
• The drive is not included in the scope of delivery.

Without sensor, with serrated blades

The same size is available without a temperature sensor as the S 25 EC - C - 18 G. LT Laborhandel stocks the S 25 EC - T - C - 18 G ST, which features sawtooth blades for fibrous materials and a narrower gap. The 25-millimetre version with a sensor is the S 25 EC - T - C - 25 G.

Selection guide comparison

Individual requirements and procurement service

LT Laborhandel can source the appropriate drive unit and other tools on request. The procurement service is available to assist with any queries regarding selection.
