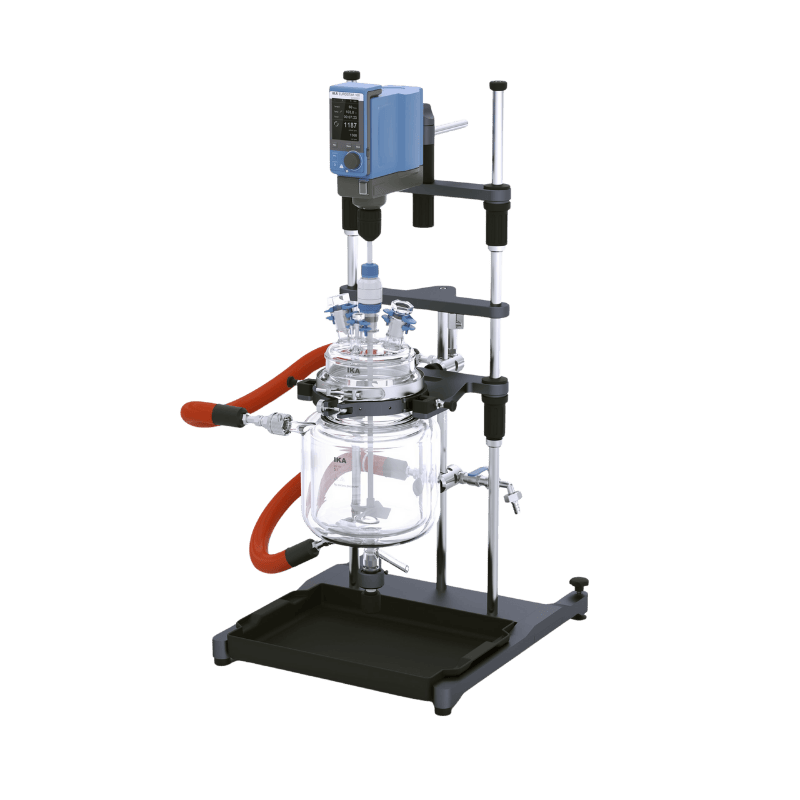

IKA Synthesis Reactor, EasySyn 5000 Advanced, 0020113443

The IKA EasySyn 5000 Advanced is a state-of-the-art synthesis reactor system designed for efficient, safe and reproducible chemical syntheses in the laboratory. With a reaction volume of up to 5 litres, the system is ideally suited for the true-to-scale transfer from research to production.

The system comprises all necessary components, such as the reactor, thermostat, stirring system and control unit – fully integrated and ready for immediate use. Thanks to its modular design, EasySyn can be flexibly adapted to different synthesis requirements.

The digital control system ensures precise monitoring and control of temperature, stirring speed and process parameters. Safety features such as an emergency stop function, over-temperature protection and a robust double-jacket construction offer maximum operational safety.

Key features:

• Complete system for chemical syntheses up to 5 l
• Double-jacketed reactor for precise temperature control
• Includes stirrer, thermostat and control system
• Digital process control with real-time display
• Modularly expandable (e.g. for condensation, distillation, sampling)
• Suitable for research, process development and scale-up
• High level of safety thanks to over-temperature and over-pressure protection
• Easy to operate and quick to clean

Technical data (extract):

• Reaction volume: max. 5,000 ml
• Temperature range: –80 °C to +200 °C (depending on thermostat)
• Max. stirring speed: up to 2,000 rpm (depending on model)
• Materials: borosilicate glass 3.3, PTFE, stainless steel
• Modular design, GLP-compliant
• Dimensions (W × H × D): approx. 1,200 × 800 × 600 mm
• Weight: depends on the system

Scope of supply:

• 5,000 ml reactor vessel (double-walled)
• Reactor stand & safety frame
• Stirrer & drive unit
• Thermostat connections
• Digital control and operating unit
• Complete accessory pack for immediate use

The IKA EasySyn 5000 Advanced is the complete solution for chemical synthesis at pilot and laboratory scale – flexible, safe and ideal for research, development and scale-up.
