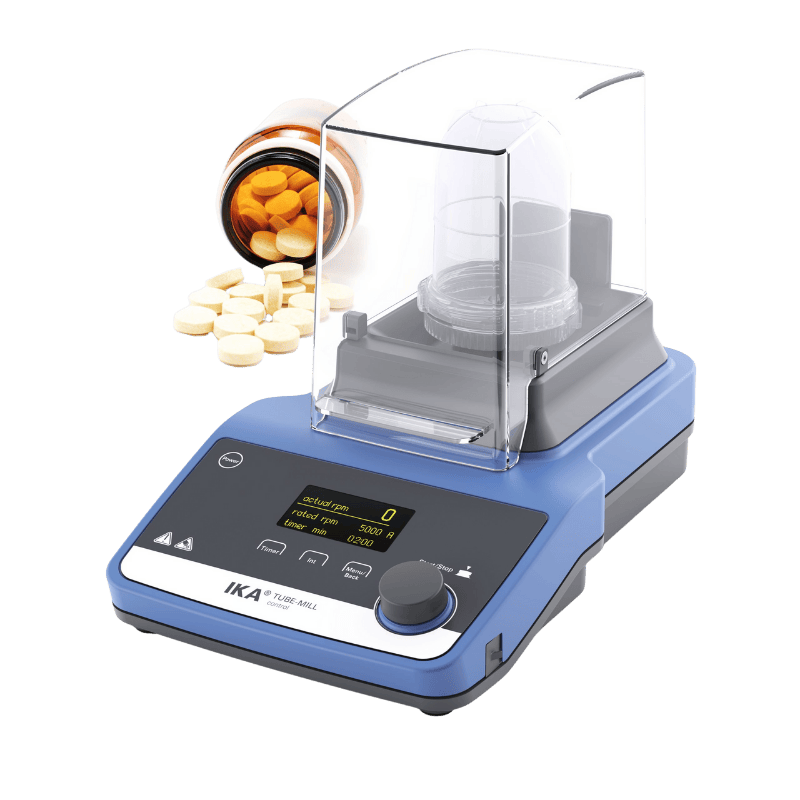

IKA Tube Mill 100 control Pharma Solution, single-use mill set, 100 ml, 25,000 rpm, 0010013309

Safety redefined: The IKA Tube Mill 100 control Pharma Solution

The IKA Tube Mill 100 control Pharma Solution (MPN 0010013309) is a groundbreaking innovation for laboratories where purity, sterility and process safety are of the utmost importance. It is the world’s first patented batch mill, which uses single-use grinding jars with a volume of up to 100 ml . Specially developed for pharmaceutical research, forensic science, pathology and food analysis, this system solves one of the biggest problems in everyday laboratory work: the risk of cross-contamination.

The principle: grinding, transporting, storing – without cleaning

In conventional laboratory mills, the grinding jars and blades have to be laboriously cleaned and sterilised after every run. Not only does this cost valuable working time, but also always carries the residual risk that traces of the previous sample (e.g.e.g. DNA, allergens or active ingredients) may carry over into the next analysis (‘cross-contamination’). The Tube Mill 100 puts an end to this. The grinding beaker (tube) and the grinding blade form a sealed, single-use unit.

1. Grinding: You load the sample, place the tube on the drive unit and grind.
2. Transport/storage: After grinding, remove the beaker. It can then be used immediately as a sealed storage container.
3. Disposal: Once the sample has been removed, the beaker is disposed of (or recycled in the case of non-critical samples). A cleaning validation, as is often required in GMP areas, is completely unnecessary for the grinding components. This results in massive cost savings and reduces the documentation burden.

Pharma Solution: The all-inclusive, worry-free package

This package (“Solution”) is specifically tailored to the requirements of the pharmaceutical industry. Whilst the ‘Tube Mill 100 control’ base unit provides the drive, you’ll receive a starter pack of grinding jars, designed for a wide range of volumes. The grinding jars are made of transparent material, allowing you to visually monitor the grinding process at any time. They are highly durable and can withstand even heavy impacts from the stainless steel blade.

Performance and Control (control)

At IKA, the term ‘control’ stands for intelligent control technology. The Tube Mill 100 is equipped with a powerful motor, which can be adjusted continuously from 5,000 to 25,000 revolutions per minute . With a power output of 100 watts, the machine effortlessly grinds hard (up to Mohs 5), brittle, dry and soft materials – from tablets and coated tablets to cereal grains, leaves and bone material. The clear OLED display guides you through all the settings:

• Timer function: Set the grinding time precisely from 5 seconds to 3 minutes.
• Interval mode: For heat-sensitive samples. The machine pauses briefly to allow the sample to cool down and settle, before continuing.
• Programmable sequences: Save frequently used grinding parameters (SOPs) to ensure 100% reproducibility.

Safety first

Safety is crucial, particularly when handling potentially toxic or infectious samples. The Tube Mill 100 only starts if the grinding jar is correctly fitted and the safety hood is closed. As the grinding jar is hermetically sealed, no aerosols or dust escape during grinding. This protects the user from inhaling hazardous substances – a key advantage over open mills.

Documentation and Lab 4.0

In certified laboratories, processes must be documented. The Tube Mill 100 control features a USB interface. You can connect the device to a PC and, using the (optional) software labworldsoft ® . All parameters (time, rotational speed, energy input) are recorded and can be assigned to the sample batches. This greatly facilitates audits and quality assurance.

Larger volume for representative samples

The key improvement over the smaller “Tube Mill Control” is the volume. With a capacity of up to 100 ml, you can now also prepare representative composite samples (e.g.e.g. from grain reception or tablet production) in a single step, without having to go to the trouble of dividing the sample beforehand.

Technical data

• Equipment type: Single-use batch mill (Tube Mill)
• Motor power (feed/discharge): 100 W / 80 W
• Speed range: 5,000 – 25,000 rpm
• Speed deviation: ± 2 %
• Maximum usable volume: 100 ml (with MT 100 beaker)
• Maximum peripheral speed: 65 m/s
• Maximum feed hardness: 5 Mohs
• Max. feed size: 10 mm
• Timer: 5 s – 3 min
• Display: OLED
• Programme memory: Yes
• Interface: USB
• Dimensions (W x H x D): 180 x 212 x 300 mm
• Weight: 5.8 kg
• Protection rating: IP 30

Contents of delivery

• 1 x IKA Tube Mill 100 control (drive unit)
• 2 x MT 40 grinding beakers.10 (40 ml, disposable)
• 1 x MT 100.10 (100 ml, disposable)
• 1 x MMT 40 grinding beaker.1 (multi-use, for tests)
• 1 x USB cable & mains lead
• 1 x tool for removing the rotor (for the MMT 40)
• 1 x user manual

Custom requirements & accessories

Do you require sterile grinding jars for microbiological analyses or jars with titanium blades for trace element analysis? The Tube Mill’s range of accessories is extensive. We can supply boxes of 10 or 50 pieces directly from stock. Please contact our procurement service.
