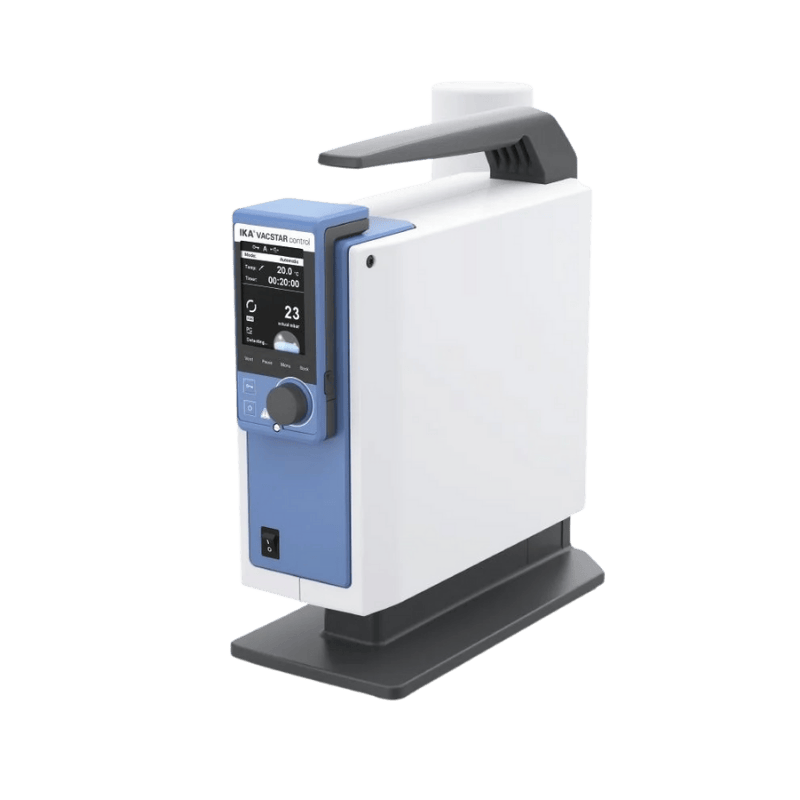

IKA VACSTAR control diaphragm vacuum pump with controller, 0020109375

High-performance 1:1 solution for the laboratory bench

The IKA VACSTAR control is a dry 4-chamber diaphragm vacuum pump, specially developed for space-saving and efficient laboratory set-ups. With a pumping speed of 22 l/min and a final vacuum of 2 mbar, it offers sufficient power for typical applications such as rotary evaporators, drying ovens or vacuum filtration. The key advantage: you do not need a separate vacuum controller. The control unit is integrated directly into the pump and regulates the speed as required. This saves space on the bench and drastically reduces the amount of cabling required.

Intuitive control and process reliability

The detachable display (WiCo) allows for convenient remote operation, for example when the pump is positioned under a fume cupboard. Use the intuitive menu to select the appropriate operating mode: from the fully automatic boiling-point detection mode, which controls processes safely and unattended, through to manual operation and special pumping or cleaning functions. This guarantees maximum reproducibility and protects your valuable samples from delayed boiling or loss.

Durability and environmental protection

The PTFE diaphragms and chemical-resistant materials make the VACSTAR control extremely robust against aggressive solvent vapours. To protect the environment and the indoor air in the laboratory, the VSE 1 safety emission condenser can be retrofitted as an option. The pump also operates very quietly and with minimal vibration, which noticeably improves working conditions in the laboratory.

Technical details

• Pump type: 4-chamber diaphragm vacuum pump (dry)
• Max. pumping speed: 22 l/min
• Ultimate pressure: 2 mbar
• Speed range: 285–1,200 rpm
• Number of cylinders: 4
• Connection diameter (suction/discharge): 8 mm
• Controller: Integrated, with detachable WiCo display
• Interfaces: USB, RS 232
• Protection class according to DIN EN 60529: IP 20
• Dimensions (W x H x D): 150 x 375 x 270 mm
• Weight: 11.5 kg

Scope of supply

• IKA VACSTAR control vacuum pump
• WiCo (Wireless Controller) Detachable control unit
• Power supply unit for WiCo
• Vacuum hose (1 m)
• WH11
• OS 1.0
• USB cable (A to Micro-B, 2 m)
• USB A-B cable
• Screwdriver

Customised requirements & procurement service

Do you need the VSE 1 emission condenser, a Woulff bottle or specific connecting hoses for your rotary evaporator? We can configure your complete vacuum system. Please contact our procurement service for technical advice.
