Vacuum pumps
Vacuum pumps generate the required level of negative pressure for filtration, evacuation and distillation in the laboratory. LT Laborhandel offers IKA diaphragm vacuum pumps from the VACSTAR series, as well as KNF LABOPORT systems, some of which feature a digital controller for precise pressure regulation. You can find further pumping equipment in the Laboratory Pumps category and under Drum Pumps. Please contact us for advice on selecting the right pump based on ultimate vacuum and suction capacity.

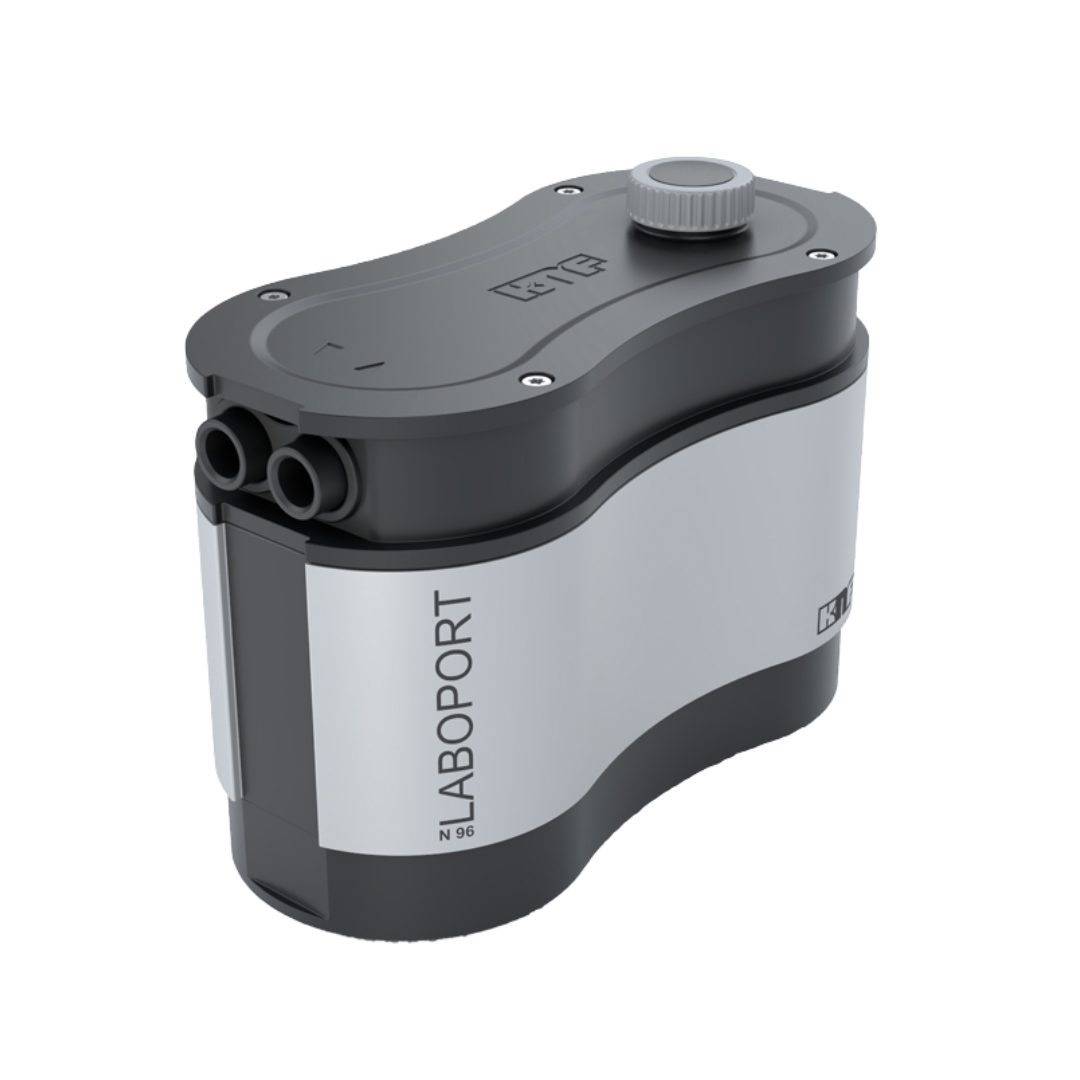

KNF LABOPORT N 96, very compact, chemical-resistant diaphragm vacuum pump with manual speed control, 322806
For those who have limited space on their lab bench but still need a reliable, chemical-resistant vacuum source, the KNF LABOPORT N 96 is a highly compact, oil-free diaphragm vacuum pump. Weighing just 1.3 kg and measuring 75 x 119 x 156 mm, it fits next to almost any workstation and can be precisely adjusted to the specific application via the manual speed control, for example for filtration, liquid aspiration or solid-phase extraction (SPE). Very compact and lightweight Measuring just 75 x 119 x 156 mm (W x H x D) and weighing 1.3 kg, the N 96 is the most compact pump in the LABOPORT range. Its small footprint makes it a practical addition to workstations where there is no room for larger vacuum pumps, such as directly next to a filtration unit or an SPE setup. Chemical-resistant materials, tailored to the design The pump head is made of PPS (polyphenylene sulphide), the diaphragm is PTFE-coated, and the valves are made of FKM. This combination of materials differs from that of the larger LABOPORT-N pumps (which feature a TFM PTFE pump head and FFPM valves), but is designed specifically for the compact design of the N 96 and its intended applications. Manual, stepless speed control The N 96’s flow rate can be continuously adjusted to suit the specific application via the manual speed control. According to the manufacturer, this ensures exceptional ease of use in day-to-day laboratory work and enables precise vacuum control, for example when gently filtering sensitive samples. Up to 2.5 bar operating pressure, not just vacuum In addition to a maximum ultimate vacuum of 130 mbar (abs.), the N 96 also achieves an operating pressure of up to 2.5 bar (rel.). This means it can be used not only for evacuation but also, where required, for pumping under slight overpressure, a difference from the larger LABOPORT-N pumps, which are primarily designed for vacuum operation. Mains-powered via an external plug-in power supply The pump itself operates at 24 V DC and is powered via an external plug-in power supply with a wide-range input (100 to 240 V AC, 50/60 Hz); it does not have a built-in battery. The power consumption is 19 W; the pump’s operating current is 0.9 A, whilst that of the power supply unit is 0.4 A (230 V AC) or 0.7 A (100 V AC). The degree of protection is IP40. Permissible media and ambient temperatures range from +5 to +40 °C. Maintenance-free and 100 % oil-free According to the manufacturer, the N 96 operates maintenance-free and is 100 % oil-free. There is no need for regular oil changes, and there is no risk of oil mist entering the gases being pumped or the laboratory air, an advantage wherever contamination-free conditions are required, such as during sample preparation for analysis. Gas connection and accessories The gas connection is a 1/8 NPT fitting; the supplied hose connector has an internal diameter of 6 mm and is made of PP. A column mounting bracket is available for wall mounting if required, along with a spare parts kit and a power supply set for replacement purposes. Suitable for confined spaces As the N 96 is powered by an external plug-in power supply, the pump housing itself remains particularly compact, an advantage wherever shelves, fume hoods or workstations are already densely occupied. The column mount also allows for space-saving installation away from the worktop, for example on a stand or a wall within easy reach of the workstation. Typical applications Filtration Liquid aspiration Solid-phase extraction (SPE) For example, the N 96 can be placed right next to an SPE cartridge stand, where it provides the necessary vacuum for sample purification in a space-saving manner, without the need for a separate, bulky pump setup. Need a higher flow rate? The larger LABOPORT series If the flow rate of 7 l/min is insufficient for a larger application, or if there is an additional need to collect liquids and condensate or to recover solvents, there are also the larger LABOPORT series: the pure diaphragm vacuum pump N 820 G / N 840 G (20 and 34 l/min respectively), the SR 820 G / SR 840 G vacuum pump system with two separator bottles, and the SH 820 G / SH 840 G vacuum pump system with a separator and high-performance condenser for solvent recovery. Technical details Flow rate (max.)7 l/min (0.4 m³/h) Ultimate vacuum (max.)130 mbar (abs.) Operating pressure (max.)2.5 bar (rel.) Pump headPPS (polyphenylene sulphide) DiaphragmPTFE-coated ValvesFKM Pump voltage24 V DC Power supply voltage100 to 240 V AC, 50/60 Hz (plug-in power supply, wide-range input) Power P119 W Operating current, pump0.9 A Operating current of power supply unit0.4 A (230 V AC) / 0.7 A (100 V AC) Degree of protectionIP40 Permissible medium/ambient temperature+5 to +40 °C Dimensions (W x H x D)75 x 119 x 156 mm Weight1.3 kg Gas connectionNPT 1/8, hose connection ID 6, PP Scope of delivery 1x KNF LABOPORT N 96 diaphragm vacuum pump External plug-in power supply (wide-range input) Silencer Hose connection ID 6, PP Individual requirements and procurement service A spare parts kit, a power supply set and a column mounting bracket for wall mounting are among the accessories available for the N 96. If you have any questions regarding suitable accessories, spare parts or individual requirements relating to your KNF LABOPORT N 96, our procurement service will be happy to assist you.

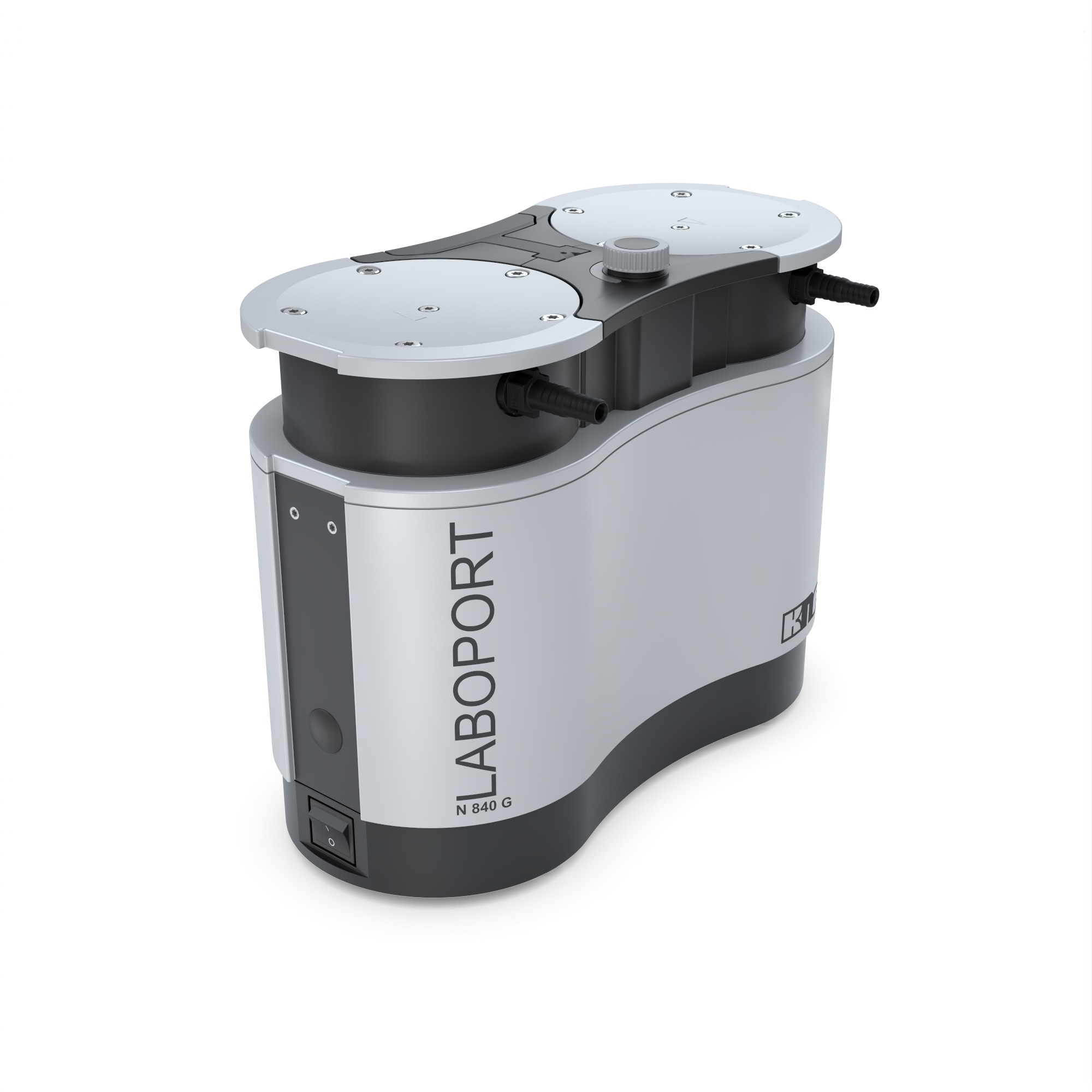

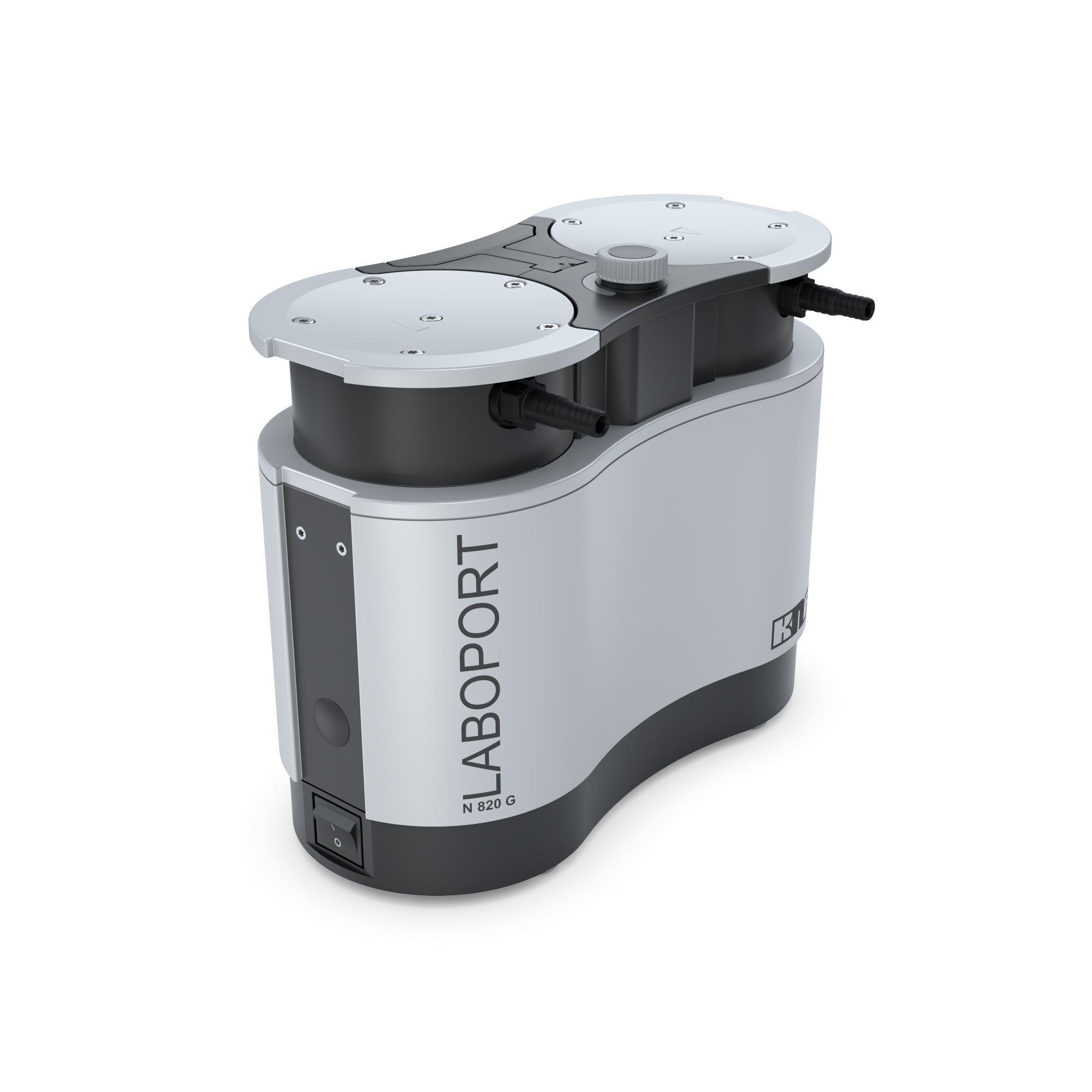

KNF LABOPORT N 840 G, chemical-resistant diaphragm vacuum pump, 34 l/min, ATEX marking category 2, 317123
For those in the laboratory who require a higher flow rate than the smaller N 820 G can provide, the KNF LABOPORT N 840 G is a chemical-resistant, oil-free diaphragm vacuum pump with a flow rate of 34 l/min. It covers the higher performance range of the LABOPORT N series and is suitable for applications requiring a higher flow rate, such as larger vacuum chambers or filtration set-ups. Chemical-resistant materials in the parts in contact with the medium As with the smaller version, the pump head is made of TFM PTFE, the diaphragm is PTFE-coated, and the valves are made of FFPM. This combination of materials makes the N 840 G suitable for handling and evacuating highly aggressive and corrosive gases and vapours. The maximum operating pressure is 0.1 bar (rel.), and the ultimate vacuum is 6 mbar (abs.), identical to the smaller version. Stepless speed control and gas ballast valve The integrated, manual speed control allows the flow rate to be adjusted to suit the specific application. The integrated gas ballast valve supports short process times, even when working with high-boiling-point solvents, by reducing the condensation of vapours in the pump head. A 3-colour status indicator shows the operating status (running, standby, fault) at a glance. Explosion protection for internal areas in contact with the medium The N 840 G bears the ATEX marking (Ex) II 2/-G IIB+H2 T3 and is therefore designed for pumping in potentially explosive atmospheres. This marking refers exclusively to the internal, media-contacting area of the pump, not to the installation environment. More power, more weight Measuring 177 x 240 x 289 mm (W x H x D) and weighing 11.3 kg, the N 840 G is slightly larger and heavier than the N 820 G, in line with its higher flow rate. It is powered directly from the mains (100 to 240 V AC, 50/60 Hz), requires no battery, and has a power consumption of 100 W. A thermal switch and a mains fuse protect the pump against overload; the degree of protection is IP30. Permissible media and ambient temperatures range from +5 to +40 °C. Low-maintenance in everyday laboratory use As the diaphragm vacuum pump operates completely oil-free, there is no need for the regular oil changes required by conventional rotary vane pumps, and there is no risk of oil mist entering the gases being pumped or the laboratory air. This makes the N 840 G a clean vacuum source for applications where contamination-free operation is important, such as when filtering samples or evacuating larger set-ups. A thermal switch and mains fuse provide additional protection against overload during continuous operation, making it suitable for longer process times and higher flow rates in everyday laboratory use. Connection and common size The hose connection has an internal diameter (ID) of 9.5 to 8 mm and is made of PVDF. The pump head of size 840 is also listed by the manufacturer under reference number 315994, the same identification number used for the structurally identical drive unit of the SR 840 G and SH 840 G system variants. Anyone who already has experience with one of these system variants of size 840 will therefore also be familiar with the drive unit of the N 840 G. Typical applications As a purely oil-free diaphragm vacuum pump, the N 840 G covers a wide range of laboratory applications requiring higher flow rates: Conveying and evacuating aggressive or corrosive gases and vapours requiring higher flow rates Vacuum filtration of larger set-ups Evacuating desiccators and vacuum chambers Vacuum supply for drying and vacuum ovens N, SR or SH: choosing the right configuration The N 840 G delivers a pure vacuum without the need for additional accessories. For those who also wish to collect condensate or solvent vapours on the suction and discharge sides, the SR 840 G system variant (with two separator flasks) provides a suitable extension. If the recovery of solvents through condensation is the primary objective, the SH 840 G system variant (with separator and high-performance condenser) is the more suitable choice. For those who only require 20 l/min, the more compact N 820 G is available in the same series. Designed for continuous operation With a power consumption of 100 W and a stable power supply across the wide range of 100 to 240 V AC, the N 840 G can be operated at different mains voltages without the need for an additional voltage converter. In combination with the stepless speed control and the gas ballast valve, it is therefore also suitable for more demanding, longer-running vacuum applications in the laboratory where a higher flow rate is required. Technical details Flow rate (max.)34 l/min (2.04 m³/h) Ultimate vacuum (max.)6 mbar (abs.) Operating pressure (max.)0.1 bar (rel.) Pump headTFM PTFE DiaphragmPTFE-coated ValvesFFPM Voltage100 to 240 V AC, 50/60 Hz Power P1100 W Operating current1.0 A (100 V AC) / 0.6 A (240 V AC) Degree of protectionIP30 Permissible medium/ambient temperature+5 to +40 °C Dimensions (W x H x D)177 x 240 x 289 mm Weight11.3 kg Hose connectionID 9.5 to 8, PVDF ATEX marking (internal areas in contact with the medium)(Ex) II 2/-G IIB+H2 T3 Scope of delivery 1x KNF LABOPORT N 840 G diaphragm vacuum pump Wrench for hose connection Silencer Individual requirements and procurement service A suitable spare parts kit is available for the N 840 G. If you have any questions regarding suitable accessories, spare parts or individual requirements relating to your KNF LABOPORT N 840 G, our procurement service will be happy to assist you.

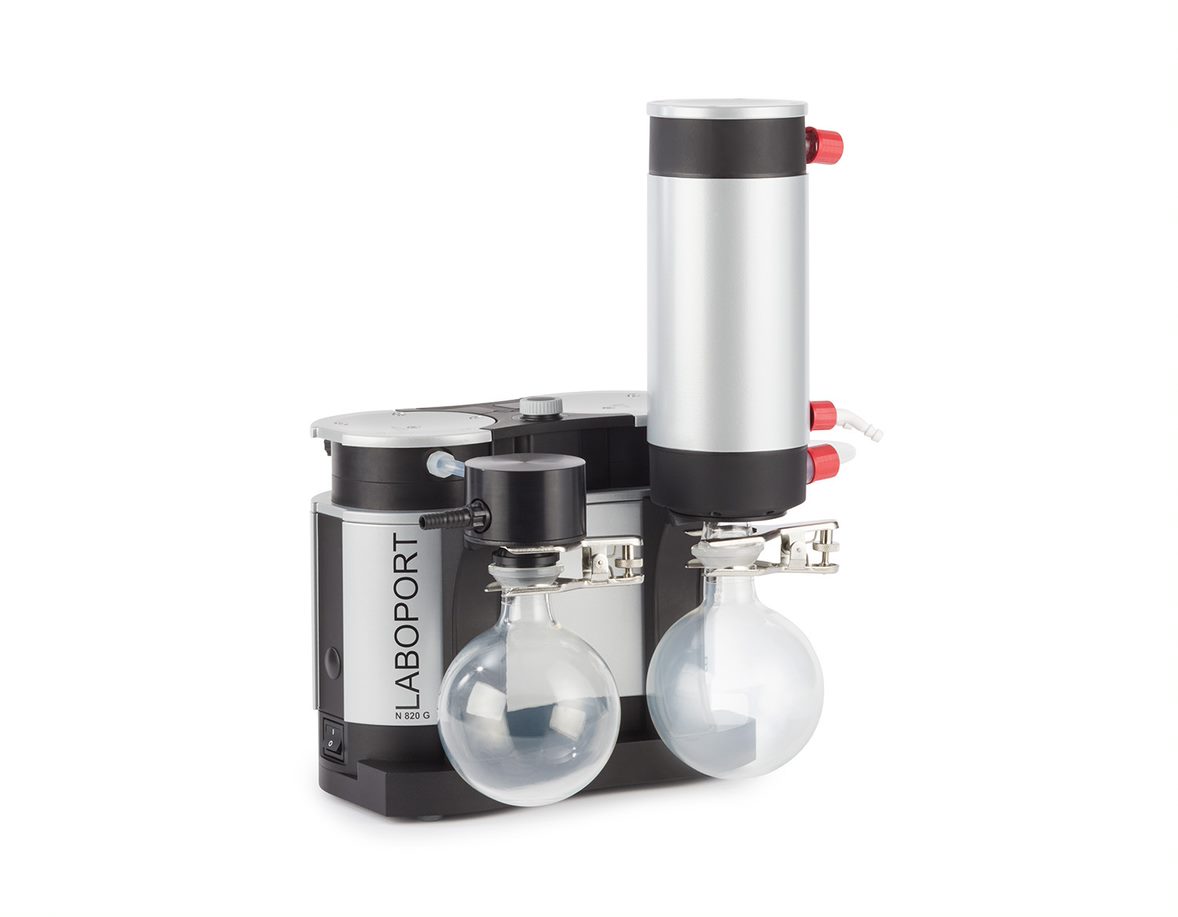

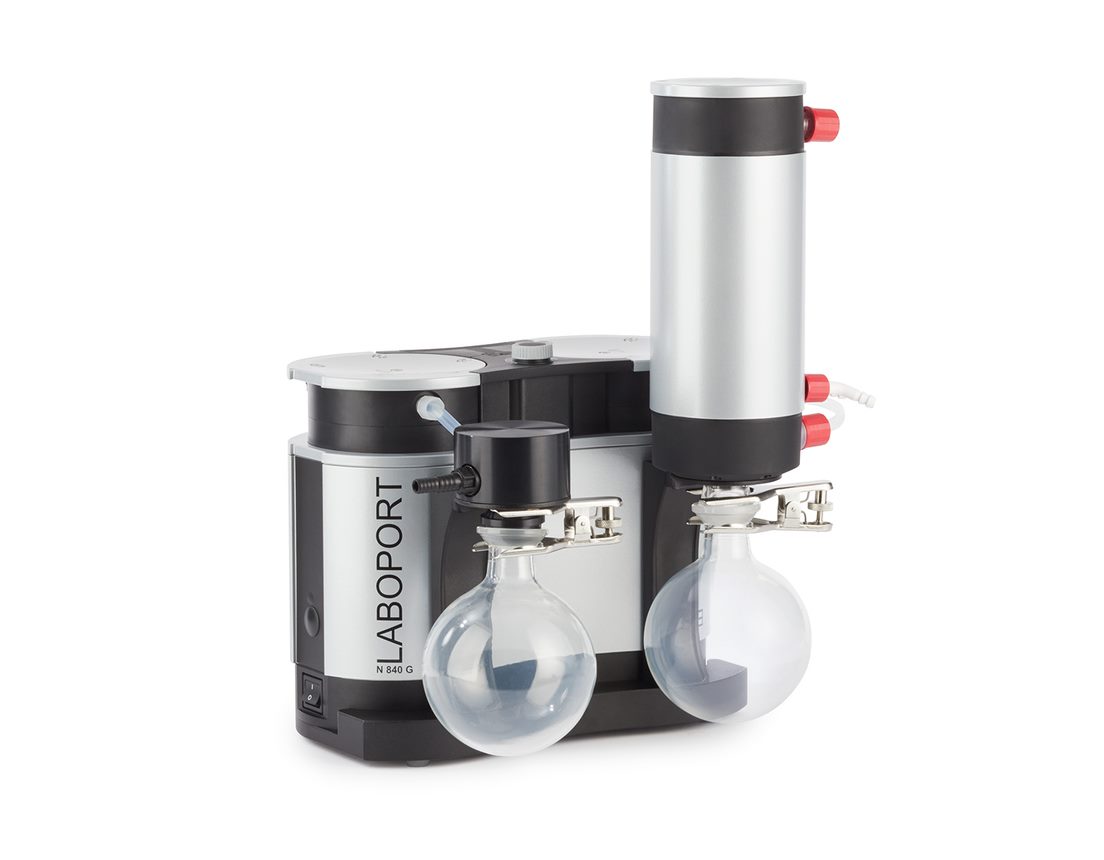

KNF LABOPORT SH 820 G, vacuum pump system with separator and high-performance condenser, 20 l/min, ATEX marking category 3, 325234
For those in the laboratory who wish not only to draw off solvents but also to actively recover them, rather than losing them unused via the exhaust air, the KNF LABOPORT SH 820 G is a complete vacuum pump system: a chemical-resistant diaphragm vacuum pump, a base plate, a separator on the suction side and a high-performance condenser on the discharge side. With a flow rate of 20 l/min, it covers the moderate performance range of the SH series, typically used in distillation processes or with rotary evaporators, where solvent vapours need to be recovered for cost, safety or environmental reasons. Separator and high-performance condenser for solvent recovery The base plate supports a separator on the suction side (order number 047729) and a high-performance condenser with a pressure relief valve on the discharge side (order number 114855), which ensures solvent recovery. Both components are connected via a red GL screw cap (GL 14 or GL 18), a standard laboratory glass thread that is easy to open and close again. One hose connector each (KNF designation Hose-BGR) is intended for the separator flask (order number 323044) and the condenser (order number 317157). Chemically resistant materials in the parts in contact with the medium The pump head is made of TFM PTFE, the diaphragm is PTFE-coated, and the valves are made of FFPM. This combination of materials makes the system suitable for aggressive and corrosive media. The ultimate vacuum is a maximum of 6 mbar (abs.), and the operating pressure is a maximum of 0.1 bar (rel.). These values apply to the entire system, not just the pump itself. Explosion protection for internal parts in contact with the medium, Category 3 The SH 820 G bears the ATEX marking (Ex) II 3/-G Ex h IIB+H2 T3 Gc and is therefore designed for pumping potentially explosive atmospheres. This marking refers exclusively to the internal, media-contacting area of the system, not to the installation environment. It is the same ATEX equipment category as for the SR 820 G, lower than that of the pure LABOPORT N 820 G (Category 2). Compact and mains-powered Measuring 323 x 416 x 260 mm (W x H x D) and weighing 11.7 kg, the system is designed for use on a laboratory bench or in a fume hood. It is powered directly from the mains (100 to 240 V AC, 50/60 Hz) and requires no battery; its power consumption is 60 W. A thermal switch and mains fuse provide protection against overload, and the degree of protection is IP30. Permissible media and ambient temperatures range from +5 to +40 °C. Same size as the N 820 G and SR 820 G The size 820 pump head is also listed by the manufacturer under reference number 313452, the same identification number used for the identical drive unit of the LABOPORT N 820 G and the SR 820 G system variant. Anyone who has already used one of these size 820 variants will also be familiar with the drive unit of the SH 820 G. Spare parts kit 331051 is available for the pump itself, whilst spare parts kit 331053 is available for the complete system (including additional O-rings). Installation and operation The SH 820 G is designed for installation on a laboratory bench or in a fume hood and is operated via the base plate with the attached separator and condenser. Before initial commissioning, the hose connections should be checked to ensure they are secure, particularly at the condenser’s pressure relief valve. Like the entire LABOPORT series, the SH 820 G operates completely oil-free; there is no need for regular oil changes, and there is no risk of oil mist entering the gases being pumped or the laboratory air. Typical applications As a vacuum pump system with active solvent recovery, the SH 820 G is particularly suitable for: Distillation Rotary evaporation N, SR or SH: choosing the right configuration If a pure vacuum without a collection vessel is sufficient, the more compact LABOPORT N 820 G is the simpler choice. If the primary requirement is to collect liquid without condensation, the SR 820 G system variant with two separator flasks is sufficient. If, on the other hand, the focus is on the active recovery of solvents, the SH 820 G with separator and high-performance condenser is suitable. For those requiring a higher flow rate, the same series offers the SH 840 G with a flow rate of 34 l/min. Technical details Flow rate (max.)20 l/min (1.2 m³/h) Ultimate vacuum (max.)6 mbar (abs.) Operating pressure (max.)0.1 bar (rel.) Pump headTFM PTFE DiaphragmPTFE-coated ValvesFFPM Voltage100 to 240 V AC, 50/60 Hz Power P160 W Operating current0.35 A (240 V AC) / 0.66 A (100 V AC) Degree of protectionIP30 Permissible medium/ambient temperature+5 to +40 °C Dimensions (W x H x D)323 x 416 x 260 mm Weight11.7 kg Separator1x, GL 14/GL 18 screw cap (order no. 047729) High-performance condenserwith pressure relief valve (order no. 114855) ATEX marking (internal parts in contact with the medium)(Ex) II 3/-G Ex h IIB+H2 T3 Gc Scope of delivery 1x KNF LABOPORT SH 820 G vacuum pump system (pump, base plate, separator, high-performance condenser) Individual requirements and procurement service A spare parts kit for the pump and a spare parts kit for the complete system (including additional O-rings) are available for the SH 820 G. If you have any questions regarding suitable accessories, spare parts or individual requirements relating to your KNF LABOPORT SH 820 G, our procurement service will be happy to assist you.

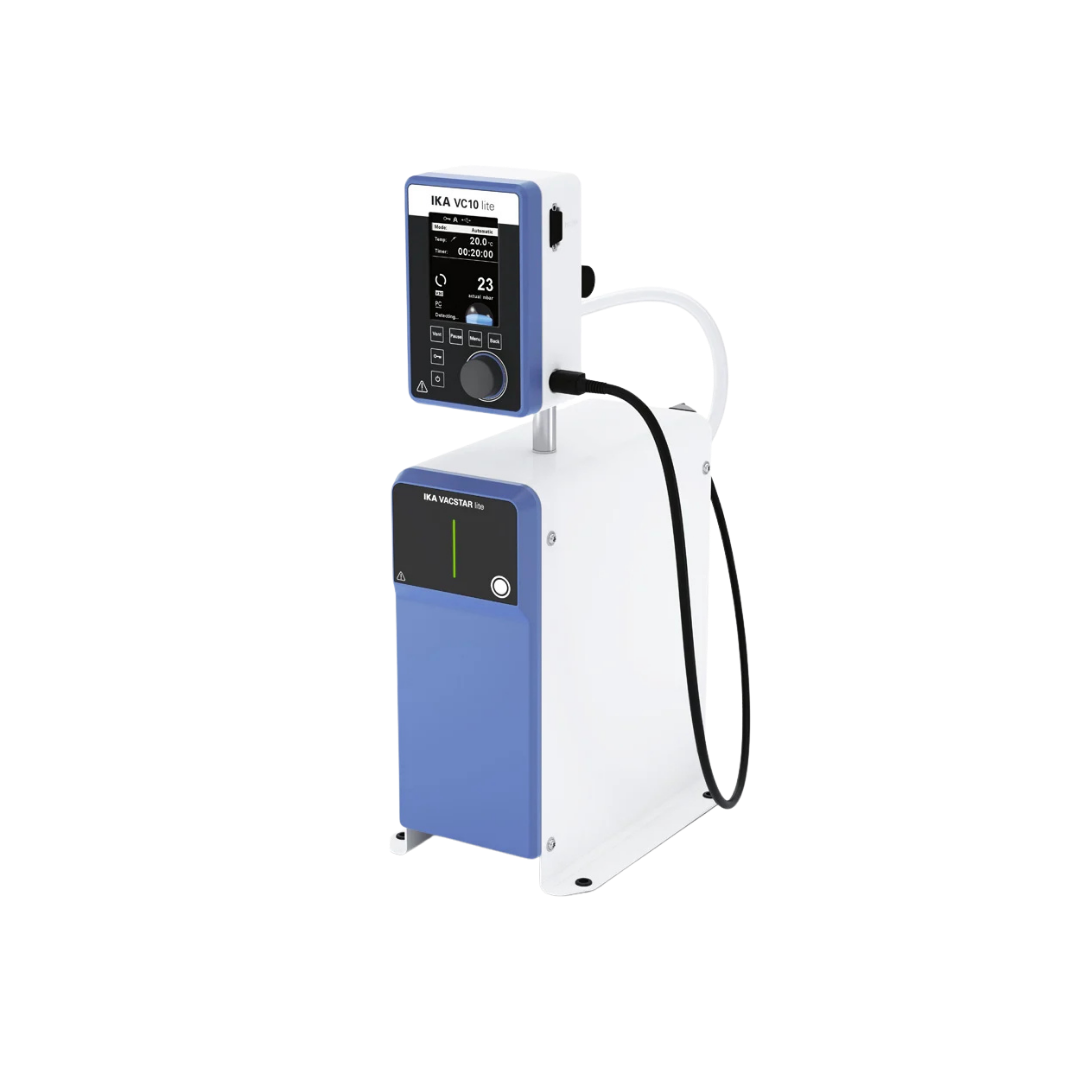

IKA VACSTAR lite Starter Solution, diaphragm vacuum pump, including emission condenser, 9 mbar, 0010014496
The IKA VACSTAR lite Starter Solution (MPN 0010014496) is a pre-assembled entry-level vacuum package for everyday laboratory use: a compact, oil-free diaphragm vacuum pump combined with the VSE 1 emission condenser. For example, anyone working with a rotary evaporator or setting up a filtration system does not need to purchase and set up the condenser separately, but can put the set into operation straight away. The pump thus handles standard tasks such as filtration, drying in a vacuum drying oven or evacuating Schlenk lines. Compact two-cylinder pump with robust suction capacity At its core is a dry two-cylinder diaphragm pump with a maximum pumping speed of 1.0 cubic metres per hour (16.67 litres per minute) and an ultimate vacuum of 9 mbar without gas ballast. The speed can be continuously adjusted via a rotary knob; the speed range is between 285 and 1,100 revolutions per minute, with a rated speed of 1,100 rpm. This is sufficient for most routine laboratory tasks, but is clearly intended for applications that do not require extremely low ultimate vacuums, such as simple filtration or the drying off of solvents at moderate temperatures. VSE 1 emission condenser for solvent vapours The VSE 1 vacuum safety emission condenser included in the set captures solvent vapours before they are released into the room air via the pump. This allows the condensed solvent to be recovered rather than wasted. Particularly when working with volatile organic solvents in fume hoods or on rotary evaporators, this can reduce consumption and the volume of waste to be disposed of, without the need to procure and adapt a separate component. Chemical-resistant and low-maintenance in continuous operation As a dry-running pump, the VACSTAR lite operates entirely without operating oil, thus eliminating the need for oil changes, waste oil disposal and the risk of sample contamination from oil vapours. All parts in contact with the medium are made of Al₂O₃, PTFE, FFPM, PPS and NBR, whilst the housing is made of coated die-cast aluminium and thermoplastic. According to the manufacturer, this combination of materials is designed for use with aggressive chemicals and solvent vapours and can reduce maintenance requirements during continuous operation. Space-saving and easy to integrate Measuring 115 x 292 x 280 millimetres and weighing 8.5 kilograms, the VACSTAR lite fits even on small work surfaces or directly inside a fume hood. Connections are made via 8-millimetre hose connections on the suction and discharge sides; the housing is rated to IP 20. The sound pressure level is 54 dB(A) at low pressure. A USB interface and an analogue input are available for connection to external control systems, for example if a digital vacuum controller is to be retrofitted at a later date. Simple operation with no training required The ‘lite’ version deliberately omits a digital display and focuses purely on functionality: a rotary knob continuously adjusts the speed and thus the pumping capacity, whilst a non-return valve protects the system against backflow when the pump is switched off. This makes the pump particularly suitable for workstations where several people with varying levels of experience use the same unit, for example during practical sessions or in teams with frequently changing personnel. Wide range of applications in everyday laboratory work IKA positions the VACSTAR-lite series as a universal vacuum source for use with rotary evaporators, laboratory reactors, temperature-controlled chambers, centrifuges and other laboratory equipment. Manual operation via the rotary knob means the pump does not require additional control software. For workstations where more precise, automated process control is required at a later stage, an external vacuum controller can be retrofitted via the analogue interface if necessary, without having to replace the pump itself. Typical applications As an entry-level solution for generating vacuum in the laboratory, the VACSTAR lite Starter Solution is particularly suitable for the following applications: Vacuum filtration in routine analysis, for example when filtering precipitates Support for rotary evaporators for moderate distillation tasks Drying of samples or glassware in a vacuum drying oven Evacuating Schlenk lines and simple desiccators An introduction to vacuum technology for training and teaching, thanks to simple rotary knob operation requiring no lengthy familiarisation Technical details Pump type2-cylinder diaphragm vacuum pump, dryMax. pumping speed (50/60 Hz)1.0 m³/h (16.67 l/min)Ultimate vacuum without gas ballast9 mbarStages / cylinders2 / 2Inlet pressure10 to 1,030 mbarSpeed range285 to 1,100 rpm (rated speed 1,100 rpm)ControlContinuously variable speed control via rotary knob, two-point controlSuction/discharge connectionHose nozzle Ø 8 mmMaterials in contact with the productAl₂O₃, PTFE, FFPM, PPS, NBRHousing materialCoated die-cast aluminium / thermoplasticDimensions (W x H x D)115 x 292 x 280 mmWeight8.5 kgDegree of protection according to DIN EN 60529IP 20Sound pressure level at low pressure54 dB(A)Permissible ambient temperature5 to 40 °CPermissible relative humidity80 % (up to 31 °C), decreasing linearly to a maximum of 50 % (at 40 °C)InterfacesUSB, analogue inputVoltage / Frequency100 to 240 V, 50/60 HzDevice power consumption120 W (5 W on standby) Scope of delivery 1 x IKA VACSTAR lite vacuum pump 1 x VSE 1 vacuum safety emission condenser 1 x vacuum hose 1 x power supply unit Operating instructions WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements and procurement service If you wish to control the VACSTAR lite automatically at a later date, you can retrofit it with a digital vacuum controller such as the VC 10 lite, for example to set programmed ramp profiles on the rotary evaporator. A Woulff bottle to protect the pump from liquid hammer, as well as other original accessories from the IKA vacuum range, are also available via our procurement service. Further information and contact details can be found on our procurement service page.

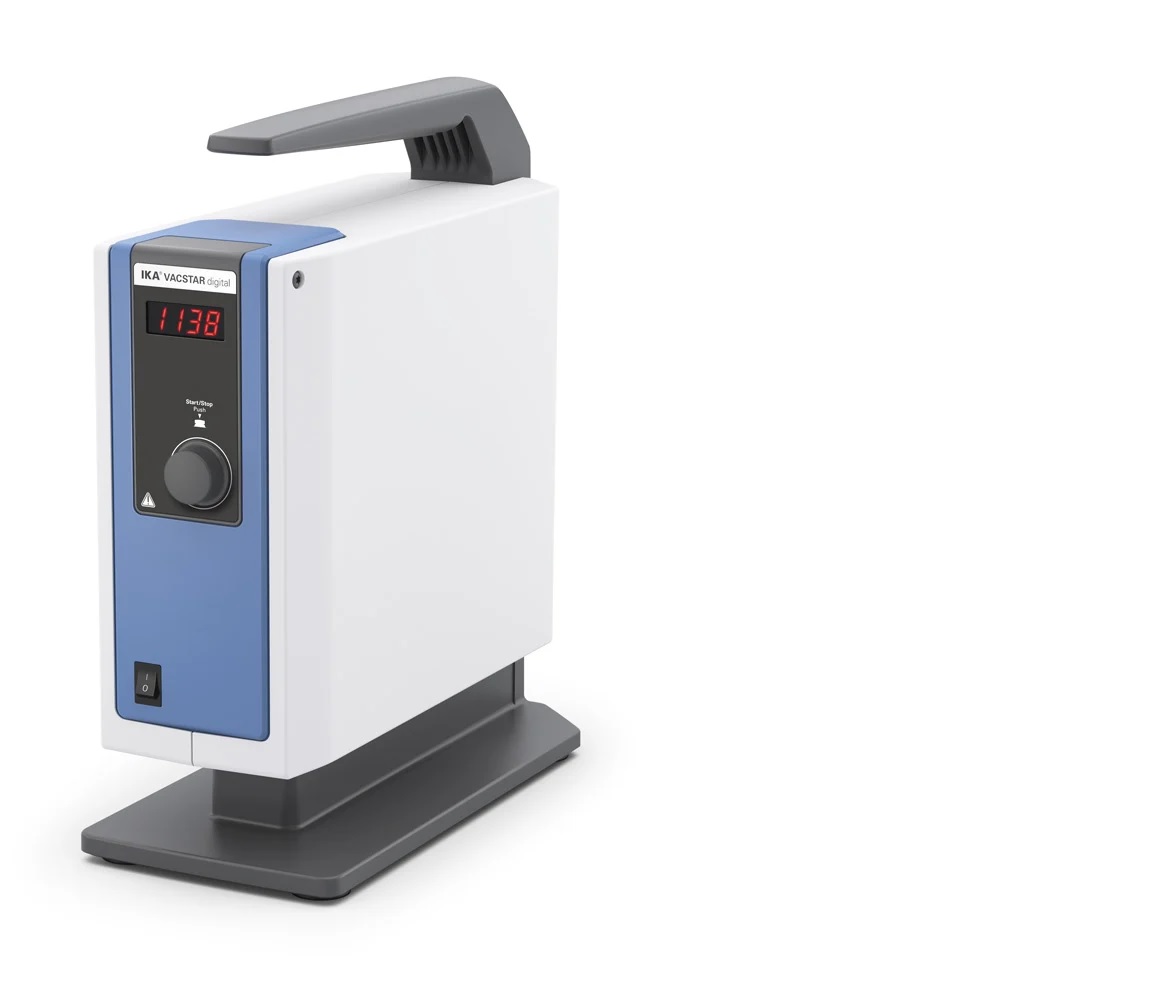

IKA VACSTAR digital Vacuum Pump, Diaphragm Pump with Digital Speed Display, 22 l/min, 0020016236
The IKA VACSTAR digital is a dry 4-chamber diaphragm vacuum pump with digital speed display. Anyone who has so far operated a purely analogue pump without feedback on the current speed can see here at a glance which setting is currently in use, without depending on full automation. The VACSTAR digital is thus positioned between the purely manual VACSTAR lite and the VACSTAR control with integrated vacuum controller: more control than with a purely analogue pump, but without the additional cost of a permanently installed controller when it is not yet needed for the application in question. Digital display with simple turn-and-push operation The parameters are set with a turn-and-push knob, and an LED display shows the current speed in real time. The pumping speed of 22 l/min (1.32 m³/h) and an ultimate vacuum of 2 mbar reliably cover typical tasks such as rotary evaporators, drying ovens or filtrations. The speed range extends from 285 to 1,200 revolutions per minute, regulated by an analogue speed-vacuum control with two-point control for stable, readily reproducible process behaviour. Prepared for later automation An analogue cable for connecting an external vacuum controller of type VC 10 is already included in the scope of delivery. Anyone who wants to run automated processes, for example a programmed distillation ramp, can extend the pump with the VC 10 at any time without having to buy an additional connecting cable and without having to replace the pump itself with another model. For the protection of laboratory air and the environment, the VSE 1 vacuum safety emission condenser is also recommended. It reduces the release of solvent vapours into the room air and can be retrofitted at any time if required. Chemically resistant and designed for continuous operation All parts in contact with the product are made of Al2O3, PTFE, FFPM, PPS and NBR, and the housing of coated die-cast aluminium and thermoplastic. As a dry-running pump, the VACSTAR digital works entirely without operating oil, so oil changes and the disposal of waste oil are eliminated and samples are not contaminated by oil vapours from the pump. This combination of materials makes the pump particularly resistant to aggressive solvents and ensures low-maintenance continuous operation in everyday laboratory work, even with daily changes between different solvents. Connection, format and operating values With dimensions of 150 x 375 x 370 millimetres and a weight of 11.5 kilograms, the VACSTAR digital is designed for a fixed place at the laboratory workstation, for example next to a rotary evaporator or drying oven. It is connected to 100 to 240 volts at 50 or 60 hertz with a device power consumption of 130 watts in operation and 3 watts in standby. Both an RS232 and a USB interface are available for connection to laboratory software, and the housing is classified IP 20. Robust design for daily laboratory use The lower housing made of coated die-cast aluminium in combination with thermoplastic components is designed for daily continuous use in the laboratory. The permissible ambient temperature of 5 to 40 °C and a tolerated relative humidity of up to 80 % at 31 °C, decreasing linearly to a maximum of 50 % at 40 °C, make the pump suitable even for laboratories without continuous air conditioning. With a sound pressure level of 54 dB(A) at minimum pressure, operation next to the workstation remains pleasantly quiet. Typical applications As a digital intermediate step between manual operation and a fully integrated controller, the VACSTAR digital is particularly suitable for the following applications: Rotary evaporator operation with direct reading of the current speed instead of estimating from the scale on the knob Vacuum drying in drying ovens with a traceable speed setting that can be read on the display Vacuum filtration in the routine laboratory where digital control without full automation is already sufficient Laboratory workstations that are to be retrofitted later with a VC 10 vacuum controller for full automation Training and practical courses in which the digital speed display supports participants' understanding of the process Workstations with several users where a traceable speed setting is more important than estimating from a scale Technical details Pump type4-chamber diaphragm vacuum pump, dryDelivery rate max. (50/60 Hz)1.32 m³/h (22 l/min)Ultimate pressure without gas ballast2 mbarSuction stages / cylinders4 / 4Connection diameter suction/pressure side8 mmInlet pressure2 to 1,030 mbarControlTwo-point control, analogue speed-vacuum control, setting via turn-and-push knobSpeed range285 to 1,200 rpmDisplayLEDSound pressure level at min. pressure54 dB(A)Wetted materialAl2O3, PTFE, FFPM, PPS, NBRHousing materialCoated die-cast aluminium / thermoplasticDimensions (W x H x D)150 x 375 x 370 mmWeight11.5 kgPermissible ambient temperature5 to 40 °CPermissible relative humidity80 % (up to 31 °C), decreasing linearly to max. 50 % (at 40 °C)Degree of protection according to DIN EN 60529IP 20InterfacesRS232, USBVoltage / frequency100 to 240 V, 50/60 HzDevice power consumption130 W (standby 3 W) Scope of delivery 1 x IKA VACSTAR digital Vacuum Pump 1 x vacuum hose (1 m) 1 x silencer 1 x USB cable (USB-A to USB-B) 1 x analogue cable for connecting an external vacuum controller (e.g. VC 10) WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements & procurement service The VC 10 vacuum controller is available as an extension for fully automatic distillations, and for the protection of laboratory air and the environment we also recommend the VSE 1 emission condenser. Further accessories and spare parts are available on request through our procurement service.

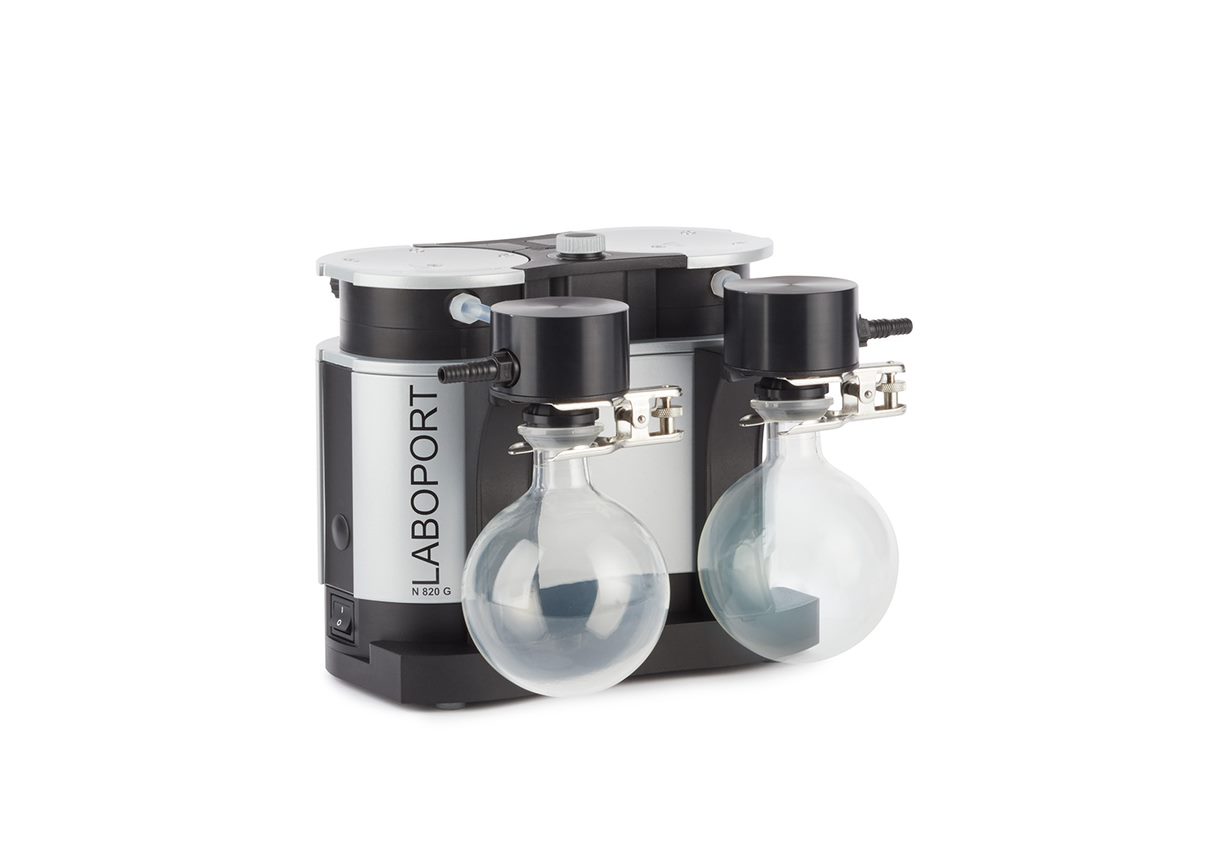

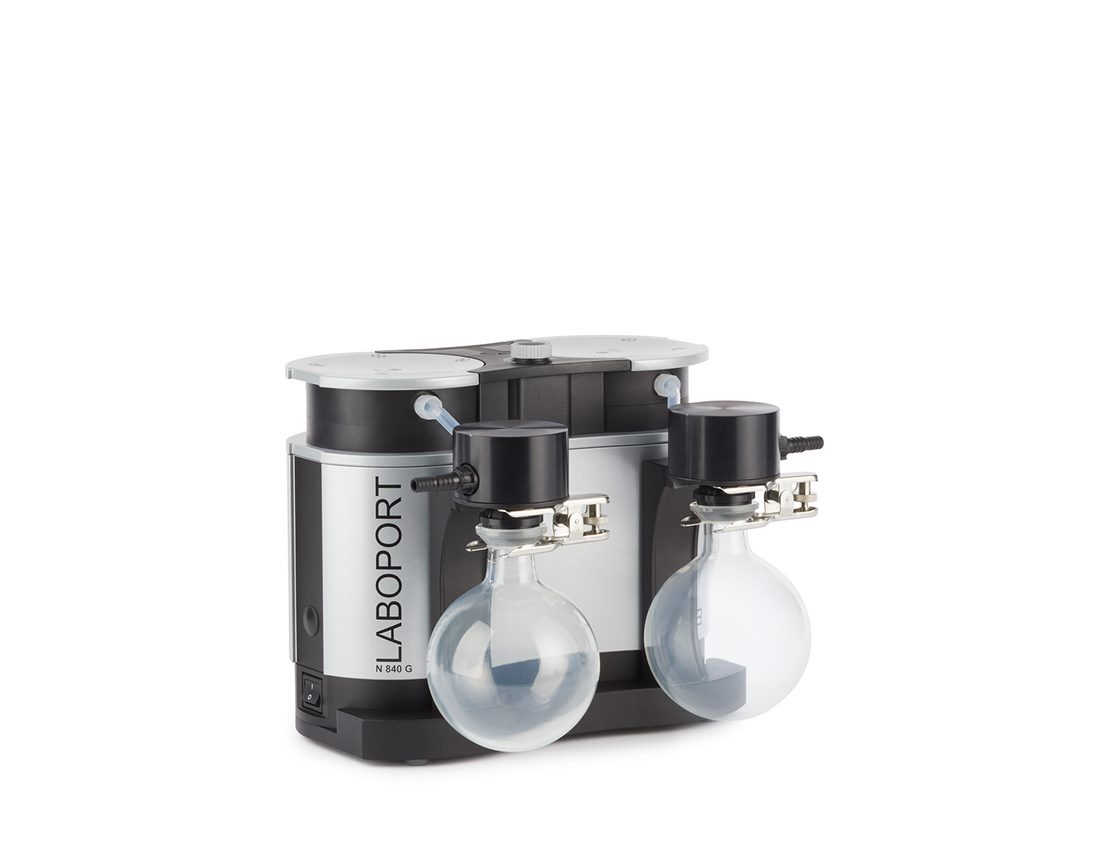

KNF LABOPORT SR 820 G, vacuum pump system with 2 separator bottles, 20 l/min, ATEX marking category 3, 325236
For those who wish to collect liquids or condensate extracted in the laboratory directly at the system, rather than simply generating a vacuum, the KNF LABOPORT SR 820 G offers a complete vacuum pump system: a chemical-resistant diaphragm vacuum pump, a base plate and two separator bottles on the suction and discharge sides. With a flow rate of 20 l/min, it covers the moderate performance range of the SR series and is suitable for workstations where, in addition to a vacuum, the controlled collection of liquids and condensate is required. Two separator bottles on the suction and discharge sides The base plate supports two separator bottles (order number 047729), one on the suction side and one on the discharge side of the pump. Connection is via hose nipples with red GL screw caps (GL 14 or GL 18), a standard laboratory glass thread, so that the bottles can be changed easily. Two hose connectors (KNF designation Hose-BGR, order number 323044) are provided for connecting the bottles. Chemical-resistant materials in the parts in contact with the medium The pump head is made of TFM PTFE, the diaphragm is PTFE-coated, and the valves are made of FFPM. This combination of materials makes the system suitable for aggressive and corrosive media. The ultimate vacuum is a maximum of 6 mbar (abs.), and the operating pressure is a maximum of 0.1 bar (rel.). Explosion protection for the internal parts in contact with the medium, Category 3 The SR 820 G bears the ATEX marking (Ex) II 3/-G Ex h IIB+H2 T3 Gc and is therefore designed for conveying potentially explosive atmospheres. This marking refers exclusively to the internal, media-contacting area of the system, not to the installation environment. This is a lower ATEX equipment category than that of the standard LABOPORT N 820 G (Category 2), a system-related difference due to the additional separator bottles. Compact and mains-powered Measuring 282 x 234 x 260 mm (W x H x D) and weighing 10.7 kg, the system is compact enough for direct use on a laboratory bench. It is powered directly from the mains (100 to 240 V AC, 50/60 Hz) and requires no battery; its power consumption is 60 W. A thermal switch and mains fuse provide protection against overload, and the degree of protection is IP30. Permissible media and ambient temperatures range from +5 to +40 °C. Same size as N 820 G and SH 820 G The size 820 pump head is also listed by the manufacturer under reference number 313452, the same identification number used for the identical drive unit of the LABOPORT N 820 G and the SH 820 G system variant. Spare parts kit 331051 is available for the pump itself, whilst spare parts kit 331054 is available for the complete system. Installation and operation The SR 820 G is designed for installation on a laboratory bench and is operated via the base plate with connected separator bottles. Before initial commissioning, the hose connections on the suction and discharge sides should be checked to ensure they are secure. The maximum operating pressure of 0.1 bar (rel.) and the ultimate vacuum of 6 mbar (abs.) apply to the complete system, not just to the pump alone. Low-maintenance and oil-free Like the entire LABOPORT range, the SR 820 G operates completely oil-free; there is no need for regular oil changes, and there is no risk of oil mist entering the gases being pumped or the laboratory air. The red GL screw cap on the separator bottles makes it easy to empty or replace the bottles whilst the laboratory is in operation, without having to improvise separate collection vessels. This is a practical advantage over open collection solutions, particularly for quality assurance and research, where chemical resistance and a contamination-free vacuum source are required. Typical applications As a vacuum pump system with an integrated collection facility, the SR 820 G covers the following applications: Filtration Degassing Vacuum ovens Liquid aspiration Centrifugal concentration N, SR or SH: choosing the right configuration If a simple vacuum system without a collection vessel is sufficient, the more compact LABOPORT N 820 G is the simpler choice. If the priority is the recovery of solvents through condensation, the SH 820 G system variant, featuring a separator and high-performance condenser, is the more suitable option. For those requiring a higher flow rate, the SR 840 G with a flow rate of 34 l/min is available within the same series. Technical details Flow rate (max.)20 l/min (1.2 m³/h) Ultimate vacuum (max.)6 mbar (abs.) Operating pressure (max.)0.1 bar (rel.) Pump headTFM PTFE DiaphragmPTFE-coated ValvesFFPM Voltage100 to 240 V AC, 50/60 Hz Power P160 W Operating current0.35 A (240 V AC) / 0.66 A (100 V AC) Degree of protectionIP30 Permissible medium/ambient temperature+5 to +40 °C Dimensions (W x H x D)282 x 234 x 260 mm Weight10.7 kg Separator bottle2x, GL 14/GL 18 screw cap (order no. 047729) ATEX marking (internal areas in contact with the medium)(Ex) II 3/-G Ex h IIB+H2 T3 Gc Scope of delivery 1x KNF LABOPORT SR 820 G vacuum pump system (pump, base plate, 2 separator bottles) Individual requirements and procurement service A spare parts kit for the pump and a spare parts kit for the complete system are both available for the SR 820 G. If you have any questions regarding suitable accessories, spare parts or specific requirements relating to your KNF LABOPORT SR 820 G, our procurement service will be happy to assist you.

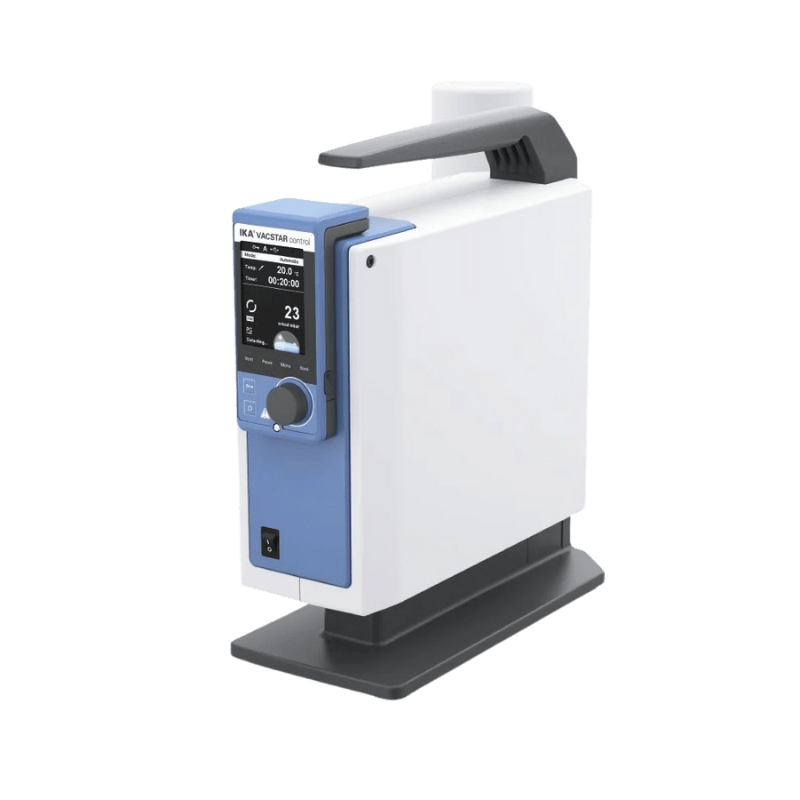

IKA VACSTAR control Diaphragm Vacuum Pump with Integrated Controller, 22 l/min, 0020109375
The IKA VACSTAR control is a dry, oil-free 4-chamber diaphragm vacuum pump with a factory-integrated vacuum controller. Anyone who has so far operated a separate pump and an additional vacuum controller side by side saves bench space and wiring effort with this 1:1 concept: the control electronics are already in the pump housing, and it is operated via a detachable display that can also be read and operated directly at the fume hood. For recurring distillation routines, for example on a rotary evaporator in routine operation, the separate wiring and configuration of an external controller for each setup is no longer necessary, which makes it easier to switch between several workstations in the laboratory. Integrated controller instead of a separate vacuum regulator The pumping capacity of 22 l/min (1.32 m³/h) and an ultimate vacuum of 2 mbar reliably cover typical tasks such as rotary evaporators, drying ovens or vacuum filtrations. The speed range extends from 285 to 1,200 revolutions per minute, regulated by a ceramic Al2O3 vacuum sensor. Unlike with a plain diaphragm pump, the question of which external controller is suitable no longer arises, because the pump and control unit are already matched to each other. WiCo remote control for operation under the fume hood The TFT display of the WiCo remote control can be detached from the pump and placed separately, for example directly at the fume hood window, while the pump itself stands underneath or beside it and therefore does not have to be operated constantly through the front window. Several operating modes can be selected via the menu: automatic operation with boiling point detection and a stored solvent library, manual operation at a fixed speed, and separate pump-down and cleaning functions. The automatic boiling point detection helps to avoid bumping and to protect samples from loss through pumping down too quickly, especially with low-boiling solvents. Chemically resistant and designed for continuous operation The PTFE diaphragms and chemically resistant materials in the media path make the VACSTAR control robust against aggressive solvent vapours. An integrated valve cleaning function removes solvent residues from the system and thereby extends the service life of the diaphragms, without the pump having to be dismantled for manual cleaning. For the protection of laboratory air and the environment, the VSE 1 emission condenser can be connected afterwards, so that solvent vapours do not enter the room air unfiltered. As the pump works as a dry-running pump, oil changes are also eliminated, and with them the risk of oil vapours coming into contact with the sample. Connection and format for fixed laboratory workstations With dimensions of 270 x 435 x 500 millimetres and a weight of 14 kilograms, the VACSTAR control is designed for a fixed place at the workstation, for example directly under the fume hood bench, rather than for frequent transport between workstations. Data connection is via USB and RS232, for example for process documentation with laboratory software. The housing is classified IP 20, the device power consumption is 140 watts in operation and 1.5 watts in standby, and the pump is connected to 100 to 240 volts at 50 or 60 hertz. Reproducible processes thanks to automatic boiling point detection The stored solvent library automatically recognises common solvents from their boiling behaviour and adjusts the vacuum accordingly, instead of the target speed having to be readjusted manually. This reduces the variation between individual distillations and makes it easier to hand a process over to changing laboratory staff, because the parameters can be documented and repeated on the device. In combination with the USB or RS232 connection to laboratory software, the complete course of the process can also be logged, which means a noticeable time saving compared with a manually kept process file, especially in quality-assured environments with batch documentation. Typical applications As a 1:1 vacuum solution with integrated controller, the VACSTAR control is particularly suitable for the following applications: Automated distillations on the rotary evaporator with boiling point detection, also with changing solvents Vacuum drying in drying ovens with reproducible, documented process parameters Vacuum filtration where documented, repeatable process control is also required Laboratory workstations with limited space where a separate vacuum controller does not fit Process documentation via USB or RS232 in quality-assured laboratory environments Fixed vacuum workstations where several users are to run the same process reproducibly Technical details Pump type4-chamber diaphragm vacuum pump, dry, with integrated controllerPumping speed max.22 l/min (1.32 m³/h)Ultimate pressure2 mbarInlet pressure1 to 1,030 mbarSpeed range285 to 1,200 rpmNumber of cylinders4Connection diameter suction/pressure side8 mmVacuum sensorCeramic (Al2O3)Controller / operationIntegrated, detachable WiCo display with touch operationOperating modesAutomatic with boiling point detection, manual operation, pump-down and cleaning functionInterfacesUSB, RS232Degree of protection according to DIN EN 60529IP 20Dimensions (W x H x D)270 x 435 x 500 mmWeight14 kgVoltage / frequency100 to 240 V, 50/60 HzDevice power consumption140 W (standby 1.5 W) Scope of delivery 1 x IKA VACSTAR control Vacuum Pump with Integrated Controller 1 x WiCo remote control WH11 (detachable control unit) 1 x power supply OS 1.0 for the WiCo remote control 1 x power cord (according to the IKA instructions) 1 x vacuum hose (1 m) 1 x USB cable (USB-A to Micro-B, 2 m) 1 x USB cable (USB-A to USB-B) 1 x screwdriver WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements & procurement service For additional protection of laboratory air and the environment, the VSE 1 emission condenser can be retrofitted, as can a Woulff bottle to protect the pump from liquid surges or suitable connecting hoses for your rotary evaporator. For technical advice, please contact our procurement service.

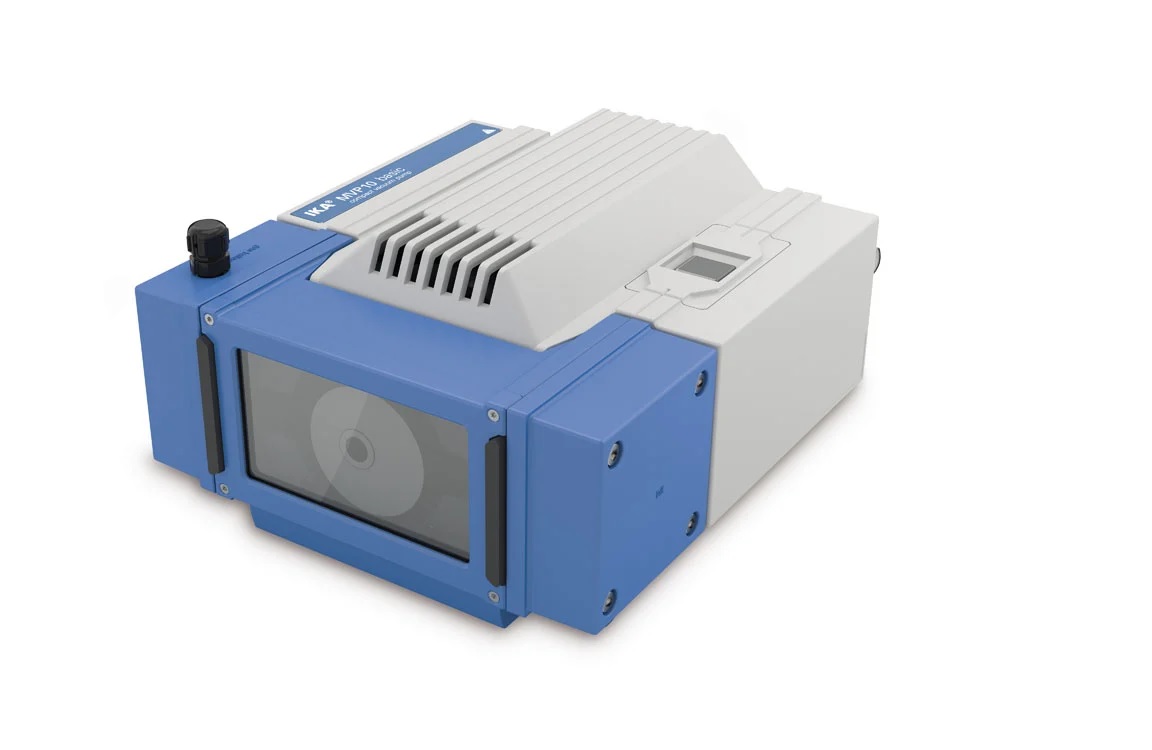

IKA MVP 10 basic Vacuum Pump, Oil-Free Diaphragm Pump, IP 54, 0003980000
The IKA MVP 10 basic is a compact, oil-free diaphragm vacuum pump for straightforward laboratory use. Without a display, without digital interfaces and without a controller, the unit concentrates on pure function: reliably generating vacuum, robustly built and easy to maintain. This makes the MVP 10 basic a pragmatic choice for workstations where a simple vacuum source is needed without control software or a process log behind it, for example as a second or third pump for less critical secondary tasks alongside a precisely controlled main setup. Two-stage pump with solid delivery rate The two-stage, two-cylinder diaphragm pump reaches a maximum delivery rate of 1.7 cubic metres per hour (28.3 litres per minute). The ultimate pressure is 7 mbar without gas ballast and 15 mbar with the gas ballast valve activated. The gas ballast valve is particularly helpful when moist or solvent-containing vapours arise during pumping, as it reduces condensation of these in the pump and attacking the diaphragms in the long term. The permissible inlet pressure ranges from 7 to 1,050 mbar, so the pump is suitable both for initial evacuation and for maintaining an existing vacuum. Chemical resistance through PTFE components throughout All parts in contact with gas are made of PTFE or PTFE compounds, which are resistant to many chemicals. Combined with the dry, oil-free design, oil changes and the disposal of waste oil are eliminated, and at the same time the risk of sample contamination by oil vapours from the pump is reduced. The flat, compact design and the construction built for durability ensure a high ease of servicing in everyday laboratory work, so that maintenance can generally be carried out quickly and without special tools. Degree of protection IP 54 for harsh operating conditions With degree of protection IP 54 according to DIN EN 60529, the MVP 10 basic is protected against dust and splashing water. This also makes it interesting for locations where liquids are occasionally handled or the ambient air is not dust-free, for example in pilot plants or workshop laboratories. The permissible ambient temperature is between 10 and 40 °C at a maximum permissible relative humidity of 80 %, which also allows use in rooms that are less strictly air-conditioned. Compact format for fixed workstations With dimensions of 245 x 155 x 320 millimetres and a weight of 11.5 kilograms, the MVP 10 basic takes up little space and can also be moved between several workstations if required. The connection is made via 10 millimetre hose nozzles on the suction and pressure side, and the speed is constant at 1,380 revolutions per minute in 50 hertz operation and 1,680 revolutions per minute at 60 hertz, without any need for manual speed control. The pump is connected to 230 volts at 50 or 60 hertz with a device power consumption of 180 watts. Deliberate omission of display and interfaces Unlike the VACSTAR series, the MVP 10 basic deliberately dispenses with a display, digital interfaces and a vacuum controller. This reduces not only the purchase price but also the number of potential sources of error and wearing parts that would have to be replaced in the event of service. For applications that do not require finely regulated, documented process control but simply need a reliable vacuum, this is a deliberate and sensible compromise in favour of robustness, easy maintenance and a clearly calculable purchase. Typical applications As a robust, easy-to-operate entry-level pump without additional electronics, the MVP 10 basic is particularly suitable for the following applications: Simple vacuum filtrations in the routine laboratory where a finely regulated, digitally traceable ultimate vacuum depth is not required Suction and evacuation in pilot plants or workshop laboratories with a rougher, less air-conditioned ambient climate Evacuation of desiccators and simple drying setups in routine operation Fixed workstations with several users where a reliable, robust vacuum source without its own user interface is sufficient Teaching laboratories where a robust, easy-to-explain pump with no significant operating effort is required Technical details Pump type2-cylinder diaphragm vacuum pump, dry, two-stageDelivery rate max. (50/60 Hz)1.7 m³/h (28.3 l/min)Ultimate pressure without gas ballast7 mbarUltimate pressure with gas ballast15 mbarSuction stages / cylinders2 / 2Gas ballast valveYesConnection diameter suction/pressure side10 mmInlet pressure7 to 1,050 mbarSpeed (50 Hz / 60 Hz)1,380 rpm / 1,680 rpmSound pressure level at min. pressure65 dB(A)Wetted materialPTFE or PTFE compounds (all parts in contact with gas)Dimensions (W x H x D)245 x 155 x 320 mmWeight11.5 kgPermissible ambient temperature10 to 40 °CPermissible relative humiditymax. 80 %Degree of protection according to DIN EN 60529IP 54Voltage / frequency230 V, 50/60 HzDevice power consumption180 W Scope of delivery 1 x IKA MVP 10 basic Vacuum Pump 1 x vacuum hose 1 x silencer 1 x Y hose connector, 8 mm WarrantyManufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.Regulatory informationThis device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.Individual requirements & procurement service Accessories and spare parts for the MVP 10 basic, such as additional hose connectors or replacement diaphragms, are available on request through our procurement service.
