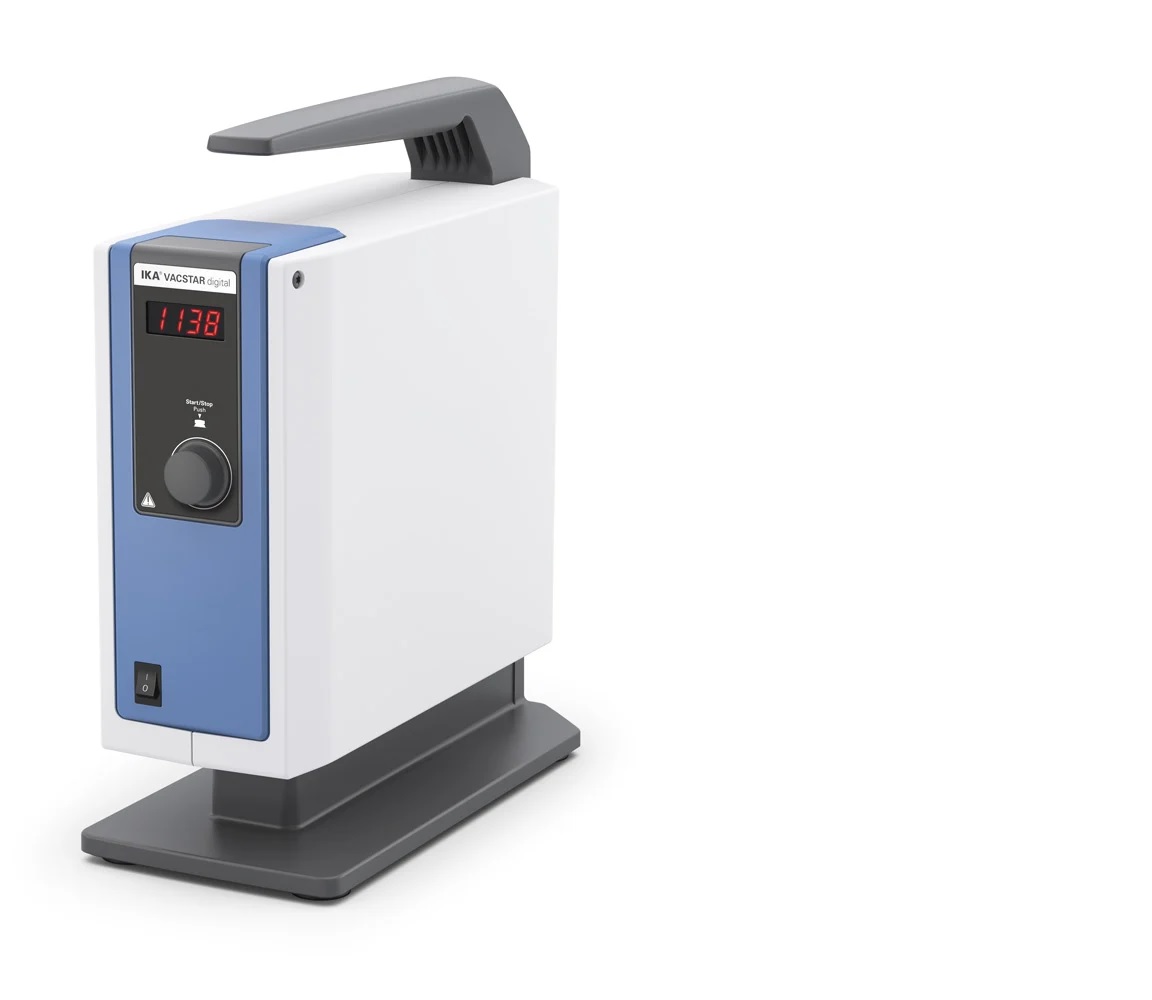

IKA VACSTAR digital vacuum pump, 0020016236

VACSTAR digital

The 4-chamber diaphragm vacuum pump offers impressive suction capacity, a compact design and excellent ease of maintenance. Parameters are set using a rotary push-button via a digital speed display.

Automatic processes can be controlled using the VC 10 vacuum controller, available as an accessory. An analogue cable required for the connection is included with the vacuum pump. We also recommend using the VSE 1 vacuum safety emission condenser, which prevents solvents from being released into the ambient air.

The Vacstar digital is used for dry and oil-free applications in everyday laboratory work. Its diaphragms are particularly chemically resistant.

Contents

Vacuum hose (1 m)

Silencer

USB A-B cable

Connecting cable

Technical Specifications

Max. flow rate (50/60 Hz) 1.32 m³/h

Max. flow rate (50/60 Hz) 22 l/min

Final pressure without gas ballast 2 mbar

Stages 4

Cylinders 4

Suction port diameter 8 mm

Discharge port diameter 8 mm

Inlet pressure 2 – 1030 mbar

Two-point control yes

Analogue speed and vacuum control yes

Speed adjustment Rotary knob

Speed range 285–1200 rpm

Display LED

Noise level at minimum pressure 54 dB(A)

Materials in contact with the product Al₂O₃; PTFE; FFPM; PPS; NBR

Housing material Coated cast aluminium / thermoplastic

Dimensions (W x H x D) 150 x 375 x 370 mm

Weight 11.5 kg

Permissible ambient temperature range 5 – 40 °C

Permissible relative humidity 80% (up to 31°C), decreasing linearly to a maximum of 50% (@40°C)

Protection class according to DIN EN 60529 IP 20

RS 232 interface yes

USB interface Yes

Voltage 100–240 V

Frequency 50/60 Hz

Power consumption 130 W

Standby power consumption 3 W

Accessories and spare parts available on request
