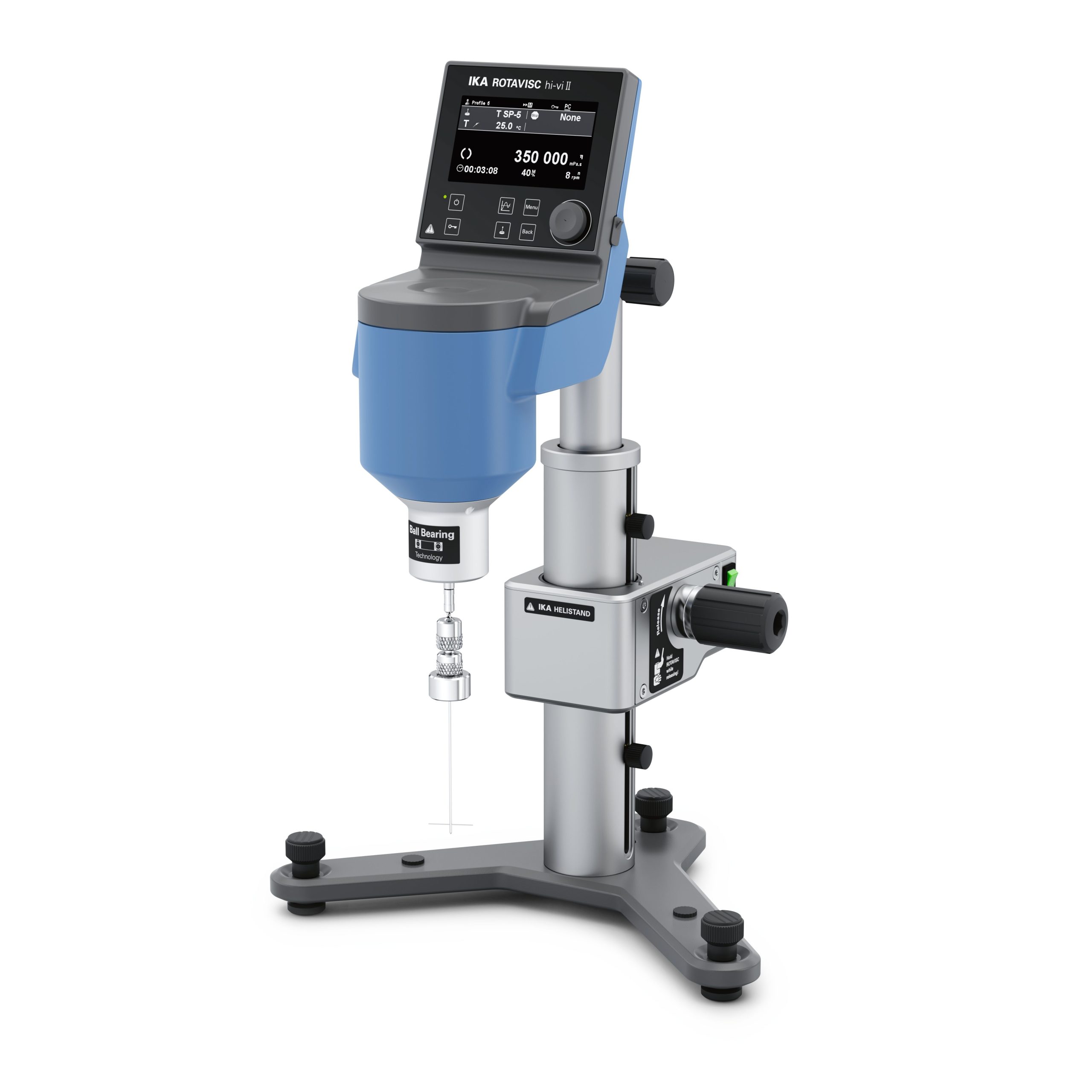

IKA Viscometer Package ROTAVISC SBS hi-vi II HELI Complete, #0010013672

IKA ROTAVISC SBS hi-vi II HELI Complete
The SBS (Steel Ball Bearing, Suspended) rotational viscometers cover a large part of the application range of our IKA ROTAVISC product family.

Instead of a jewel bearing, these instruments are fitted with a special ball bearing system.
They are characterised in particular by their high robustness. They are ideally suited for applications involving very high sample throughput, frequent spindle changes, operation in harsh environments, or frequent relocation of the instrument.

Whether for simple or sophisticated viscosity measurements – with ROTAVISC, you get fast and accurate results.

Viscosity measurement in motion
The motorised IKA HELISTAND stand moves the mounted viscometer and its rotating body slowly and evenly up and down through the sample.

A breeze to use
The generous 4.3″ TFT display offers intuitive menu navigation. A digital spirit level also assists in correctly setting the starting conditions. The simple ramp function makes recurring tasks easier.

Highest measurement accuracy
The accuracy of the ROTAVISC rotational viscometers for Newtonian and non-Newtonian liquids is ±1% of the measurement range. Reproducibility is ±0.2%.

Stepless speed control
With ROTAVISC, you have a viscometer that allows you to adjust the speed steplessly, whilst also enabling you to set programmes or specific speed levels.

IKA Rotavisc SBS hi-vi II HELI Complete
Viscosity measurement range: 800 – 320,000,000 mPas

Scope of supply:
ROTAVISC SBS hi-vi II control
, HELISTAND
, T-SP-SET
, SP set-2
, PT 100.8
, guard rail

Technical data:
Viscosity measurement range 320,000,000 mPas
Viscosity accuracy (FSR) 1 %
Viscosity repeatability (FSR) 0.2 %
Spring torque 5.7496 mNm
Guide rail me-vi
Measuring spindles SP set-2
Motor power output 4.8 W
Overload protection yes
Motor direction of rotation clockwise
Display TFT
Speed display TFT
Speed range 0.01 – 200 rpm
Speed setting accuracy ±0.01 rpm
Speed setting options TFT
Torque display yes
Torque measurement yes
Timer yes
Timer display TFT
time setting range 0.017 – 6000 min
Temperature measurement resolution 0.1 K
Operating temperature display TFT
Connection for external temperature sensor PT 100
Graph function yes
Operating modes Timer and continuous operation
Calibration option yes
Touch function yes
Permissible density 9999 kg/dm³
Operating temperature -100 – 300 °C
Mounting on stand Outrigger
Stand tube diameter (with integrated stand mounting) 16 mm
Stroke of telescopic stand 142 mm
Plug-in coupling (Ø) 12 mm
Base vessel volume 600 ml
Stand HELISTAND
Max. stroke 61 mm
Diameter 16 mm
Dynamic load 3.2 kg
Dimensions (W x H x D) 351 x 629 x 372 mm
Weight 7.1 kg
Permissible ambient temperature range 5 – 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 40
RS-232 interface Yes
USB interface Micro-USB
Voltage 100–240 V
Frequency 50/60 Hz
Power consumption (operating) 24 W
Power consumption (standby) 0.06 W
DC voltage 24 V =
Current consumption 1000 mA

Accessories and spare parts available on request!
