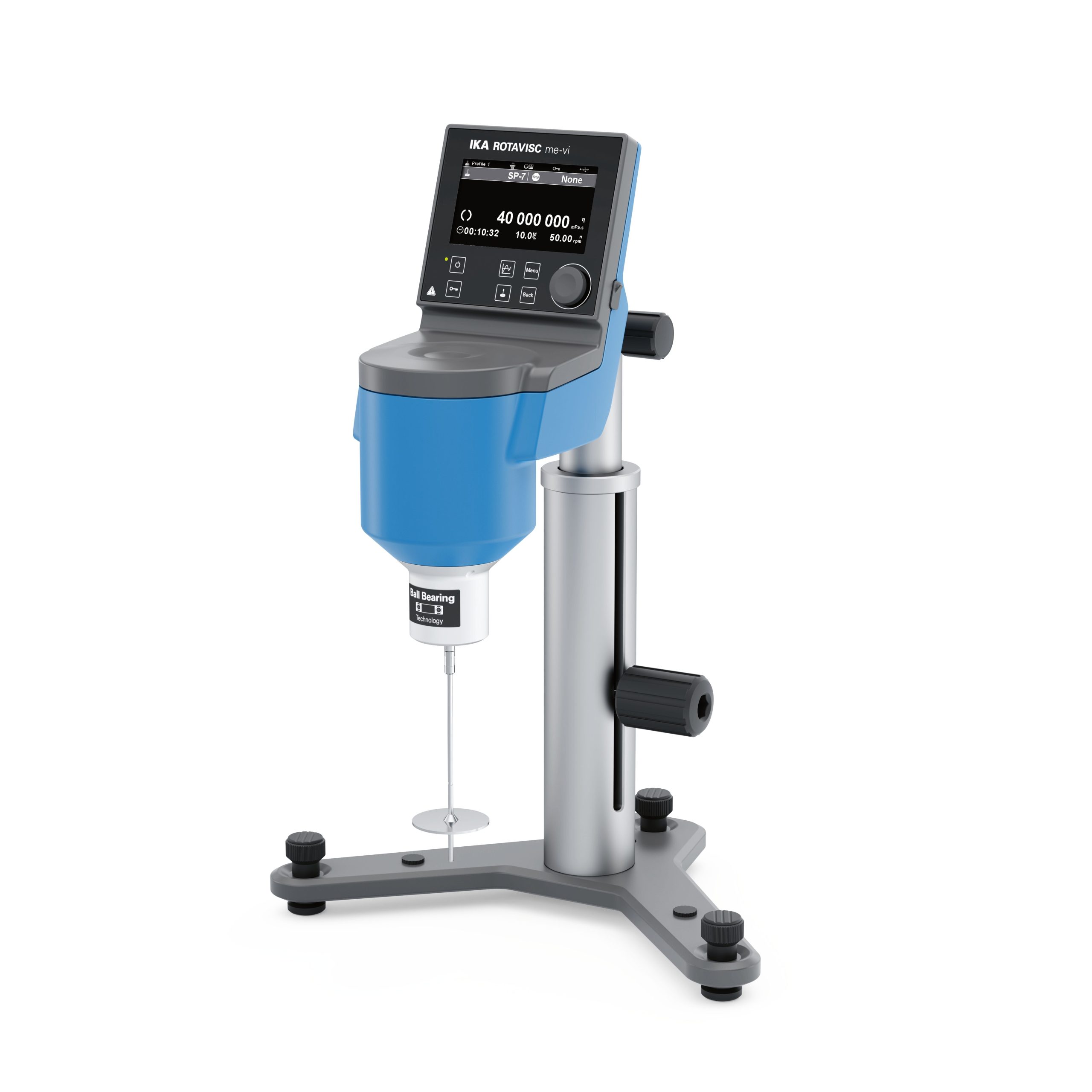

IKA Viscometer Package ROTAVISC SBS me-vi Complete, #0010013824

IKA ROTAVISC SBS me-vi Complete
The SBS (Steel Ball Bearing, Suspended) rotational viscometers expand a large part of the application range of our IKA ROTAVISC product family.

Instead of a jewel bearing, these instruments are fitted with a special ball bearing system.
They are characterised in particular by their high robustness. They are ideally suited for applications involving very high sample throughput, frequent spindle changes, operation in harsh environments, or frequent relocation of the instrument.

Whether for simple or complex viscosity measurements – with ROTAVISC, you’ll get fast and accurate results.

A breeze to use
: the generous 4.3″ TFT display offers intuitive menu navigation. A digital spirit level also assists in correctly setting the start conditions. The simple ramp function makes recurring tasks easier.

Highest measurement accuracy
The accuracy of the ROTAVISC rotational viscometers is ±1% of the measurement range for both Newtonian and non-Newtonian liquids. Reproducibility is ±0.2%.

Continuously variable speed
With the ROTAVISC, you have a viscometer that allows you to adjust the speed continuously, as well as to set programmes or individual speed levels.

IKA ROTAVISC SBS me-vi Complete
Viscosity measurement range: 100 – 40,000,000 mPas

Scope of supply:
ROTAVISC SBS me-vi control
, ROTASTAND
SP set-2
, PT 100.8
, Guard rail

Technical data:
Viscosity measurement range 40,000,000 mPas
Viscosity accuracy (FSR) 1 %
Viscosity repeatability (FSR) 0.2 %
Spring torque 0.7187 mNm
Guide rail me-vi
Measuring spindles SP set-2
Motor power output 4.8 W
Overload protection yes
Motor direction of rotation clockwise
Display TFT
Speed display TFT
Speed range 0.01 – 200 rpm
Speed setting accuracy ±0.01 rpm
Speed setting options TFT
Torque display yes
Torque measurement yes
Timer yes
Timer display TFT
time setting range 0.017 – 6000 min
Temperature measurement resolution 0.1 K
Operating temperature display TFT
Connection for external temperature sensor PT 100
Graph function yes
Operating modes Timer and continuous operation
Calibration option yes
Touch function yes
Permissible density 9999 kg/dm³
Operating temperature -100 – 300 °C
Mounting on stand Outrigger
Stand tube diameter (with integrated stand mounting) 16 mm
Stroke of telescopic stand 200 mm
Plug-in coupling (Ø) 12 mm
Base vessel volume 600 ml
Stand Rotary
stand Max. stroke 61 mm
Diameter 16 mm
Dynamic load 5 kg
Dimensions (W x H x D) 351 x 629 x 372 mm
Weight 7.1 kg
Permissible ambient temperature range 5–40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 40
RS-232 interface yes
USB interface Micro-USB
Voltage 100–240 V
Frequency 50/60 Hz
Power consumption (operating) 24 W
Power consumption (standby) 0.06 W
DC voltage 24 V =
Current consumption 1000 mA

Accessories and spare parts available on request!
