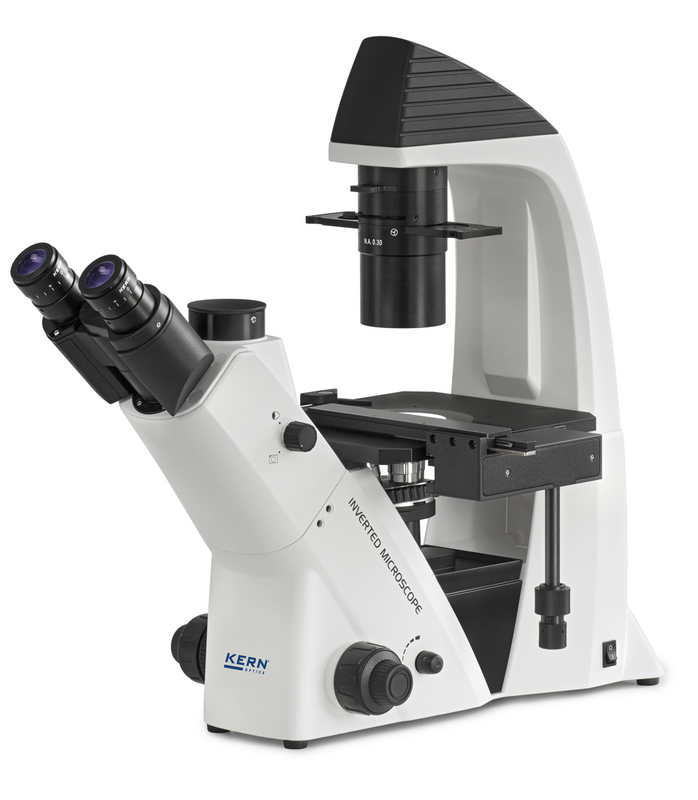

KERN Inverted Microscope, OCM 161

The KERN OCM 161 inverted microscope is a high-performance instrument for biological, medical and industrial applications. It has been specially developed for cell culture and transmitted light analysis, and combines high-quality infinity optics with user-friendly operation and a modern design.

The trinocular head allows for simultaneous visual observation and digital image capture. With its large working distance, the microscope is ideally suited to Petri dishes, cell culture flasks and other tall specimens. The powerful halogen illumination ensures uniform illumination and excellent image quality.

Thanks to its precise focusing, robust construction and intuitive operation, the OCM 161 is perfectly suited to demanding applications in research, education and quality assurance.

Order the KERN OCM 161 inverted microscope from LT Laborhandel now and carry out laboratory analyses to the highest standard.

Technical details

• Optical system: Infinity system
• Tubus: Trinocular, 45° inclined
• Eyepieces: HWF 10×, field of view Ø 22 mm
• Objective turret: 5-position
• Standard objectives: 10×, 20×, PH 20× (phase), 40× (plan)
• Focusing: Coarse and fine adjustment (fine adjustment 0.002 mm)
• Illumination: 30 W halogen, adjustable
• Condenser: Abbe N.A. 0.3, working distance 72 mm
• Working distance: Long, suitable for cell culture flasks and Petri dishes
• Dimensions (W×D×H): approx. 599 × 304 × 530 mm
• Weight: approx. 13.5 kg
• Mains supply: 100–240 V AC, 50/60 Hz
