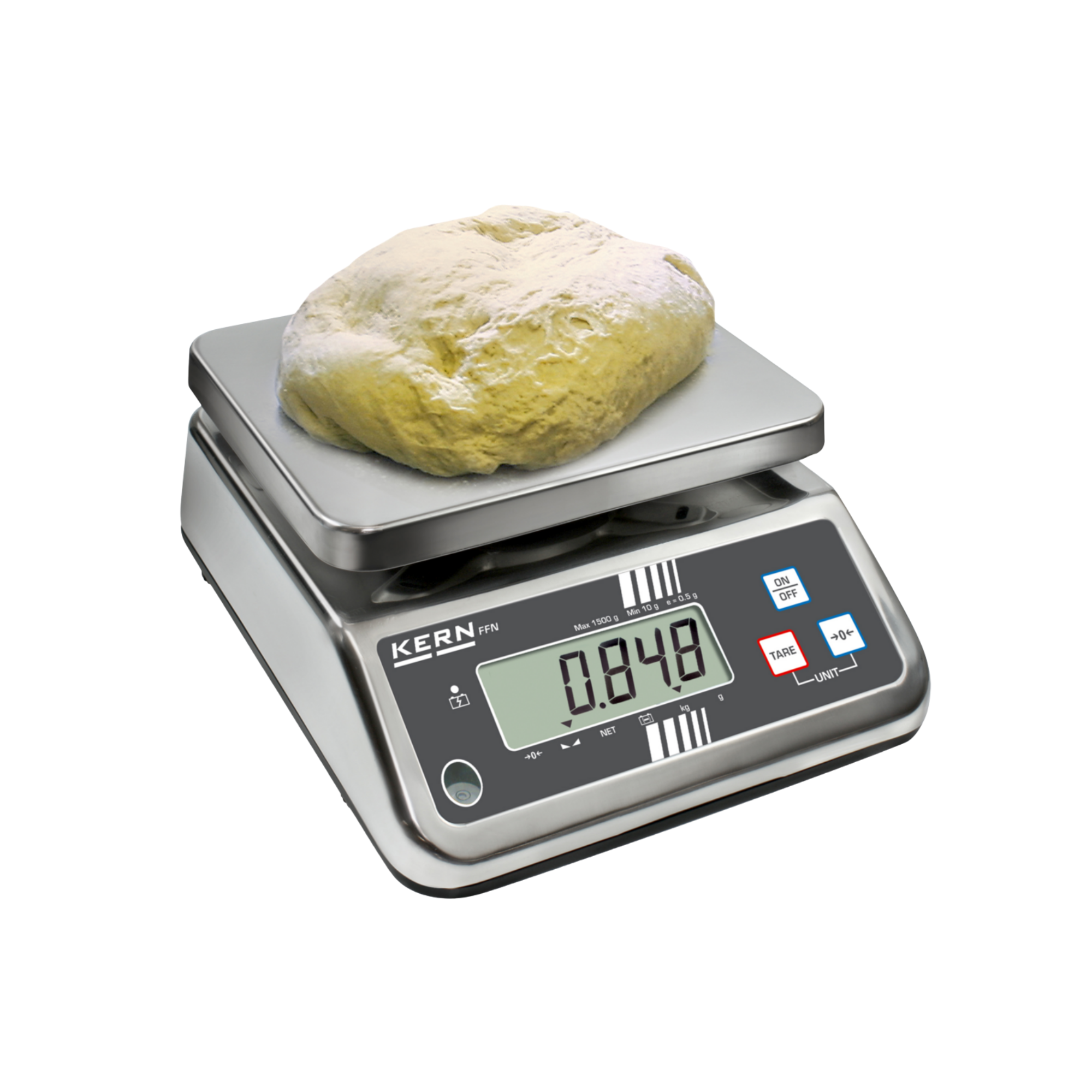

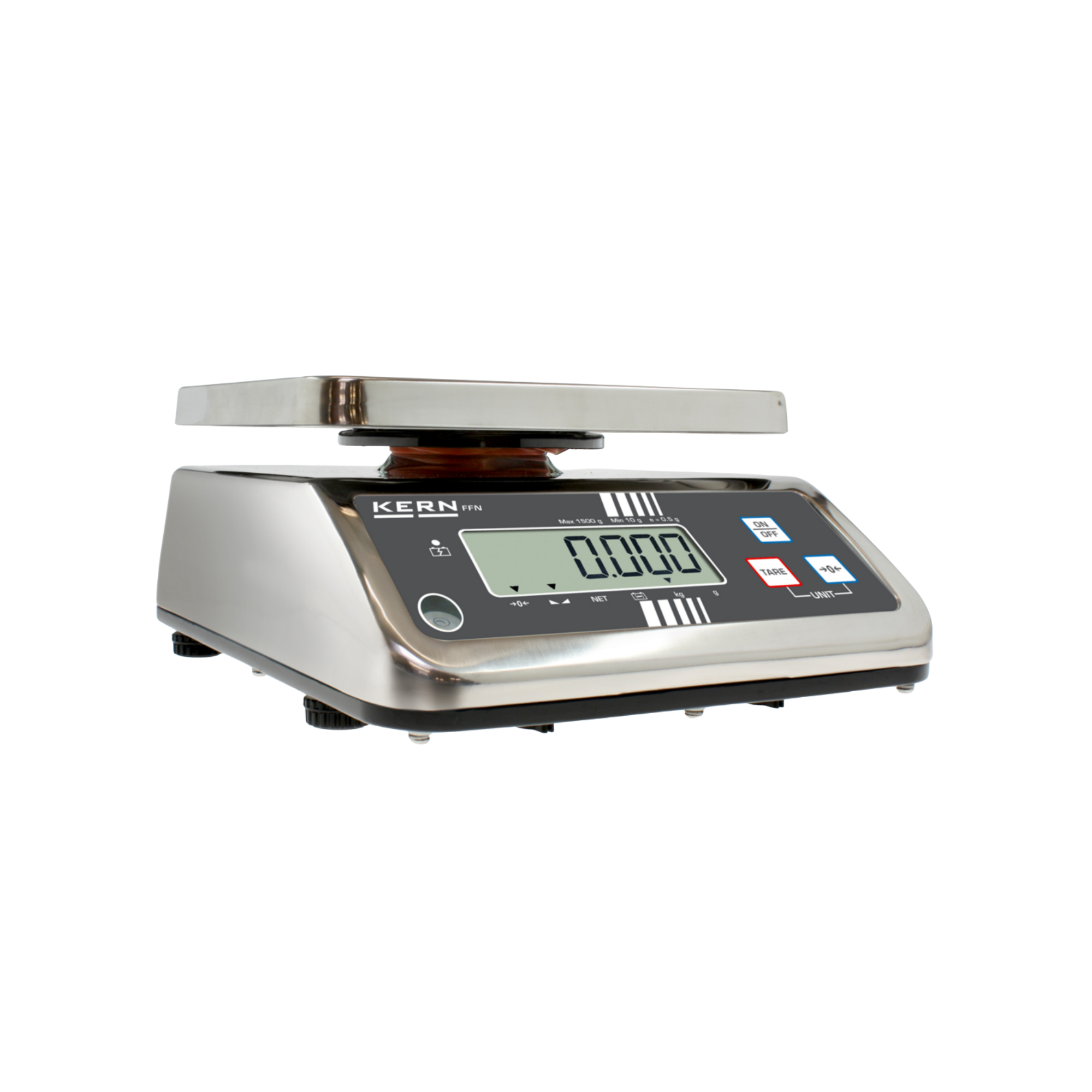

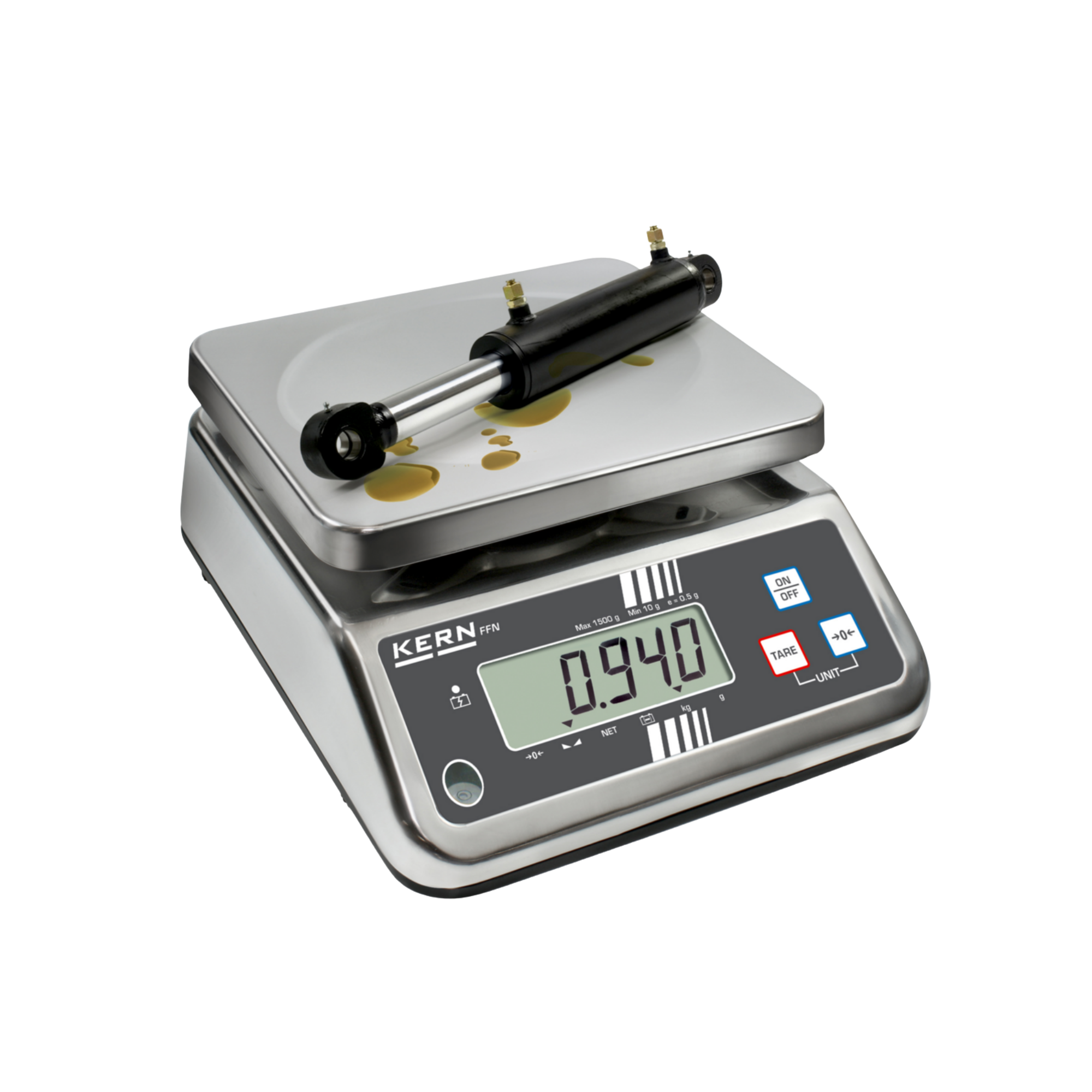

KERN IP-rated FFN 6K1IPN bench scale, stainless steel, IP65, weighing range 6 kg

The KERN IP-rated FFN 6K1IPN bench scale is a highly robust, metrological system solution for demanding weighing processes in harsh industrial environments, food processing and the catering industry. Designed as a compact stainless-steel scale, this measuring instrument meets the most stringent hygiene requirements and is ideally suited to the demands of so-called washdown areas. Wherever liquids, powders, moisture or dust in professional B2B settings threaten the operation of conventional electronics, this bench scale guarantees gentle, efficient and reliable operation during internal checks, piece-by-piece inspections or precise portioning.

Uncompromising IP65 protection and hygienic stainless steel design

The mechanical structure of the FFN 6K1IPN is thoroughly optimised for direct contact with foodstuffs and aggressive environmental media. The housing and weighing pan are made of high-quality, stainless steel, which offers excellent corrosion resistance and can be easily disinfected using standardised laboratory and industrial cleaning agents. Thanks to its certified IP65 protection rating, the entire system is dust-tight and protected against water splashes from all directions. Integrated silicone seals reliably protect the sensitive load cell and internal electronics from moisture ingress, which drastically extends the service life of the device during daily cleaning cycles.

Ergonomic mobility and HACCP-compliant data management

For flexible use at different workstations, the bench scale features a sophisticated mechatronic system architecture, supported as standard by an internal rechargeable battery. Mains-independent operation allows laboratory and production staff maximum freedom of movement without the hindrance of cables. The smooth, non-porous surfaces and the design, which prevents the build-up of dirt in corners, actively support compliance with strict HACCP quality management systems. A large, backlit LCD display with a digit height of 25 mm guarantees error-free readability of measurement results, even under difficult lighting conditions or from greater distances.

Fast stabilisation times and practical versatility

The scale’s metrological performance is impressive, with an extremely short stabilisation time of just around 2 seconds. This rapid transient signal processing significantly speeds up sequential filling and checking processes in multi-user operation. The integrated software features include a practical tare function for subtracting container weights, as well as a dynamic weighing function (animal weighing programme), which delivers reliable readings by averaging values even with restless samples or vibrations in the workplace. A stable, non-slip base is permanently ensured by large, height-adjustable rubber feet and an integrated spirit level.

Technical details

Metrology & Weighing Specifications

• Weighing system: Strain gauge (SG)
• Maximum weighing range (Max): 6 kg
• Resolution (d): 1 g
• Reproducibility: 1 g
• Linearity: +/- 1 g
• Settling time / stabilisation time: approx. 2 seconds
• Adjustment: External adjustment programme (calibration weight optional)

Design, materials & geometry

• Housing material: Stainless steel
• Weighing plate material: Stainless steel
• Weighing plate dimensions (W x D): approx. 230 x 190 mm
• Overall dimensions (W x D x H): approx. 230 x 300 x 130 mm
• Net weight: approx. 4.0 kg
• Protection class according to DIN EN 60529: IP 65 (dust- and splash-proof)

Functions, electronics & power supply

• Display: LCD display, backlit, digit height 25 mm
• Application modes: Standard weighing, tare function, data hold function, animal weighing programme (dynamic weighing)
• Quality assurance: HACCP compliance supported
• Primary power supply: Internal rechargeable battery (operating time up to 50 hours without backlighting)
• Secondary power supply: Mains adaptor 230V / 50Hz (included)
• Auto-off function: Adjustable to conserve battery life

Contents of the package

• 1 x KERN IP-rated FFN 6K1IPN benchtop balance base unit (MPN: FFN 6K1IPN)
• 1 x stainless steel weighing plate
• 1 x Internal rechargeable battery (pre-installed)
• 1 x universal mains adaptor / charger
• 1 x User manual

Important note: This model from the FFN-N series is not suitable for legal metrology and is primarily designed for in-house checks, recipes and logistics processes. For applications requiring legal metrology, we would be happy to select the appropriate KERN FFN-M variant for you.

Customised requirements & accessories

To regularly verify the metrological chain of your KERN FFN 6K1IPN as part of your internal quality management system, we stock certified KERN test weights (e.g. OIML accuracy class M1) in our range. To provide protection against extreme levels of contamination or to safeguard the keypad matrix, we also offer bespoke protective covers as consumables. Should you require a traceable DAkkS calibration certificate for your documentation, this can be requested directly via our service when placing your initial order. Please make use of our technical procurement service to ensure the optimal configuration of your industrial workstations.
