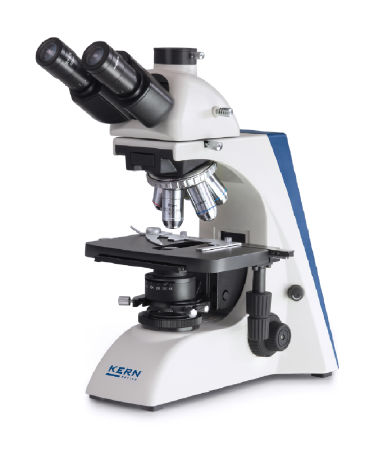

KERN OBN 135 Transmitted-light Microscope

OBN 135 Transmitted-light Microscope

Product family: OBN-13

Professionalism and versatility combined in a single microscope – with Köhler illumination for demanding applications

Description

The KERN OBN series is characterised by its unbeatable, consistently high quality and ergonomic design. The variety of modular components allows the OBN series to offer a high degree of customisation for professional users

Powerful and continuously dimmable 3W LED illumination

This series features professional Köhler illumination with an adjustable field diaphragm, as well as a centring and height-adjustable 1.25 Abbe condenser with an adjustable aperture diaphragm

The very large mechanical cross-table, with ergonomic, coaxial coarse and fine adjustment on both sides, enables quick and precise adjustment and focusing of your specimen

A wide range of modular systems is available as accessories, such as a swing-out condenser, various eyepieces, objectives, colour filters, phase-contrast units, a dark-field condenser, a simple polarisation unit, a butterfly tube, and even complete fluorescence units

A dust cover, eyecups and a multilingual user manual are included in the scope of delivery

Technical Specifications

Optical system: Infinity

Tubus type: Trinocular

Eyepiece magnification: 10×

Eyepiece field of view: 20 mm

Standard objectives: 4x, 10x, 20x, 40x, 100x

Objective quality: Infinity Plan

Objective turret screw-in positions: 5

Illumination type: transmitted light

Illumination type: LED transmitted light

Type of reflected light: none

Condenser type: ABBE

Condenser aperture 1.25

Condenser mounting: Centrable

Focusing mechanism: Coaxial coarse and fine adjustment

Minimum fine adjustment 0.002 mm

Dimensions (W×D×H) 390×200×395 mm

GTIN/EAN number 4045761267787
