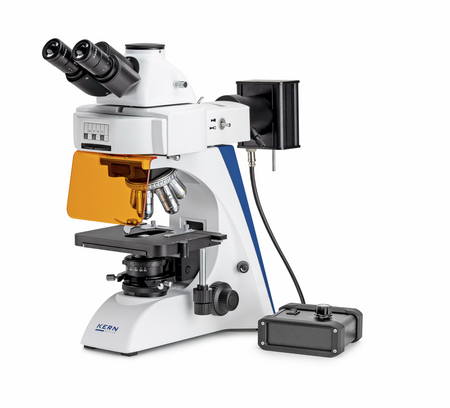

KERN OBN 141 Fluorescence Microscope

OBN 141 fluorescence microscope

Product family: OBN-14

The fluorescence microscope for professional users

Description

The KERN OBN-14 series fluorescence microscope builds on the high quality and versatility for which the OBN series is renowned. Its outstanding and robust design, combined with high-quality optics, sets new standards in fluorescence microscopy in this class

3W LED transmitted light illumination with 3W LED epi-fluorescence illumination

This series features professional Köhler illumination with an adjustable field diaphragm, as well as a centring and height-adjustable 1.25 Abbe condenser with an adjustable aperture diaphragm

The very large mechanical cross-table, with ergonomic, coaxial coarse and fine adjustment on both sides, enables quick and precise adjustment and focusing of your specimen

The filter wheel, which can accommodate up to six filters, is fitted as standard with B/G fluorescence filters

A wide selection of eyepieces, objectives, colour filters, dark-field condensers, as well as a butterfly tube, polarisation and phase-contrast units can be easily integrated thanks to the modular design

The centring objective for fluorescence adjustment, a dust cover, eyecups and a multilingual user manual are included in the scope of delivery

Technical specifications

Optical system Infinity

Tubus type Trinocular

Eyepiece magnification 10×

Eyepiece field of view 20 mm

Standard objectives 4x, 10x, 20x, 40x, 100x

Objective lens quality Infinity Plan

Objective turret mounting positions 5

Illumination type Reflected light, transmitted light

Transmitted light source LED

Transmitted light intensity 3W

Illumination type (incident light) LED

Illuminance (incident light) 3W

Fluorescence unit B, G (LED)

Condenser type ABBE

Condenser aperture 1.25

Condenser mounting Centreable

Focusing mechanism Coaxial coarse and fine adjustment

Minimum fine adjustment 0.002 mm

Dimensions (W×D×H) 530×220×490 mm

GTIN/EAN number 4045761208902
