KERN OBN 159 Transmitted-light microscope, trinocular, 3W LED, Infinity Plan

KERN OBN 159: Professional microscopy with infinity optics and LED

The KERN OBN 159 (MPN OBN 159) is a fully equipped laboratory microscope from the Professional Line that leaves nothing to be desired. It has been developed for demanding routine applications in cytology, haematology, pathology and water analysis. The standout feature of this model is the combination of excellent infinity optics and ultra-modern, high-performance 3W LED illumination. This not only provides brilliant, white light without generating heat, but also guarantees an extremely long service life for the light source.

Infinity optics for razor-sharp images

The optical system is corrected to ‘infinity’. This eliminates aberrations and delivers a flat, high-contrast image across the entire field of view (20 mm). The 5-position objective turret is pre-loaded with five high-quality plan-achromatic infinity objectives (4x, 10x, 20x, 40x, 100x oil). Thanks to the rear-tilted design, you have unrestricted access to the stage and your specimens at all times.

Perfect illumination thanks to Köhler

For optimum contrast and resolution, the OBN 159 features a full Köhler illumination system.

• Field diaphragm: Permanently integrated into the base and centring-capable.
• Abbe condenser: N.A. 1.25, height-adjustable, centring-capable and fitted with an aperture diaphragm.
• This enables you to precisely align the light beam with the optical axis and the numerical aperture of the objective – a prerequisite for professional microscopy of the highest standard.

Ergonomics and documentation

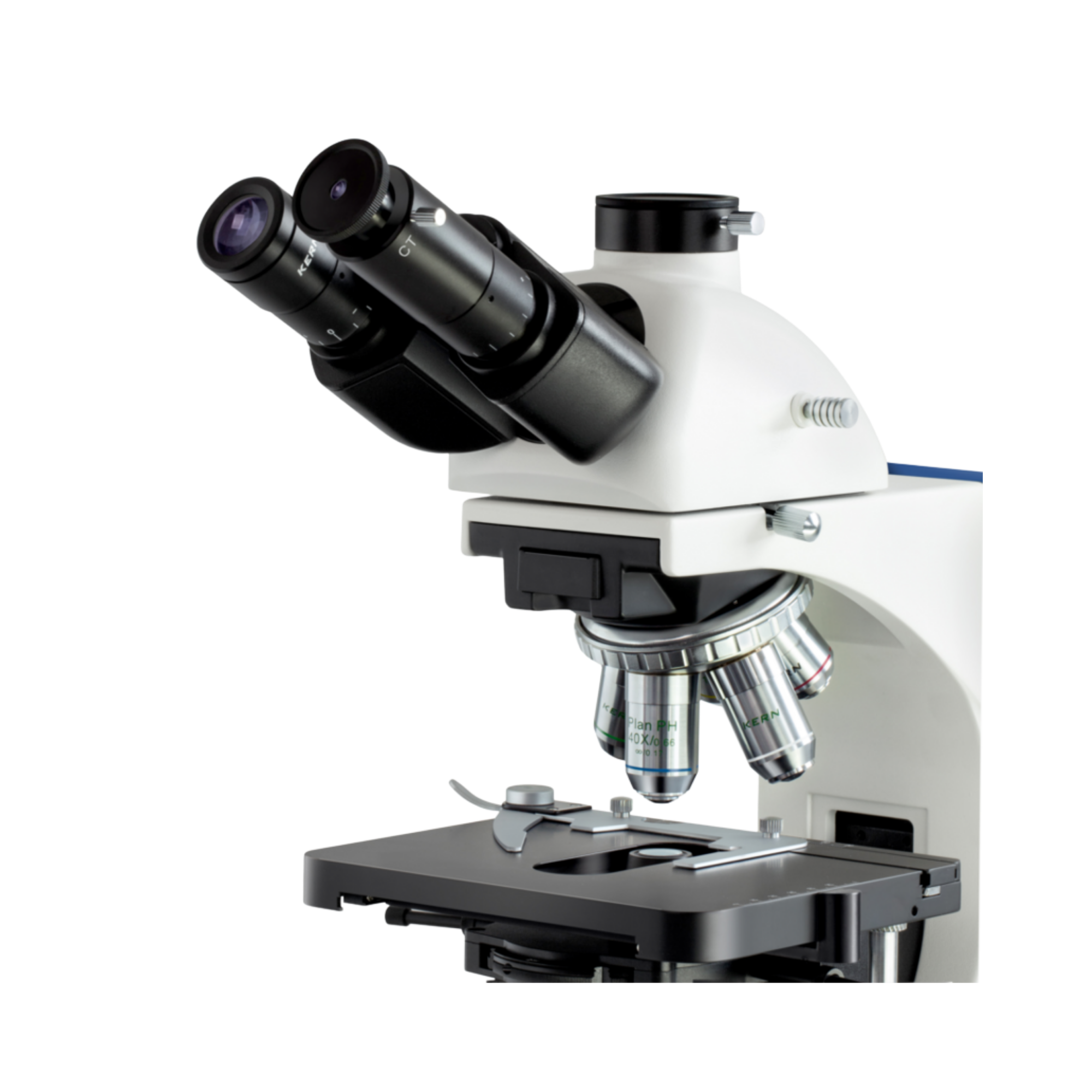

The trinocular tube (Siedentopf type) enables fatigue-free working thanks to a 30° viewing angle and dioptre adjustment on both sides. Via the third optical path (trinocular output), you can permanently connect a microscope camera (C-mount) to document your findings or present them live on a monitor. The large mechanical cross-table is sized to accommodate two slides simultaneously, facilitating rapid comparison of samples.

Areas of application

• Medicine: Urology, dermatology, pathology.
• Biology: Microbiology, parasitology.
• Environment: Sewage treatment works (activated sludge), water analysis.
• Laboratory: Quality assurance and training.

Technical data

• Model: OBN 159
• Optical system: Infinity
• Tube: Trinocular (Siedentopf), 30° inclined, 360° rotatable
• Beam split: 100:0 / 0:100 (visual / camera)
• Eyepieces: HWF 10x / $\varnothing$ 20 mm (High Eye Point, suitable for spectacle wearers)

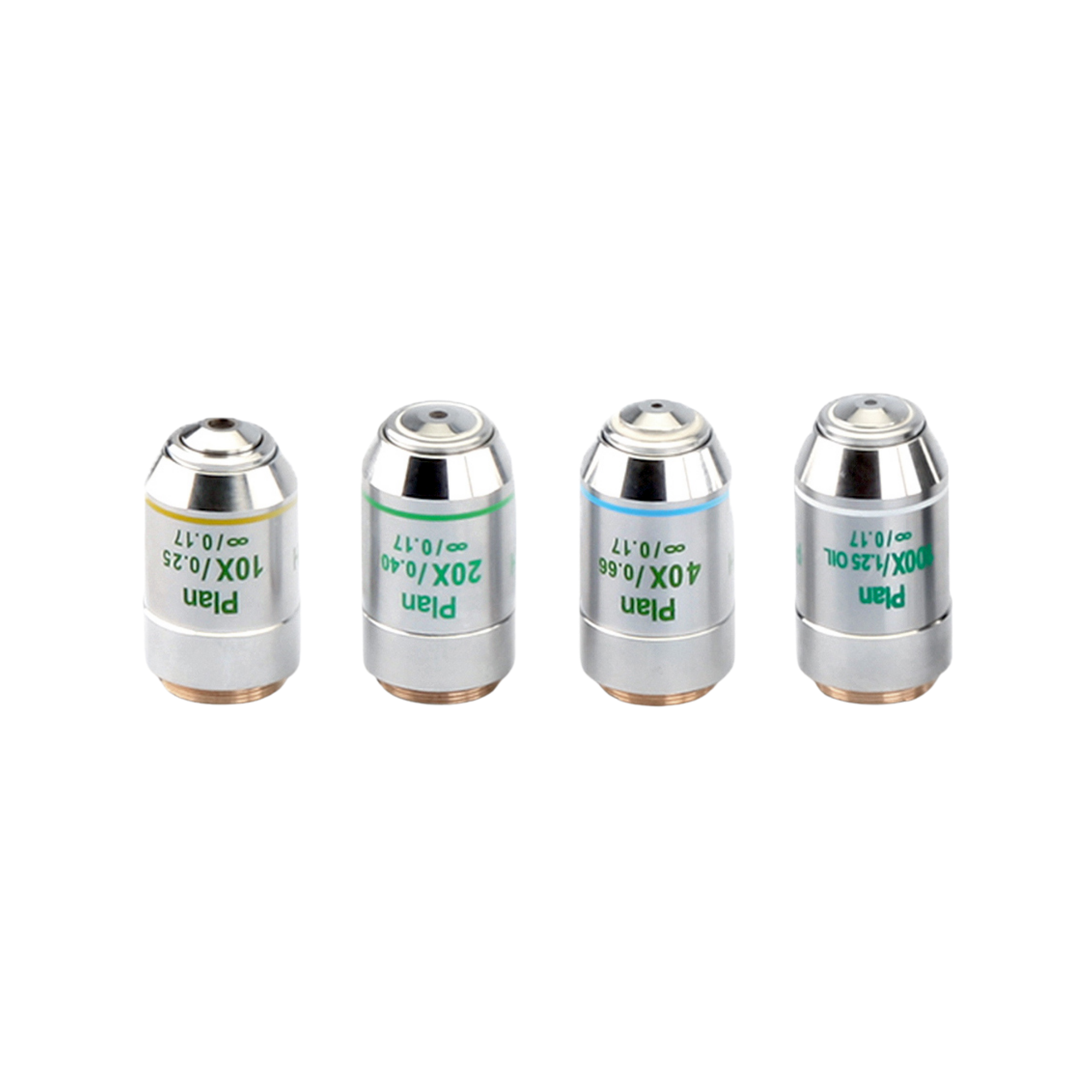

• Objectives: Plan achromatic, Infinity (4x, 10x, 20x, 40x, 100x Oil)
• Objective turret: 5-position
• Illumination: 3W LED (transmitted light, adjustable)
• Illumination type: Köhler (field diaphragm & condenser)
• Condenser: Abbe N.A. 1.25 (centrable, height-adjustable)

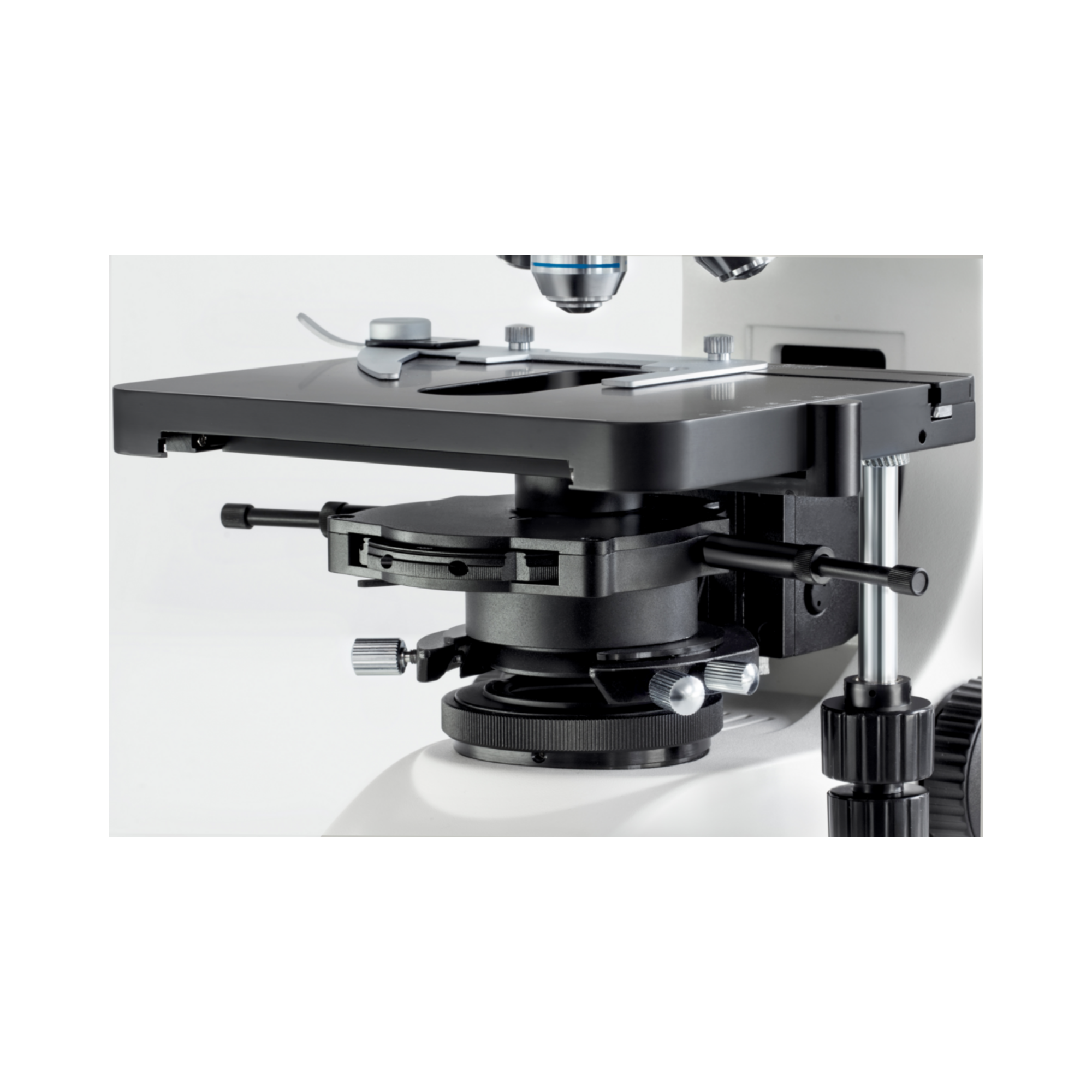

• Stage: Mechanical, 175 x 145 mm, for 2 slides
• Dimensions (W x D x H): approx. 390 x 200 x 400 mm
• Weight: approx. 9 kg
• Power supply: Internal

Contents

• 1 x KERN OBN 159 microscope (trinocular)
• 5 x objectives (Plan Infinity: 4x, 10x, 20x, 40x, 100x)
• 2 x eyepieces (HWF 10x/20mm)
• 1 x eyecups
• 1 x dust cover
• 1 x blue filter & green filter
• 1 x immersion oil
• 1 x mains lead
• 1 x user manual

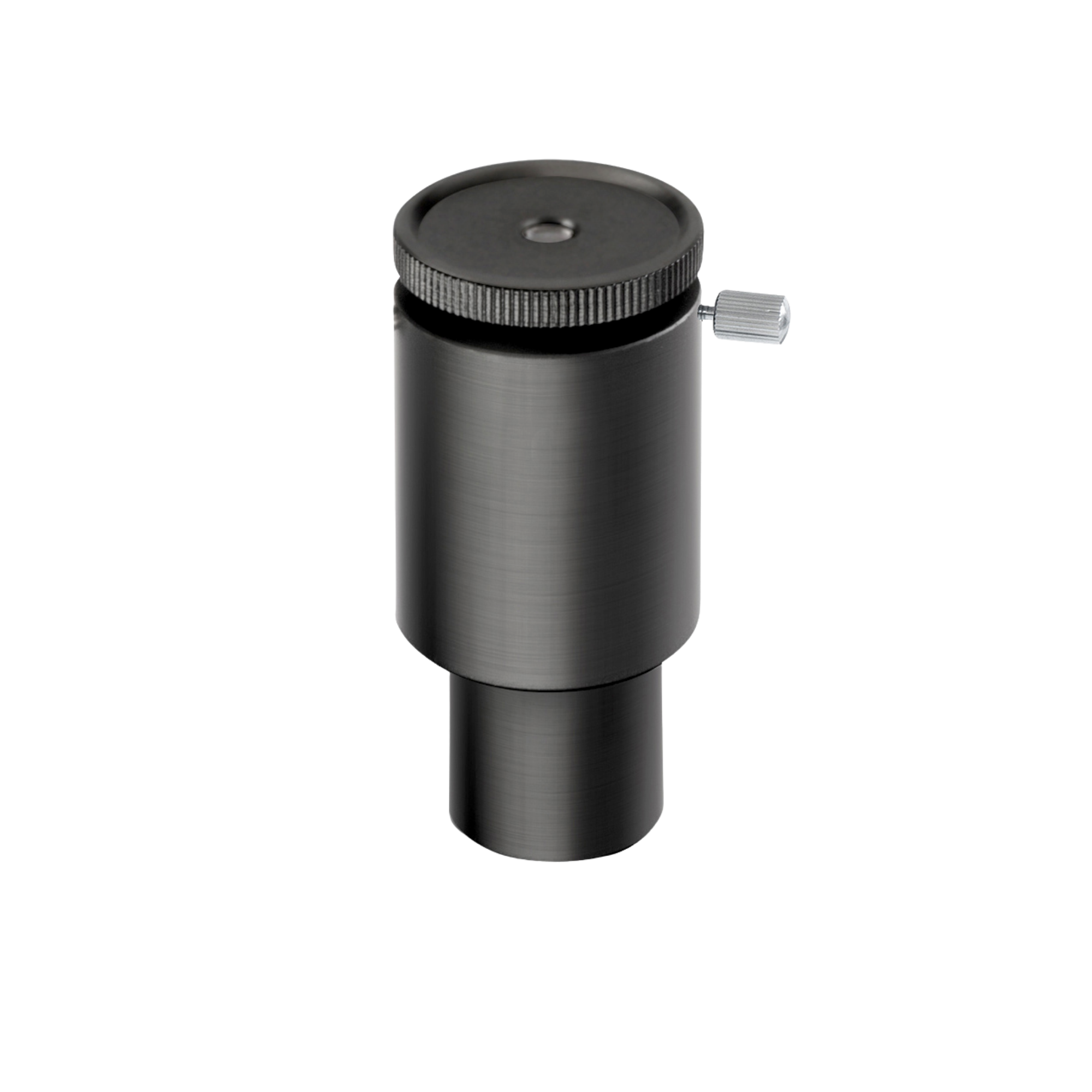

(Note: C-mount adapter for cameras is not included!)

Customised requirements & accessories

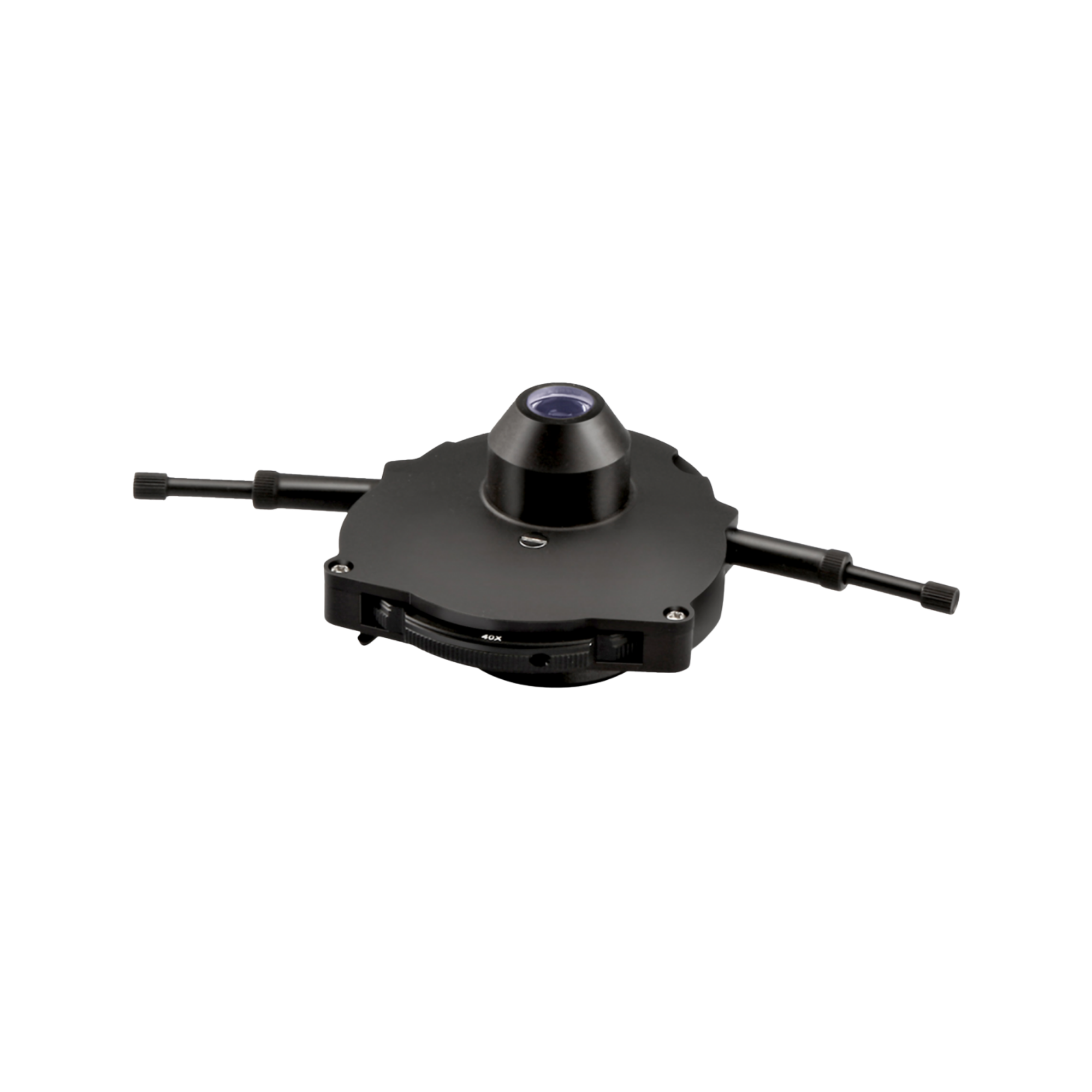

The OBN 159 is a modular system. Do you require a phase-contrast unit (simple slider or complete condenser) or a dark-field unit? Polarisation units can also be retrofitted. Please contact our procurement service.
