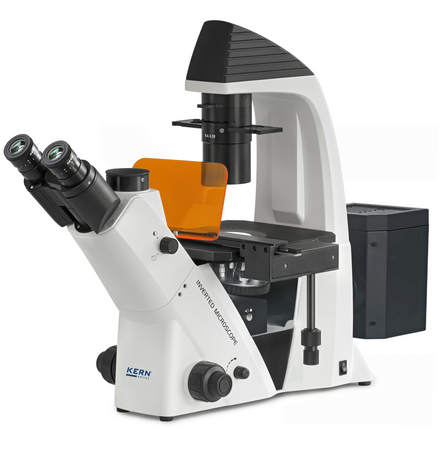

KERN OCM 167 Inverted Fluorescence Microscope

OCM 167 Inverted Fluorescence Microscope

Product family: OCM-1

The inverted biological laboratory microscope – also with fluorescence

Description:

The OCM series is characterised by its ergonomic, robust and exceptionally stable design. This design, with its very large working distance, is particularly suitable, for example, for the observation and analysis of cell cultures

A 5W LED illuminator ensures optimum illumination of your specimen in brightfield mode. When used as a fluorescence microscope, an Osram 5W LED epi-fluorescence illuminator is also available to provide perfect illumination and excitation of your fluorescence specimens

A special Abbe N.A. 0.3 condenser with an aperture diaphragm and a large working distance of 72 mm ensures optimum performance in brightfield, phase contrast and fluorescence applications

The OCM series is fitted with a trinocular tube as standard

The mechanical stage, including a specimen holder (∅ 110 mm), enables fast and effective work. Additional mounts for culture dishes are included in the scope of delivery or available as accessories

Further options, such as a selection of eyepieces, objectives, specimen holders and additional phase-contrast units, can be integrated as accessories

A dust cover and an instruction manual are included in the scope of delivery

Technical specifications:

Optical system Infinity

Tubus type Trinocular

Eyepiece magnification 10×

Eyepiece field of view 22 mm

Standard objectives 10x, 20x, 40x, PH 20x

Objective lens quality Infinity Plan

Objective turret screw-in positions 5

Illumination type Reflected light, transmitted light

Transmitted light source LED

Illumination type (incident light) LED

Illuminance (incident light) 5W

Fluorescence unit B, G (LED)

Condenser type Standard

Condenser aperture 0.3

Condenser mounting fixed

Focusing mechanism Coaxial coarse and fine adjustment

Minimum fine adjustment 0.002 mm

Dimensions (W×D×H) 782×304×530 mm

GTIN/EAN number 4045761263529
