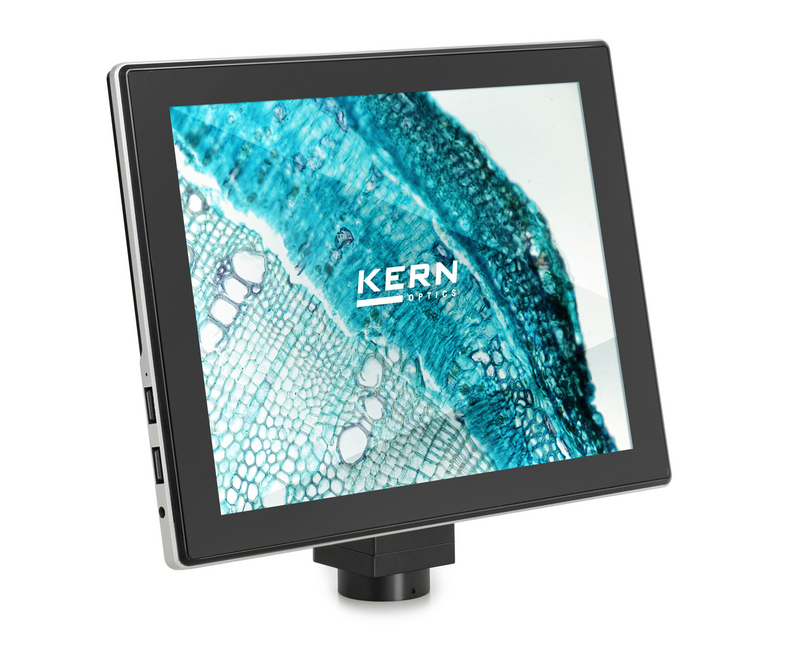

KERN ODC 241 Microscope Camera

ODC 241 microscope camera

Product family: ODC-24

Tablet with integrated camera for optimal observation and digital documentation of the sample

Description

A 2-in-1 solution for digital microscopy, serving as a universal system for all trinocular microscopes with a C-mount adapter. The ODC 241 microscope tablet camera consists of a large Android tablet combined with a 5 MP camera

The KERN ODC 241 tablet camera has been specially developed for simple and direct observation of the specimen on the screen. Ideally suited for school pupils and students in training or for demonstration purposes in the laboratory

In addition to live streaming of the image to the Android tablet, the integrated 5-MP camera also allows images and videos to be captured for documentation purposes. Simple measurements, such as distance, area and angle measurements, as well as a manual counting function, are also available

Automatic white balance and automatic contrast adjustment can be carried out quickly and easily, enabling efficient work

The integrated interfaces provide a wide range of additional functions, such as

- data storage on a USB stick or SD card

- Connection of a USB mouse

- Transmission of the live image to an external screen via HDMI

- Transfer of stored data to external receivers via Wi-Fi

The package includes the tablet camera with pre-installed software and the mains adaptor

Not compatible with the following microscopes: OZM-5, OLM 170

Technical specifications

Display type: LCD touchscreen

Display size: 9.7"

Display resolution: 2048x1536

MCU details: Quad-core Cortex-A17; 1.8 GHz

Camera – Sensor type: Sony CMOS

Camera – Colour depth: Colour

Camera – Sensor size: 1/2.8"

Camera – Resolution: 5 MP

Interfaces: Wi-Fi, USB 2.0, HDMI, microSD card slot

Camera – Exposure method: Rolling shutter

Camera – Mounting types: C-mount

Supported operating systems: Android

Camera – Software used: integrated

Dimensions (W×D×H) 238×182×51 mm

Product family: ODC-24
