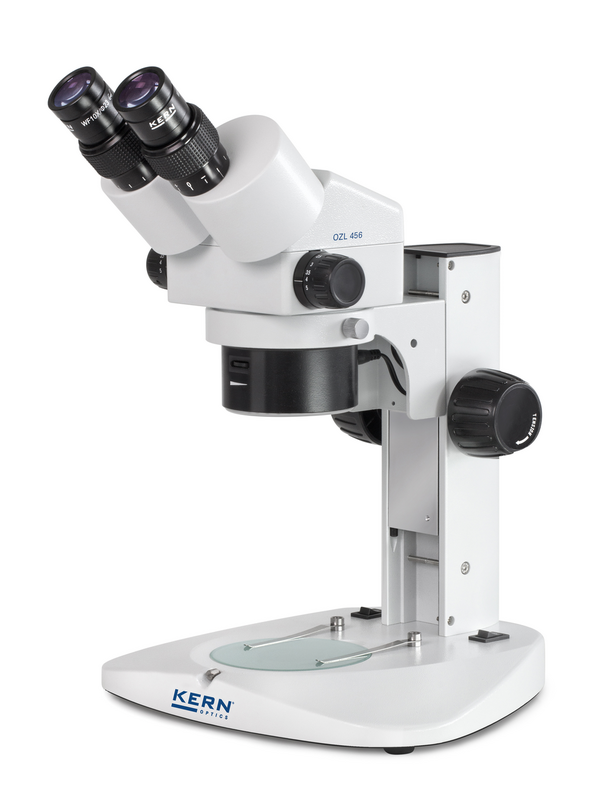

KERN OZL 456 Stereo Zoom Microscope

OZL 456 Stereo Zoom Microscope

Product family: OZL-45R

The practical and versatile stereo zoom microscope with integrated LED ring illumination and a wide zoom range

Description

The KERN OZL-45R stereo zoom microscope series impresses with its excellent optical properties, ease of use and integrated LED ring illumination

A key feature of the KERN OZL 456 is the powerful and continuously dimmable integrated LED ring illumination in the objective housing, which ensures uniform and shadow-free illumination. An LED transmitted light unit is also included

Thanks to its built-in high-quality optics and powerful, integrated LED illumination, this model is a particularly versatile all-rounder for all areas of application

As standard, this microscope offers a continuously variable total magnification range of 7.5×–50×

The KERN OZL-45R series, in its binocular version, is fitted as standard with 10× eyepieces offering a field of view with a diameter of 23 mm

The mechanical stand provides ample workspace and a precise adjustment mechanism

A wide range of eyepieces and attachment objectives is available as accessories

A dust cover, eyecups and a multilingual user manual are included in the scope of delivery

Technical Specifications

Optical system: Greenough

Tube type: Binocular

Eyepiece magnification: 10×

Eyepiece field of view 23 mm

Magnification ratio 6.7:1

Zoom [Min] 0.75×

Zoom [Max] 5×

Illumination type: reflected light, transmitted light

Illumination type: Transmitted light LED

Illumination type: Reflected light LED

Illuminance (incident light) 1W

Focusing mechanism: coarse adjustment

Working distance 113 mm

Specimen height [Max] 45 mm

Stand design: Mechanical

Dimensions (W×D×H) 320×275×420 mm

GTIN/EAN number 4045761170414
