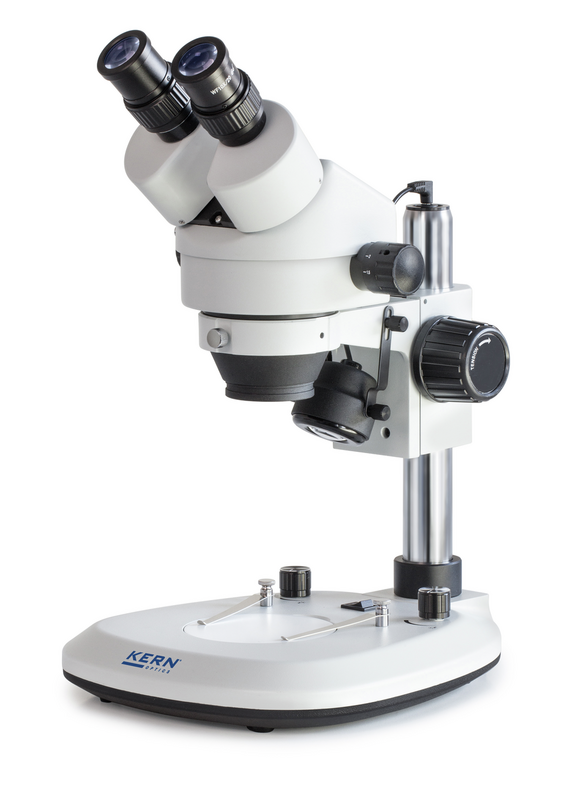

KERN OZL 463 Stereo Zoom Microscope

OZL 463 Stereo Zoom Microscope

Product family: OZL-46

The flexible and affordable all-rounder with zoom function for schools, training workshops, testing centres and laboratories

Description

The KERN OZL-46 series is one of a range of stereo zoom microscopes that impress with their quality, ease of use, flexibility, stability and affordable price

The LED incident and transmitted light illumination included as standard ensures optimum illumination of your specimen

In addition to their excellent optical properties, these models offer the highest level of convenience in this class thanks to their large work surface – ideal for training centres, workshops and assembly and repair workstations, e.g. in the electronics industry

As standard, this microscope offers a continuously adjustable total magnification range of 7×–45×

The column stand offers you maximum flexibility and the freedom to remove the microscope head and integrate it into other modular systems, such as a universal stand

A wide range of eyepieces, external illumination units and attachment objectives are available as accessories

A dust cover, eyecups and a multilingual user manual are included in the scope of delivery

Technical Specifications

Greenough optical system

Tubus type: Binocular

Eyepiece magnification: 10×

Eyepiece field of view 20 mm

Magnification ratio 6.4:1

Zoom [Min] 0.7×

Zoom [Max] 4.5×

Illumination type: reflected light, transmitted light

Illumination type: Transmitted light LED

Illumination type: Reflected light LED

Illuminance (incident light) 3W

Focusing mechanism: coarse adjustment

Working distance 105 mm

Specimen height [Max] 140 mm

Stand design: Column

Dimensions (W×D×H) 300×240×420 mm

GTIN/EAN number 4045761175112
