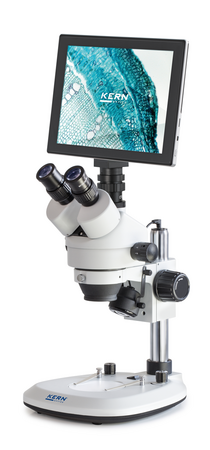

KERN OZL 464T241 Digital Microscope Set

OZL 464T241 Digital Microscope Kit

Product family: OZL-S

The flexible and affordable all-rounder with zoom function – a digital solution for schools, training workshops, testing centres and laboratories

Description

The flexible and affordable OZL-46 series is available as a complete digital solution with an adapted tablet camera for your live examinations: the appropriate C-mount adapter is, of course, included in the delivery

The adapted KERN ODC 241 tablet camera has been specially developed for simple, convenient and direct examination of the sample on screen. Ideally suited for school pupils and students in training or for demonstration purposes in the laboratory

A dust cover, eyecups and a multilingual user manual are included in the scope of delivery

OZL 464

The KERN OZL-46 series is part of the range of stereo zoom microscopes that impress with their quality, ease of use, flexibility, stability and affordable price

The LED reflected and transmitted light illumination included as standard ensures optimum illumination of your specimen

In addition to its excellent optical properties, this model offers the highest level of convenience in its class thanks to its large work surface – ideal for training centres, workshops and assembly and repair workstations, e.g. in the electronics industry

The zoom objective allows for continuous magnification from 0.7× to 4.5×

The column stand offers you maximum flexibility and the freedom to remove the microscope head and integrate it into other modular systems, such as a universal stand

ODC 241

The integrated 5 MP camera not only enables live image transmission to an Android tablet but also allows you to capture images and videos for documentation purposes. Simple measurements, such as distance, area and angle measurements, as well as a manual counting function, are also available

Automatic white balance and automatic contrast adjustment can be carried out quickly and easily, enabling efficient work

The integrated interfaces provide a wide range of additional functions, such as

- data storage on a USB stick or SD card

- Connection of a USB mouse

- Transmission of the live image to an external screen via HDMI

- Transmission of stored data to external receivers via Wi-Fi

Technical Specifications

Optical system Greenough

Tube type Trinocular

Eyepiece magnification 10×

Eyepiece field of view 20 mm

Magnification ratio 6.4:1

Zoom [Min] 0.7×

Zoom [Max] 4.5 x

Illumination type Reflected light, transmitted light

Transmitted light source LED

Illumination type (incident light) LED

Illuminance (incident light) 3W

Focusing mechanism Coarse adjustment

Display type LCD touchscreen

Display size 9.7"

Display resolution 2048x1536

MCU details Quad-core Cortex-A17; 1.8 GHz

Camera – Sensor type Sony CMOS

Camera – Colour depth Colour

Camera – Sensor size 1/2.8"

Camera – Resolution 5 MP

Camera – Frame rate 30 fps

Interfaces Wi-Fi, USB 2.0, HDMI, microSD card slot

C-mount magnification 0.5x

Working distance 105 mm

Specimen height [Max] 140 mm

Stand design Column

Dimensions (W×D×H) 300×240×640 mm

GTIN/EAN number 4045761228542
