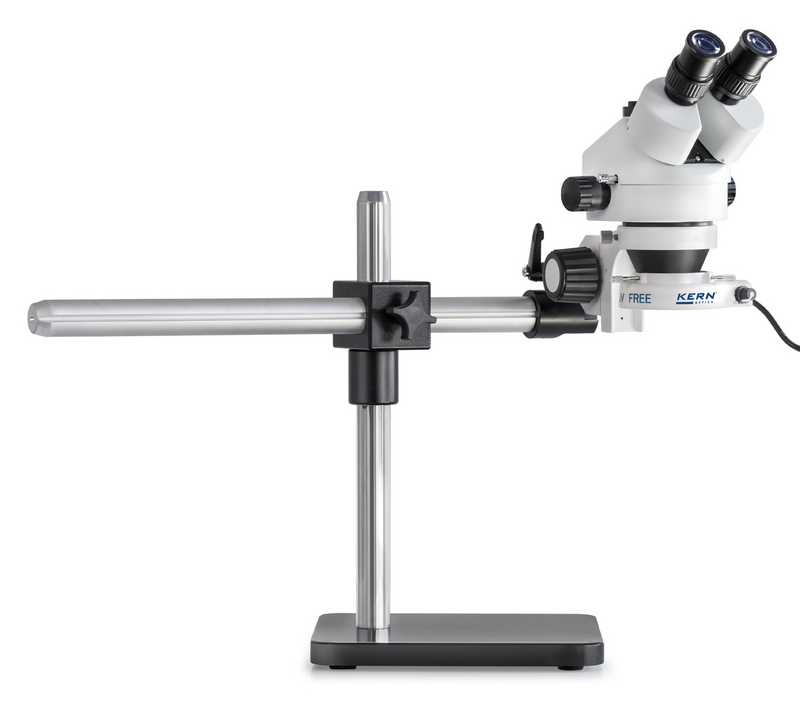

KERN OZL 961 Stereomicroscope Set

OZL 961 Stereomicroscope Set

Product family: OZL-9

Pre-configured stereomicroscope set with a simple telescopic arm and 4.5 W LED ring lighting for greater flexibility at your workstation

Description

Pre-configured sets comprising a stereomicroscope head, a universal stand, a holder, ring lighting and a dust cover from our range

Simple – practical – affordable

This saves you the time-consuming task of configuration and the headache of choosing the right combination of components. The result is a cost-effective and highly flexible solution for your microscopy workstation

The KERN OZL-961 is one of a range of stereo zoom microscopes that impress with their ease of use, flexibility, stability and affordable price

The LED reflected light illumination (ring) included as standard ensures optimum illumination of your specimen

In addition to their excellent optical properties, these models offer the highest level of convenience in this class thanks to their large work surface – ideal for training centres, workshops and assembly and repair workstations, e.g. in the electronics industry

Objective: 0.7x – 4.5x

The universal telescopic arm stand offers you a high degree of flexibility. Particularly suitable for large specimens and for working freely under the microscope

Technical specifications

Optical system Greenough

Tubus type Binocular

Eyepiece magnification 10×

Eyepiece field of view 20 mm

Magnification ratio 6.4:1

Zoom [Min] 0.7×

Zoom [Max] 4.5×

Illumination type Incident light

Type of illumination (incident light) LED

Illuminance (incident light) 4.5W

Focusing mechanism Coarse adjustment

Working distance 100 mm

Specimen height [Max] 140 mm

Stand design Universal (telescopic arm with base plate)

Dimensions (W×D×H) 700×255×600 mm

GTIN/EAN number 4045761189430
