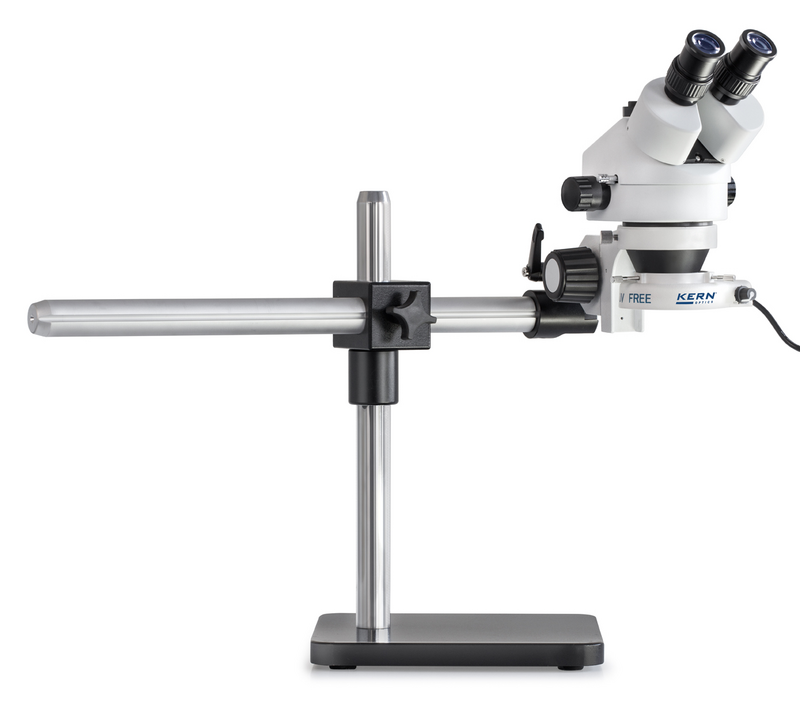

Kern OZL 963 Stereomicroscope Set, Universal Telescopic Arm Stand, Zoom 0.7x-4.5x, 4.5 W LED Ring Light
€792.00
% Manufacturer's RRP: €990.00 20% below manufacturer's RRP
- Pre-configured stereo microscope set comprising head, stand and illumination
- Greenough zoom objective 0.7x to 4.5x, zoom ratio 6.4:1
- Trinocular head, tilted at 45 degrees, rotatable through 360 degrees
- LED ring illumination with 4.5 W pure incident light
- Universal telescopic arm stand with plate
- Trinocular tube for camera connection; C-mount adapter available separately
- 36-month warranty
Product information "Kern OZL 963 Stereomicroscope Set, Universal Telescopic Arm Stand, Zoom 0.7x-4.5x, 4.5 W LED Ring Light"
The Kern OZL 963 stereomicroscope set combines a Greenough head with zoom optics, a universal telescopic arm stand and an LED ring light to form a pre-configured unit from the Kern range. The trinocular tube is designed to accommodate a microscope camera, and the zoom range extends from 0.7x to 4.5x.
Zoom optics based on the Greenough principle
The trinocular head operates according to the Greenough principle and covers a zoom range from 0.7x to 4.5x, with a zoom ratio of 6.4:1. Together with the standard 10x eyepieces and a 20 mm field of view, the magnification ranges from overview to detail without the need to change the objective. The tube is inclined at 45 degrees and can be rotated through 360 degrees; the interpupillary distance can be adjusted between 55 and 75 mm, whilst the dioptre adjustment operates on both sides from -5 to +5. The working distance is 100 mm; specimens up to 140 mm in height can be placed beneath the head.
LED ring light with pure incident light
The LED ring light included in the set provides 4.5 watts of pure incident light, with a light distribution ratio of 0:100. Focusing is achieved via a coarse adjustment knob.
Universal telescopic arm stand with plate
The head and lighting are mounted on a universal telescopic arm stand with a plate. Fully assembled, the set weighs 18 kg and measures 700 x 255 x 600 mm (W x D x H).
What is included in the stereomicroscope set
The Kern OZL 963 stereomicroscope set comprises the Greenough head, the telescopic arm stand, a holder, the LED ring illuminator and a dust cover. All components are from the Kern range and are designed to work together seamlessly.
Expandable for photo and video documentation
The trinocular tube is designed for camera connection, but a C-mount adapter is not included in the Scope of delivery. For image documentation, the set can be supplemented with a microscope camera and the appropriate adapter. Additional eyepieces with 15x, 20x or 25x magnification, as well as close-focusing lenses ranging from 0.5x to 2x, are available for different magnification levels.
Differences from the Kern OZL 465
In addition to the OZL 963, LT Laborhandel stocks the Kern OZL 465, another pre-configured combination from the Kern range. Both sets use the same zoom lens with a range of 0.7x to 4.5x (zoom ratio 6.4:1). The OZL 465 is binocular, mounted on a column stand and provides 3 W of illumination for both reflected and transmitted light; the OZL 963 is trinocular, mounted on a telescopic arm stand and features a 4.5 W LED ring light providing pure reflected light. The working distance is 105 mm for the OZL 465 and 100 mm for the OZL 963; the net weight is 4.6 kg compared with 18 kg.
Typical applications
Kern lists the following applications for the OZL 963:
- In vitro fertilisation
- Parasite detection
- Zoology and botany
- Tissue preparation
- Sections
- Quality control
Frequently asked questions about the OZL 963
What is the zoom range? 0.7x to 4.5x with a zoom ratio of 6.4:1, using the supplied 10x eyepieces.
Is a camera included in the Scope of delivery? No, the trinocular tube is prepared for a camera, but a C-mount adapter must be ordered separately.
How is the set illuminated? Via an LED ring light with 4.5 watts of pure incident light.
How heavy is the fully assembled set? 18 kg net, with dimensions of 700 x 255 x 600 mm.
How long is the warranty valid for? 36 months.
Technical details
| Optical system | Greenough |
| Tube | Trinocular, 45-degree inclination, 360-degree rotation |
| Eyepiece magnification | 10x |
| Eyepiece field of view | 20 mm |
| Zoom range | 0.7x to 4.5x |
| Zoom ratio | 6.4:1 |
| Interpupillary distance | 55 to 75 mm |
| Dioptre adjustment | on both sides, -5 to +5 |
| Working distance | 100 mm |
| Maximum sample height | 140 mm |
| Illumination | LED ring light, incident light, 4.5 W |
| Light distribution | 0:100 (pure incident light) |
| Focusing | Coarse adjustment |
| Tripod type | Universal telescopic arm tripod, with plate |
| Dimensions (W x D x H) | 700 x 255 x 600 mm |
| Weight (net) | 18 kg |
| Weight (gross) | 22 kg |
| Warranty | 36 months |
Scope of delivery
- Stereomicroscope head (Greenough, trinocular)
- Universal telescopic arm stand (with plate)
- Holder
- LED ring illumination, 4.5 W (incident light)
- Dust cover
The scope of delivery does not include a C-mount adapter for connecting a microscope camera, and it must be ordered separately for digitisation.
Individual requirements and procurement service
For documentation purposes, microscope cameras can be supplemented with models offering various resolutions and different interfaces, along with suitable camera and eyepiece adaptors. If you wish to change the magnification range, eyepieces with 15x, 20x or 25x magnification are available, as well as close-focusing lenses ranging from 0.5x to 2x. Suitable accessories are available for cleaning and maintaining the optics. LT Laborhandel’s procurement service provides support in selecting cameras, adapters and other accessories for the OZL 963.
