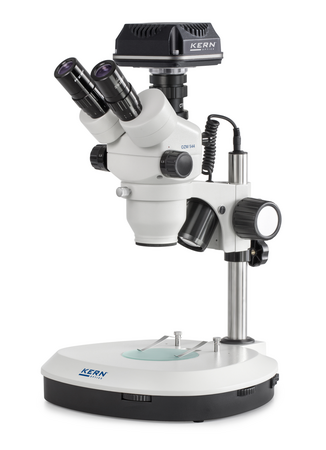

KERN OZM 544C825 Digital Microscope Kit

OZM 544C825 Digital Microscope Kit

Product family: OZM-S

First-class optics and powerful illumination combined with high flexibility and digital tools

Description

The OZM-5 series stereo microscopes are also available as a complete digital solution with an adapted C-mount camera for your live observations. The appropriate C-mount adapter is, of course, included in the delivery

The adapted C-mount camera is available in various versions and is suitable for a wide range of applications

A dust cover, eyecups and a multilingual user manual are included in the scope of delivery

OZM 544

The KERN OZM-5 series comprises outstanding stereo zoom microscopes with above-average optical performance

The ergonomic design allows for effortless and comfortable work over several hours

The exceptionally powerful and continuously dimmable 3W LED reflected and transmitted light illumination ensures particularly good and flexible illumination of your specimen

In addition to the large working distance, an extra-large field of view and brilliant resolution, the KERN delivers colour-accurate and depth-of-field-sharp images with high contrast

The zoom objective allows for stepless magnification from 0.7x to 4.5x

The column stand is particularly flexible thanks to its variable and robust adjustment mechanism, thus enabling ergonomic working

ODC 825

Thanks to proven CMOS technology, combined with USB 2.0, images are displayed quickly and clearly

These cameras are also suitable for more demanding applications, such as dark-field, phase-contrast and fluorescence applications

Optimal synchronisation, a high frame rate and stable image performance, in conjunction with our supplied Microscope VIS software, will make your day-to-day work considerably easier

Power is supplied via the USB cable, so no additional power supply is required

Included in the scope of delivery, alongside the camera, are our multilingual KERN Microscope VIS Basic KERN OXM 901 software, a USB cable (length: 2000 mm), various eyepiece adaptors and an objective micrometre for calibrating the software

Technical specifications

Greenough optical system

Tubus type: Trinocular

Eyepiece magnification: 10×

Eyepiece field of view: 23 mm

Magnification ratio 6.4:1

Zoom [Min] 0.7×

Zoom [Max] 4.5×

Illumination type: transmitted light

Illumination type: Transmitted light LED

Illumination type: Reflected light LED

Illuminance (incident light) 3W

Focusing mechanism: coarse adjustment

Camera – Sensor type: CMOS

Camera – Colour depth: Colour

Camera – Sensor size: 1/2.5"

Camera – Resolution: 5.1 MP

Camera – Frame rate 6.8 – 55 fps

Interfaces: USB 2.0

Working distance 110 mm

Sample height [Max] 130 mm

Stand design: Column

Dimensions (W×D×H) 330×285×510 mm

GTIN/EAN number 4045761228726
