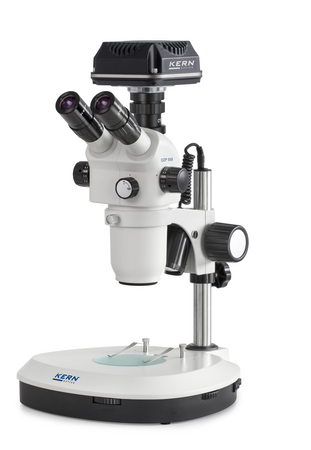

KERN OZP 558C825 Digital Microscope Kit

OZP 558C825 Digital Microscope Kit

Product family: OZP-S

First-class optics and powerful illumination combined with high flexibility and digital tools

Description:

The OZP-5 series stereo microscopes are also available as a complete digital solution with an adapted C-mount camera for your live examinations. The appropriate C-mount adapter is, of course, included in the delivery

The adapted C-mount camera is available in various versions and is suitable for a wide range of applications

A dust cover, eyecups and a multilingual user manual are included in the scope of delivery

OZP 558

The KERN OZP-5 stereo zoom microscope is characterised by its above-average magnification range and its robust, ergonomic design, which enables effortless and easy work over several hours

The KERN OZP 558 is available as a powerful, continuously adjustable 3W LED reflected and transmitted light model, providing optimum illumination for your specimen

In addition to its long working distance, an extra-large field of view and brilliant resolution, the KERN OZP 558 delivers true-to-colour images with high contrast and excellent depth of field

The exceptionally wide and infinitely adjustable magnification range, from 6x to 55x, enables you to work quickly and effectively

The column stand is particularly flexible thanks to its variable and robust adjustment mechanism, thus enabling ergonomic working

ODC 825

Thanks to proven CMOS technology, combined with USB 2.0, images are displayed quickly and clearly

These cameras are also suitable for more demanding applications, such as dark-field, phase-contrast and fluorescence applications

Optimal synchronisation, a high frame rate and stable image performance, in conjunction with our supplied Microscope VIS software, will make your daily work considerably easier

Power is supplied via the USB cable, so no additional power supply is required

Included in the scope of delivery, alongside the camera, are our multilingual KERN Microscope VIS Basic software, the KERN OXM 901, a USB cable (length: 2000 mm), various eyepiece adaptors and an objective micrometre for calibrating the software

Technical specifications:

Greenough optical system

Tubus type: Trinocular

Eyepiece magnification: 10×

Eyepiece field of view: 23 mm

Magnification ratio 9.2:1

Zoom [Min] 0.6×

Zoom [Max] 5.5×

Illumination type: transmitted light

Illumination type: Transmitted light LED

Illumination type: LED incident light

Illuminance (incident light) 3W

Focusing mechanism: coarse adjustment

Camera – Sensor type: CMOS

Camera – Colour depth: Colour

Camera – Sensor size: 1/2.5"

Camera – Resolution: 5.1 MP

Camera – Frame rate 6.8–55 fps

Interfaces: USB 2.0

Working distance 108 mm

Sample height [Max] 110 mm

Stand design: column

Dimensions (W×D×H) 330×285×540 mm

GTIN/EAN number 4045761228597
