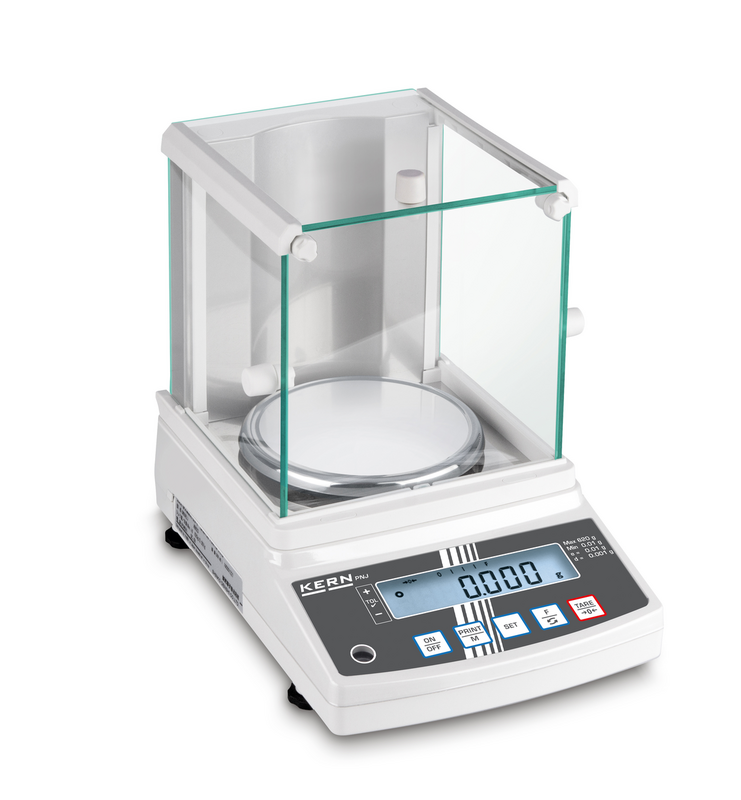

KERN PNJ 600-3M Precision Balance

PNJ 600-3M Precision Balance

Product family: PNJ

The new standard in the laboratory with its robust tuning-fork weighing system

Description

Internal automatic calibration ensures high accuracy and makes the balance location-independent; ideal for applications subject to legal metrology requirements

High-quality tuning-fork weighing system for rapid display of the weight value, precise dosing and high mechanical robustness

Capacity display: A rising bar graph indicates the remaining weighing range

Precise counting: Automatic reference optimisation gradually improves the average value of the piece weight

Compact dimensions, advantageous where space is limited

Large, impact-resistant stainless steel weighing plate

Large glass draft shield with 3 sliding doors for convenient access to the sample as standard; weighing chamber W×D×H 172×171×160 mm

Safety hood included

Technical data

Weighing range [Max] 620 g

Readability [d] 0.001 g

Calibration value [e] 0.01 g

Units g, gn, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, mo, lb, oz, tol

Conformity assessment available ex works

Minimum weight [Min] 0.02 g

Linearity ± 0.004 g

Reproducibility 0.001 g

Settling time 3 s

USP minimum sample weight (k=2, U=0.1%) 2 g

Interfaces RS-232 as standard

Calibration options Calibration with internal weight (automatic)

Ambient temperature range 5 °C – 40 °C

Weighing surface dimensions (Ø) 140 mm

Draft shield material Glass

Housing material Plastic

Housing dimensions (W×D×H) 196×293×266 mm

Weighing plate material Stainless steel

Net weight approx. 4.2 kg

Scale type Single-range scale

GTIN/EAN number 4045761179882
