pH buffer solutions
pH buffer solutions calibrate pH electrodes and are essential for obtaining reliable measurement results. LT Laborhandel offers WTW standard (DIN/NIST) and technical buffer solutions in the common pH levels 4, 7, 9 and 10, some of which are available in trace quality. You can also find the right electrodes in our shop; for more information on pH measurement, see the Electrochemistry & pH Measurement category. Any questions about the appropriate calibration interval? We’d be happy to help.

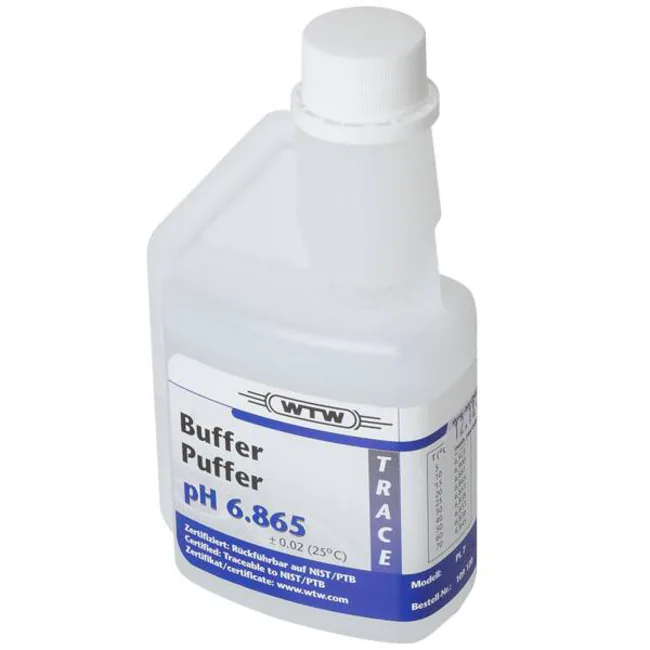

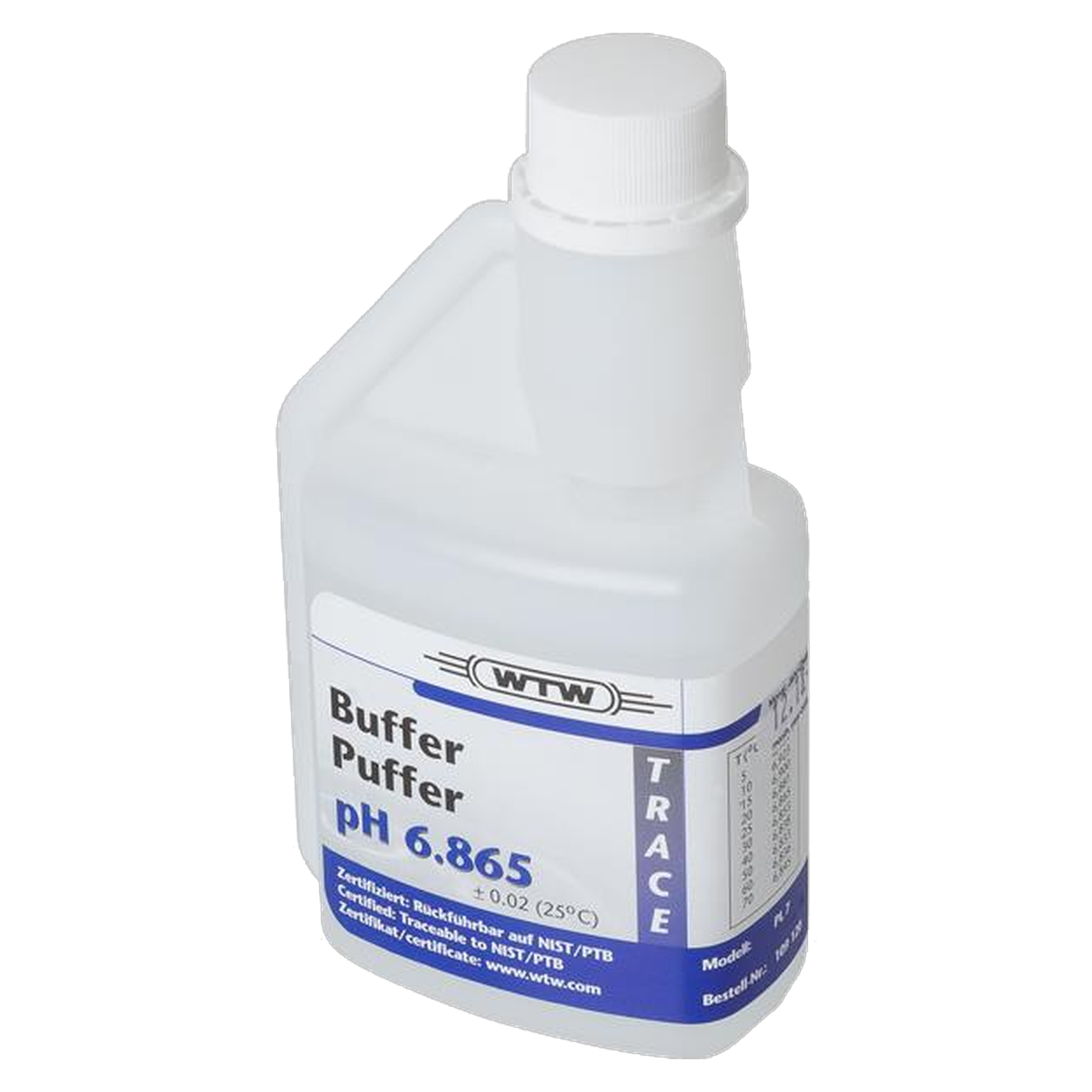

WTW Standard (DIN/NIST) buffer solution PL 7, pH 6.865/6.87, PTB/NIST-traceable calibration solution according to DIN 19266-01:2000, ± 0.02 pH, 250 ml, 109120
An electrode that is incorrectly calibrated in the neutral range will introduce a bias into every subsequent measurement, particularly where pH 7, as the zero point of the scale, plays a key role. The WTW Standard (DIN/NIST) buffer solution PL 7 provides a traceable reference for this purpose: a working reference buffer solution according to DIN 19266-01:2000, traceable to PTB/NIST, with an accuracy of ± 0.02 pH at 25 °C. Together with PL 4 and PL 9, it forms the midpoint of a complete, documentable three-point calibration. Standard (DIN/NIST) buffer solution PL 7: higher accuracy class than the technical range The key difference from the ‘technical’ WTW buffer solution range lies in the accuracy class and traceability. The WTW technical buffer solution pH 7 is designed for daily routine calibration and reliably covers everyday laboratory work. The Standard (DIN/NIST) buffer solution PL 7 goes one step further: As a working reference buffer solution according to DIN 19266-01:2000, it is PTB/NIST-traceable and specified to ± 0.02 pH at 25 °C. This makes it a suitable choice wherever the calibration itself must be documented and traceable, such as in ISO/IEC 17025-accredited testing laboratories, in pharmaceutical analysis or in metrologically demanding research. Buffer system comprising two phosphate salts PL 7 is based on a mixture of disodium hydrogen phosphate and potassium dihydrogen phosphate as a buffer system and achieves a pH value of 6.87 at 20 °C, stated on the label as pH 6.865 according to DIN or pH 6.87 according to NIST. The density is 1.01 g/cm³, the melting point is -0.3 °C and the boiling point is 100 °C. Under the CLP Regulation, the solution is not classified as a hazardous substance and is not a dangerous good, which simplifies storage, transport and handling in day-to-day laboratory work. Each bottle bears its own batch code with an expiry date, ensuring that the batch used can always be identified and remains clearly traceable within the documentation of a quality management system. Traceability as part of quality assurance Traceability means that the printed pH value can be traced back through an unbroken chain of reference measurements to the national metrology institutes PTB and NIST. For a testing laboratory accredited to ISO/IEC 17025, this is precisely the difference between a plausible and a robust measurement: not only the electrode itself, but also the reference used to calibrate it, must be documented and traceable. The zero point at pH 7, in particular, affects the entire calibration curve, which is why a traceable buffer is especially important at this point. With PL 7, this requirement can be met via the batch identification. Storage and handling Storage in the tightly sealed original container at 15 to 25 °C is recommended. According to TRGS 510, the solution is classified in storage class LGK 12 (non-flammable liquids) and is not considered to pose a risk to water. As PL 7 is neither classified as a hazardous substance nor declared as dangerous goods, no special protective measures are required when opening or dispensing it. Nevertheless, safety goggles with side protection are recommended for the safe handling of the reference solution, and the container should be resealed promptly after use to prevent the reference value from shifting due to evaporation or the absorption of CO2 from the air. Typical applications PL 7 is used wherever the calibration of a pH electrode must not only be ‘adequate’ but also verifiable through documentation: Two- or three-point calibration of pH electrodes in the neutral measuring range, in conjunction with the WTW buffer solutions PL 4 and PL 9 Zero-point adjustment of the pH scale as the central reference point for every calibration routine Traceable calibration in accredited testing laboratories according to ISO/IEC 17025 Quality control in pharmaceutical and active ingredient analysis Calibration prior to the analysis of approximately neutral samples, such as drinking water or cell culture media Research institutions with stringent requirements regarding measurement uncertainty For buffer solutions according to DIN 19266-01:2000, the composition is specified directly in the standard. When PL 7 is used in conjunction with PL 4 and PL 9 for a three-point calibration, this trio covers the entire pH range relevant to practical applications, from acidic through neutral to alkaline, with the same accuracy class and the same traceability to PTB/NIST. This simplifies documentation, as all three calibration points are traceable to PTB/NIST. Technical details Trade namePL 7 Buffer systemDisodium hydrogen phosphate, potassium dihydrogen phosphate pH value at 20 °C6.87 (labelling: pH 6.865 according to DIN / pH 6.87 according to NIST) Accuracy± 0.02 pH at 25 °C TraceabilityPTB/NIST StandardDIN 19266-01:2000 Density at 20 °C1.01 g/cm³ Melting point/freezing point-0.3 °C Boiling point100 °C Physical state / Colour / OdourLiquid, colourless, odourless Hazard classification (CLP)Not classified Dangerous goodsNo Storage class (TRGS 510)Class 12 (non-flammable liquids) Recommended storage temperature15-25 °C Container size250 ml Scope of delivery 1 bottle of WTW Standard (DIN/NIST) buffer solution PL 7, 250 ml, with batch number and expiry date Individual requirements and procurement service For a complete three-point calibration, there are also the WTW Standard (DIN/NIST) buffer solutions PL 4 (pH 4.006/4.01) and PL 9 (pH 9.180/9.18). If you carry out daily routine calibration using the technical accuracy class, you will find the WTW technical buffer solution pH 7 with the same pH value in our range. You can find suitable pH electrodes for calibration in our range of electrodes. Our procurement service is on hand to assist you with additional accessories for your pH measurement technology or with individual procurement enquiries.
Content: 250 ml (€11.60 / 100 ml)
WTW Technical Buffer Solution TPL 7, pH 7.00, 250 ml, 108802
Before a pH electrode can provide reliable readings, it must be calibrated, and this requires a stable technical buffer solution with a pH of 7. The WTW technical buffer solution pH 7.00 provides the neutral reference point for 2- or 3-point calibration, as routinely carried out in laboratories in the pharmaceutical, industrial, research and water analysis sectors. It is available in three container sizes ranging from 50 ml to 1,000 ml, depending on how frequently calibration is carried out and how many electrodes are in use. Why calibrate regularly The glass membrane of a pH electrode changes over time; ageing, deposits or temperature fluctuations cause the slope of the calibration curve to shift. Without regular calibration against a known buffer solution, measured values gradually drift without this being immediately apparent. A fresh technical buffer solution with a defined pH value and documented accuracy is therefore essential for reliable measurement results, regardless of the pH meter or electrode type used. Phosphate buffer with documented accuracy The technical buffer solution pH 7 is based on a phosphate buffer comprising disodium hydrogen phosphate and potassium dihydrogen phosphate. At 20 °C, the pH value is 7.00, with an accuracy of ± 0.03 pH. This tight tolerance ensures reproducible calibration, regardless of the electrode or measuring instrument used. Particularly when several measuring points or sites require the same reference, documented, consistent accuracy forms the basis for comparable results. The neutral reference point for 2- or 3-point calibration In practice, pH 7 is usually the first point in a 2- or 3-point calibration, typically supplemented by pH 4 and pH 10. If you have all three buffer levels in stock, you will fully cover the measurement range relevant to most applications. A simple 1-point calibration at pH 7 only indicates whether the electrode’s zero point is correct, but says nothing about the slope of the calibration curve outside the neutral range. For measurements that must also be reliable in the acidic or alkaline ranges, at least a second calibration point is therefore advisable. The same technical buffer solution is also available with pH 4.01 and, in trace quality, with pH 10.01. WTW, a brand of Xylem The buffer solution is supplied by WTW, an established brand in pH measurement technology and electrochemistry, which is now part of Xylem. Many laboratories already rely on WTW measuring instruments and electrodes; this technical buffer solution is suitable for them as a matched calibration solution. In principle, however, the buffer solution can be used with any pH electrode and any pH meter, regardless of the manufacturer; calibration is not tied to a specific measuring instrument. Pack sizes for the technical buffer solution pH 7 Select the appropriate pack size above: STP 7 as a 50 ml bottle for economical use or as a supplement in an electrode case, TPL 7 with 250 ml for routine laboratory work, and TEP 7 with 1,000 ml for frequent calibration requirements or multiple measuring points. ModelVolume STP 750 ml TPL 7250 ml TEP 71,000 ml Storage, shelf life and handling At 20 °C, the buffer solution has a density of 1.01 g/cm³ and a melting point of -0.3 °C. Unopened, it has a shelf life of 3 years when stored at 15 to 25 °C. It is not classified under GHS/CLP and is not a dangerous good, which significantly simplifies storage, handling and dispatch in day-to-day laboratory work; there are no special dangerous goods requirements or labelling regulations to observe. Avoid contamination To ensure that the calibration remains reliable throughout the entire shelf life, buffer solution that has been removed should not be poured back into the bottle. Even minor contaminants from the measurement environment or the electrode can alter the pH value of the remaining solution and distort subsequent calibrations. For daily use, it is therefore advisable to use a small calibration vessel into which only as much buffer solution is poured as is required for the current calibration. The bottle itself should be kept tightly sealed and stored at a temperature between 15 and 25 °C to ensure that the documented accuracy of ± 0.03 pH is maintained until the end of the three-year shelf life. Typical applications The technical buffer solution pH 7 is used wherever pH electrodes need to be calibrated regularly: Routine calibration of pH electrodes in pharmaceutical quality assurance Water analysis, for example in drinking water and process water monitoring Process control in industry, wherever pH values in the neutral range are monitored Research and teaching, as a reliable reference point for measurement series Commissioning and functional testing of new pH electrodes prior to first use Technical details Buffer systemDisodium hydrogen phosphate, potassium dihydrogen phosphate (phosphate buffer) pH value at 20 °C7.00 Accuracy± 0.03 pH Density at 20 °C1.01 g/cm³ Melting point-0.3 °C Shelf life when unopened3 years Storage temperature15 to 25 °C GHS/CLP classificationNot classified, not a dangerous good Scope of delivery 1 bottle of WTW technical buffer solution pH 7.00 in the selected container size (50 ml, 250 ml or 1,000 ml) Individual requirements and procurement service For complete 3-point calibration, there is also the same technical buffer solution with pH 4.01 and, in trace quality, with pH 10.01, as well as suitable pH electrodes. If you have larger requirements, need custom container sizes or have any questions about the appropriate calibration solution, our procurement service will be happy to assist you.
Content: 250 ml (€6.84 / 100 ml)
WTW Technical buffer solution TPL 4, pH 4.01, 250 ml, 108800
At the acidic end of the pH scale, the technical buffer solution pH 4 provides the second fixed reference point for the calibration of pH electrodes. The WTW technical buffer solution pH 4.01 is used in conjunction with pH 7 and pH 10 for 2- or 3-point calibration, thereby covering the acidic measurement range, which plays a key role in many applications in industry, water analysis and research. It is available in three container sizes ranging from 50 ml to 1,000 ml, so that it can meet both occasional requirements in small laboratories and regular consumption where frequent calibration is required. Potassium hydrogen phthalate as the buffer substance Potassium hydrogen phthalate is used as the buffer system; it is one of the most common substances for acidic reference buffer solutions. At 20 °C, the pH value is 4.01, with an accuracy of ± 0.03 pH. This tolerance is narrow enough to achieve comparable, reproducible calibration results even when using multiple electrodes and measuring instruments in the laboratory, regardless of which team member carries out the calibration. Why an acidic calibration point is important Calibration in the neutral range alone says little about how precisely an electrode measures outside pH 7. If the actual sample deviates significantly from the neutral range, as is often the case with acidic process solutions, foodstuffs or environmental samples, a second calibration point at pH 4 ensures that the slope of the electrode is correctly recorded over a wider range. Combined with pH 7 and pH 10, this results in a complete 3-point calibration that delivers reliable measurement results even when sample values fluctuate significantly. WTW, a brand of Xylem The buffer solution is supplied by WTW, an established brand in pH measurement technology and electrochemistry, which is now part of Xylem. Many laboratories already rely on WTW measuring instruments and electrodes; the technical buffer solution is designed to complement these as a matched calibration solution. However, it can generally be used with any pH electrode and any pH meter, regardless of the manufacturer; the calibration is not tied to a specific measuring instrument. Pack sizes of the technical buffer solution pH 4 Select the appropriate pack size above: STP 4 as a 50-ml bottle for economical use or as a supplement in an electrode case; TPL 4 with 250 ml for routine laboratory use; and TEP 4 with 1,000 ml for frequent calibration requirements or multiple measuring points. ModelVolume STP 450 ml TPL 4250 ml TEP 41,000 ml Storage, shelf life and handling At 20 °C, the buffer solution has a density of 1.01 g/cm³ and a melting point of -1.6 °C. Unopened, it has a shelf life of 3 years when stored at 15 to 25 °C. It is not classified under GHS/CLP and is not a dangerous good, which simplifies storage, handling and dispatch in everyday laboratory work without the need for additional dangerous goods labelling. Avoiding contamination To ensure that calibration remains reliable throughout the entire shelf life, buffer solution that has been removed should not be poured back into the bottle. Even small amounts of contamination from the measurement environment or from the electrode can alter the pH value of the remaining solution and distort subsequent calibrations; the phthalate buffer is particularly sensitive to foreign ions in the acidic range. For daily use, it is therefore advisable to use a small calibration vessel into which only as much buffer solution is poured as is required for the current calibration. The bottle itself should be kept tightly sealed and stored at a temperature between 15 and 25 °C to ensure that the documented accuracy of ± 0.03 pH is maintained until the end of the three-year shelf life. Typical applications The technical buffer solution pH 4 is used wherever pH electrodes need to measure reliably in the acidic range, not only for a one-off calibration but as an integral part of ongoing quality assurance: Acidic calibration point in industrial process control, e.g. for cleaning and process solutions Water analysis and environmental samples with low pH values Food- and beverage-related laboratory applications involving acidic samples Research and teaching, as a second reference point alongside pH 7 and pH 10 Commissioning and functional testing of new pH electrodes prior to first use Technical details Buffer systemPotassium hydrogen phthalate pH value at 20 °C4.01 Accuracy± 0.03 pH Density at 20 °C1.01 g/cm³ Melting point-1.6 °C Shelf life when unopened3 years Storage temperature15 to 25 °C GHS/CLP classificationNot classified, not a dangerous good Scope of delivery 1 bottle of WTW technical buffer solution pH 4.01 in the selected container size (50 ml, 250 ml or 1,000 ml) Individual requirements & procurement service For complete 3-point calibration, there is also the same technical buffer solution with pH 7.00 and, in trace quality, with pH 10.01, as well as suitable pH electrodes. For larger quantities, custom container sizes or enquiries regarding the appropriate calibration solution, our procurement service will be happy to assist you.
Content: 250 ml (€6.80 / 100 ml)

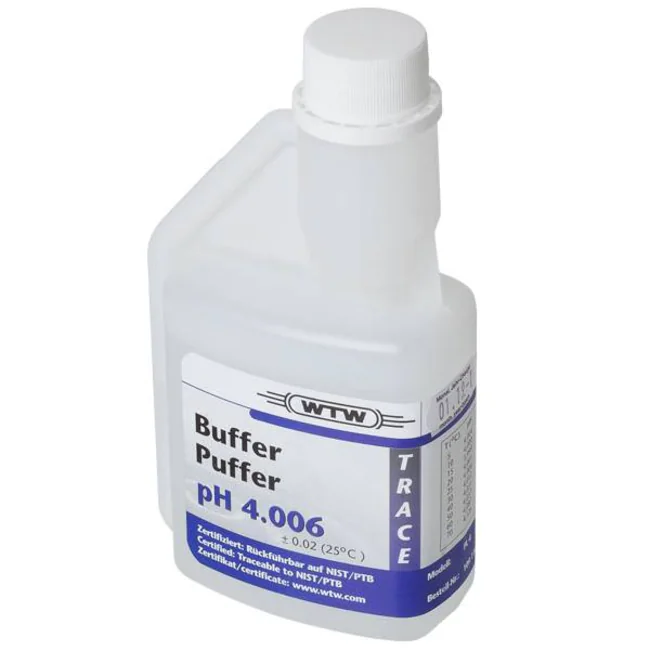

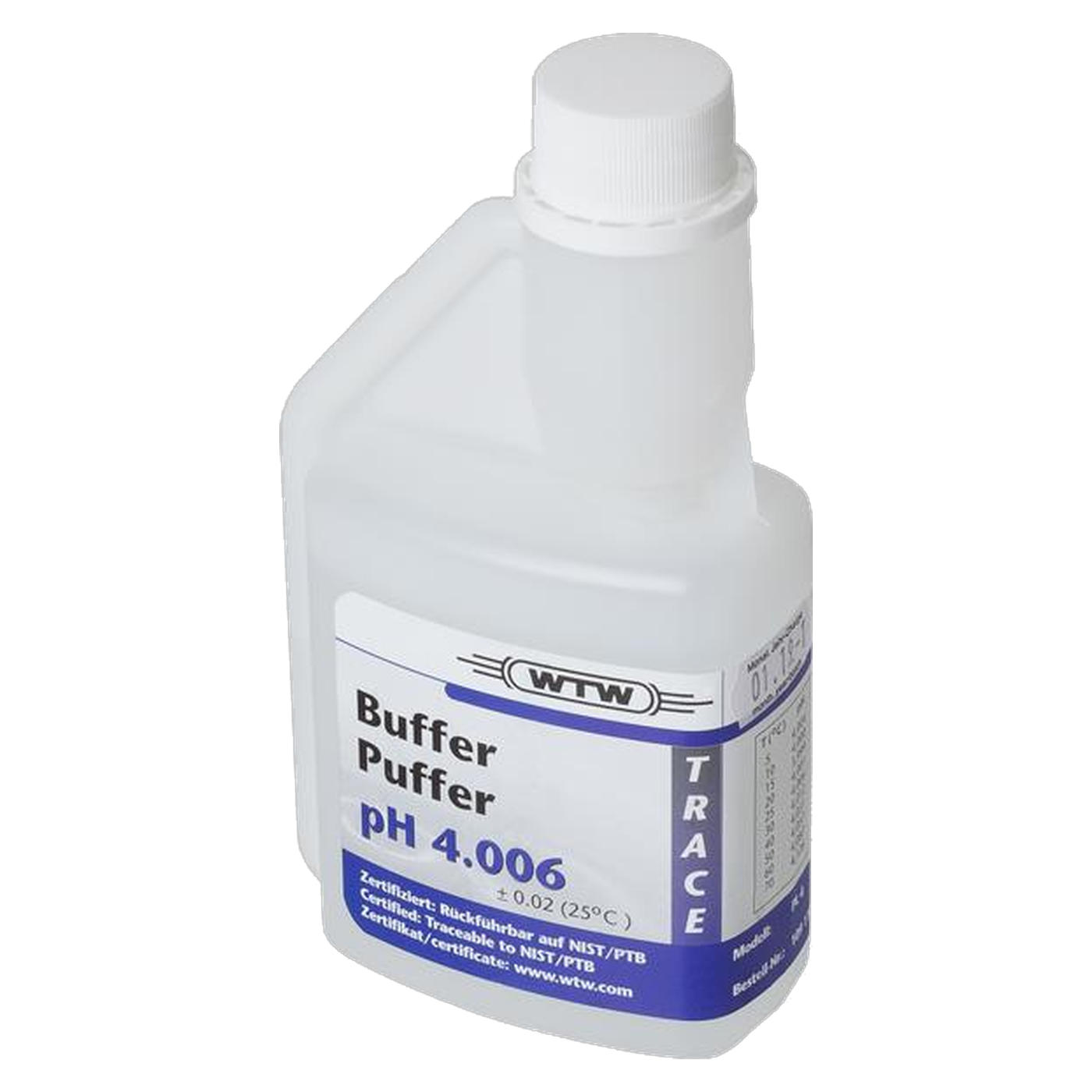

WTW Standard (DIN/NIST) buffer solution PL 4, pH 4.006/4.01, PTB/NIST-traceable calibration solution according to DIN 19266-01:2000, ± 0.02 pH, 250 ml, 109110
Anyone calibrating a pH electrode in an accredited testing laboratory, in pharmaceutical quality control or in research cannot do without a fully traceable reference. The WTW Standard (DIN/NIST) buffer solution PL 4 delivers exactly that: a working reference buffer solution according to DIN 19266-01:2000, which is traceable to both the PTB and NIST and achieves an accuracy of ± 0.02 pH at 25 °C. It thus covers the acidic range of the pH scale and, together with the WTW buffer solutions PL 7 and PL 9, forms the basis for a complete, documentable three-point calibration. Standard (DIN/NIST) buffer solution PL 4: higher accuracy class than the technical range The key difference from the ‘technical’ WTW buffer solution range lies in the accuracy class and traceability. Technical buffer solutions are designed for the daily routine calibration of pH electrodes and reliably cover everyday laboratory work. The Standard (DIN/NIST) buffer solution PL 4 goes one step further: As a working reference buffer solution according to DIN 19266-01:2000, it is PTB/NIST-traceable and specified to ± 0.02 pH at 25 °C. This makes it a suitable choice wherever the calibration itself must be documented and traceable, for example in ISO/IEC 17025-accredited testing laboratories, in pharmaceutical analysis or in metrologically demanding research. Buffer system: potassium hydrogen phthalate PL 4 is based on potassium hydrogen phthalate as the buffer system and achieves a pH value of 4 at 20 °C, stated on the label as pH 4.006 according to DIN or pH 4.01 according to NIST. Its density is 1.01 g/cm³, its melting point is -1.6 °C and its boiling point is 100 °C. Under the CLP Regulation, the solution is not classified as a hazardous substance and is not a dangerous good, which simplifies storage, transport and handling in day-to-day laboratory work. Each bottle bears its own batch code with an expiry date, so that the batch used can be identified at any time and remains clearly traceable within the documentation of a quality management system. Traceability as part of quality assurance Traceability means that the printed pH value can be traced back through an unbroken chain of comparison measurements to the national metrology institutes PTB and NIST. For a testing laboratory accredited to ISO/IEC 17025, this is precisely the difference between a plausible and a robust measurement: not only the electrode itself, but also the reference against which it was calibrated, must be documented and traceable. With PL 4, this requirement can be met via the batch identification. Storage and handling Storage in the tightly sealed original container at 15 to 25 °C is recommended. According to TRGS 510, the solution is classified in storage class LGK 12 (non-flammable liquids), is not classified as hazardous to water and, according to the safety data sheet, is considered readily biodegradable. As PL 4 is neither classified as a hazardous substance nor declared as dangerous goods, no special protective measures are required when opening or dispensing it. Nevertheless, for safe handling of the reference solution, safety goggles with side protection are recommended, and the container should be resealed promptly after use to prevent the reference value from shifting due to evaporation or the absorption of CO2 from the air. Typical applications PL 4 is used wherever the calibration of a pH electrode must not only be ‘adequate’ but also verifiable through documentation: Two- or three-point calibration of pH electrodes in the acidic measurement range, in conjunction with the WTW buffer solutions PL 7 and PL 9 Traceable calibration in accredited testing laboratories according to ISO/IEC 17025 Quality control in pharmaceutical and active ingredient analysis Calibration prior to the analysis of acidic samples, such as fruit juices, wine or soil extracts Research institutions with stringent requirements regarding measurement uncertainty For buffer solutions according to DIN 19266-01:2000, the composition is specified directly in the standard. When PL 4 is used in conjunction with PL 7 and PL 9 for a three-point calibration, this trio covers the entire pH range relevant to practical applications, from acidic through neutral to alkaline, with the same accuracy class and the same traceability to PTB/NIST. This simplifies documentation, as all three calibration points are traceable to PTB/NIST. Technical details Trade namePL 4 Buffer systemPotassium hydrogen phthalate pH value at 20 °C4 (labelled: pH 4.006 according to DIN / pH 4.01 according to NIST) Accuracy± 0.02 pH at 25 °C TraceabilityPTB/NIST StandardDIN 19266-01:2000 Density at 20 °C1.01 g/cm³ Melting point/freezing point-1.6 °C Boiling point100 °C Physical state / Colour / OdourLiquid, colourless, odourless Hazard labelling (CLP)Not classified Dangerous goodsNo Storage class (TRGS 510)Class 12 (non-flammable liquids) Recommended storage temperature15-25 °C Container size250 ml Scope of delivery 1 bottle of WTW Standard (DIN/NIST) buffer solution PL 4, 250 ml, with batch number and expiry date Individual requirements and procurement service For a complete three-point calibration, there are also the WTW Standard (DIN/NIST) buffer solutions PL 7 (pH 6.865/6.87) and PL 9 (pH 9.180/9.18). If you carry out daily routine calibration using the technical accuracy class, you will find the WTW Technical buffer solution TPL 4 with the same pH value in our range. You can find suitable pH electrodes for calibration in our range of electrodes. Our procurement service is on hand to assist you with additional accessories for your pH measurement technology or with individual procurement enquiries.
Content: 250 ml (€11.60 / 100 ml)

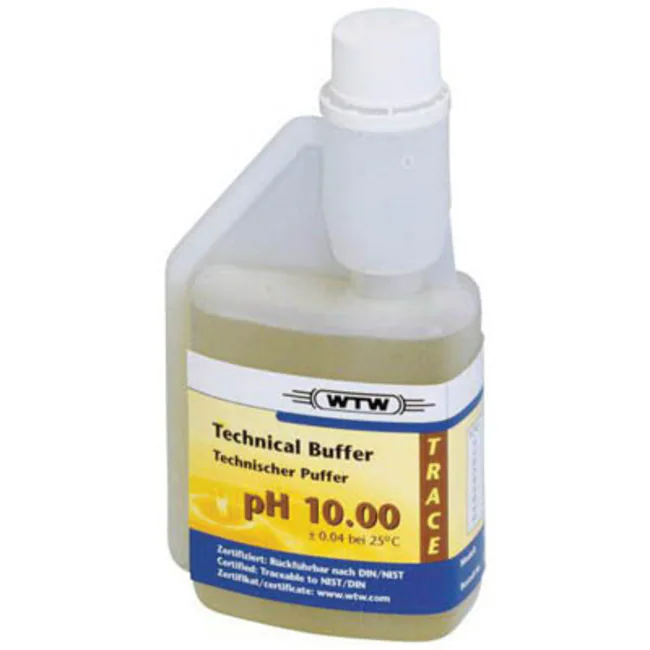

WTW Technical buffer solution TEP 10 Trace, pH 10.01, 1,000 ml, 108703
For the alkaline calibration point of a pH electrode, a technical buffer solution with a pH of 10 is required, which contaminates the sample as little as possible, even in demanding applications such as trace analysis. The WTW technical buffer solution pH 10.01 Trace is the low-trace-metal version of the third calibration point, usually supplemented by pH 7 and pH 4, and thus covers 2- or 3-point calibration in the alkaline range. It is available in two container sizes, 250 ml and 1,000 ml, and is therefore suitable for both day-to-day laboratory use and applications requiring more frequent calibration. Trace-grade carbonate buffer The buffer system consists of a combination of sodium carbonate and sodium hydrogen carbonate, forming a carbonate buffer. The term ‘Trace’ denotes a formulation low in trace metals, which is particularly relevant where calibration solutions must not come into contact with sensitive analytical equipment or downstream trace metal measurements. The pH value at 25 °C is 10.01, with an accuracy of ± 0.03 pH. Reference temperature 25 °C Unlike the technical buffer solutions pH 4 and pH 7, which are specified at 20 °C, the pH value of the Trace buffer solution pH 10.01 is specified at 25 °C. The pH value of a buffer solution depends on the temperature, which is why the reference temperature is stated. To ensure correct calibration in the alkaline range, it is advisable to bring the temperature of the buffer solution as close as possible to this reference value before immersing the electrode. WTW, a brand of Xylem The buffer solution is supplied by WTW, an established brand in pH measurement technology and electrochemistry, which is now part of Xylem. Many laboratories already rely on WTW measuring instruments and electrodes; this technical buffer solution serves as a compatible calibration solution. However, it can generally be used with any pH electrode and any pH meter, regardless of the manufacturer; the calibration is not tied to a specific measuring instrument. The ‘Trace’ quality in particular is a feature that goes beyond the mere pH value and is aimed at laboratories that place particular emphasis on the purity of their calibration solutions. Pack sizes of the technical buffer solution pH 10.01 Trace Select the appropriate container size above: TPL 10 Trace (250 ml) for routine laboratory use, or TEP 10 Trace (1,000 ml) for frequent calibration requirements or multiple measuring points. A 50-ml container size is not available in the Trace grade. ModelVolume TPL 10 Trace250 ml TEP 10 Trace1,000 ml Storage, shelf life and handling At 20 °C, the buffer solution has a density of 1.01 g/cm³ and a melting point of -2.6 °C. Unopened, it has a shelf life of 3 years when stored at 15 to 25 °C. It is not classified under GHS/CLP and is not a dangerous good, which simplifies storage, handling and dispatch in day-to-day laboratory work, without the need for additional dangerous goods labelling. Avoid contamination, particularly with trace-grade solutions With a buffer solution low in trace metals, cleanliness during handling is particularly important; otherwise, the advantage of trace-grade quality is quickly lost. Once removed, buffer solution should therefore not be poured back into the bottle, as even small amounts of contamination from the electrode or the measurement environment can alter both the pH value and the trace metal content of the remaining volume. For daily use, it is recommended to use a clean, separate calibration vessel, into which only as much buffer solution as is required for the current calibration is poured. The bottle itself should be kept tightly sealed and stored at a temperature between 15 and 25 °C to ensure that the documented accuracy of ± 0.03 pH is maintained until the end of the three-year shelf life. Typical applications The pH 10.01 Trace technical buffer solution is used wherever pH electrodes need to be calibrated in the alkaline range and a low trace metal content is important, not only for a one-off calibration but as an integral part of ongoing quality assurance: Alkaline calibration point in water and wastewater analysis Process control for alkaline cleaning and washing solutions in industry Laboratories carrying out trace metal analysis, where a low-metal calibration solution prevents contamination Research and teaching, as a third reference point alongside pH 7 and pH 4 Commissioning and functional testing of new pH electrodes prior to first use Technical details Buffer systemSodium carbonate, sodium hydrogen carbonate (carbonate buffer), trace-grade (low in trace metals) pH value at 25 °C10.01 Accuracy± 0.03 pH Density at 20 °C1.01 g/cm³ Melting point-2.6 °C Shelf life when unopened3 years Storage temperature15 to 25 °C GHS/CLP classificationNot classified, not a dangerous good Scope of delivery 1 bottle of WTW technical buffer solution pH 10.01 Trace in the selected container size (250 ml or 1,000 ml) Individual requirements & procurement service For complete 3-point calibration, we also offer the same technical buffer solution with pH 7.00 and pH 4.01, as well as suitable pH electrodes. For larger quantities, custom container sizes or enquiries regarding the appropriate calibration solution, our procurement service will be happy to assist you.
Content: 1000 ml (€4.60 / 100 ml)

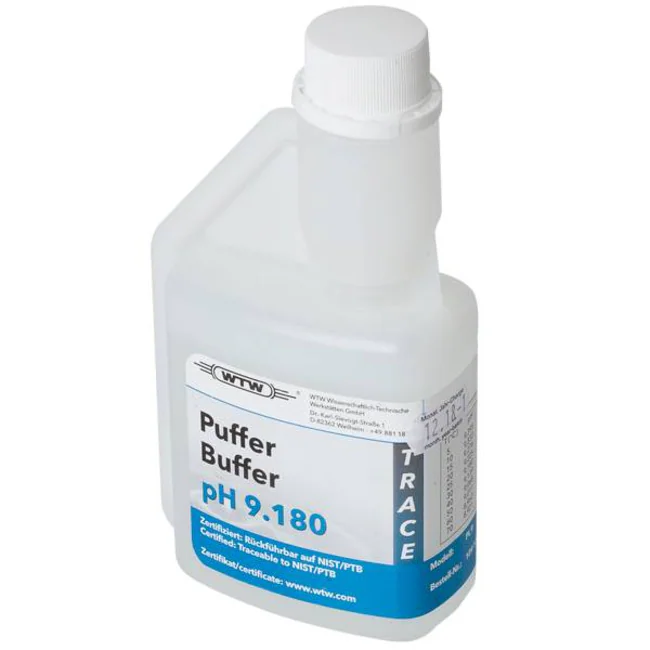

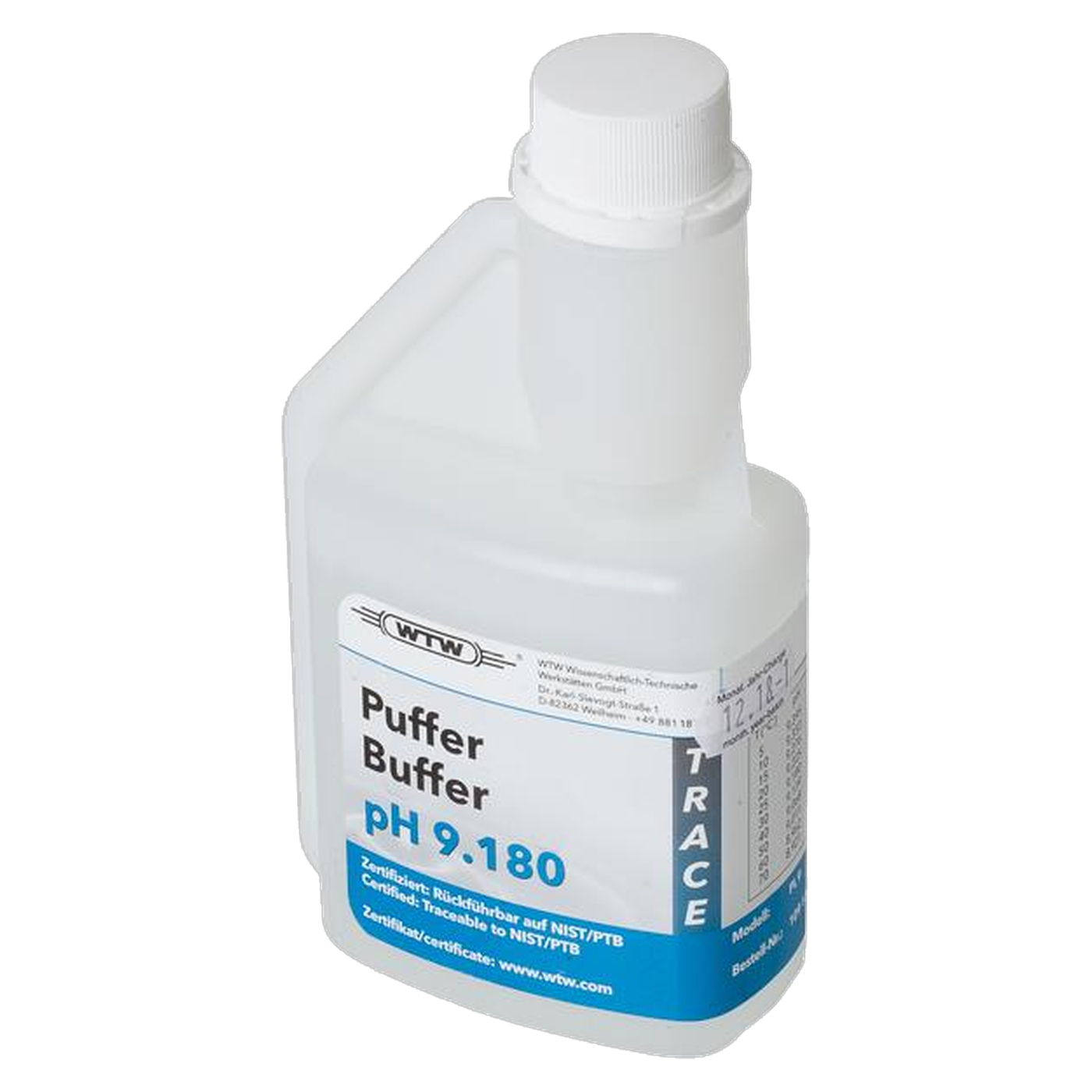

WTW Standard (DIN/NIST) buffer solution PL 9, pH 9.180/9.18, PTB/NIST-traceable calibration solution according to DIN 19266-01:2000, ± 0.02 pH, 250 ml, 109130
In the alkaline measuring range, a pH electrode requires the same traceable calibration point as in the acidic and neutral ranges. The WTW Standard (DIN/NIST) buffer solution PL 9 provides a working reference buffer solution according to DIN 19266-01:2000, traceable to PTB/NIST, with an accuracy of ± 0.02 pH at 25 °C. It thus complements PL 4 and PL 7 as the third point in the three-point calibration. Unlike the other two stages in the range, PL 9 also requires hazardous substance labelling; please refer to the separate section below. Standard (DIN/NIST) buffer solution PL 9: higher accuracy class than the technical range The key difference from the ‘technical’ WTW buffer solution range lies in the accuracy class and traceability. Technical buffer solutions are designed for daily routine calibration and reliably cover everyday laboratory work. The Standard (DIN/NIST) buffer solution PL 9 goes one step further: As a working reference buffer solution according to DIN 19266-01:2000, it is PTB/NIST-traceable and specified to ± 0.02 pH at 25 °C. This makes it a suitable choice wherever the calibration itself must be documented and traceable, such as in ISO/IEC 17025-accredited testing laboratories, in pharmaceutical analysis or in metrologically demanding research. Traceability as part of quality assurance Traceability means that the printed pH value can be traced back through an unbroken chain of comparison measurements to the national metrology institutes PTB and NIST. For a testing laboratory accredited to ISO/IEC 17025, this is precisely the difference between a plausible and a robust measurement: not only the electrode itself, but also the reference against which it was calibrated, must be documented and traceable. With PL 9, this requirement can be met via the batch identification. Buffer system: disodium tetraborate decahydrate (borax) PL 9 is based on disodium tetraborate decahydrate (borax, CAS 1303-96-4, concentration 0.3-<1 % in the mixture) as a buffer system and achieves a pH value of 9.18 at 20 °C, stated on the label as pH 9.180 according to DIN or pH 9.18 according to NIST. The density is 1 g/cm³, the melting point is 0 °C, the boiling point is 100 °C, and the dynamic viscosity at 20 °C is 0.952 mPas. Each bottle bears its own batch code with an expiry date, so that the batch used can be identified at any time and remains clearly traceable within the documentation of a quality management system. Hazard labelling according to GHS/CLP Unlike PL 4 and PL 7, PL 9 is classified as Repr. 1B under Regulation (EC) No 1272/2008 due to its content of disodium tetraborate decahydrate. The labelling comprises the hazard pictogram GHS08, the signal word ‘Danger’ and the hazard statement H360FD: ‘May damage fertility. May damage the unborn child.’ Precautionary statements: P280 (Wear protective gloves/protective clothing/eye protection/face protection), P308+P313 (If exposed or concerned: Get medical advice/attention) and P405 (Store locked up). The hazard-determining ingredient, disodium tetraborate decahydrate (CAS 1303-96-4), is also listed as a substance of very high concern (SVHC) in accordance with Article 57 of REACH, although it is present in the mixture only in a concentration of 0.3 to less than 1 %. The product is intended exclusively for professional users. Before use, refer to the safety data sheet, in particular the information on protective equipment and first-aid measures. Storage and handling It is recommended to store the product in the original, tightly sealed container at 15 to 25 °C, kept under lock and key in accordance with P405. According to TRGS 510, the solution is assigned to storage class LGK 6.1D, in contrast to storage class LGK 12 for the unclassified PL 4 and PL 7. For handling, the safety data sheet recommends protective gloves made of nitrile rubber with a material thickness of at least 0.11 mm and a breakthrough time of 480 minutes, as well as safety goggles with side protection. Respiratory protection is only required if aerosols or mists form. The product is non-flammable and is not classified as a dangerous good under the relevant transport regulations (ADR/RID/ADN/IMDG/IATA). Typical applications PL 9 is used wherever the calibration of a pH electrode in the alkaline range must not only be ‘adequate’ but also verifiable through documented evidence: Two- or three-point calibration of pH electrodes in the alkaline measuring range, in conjunction with the WTW buffer solutions PL 4 and PL 7 Traceable calibration in accredited testing laboratories according to ISO/IEC 17025 Quality control in pharmaceutical and active ingredient analysis Calibration prior to the analysis of alkaline samples, such as cleaning solutions or certain process waters Research institutions with stringent requirements regarding measurement uncertainty For buffer solutions according to DIN 19266-01:2000, the composition is specified directly in the standard. When PL 9 is used in conjunction with PL 4 and PL 7 for a three-point calibration, the trio covers the entire pH range relevant to practical applications, from acidic through neutral to alkaline, with the same accuracy class and the same traceability to PTB/NIST. As PL 9 is the only one of the three grades to be classified as a hazardous substance, care should be taken to note the different storage class, LGK 6.1D, when ordering and storing the calibration set together. Technical details Trade namePL 9 Buffer systemDisodium tetraborate decahydrate (borax), CAS 1303-96-4, concentration 0.3-<1 % pH value at 20 °C9.18 (labelled: pH 9.180 according to DIN / pH 9.18 according to NIST) Accuracy± 0.02 pH at 25 °C TraceabilityPTB/NIST StandardDIN 19266-01:2000 Density at 20 °C1 g/cm³ Melting point/freezing point0 °C Boiling point100 °C Dynamic viscosity at 20 °C0.952 mPas Physical state / Colour / OdourLiquid, colourless, odourless Classification (CLP)Repr. 1B Hazard pictogramGHS08 Signal wordDanger Hazard statement (H-statement)H360FD: May damage fertility. May damage the unborn child. Precautionary statements (P-statements)P280, P308+P313, P405 SVHC listing (REACH item no. 57)Yes, disodium tetraborate decahydrate, CAS 1303-96-4 Dangerous goodsNo Storage class (TRGS 510)LGK 6.1D Recommended storage temperature15-25 °C Container size250 ml Scope of delivery 1 bottle of WTW Standard (DIN/NIST) buffer solution PL 9, 250 ml, with batch number and expiry date Individual requirements and procurement service For complete three-point calibration, there are also the WTW Standard (DIN/NIST) buffer solutions PL 4 (pH 4.006/4.01) and PL 7 (pH 6.865/6.87). For the alkaline range of the technical accuracy class, there is also the WTW Technical buffer solution TPL 10 Trace (pH 10.01). You will find suitable pH electrodes for calibration in our range of electrodes. Our procurement service is on hand to assist you with additional accessories for your pH measurement technology or with individual procurement enquiries.
Content: 250 ml (€11.60 / 100 ml)
