Laboratory bottles
Borosilicate glass laboratory bottles provide safe, chemical-resistant storage for reagents and solutions, with clear graduations for quick volume checks. LT Laborhandel offers DURAN laboratory bottles with GL-45 threads, available with or without screw caps and pouring rings, in volumes ranging from 100 ml to 20 litres. You can also find suitable glassware under Beakers & Measuring Beakers and Flasks. Please contact us directly for larger purchase quantities.

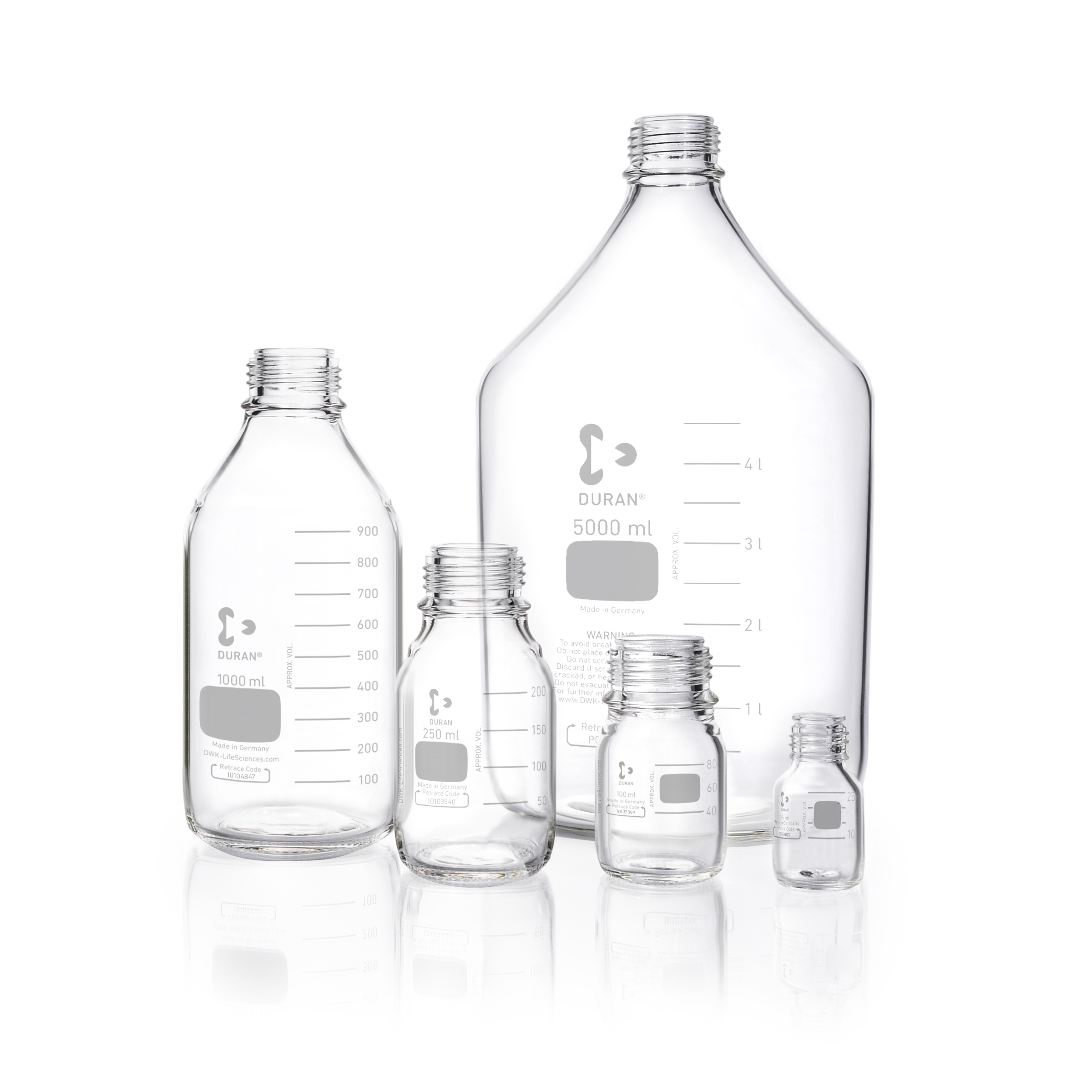

Duran laboratory bottle, clear, graduated, GL 45, without screw cap and pouring ring, 3,500 ml

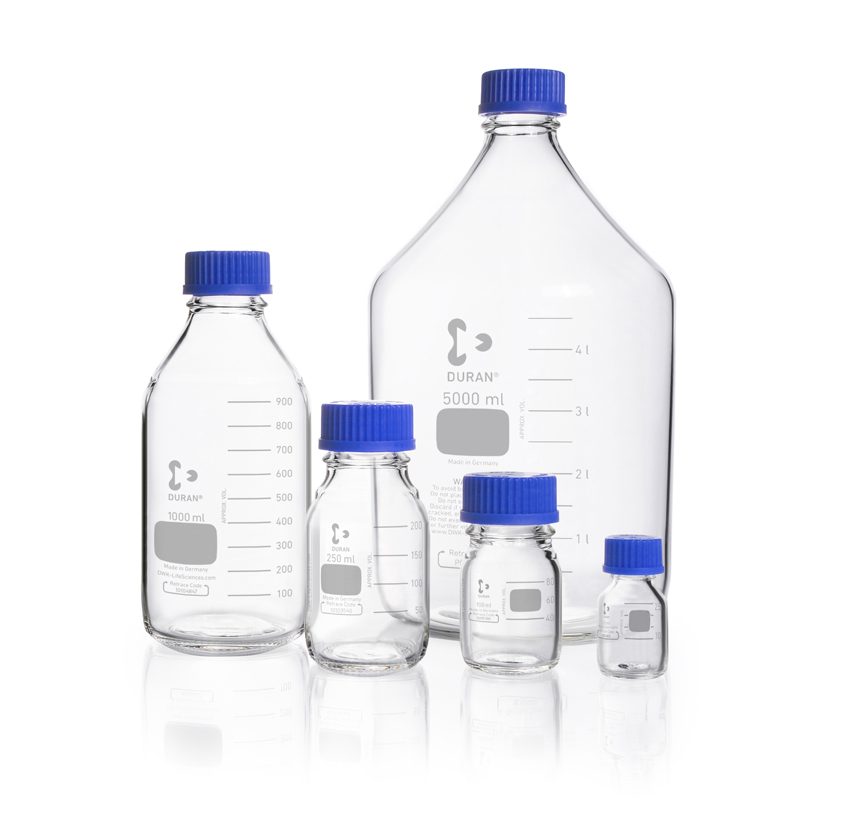

The DURAN Original graduated laboratory bottle is a narrow-neck bottle with a GL thread according to DIN 168-1, made from clear borosilicate glass 3.3. The thread type depends on the volume: GL 25 for 10 and 25 ml, GL 32 for 50 ml, and GL 45 for 100 ml and above. We offer the bottle in sizes ranging from 10 ml to 20 l, with or without a cap, as well as the 25-litre bottle with a cap. Matching screw caps are available for all three thread sizes.Glass and standardsThe glass complies with Type I according to USP <660>, EP 3.2.1 and JP <7.01> and meets ASTM E438 Type I Class A. The bottles are manufactured according to ISO 4796-1:2016, with the exception of the 10 ml bottle and the 25 ml bottle without a cap. An application has been submitted for the 25-ml bottle without a cap to be included in the standard. Each bottle bears a Retrace Code. This allows the batch to be traced; the certificate is available for download at cert.dwk.com.Closure and pouring ringThe version with a cap comes with a blue screw cap made of PP and a non-drip pouring ring made of PP; both are suitable for use up to 140 °C. All components are autoclavable at 121 °C or 134 °C. The version without a closure consists solely of the glass bottle.Graduation and volumeThe scale is fired on as a white print, with a labelling field for the contents next to it. The graduations serve as a guide when filling. The nominal volume is less than the brim-full volume: for the 100 ml bottle, the brim-full volume is 138 ml.Typical applicationsLong-term storage of solutions, buffers and reagents in glassSterilisation of media in autoclaves (version with cap, 121 °C or 134 °C)Storage where Type I glass according to USP, EP or JP is requiredDrip-free pouring via the pouring ring (version with cap)Documented work with batch traceability via the Retrace CodeVariants and MPNsThe table shows all sizes with dimensions and order numbers. Up to 2,000 ml, a pack contains 10 bottles; from 3,500 ml upwards, it contains one bottle.VolumeThreadØ (mm)Height with cap (mm)MPN with capHeight without cap (mm)MPN without capPack size (pieces)10 mlGL 253359218010851552180108021025 mlGL 253674218011453702180114041050 mlGL 3246912180117538721801170410100 mlGL 455610521801245810021801240910150 mlGL 456211521801295511021801290610250 mlGL 457014321801365113821801360210500 mlGL 458618121801445917621801440110750 mlGL 4595208218015155203218015106101 lGL 45101230218015455225218015406102 lGL 45136265218016357260218016308103.5 lGL 4516030021801695729521801690815 lGL 45182335218017353330218017304110 lGL 45227415218018658410218018609115 lGL 45268450218018855445218018806120 lGL 45288510218019157505218019108125 lGL 45316545218019251--1Technical detailsMaterialBorosilicate glass 3.3, clearGlass typeType I according to USP <660>, EP 3.2.1, JP <7.01>; ASTM E438 Type I Class AThreadDIN 168-1, GL 25 (10 and 25 ml), GL 32 (50 ml), GL 45 (from 100 ml)Volume10 ml to 25 lGraduationfired-on white print with a labelling fieldClosure (version with)Blue PP screw cap, PP pouring ring, up to 140 °CAutoclavable121 °C or 134 °C, all componentsStandardISO 4796-1:2016, except for 10 ml and 25 ml without closureTraceabilityRetrace Code on every bottleScope of deliveryWith cap: bottle, blue PP screw cap and PP pouring ringWithout cap: glass bottlePackaging unit 10 pieces up to 2,000 ml, 1 piece from 3,500 mlMatching productsFor preparation and mixing, we offer the DURAN Erlenmeyer flask and the DURAN beaker, low form.Individual requirements and procurement serviceWe can obtain other sizes, caps for the bottle without a cap, or larger quantities on request. Please contact us via the procurement service.
