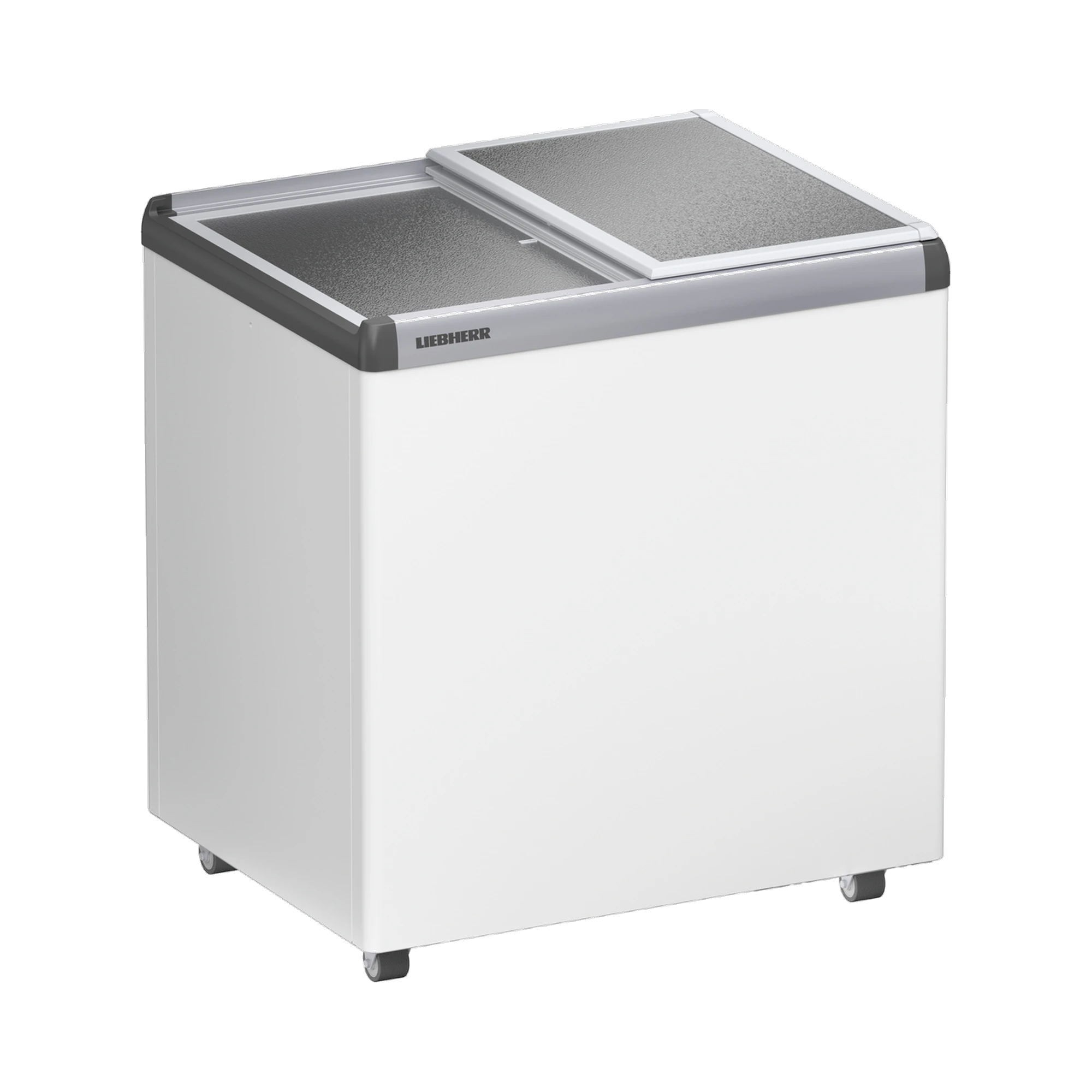

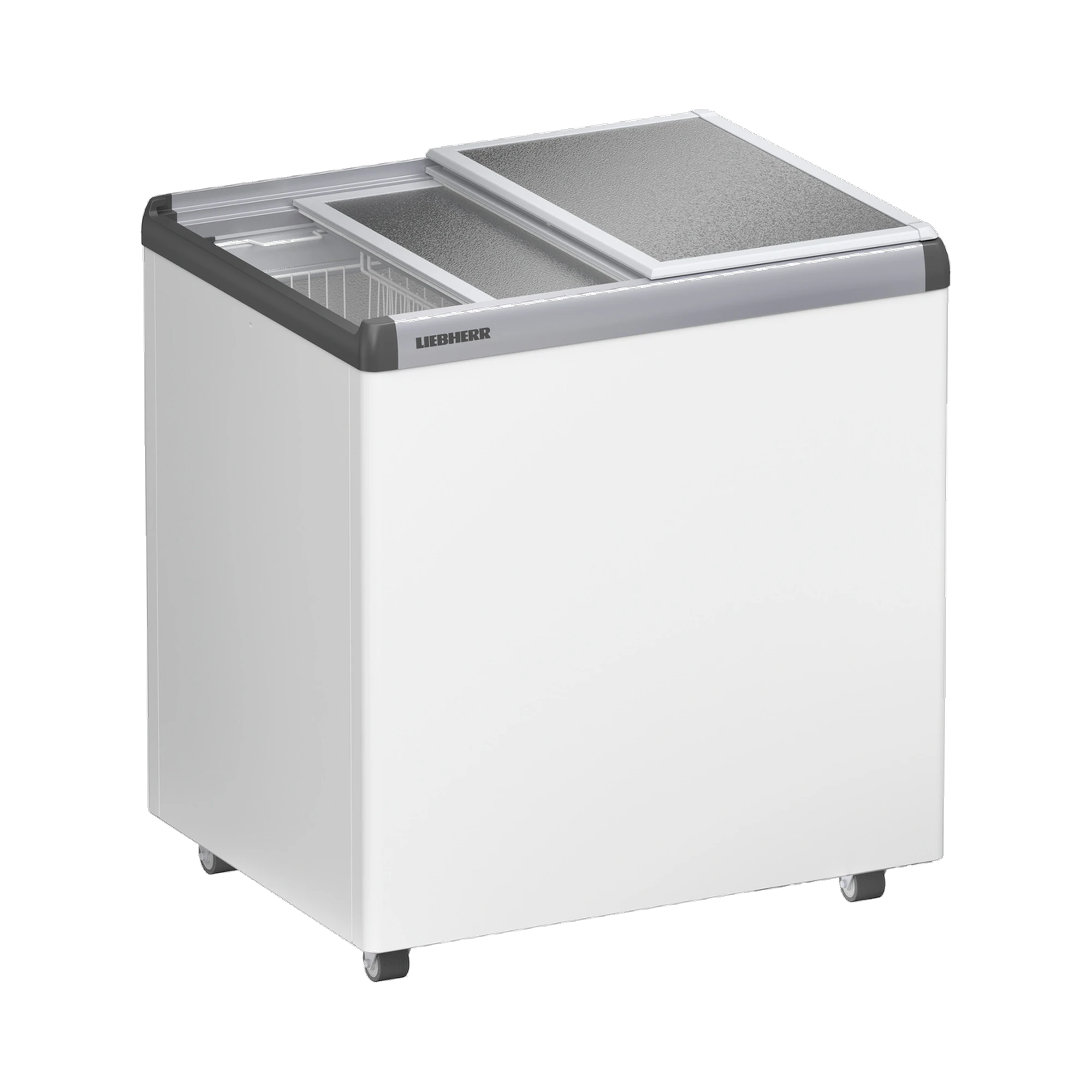

Liebherr EFE 2200 ice-cream freezer, static cooling, 213 litres, 993363651

At the ice-cream counter or in a kiosk, presentation often plays a key role in sales: items that are clearly visible and within easy reach sell better. The Liebherr EFE 2200 is an ice-cream freezer with static cooling and a gross capacity of 213 litres, which reliably keeps ice cream, snacks and frozen goods cold whilst remaining easy to operate.

Reliable cooling without technical complexity

The static cooling system maintains the interior temperature within the range of -10 °C to -24 °C; the temperature is monitored via an analogue display inside the unit. Defrosting is carried out manually, which requires little effort for a chest freezer of this size. The net capacity is 186 litres, sufficient for a wide range of ice cream and frozen products.

Practical aluminium sliding lid

The aluminium sliding lid is easy to open and close without allowing much cold air to escape. The housing and inner container are made of steel, robust enough for daily use in retail environments. The compact external dimensions of 82.5 x 83.5 x 66 cm make the chest well-suited for smaller retail spaces such as kiosks or snack bars.

Economical to run

The natural refrigerant R 600a is used, with a charge of 45 grams; the connected load is a low 1.5 A. The chest is designed for ambient temperatures ranging from +10 °C to 35 °C. According to the data sheet, energy consumption is around 1.132 kWh per 24 hours, or 380 kWh per year.

Connection and fuse protection

The EFE 2200 operates at 50 Hz with a voltage of 220 to 240 volts and is supplied via a 3-metre-long connection cable. A mechanical lock can be retrofitted, allowing the chest freezer to be secured against unauthorised access if required. Defrosting is carried out manually, which takes very little time given the unit’s size and can be easily integrated into the cleaning routine.

Good overall impression for the sales area

With a gross capacity of 213 litres, the EFE 2200 offers sufficient space for a basic range of ice cream and frozen products without taking up much floor space. The steel inner container and the aluminium sliding lid make the chest robust enough for daily use in high-traffic locations such as kiosks or snack bars. As it does not feature active forced-air cooling, the unit operates quietly, which is particularly noticeable in smaller retail spaces without a separate storage room. The EFE 2200 is therefore well suited for those starting out in ice cream sales or as a reliable addition to an existing product range.

Typical applications

The EFE 2200 is suitable for selling ice cream, snacks and frozen products at locations with limited space:

• Sale of ice lollies and pre-packaged ice cream
• Displaying snacks and frozen products in kiosks
• As an additional unit alongside an existing refrigerated display counter at petrol stations
• Frozen food range in snack bars and smaller catering establishments

Delivery and installation

The EFE 2200 is manufactured at the Kluang plant in Malaysia and is delivered packaged, measuring 84.4 x 68.3 x 85.0 cm with a gross weight of 52.20 kg. Once installed, the chest measures 82.5 x 83.5 x 66 cm, with a net weight of 47.50 kg. The steel inner container is easy to clean, which keeps the effort involved in day-to-day operation to a minimum. Its comparatively low weight also makes it easier to transport and position at the desired location.

Technical details

EU energy label

As a retail refrigeration unit, the EFE 2200 bears the EU energy label; the official label indicates Class C. Scale A to G in accordance with Regulation (EU) 2019/2018.

Contents

• 1x Liebherr EFE 2200 ice cream freezer, ready for use
