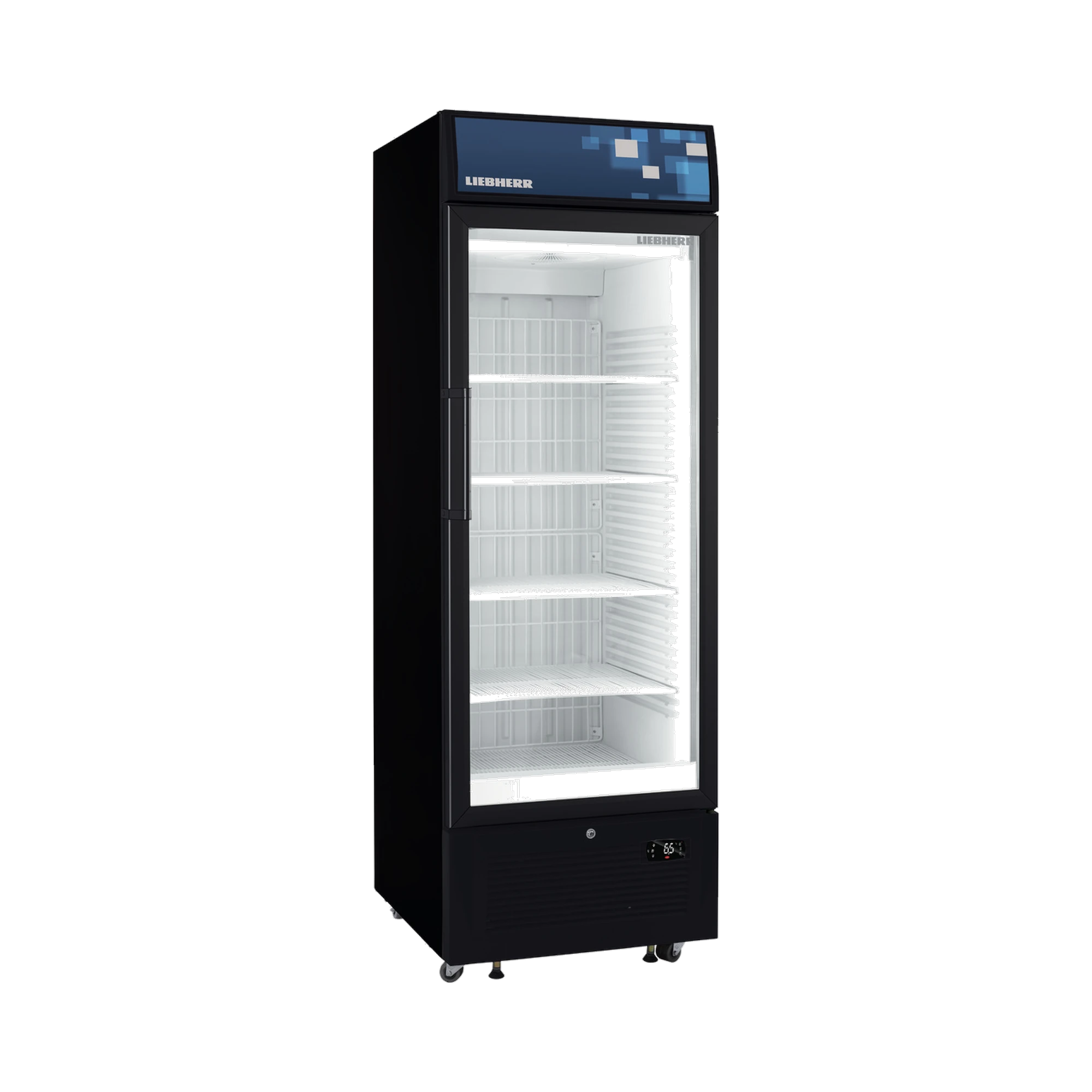

Liebherr FDvb 4643 deep-freeze display cabinet, vertical forced-air cooling with glass door, 991682151

Frozen goods sell better when customers can see them straight away without having to open a flap. The Liebherr FDvb 4643 is a vertical frozen food display cabinet with forced-air cooling and a glass door, which presents goods attractively across a gross capacity of 461 litres whilst maintaining a stable temperature throughout the day.

Circulating-air cooling with a clear view

The forced-air cooling system distributes the cold air evenly throughout the interior and maintains a stable temperature range of -10 °C to -25 °C, even with frequent door openings. The defrost cycle runs automatically. The glass door provides a clear view of the product range at all times, whilst LED lighting ensures the goods are well illuminated.

Flexible storage

There are five shelves in the freezer compartment, four of which are height-adjustable, allowing packaging of different sizes to be accommodated. The net capacity is 307 litres. The ergonomic bar handle makes opening the door easier, even with frequent use during daily operations, and the door hinge can be reversed.

Stable even with high customer traffic

The temperature in the freezer compartment is displayed digitally on the outside; any fault is indicated visually and audibly. The height-adjustable feet (100 to 150 mm) compensate for uneven floors, whilst the mechanical lock provides additional security for the contents. The display cabinet is designed for ambient temperatures ranging from +10 °C to 30 °C.

Connected and energy-efficient

The unit features a Wi-Fi/LAN interface for connection to a monitoring solution. The natural refrigerant R 290 is used, with a charge of 115 grams and a connected load of 4.4 A. According to the data sheet, energy consumption is around 5.340 kWh per 24 hours or 2,830 kWh per year, which is realistic given the unit’s size and the fact that it features continuous recirculating air cooling with a glass door.

Connection and operating specifications

The FDvb 4643 operates at 50 Hz with a voltage of 220 to 240 volts and is powered via a 3.3-metre-long connection cable. The display cabinet is designed for ambient temperatures of +10 °C to 30 °C, a slightly narrower range than that of the ice-cream freezers in the same series, which must be taken into account when choosing its location in the sales area. The automatic defrosting process is controlled in the background without the need for manual intervention.

Typical applications

The FDvb 4643 is suitable as a vertical display unit for frozen goods wherever products are to be actively displayed rather than simply stored in a closed cabinet:

• Display of frozen snacks and ready-made products in bakeries
• Supplementary display unit in smaller supermarkets
• Frozen food range at petrol stations with a focus on visibility
• Sales area for frozen goods in farm shops

Delivery and installation

The FDvb 4643 is manufactured at the Kluang plant in Malaysia and is delivered packaged with dimensions of 68.4 x 78.3 x 203.8 cm and a gross weight of 154.00 kg. Once installed, the display unit measures 195.7 x 67 x 73 cm, with a net weight of 141.00 kg. The height-adjustable feet (100 to 150 mm) also compensate for uneven flooring in the sales area. When the door is open, the unit occupies a width of 67.0 cm; it is worth bearing this in mind when planning walkways in the sales area.

Technical details

EU energy label

As a retail refrigeration unit, the FDvb 4643 bears the EU energy label; the official label indicates class C. Scale A to G in accordance with Regulation (EU) 2019/2018.

Contents of delivery

• 1x Liebherr FDvb 4643 deep-freeze display cabinet, ready for use

Customised requirements & procurement service

Whether you’re looking to expand your frozen food sales area or combine this unit with other suitable display units, LT Laborhandel’s procurement service will help you select the right additions for the FDvb 4643.
